The optimum running angle is determined during the set-up process after the installation of your Auto Glide system. Imagine that your boat’s running angle is measured 25 times per second and this data is used by the new Auto Glide control box to; Automatically put your boat in the most efficient running angle, reduce the amount of bow rise of your boat during hole shot mode, eliminate bow porpoising (bow bounce), keep your boat level at all times.

Automatically trims boat to the most fuel efficient position
Takes the trim tab operation out of the hands of the operator while allowing for manual override at the touch of a button
Reduces time to plane
Does not adjust during turns, allowing boat to roll naturally
Safety – minimises bow rise and improves boat’s hole shot performance
Built-in automatic trim tab retraction

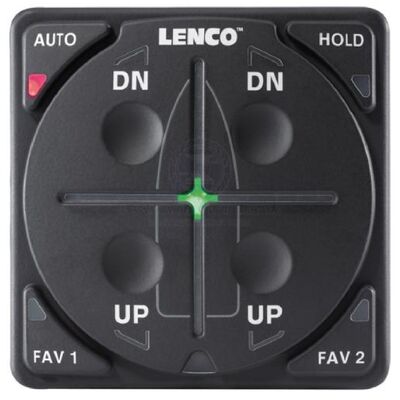

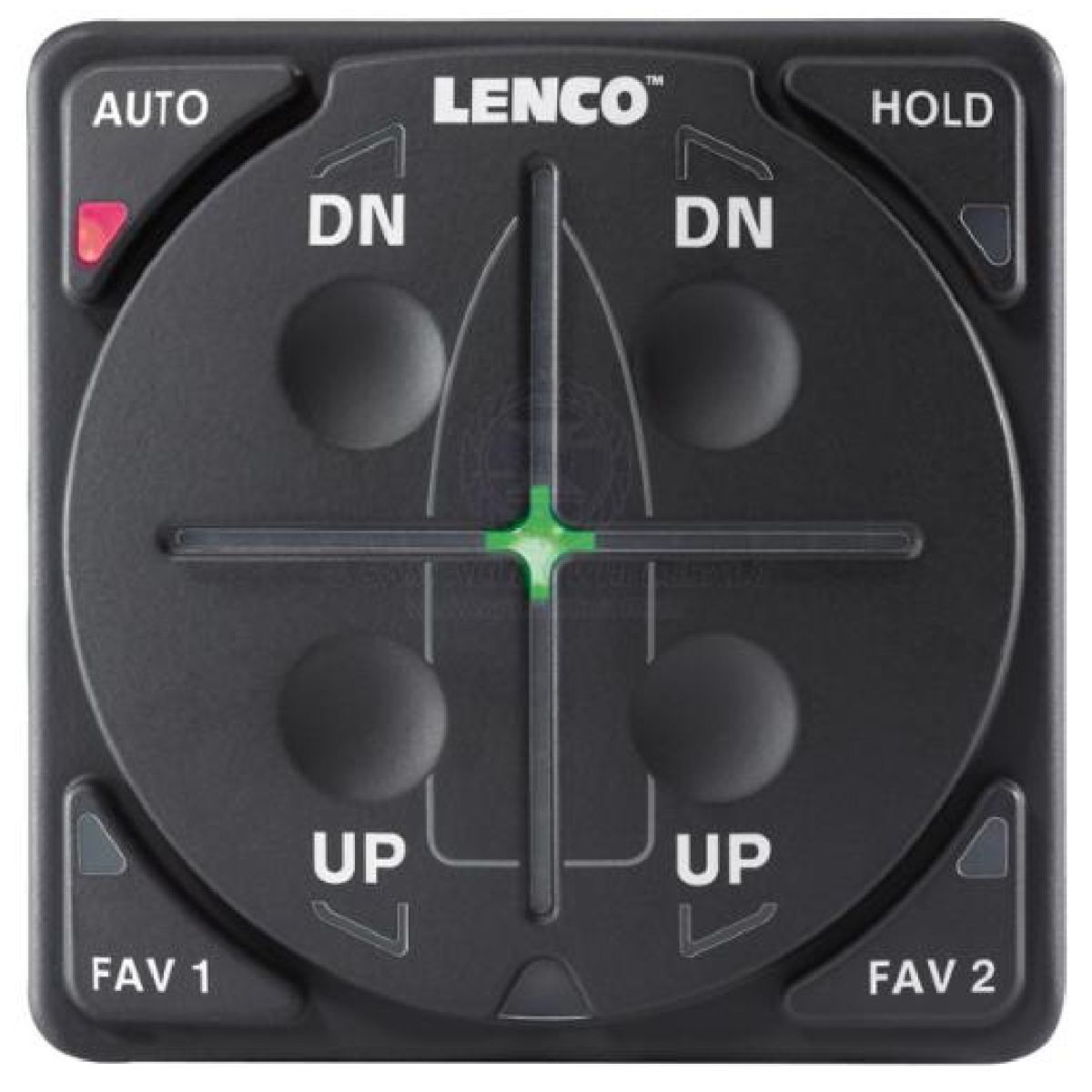

Waterproof key pad and control box
Three custom settings: “Hold” mode and (2) “Favourite” modes
Increase in fuel savings
Can be installed on any boat with Lenco electric actuators
Fast and easy installation
2 Year warranty

Part No. 55662

Volts 12V/24V

Suits Single Actuator Per Plate


SKU LEN.15504-101
Model # 15504-101
Brand Lenco Marine
Shipping Weight 2.2670kg
Shipping Width 0.320m
Shipping Height 0.320m
Shipping Length 0.127m
Shipping Cubic 0.013004800m3
Unit Of Measure ea

Warranty 2 Year
