The MultiPlus is an inverter and charger combination supporting easy installation by way of the Victron MK3-USB interface cable, including the following features:

  • True sine wave inverter
  • Adaptive charging
  • Hybrid PowerAssist
  • PowerControl
  • Multiple system integration

The PowerAssist feature will enable the unit to supplement the alternative source. The unit will compensate for supply from the battery at times of insufficient power and when no longer required, the excess power will be used for charging. It is therefore no longer necessary to size a generator on the maximum peak load. Use the most efficient size generator instead.

The advanced ‘adaptive charge’ software fine-tunes the three-stage automatic process to suit the battery condition and how the battery is being used, preventing damage and ensuring less maintenance is required. A fourth stage charge [also called the Storage mode] delivers a longer period of float charging. In addition, the Multiplus will charge a second battery using an independent trickle charge output.

Should there be a grid failure the UPS capability of the inverter is automatically activated. With some units having the ability to enable 6 Multis operating in parallel there is potentially close to uninterrupted and unlimited power.

If three phase power is required, then multiple units can be connected in parallel and configured with the combinations delivering up to 75KW/90 kVA inverter and more than 2000 Amps charging capacity.

Victron Power Assist



Configuring parallel and three-phase systems is made simple with the VE.Configure software tool which allows the installer to put components together without any hardware changes or dipswitches, using standard products.

Monitoring and configuring functionality offers seamless control, both on-site and off-site.

For detailed information on this product, click on the links to the right.

View additional information on system designs and upgrades.

Boat and Yacht Electrical System Upgrade

Caravan Electrical System Design



Victron EasyPlus Basic Setup



The basics of using VE Configure

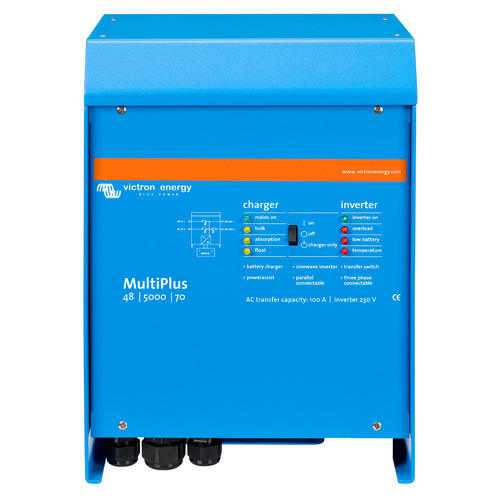

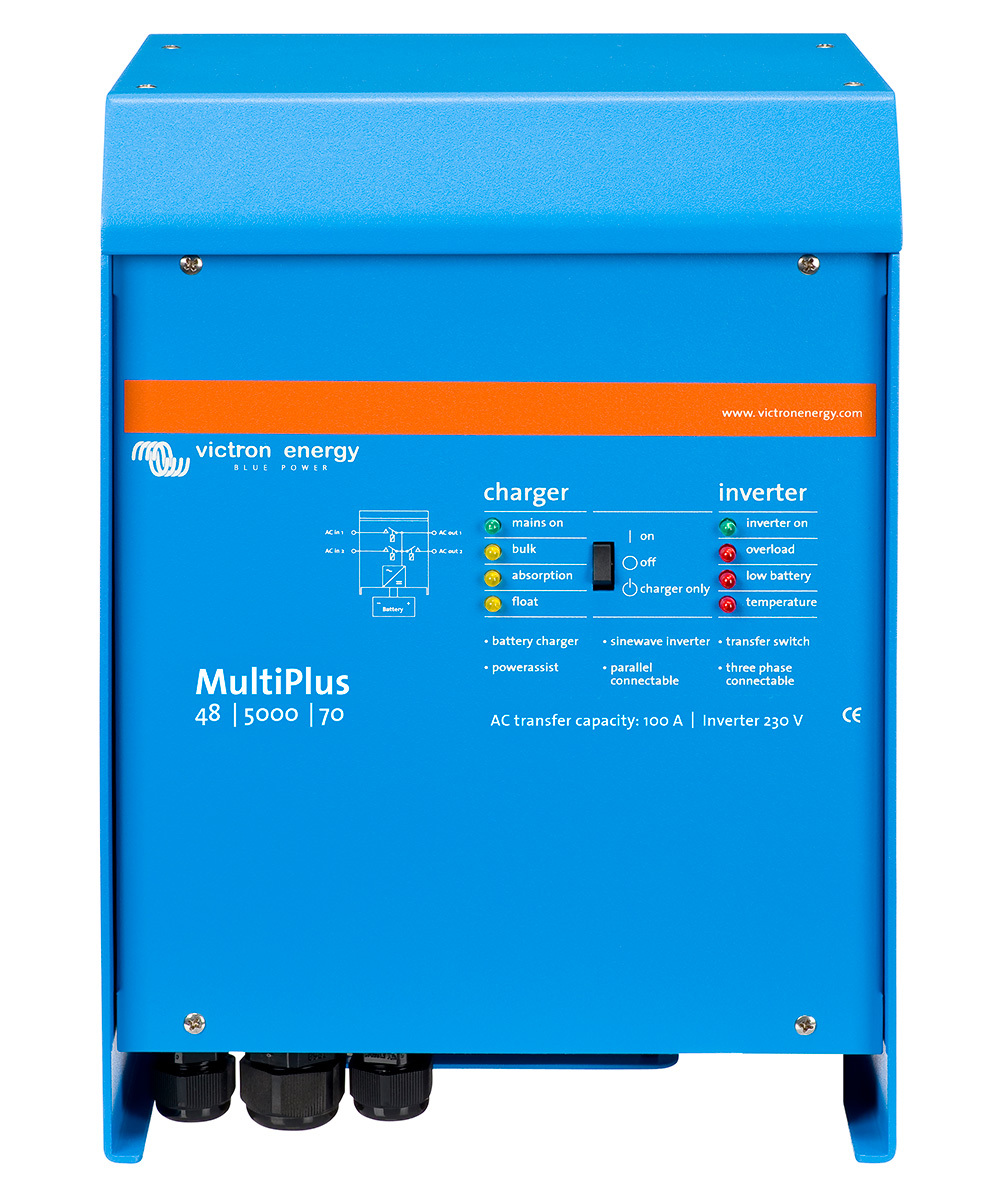

MultiPlus 48 Volt 48/5000/70
PowerControl Yes
PowerAssist Yes
Transfer switch (A) 100
INVERTER
Input voltage range (V DC) 9,5 – 17 V 19 – 33 V 38 – 66 V
Output Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1% (1)
Cont. output power at 25°C (VA) (3) 5000
Cont. output power at 25°C (W) 4000
Cont. output power at 40°C (W) 3700
Cont. output power at 65°C (W) 3000
Peak power (W) 10.000
Maximum efficiency (%) 94 / 95
Zero load power (W) 30 / 35
Zero load power in AES mode (W) 25 / 30
Zero load power in Search mode (W) 10 / 15
CHARGER
AC Input Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz Power factor: 1
Charge voltage 'absorption' (V DC) 14,4 / 28,8 / 57,6
Charge voltage 'float' (V DC) 13,8 / 27,6 / 55,2
Storage mode (V DC) 13,2 / 26,4 / 52,8
Charge current house battery (A) (4) 120 / 70
Battery temperature sensor yes
GENERAL
Auxiliary output (5) Yes (50A)
Programmable relay (6) Yes
Protection (2) a - g
VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration
General purpose com. port Yes
Remote on-off Yes
Common Characteristics Operating temp. range: -40 to +65°C (fan assisted cooling) Humidity (non-condensing): max 95%
ENCLOSURE
Common Characteristics Material & Colour: aluminium (blue RAL 5012) Protection category: IP 21
230 V AC-connection M6 bolts
Weight (kg) 30
Dimensions (hxwxd in mm) 444 x 328 x 240
STANDARDS
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
Emission, Immunity EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Road vehicles 12V and 24V models: ECE R10-4
Anti-islanding See Victrons website
1) N/A for AU
2) Protection key:
a) output short circuit
b) overload
c) battery voltage too high
d) battery voltage too low
e) temperature too high
f) 230 VAC on inverter output
g) input voltage ripple too high
SKU VIC.PMP485021010
Model # PMP485021010
UPC/EAN 8719076024088
Brand Victron Energy
Shipping Weight 35.0000kg
Shipping Width 0.530m
Shipping Height 0.340m
Shipping Length 0.440m
Shipping Cubic 0.079288000m3

Purchase with confidence knowing your product is covered by the Victron 5-year manufacturer warranty.
