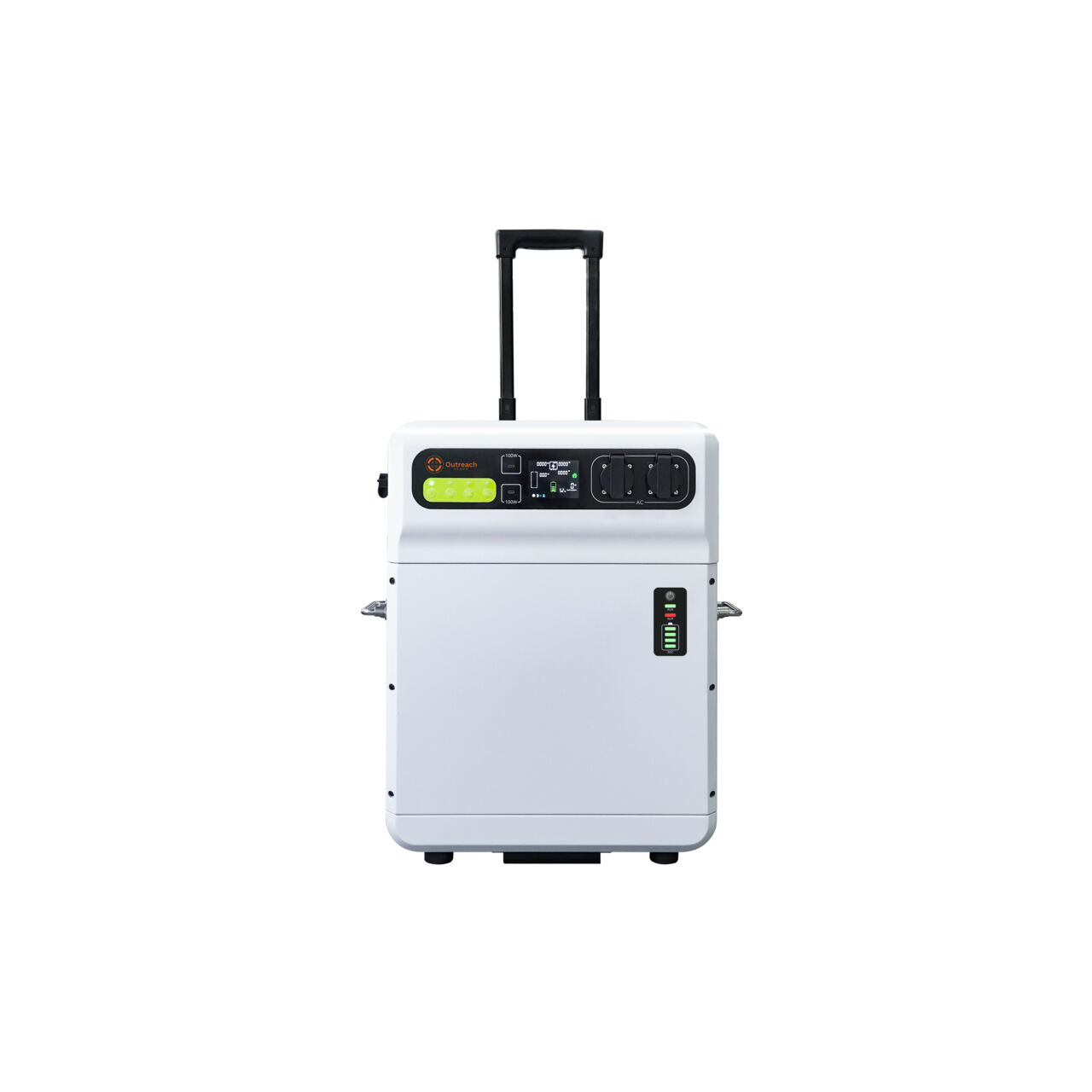

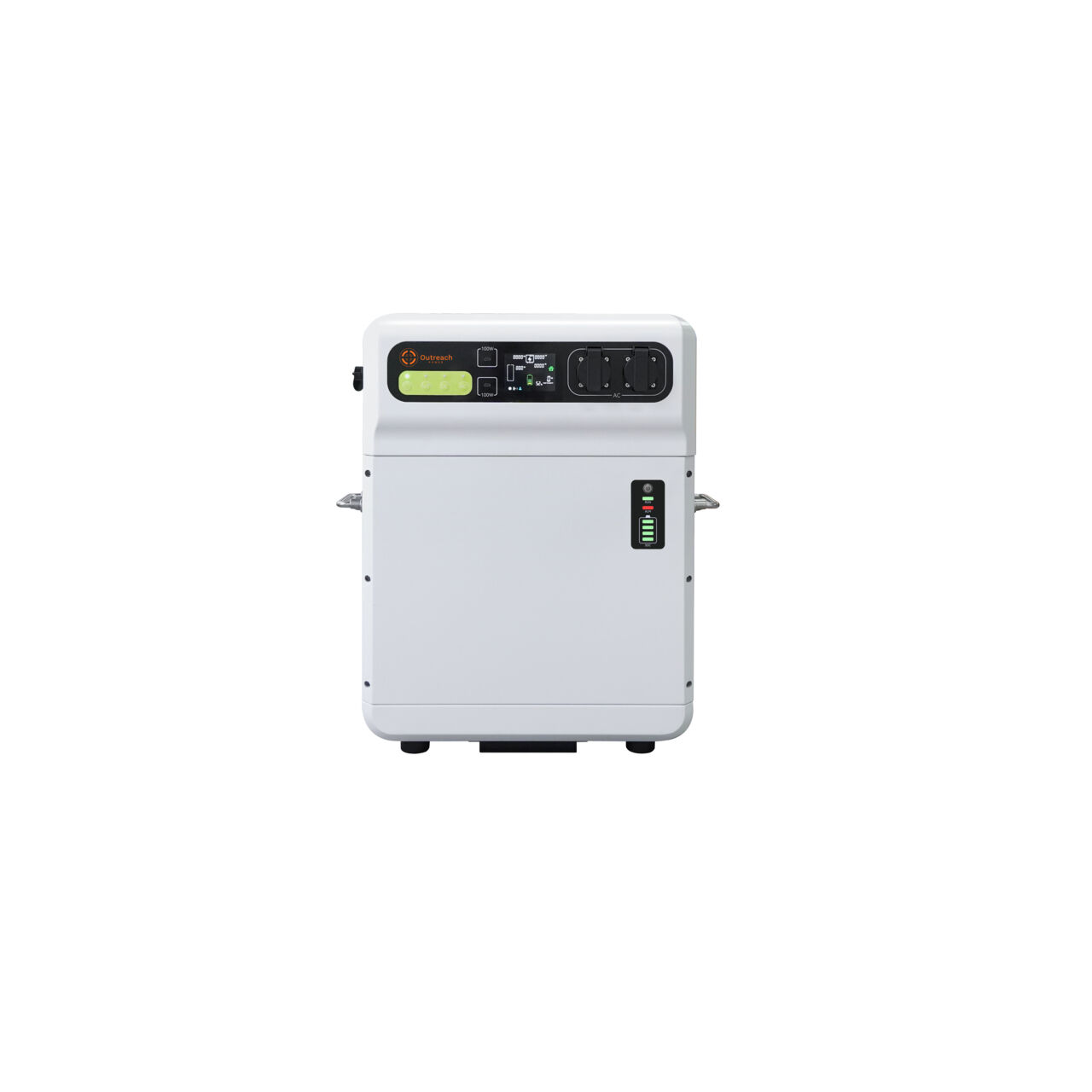

Outreach Power all in one 4kW/10kWh wall mount ESS
All-in-one 4kW/10kWh portable ESS with modular expandability, dual solar input, Wi-Fi monitoring, and rugged IP54 build for reliable off-grid and backup power needs.
SKU: PYL.OPLB-AIO0410-FP-AU | MPN: OPLB-AIO0410-FP-AU
SAVE $303.33 (4%)
Available at Supplier
In Stock at our Suppliers Warehouse
Typically ships same/next business day
High-Capacity All-in-One Portable Power for Reliable Off-Grid Supply
The Outreach Power all-in-one 4kW/10kWh portable ESS delivers double the storage capacity for extended runtimes and heavier power demands. Designed for residential, mobile, and commercial applications, it combines fast charging, dual MPPT solar inputs, and pure sine wave output with modular expandability. With durable protection, smart monitoring, and a portable design, it ensures reliable energy anywhere it’s needed.
Key Features
- Expanded storage capacity: 10.24 kWh LiFePO₄ battery supports longer runtimes and higher loads.
- Robust AC output: 4 kW continuous and 8 kW surge power for essential and heavy-duty appliances.
- Fast recharge performance: Recharges 0–100% in 3 hours with high-power AC charging.
- Dual MPPT solar input: High-voltage (MC4) up to 3000 W and low-voltage (XT60) up to 600 W.
- Pure sine wave stability: Consistent 230 V AC with <1.5% THD for sensitive electronics.
- Modular and scalable: Expandable up to 20 kWh to match growing energy needs.
- Built for reliability: IP54-rated with advanced protection against overcurrent, voltage spikes, and overheating.
- Smart connectivity: Wi-Fi monitoring and app-based control for remote management.

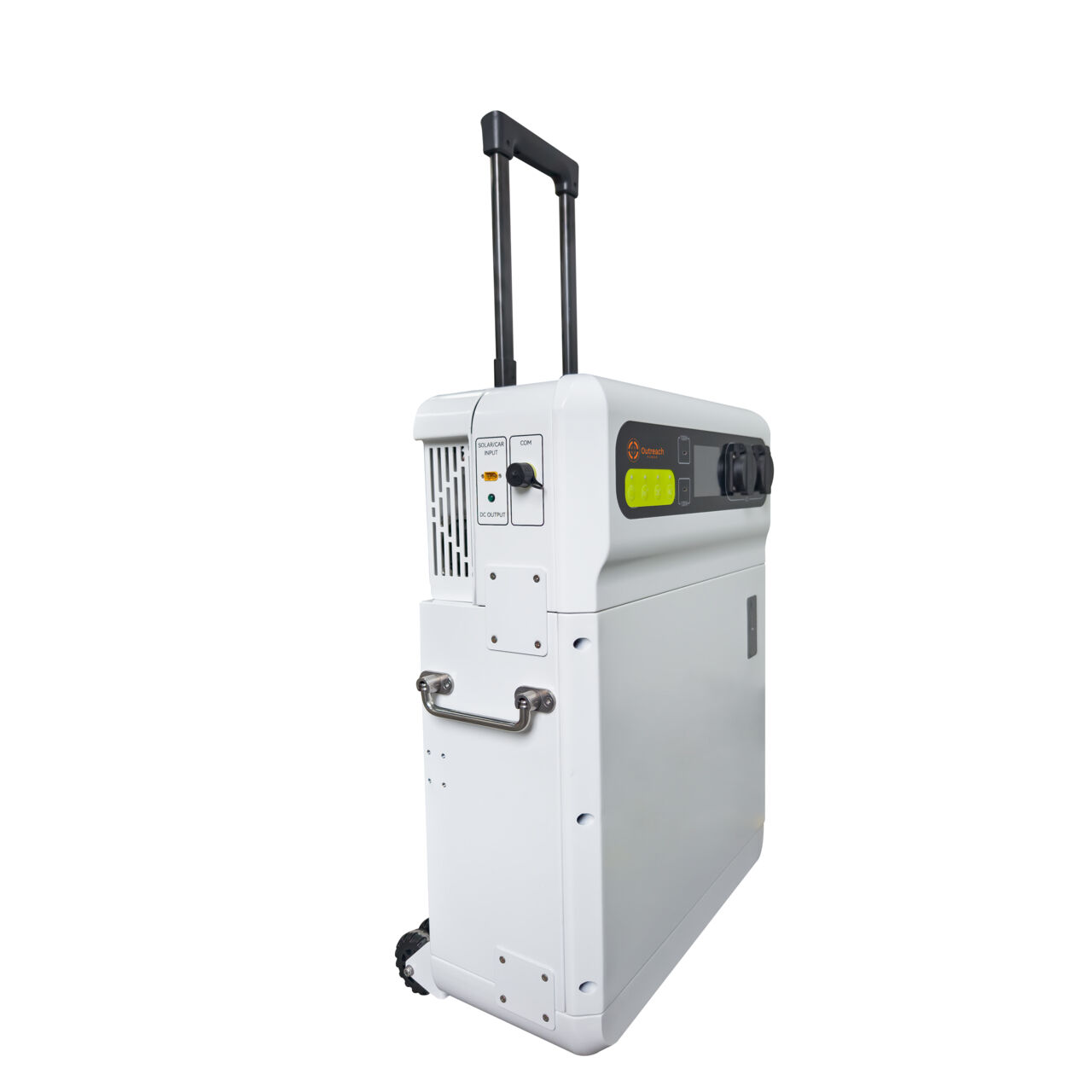

- Portable convenience: Telescopic handle and wheels for easy transport and setup.
- Long lifecycle: 4000+ cycles provide dependable long-term value and performance.
This expanded-capacity ESS is ideal for households, businesses, and mobile setups requiring greater energy autonomy with the same portability and reliability.
Product Specifications | |
---|---|
Cell Type | LiFePO₄ |
Battery Capacity (Wh) | 10240 |
Nominal AC Output Power | 4000 W |
Surge Power | 8000 W |
AC Charging Power | 3600 W |
Recharge Time | Approx. 3 hours |
Solar Input (MC4) | 3000 W, 70–450 VDC, 16 A |
Solar Input (XT60) | 600 W, 12–50 VDC, 12 A |
AC Voltage | 220 / 230 / 240 V |
Frequency | 50–60 Hz |
Efficiency | Battery to AC 93%, PV to AC 97.5% |
Life Cycles | 4000+ |
Ingress Protection | IP54 |
Dimensions (mm) | 510 × 673 × 266 (per module) |
Weight (kg) | Approx. 110 (with dual modules) |
Noise | <40 dB |
Communication | Wi-Fi |
Portability | Telescopic handle and wheels |
SKU | PYL.OPLB-AIO0410-FP-AU |
Model # | OPLB-AIO0410-FP-AU |
Brand | Outreach Power |
Shipping Weight | 32.0000kg |
Unit Of Measure | ea |
