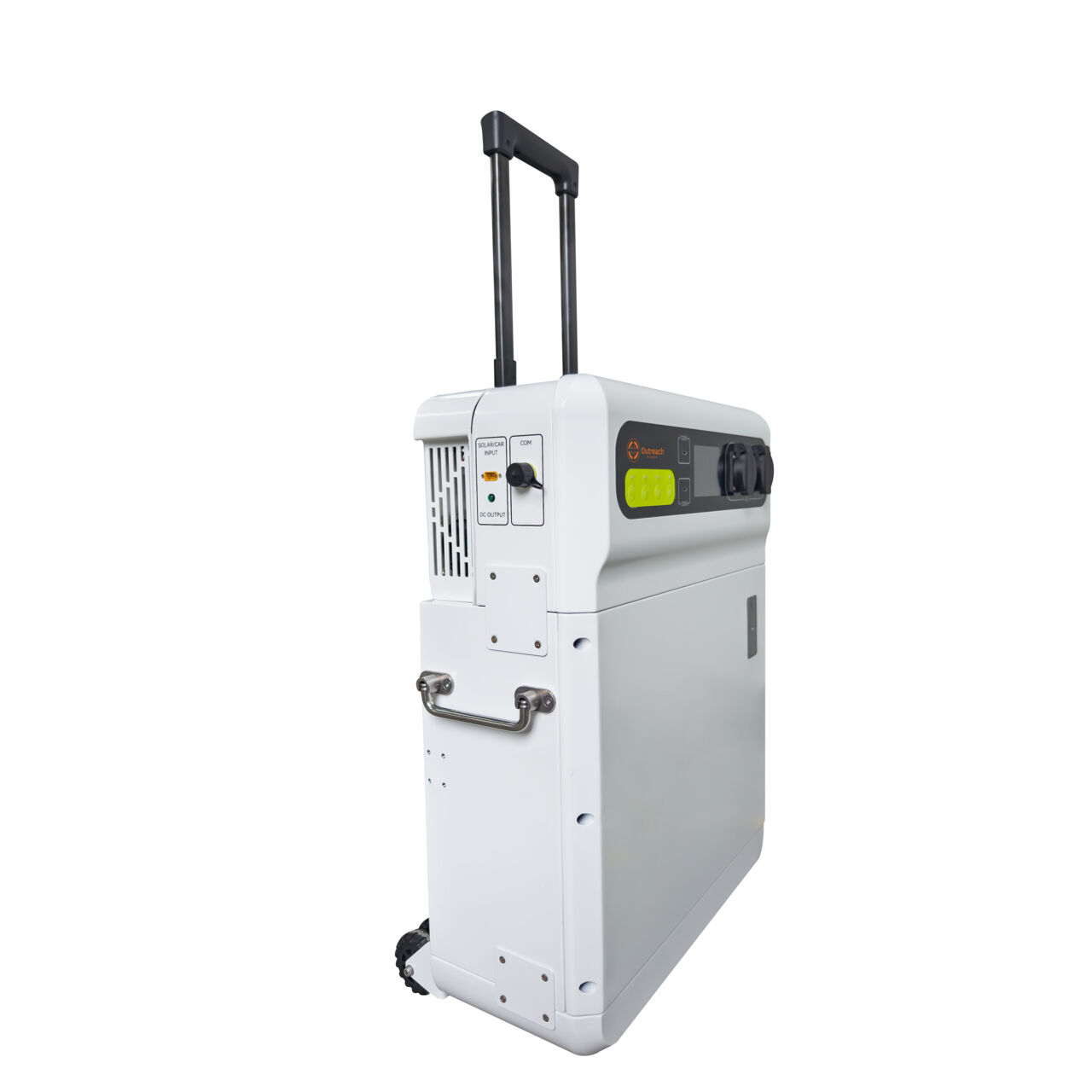

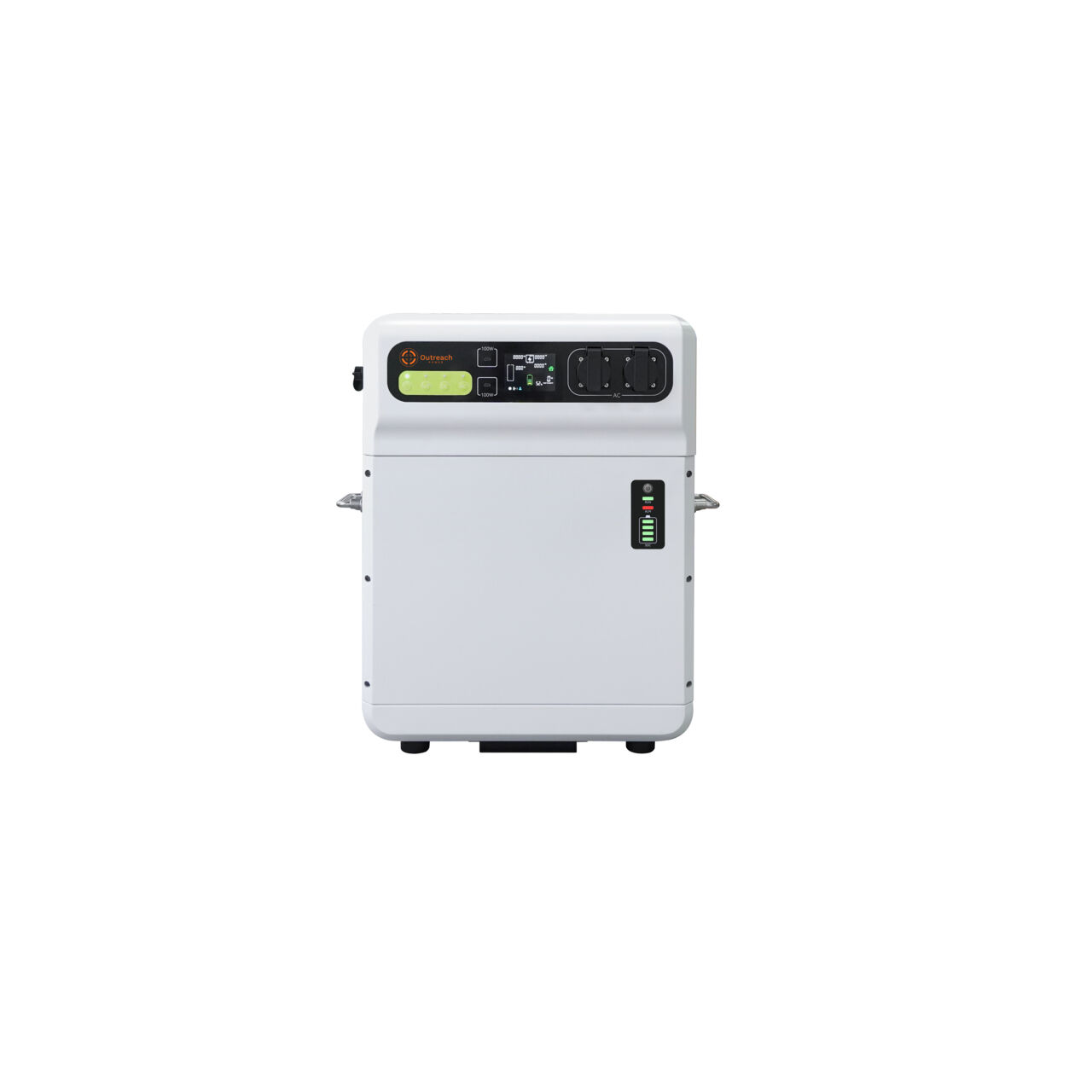

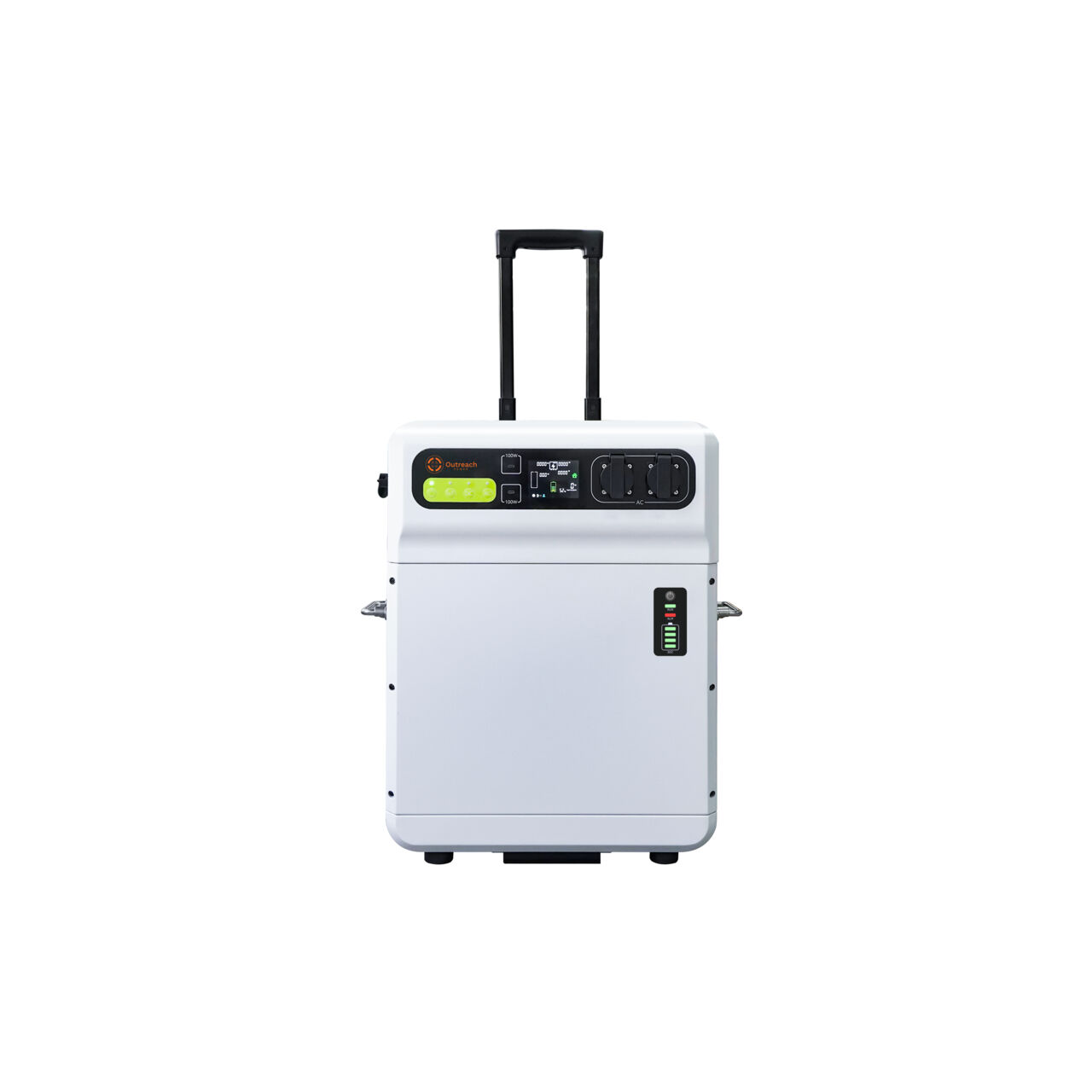

Outreach Power all in one 4kW/5kWh portable ESS
All-in-one 4kW/5kWh portable ESS with fast charging, dual MPPT solar input, modular expandability to 20kWh, Wi-Fi monitoring, and rugged IP54 protection for off-grid power.
SKU: PYL.OPLB-AIO0405-PP-AU | MPN: OPLB-AIO0405-PP-AU
SAVE $209.50 (4%)
Available at Supplier
In Stock at our Suppliers Warehouse
Typically ships same/next business day
Reliable All-in-One Portable Energy Storage Solution for Off-Grid Power
The Outreach Power all-in-one 4kW/5kWh portable ESS delivers a powerful, expandable energy storage system designed for residential, commercial, and mobile off-grid applications. With fast charging capability, dual MPPT support, and modular design, it provides reliable clean energy whether paired with solar panels, grid supply, or used as a backup power source. Its rugged construction, intelligent cooling, and smart control features ensure dependable performance in diverse environments.
Key Features
- High-capacity storage: 5.12 kWh LiFePO₄ battery supports long runtimes and heavy loads.
- Strong AC output: 4 kW continuous and 8 kW surge power for demanding devices.
- Fast recharge time: 0–100% charge in just 1.5 hours per module.
- Dual MPPT support: 3000 W high-voltage (MC4) and 600 W low-voltage (XT60) solar input.
- Pure sine wave output: Stable 230 V AC power with <1.5% THD for sensitive equipment.
- Expandable system: Scales up to 20 kWh with modular battery design.
- Durable protection: IP54-rated enclosure with overcurrent, overvoltage, and temperature safeguards.
- Smart connectivity: Wi-Fi enabled for monitoring and control via mobile app.
- Portable design: Integrated telescopic handle and wheels for easy transport.
- Long lifecycle: Over 4000 charge cycles ensure lasting investment value.
This portable ESS offers a dependable and versatile power solution for off-grid living, mobile setups, and backup energy needs, ensuring continuous power wherever it’s required.
Product Specifications | |
---|---|
Cell Type | LiFePO₄ |
Battery Capacity (Wh) | 5120 |
Nominal AC Output Power | 4000 W |
Surge Power | 8000 W |
AC Charging Power | 3600 W |
Recharge Time | 1.5 hours per module |
Solar Input (MC4) | 3000 W, 70–450 VDC, 16 A |
Solar Input (XT60) | 600 W, 12–50 VDC, 12 A |
AC Voltage | 220 / 230 / 240 V |
Frequency | 50–60 Hz |
Efficiency | Battery to AC 93%, PV to AC 97.5% |
Life Cycles | 4000+ |
Ingress Protection | IP54 |
Dimensions (mm) | 510 × 673 × 266 |
Weight (kg) | 65 |
Noise | <40 dB |
Communication | Wi-Fi |
Portability | Telescopic handle and wheels |
SKU | PYL.OPLB-AIO0405-PP-AU |
Model # | OPLB-AIO0405-PP-AU |
Brand | Outreach Power |
Shipping Weight | 32.0000kg |
Unit Of Measure | ea |
