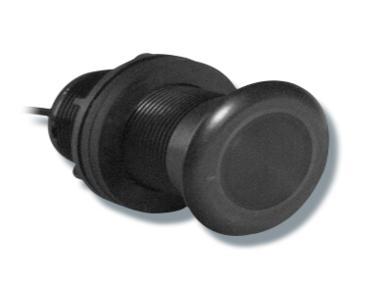

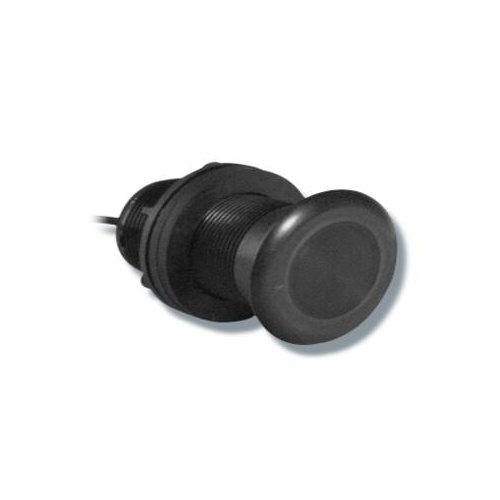

Raymarine P319 600W Depth & Temp Plastic Through Hull Transducer (CP370 8-pin)

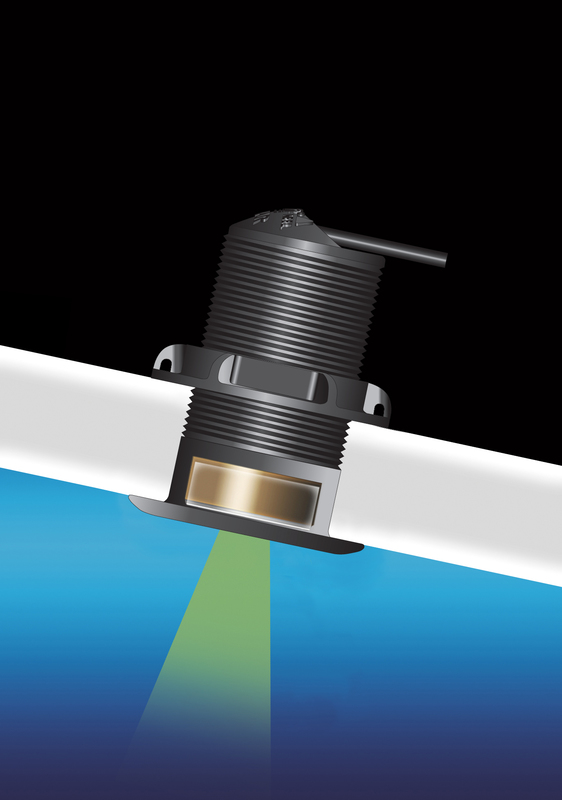

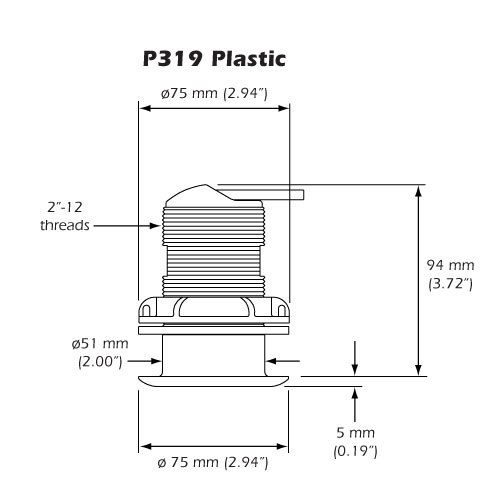

The P319 features a 50/200 kHz, dual-frequency, single-ceramic element in a low-profile housing. The nearly-flush design minimizes drag with only 5 mm extending outside of the hull.
- Availability:
- SKU: RAY.E66077
- Power: 600W
- Connection: DSM
- Function: Depth Temp
- Angle: 0 Degree
- Mount: Thru Hull
- Manufacturer: Raymarine
- MPN: E66077
- Shipping Weight: 1.30kg
Insurance
All shipments are covered for loss or damage while in transit up to the point of delivery to the nominated shipping address. Insurance does not cover goods left on your premises under your instruction.
The P319 features a 50/200 kHz, dual-frequency, single-ceramic element in a low-profile housing. The nearly-flush design minimizes drag with only 5 mm extending outside of the hull.
- Depth and temperature
- Good target detail in shallow-water at 200 kHz and good deep-water bottom tracking at 50 kHz
- Right angle cable exit offers low headroom and protection when transducer is stepped on
- Included rubber washer allows tightening of the hull nut to irregular hull surfaces
- Plastic transducer housing
- Boat Size: up to 8 m (25’)
(RAY.E66077)
