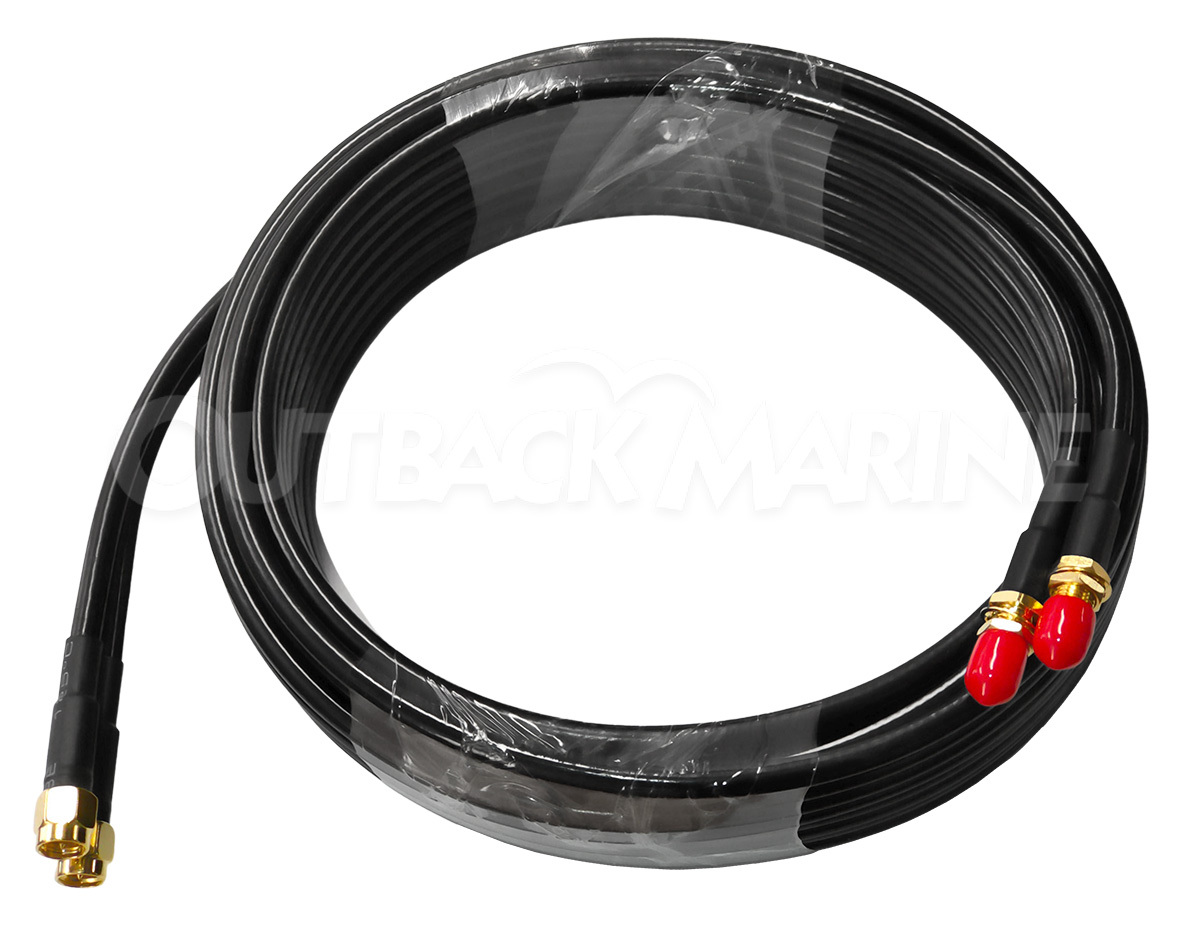

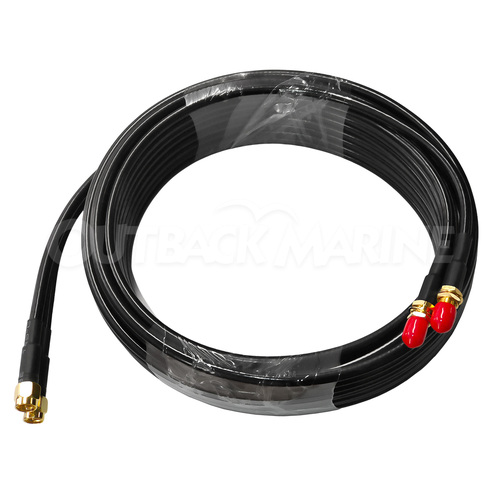

This twin siamese cable HDF195 SMA(M)- TO SMA(F) is perfect to extend the cables on the Poynting OMNI-402 MIMO LTE marine antenna

FEATURES

  • HDF195 Low Loss Cable
  • SMA Female to SMA Male
  • Length: 2x 5 meter (16.4ft)
  • Dielectric diameter: 2.84mm
  • Type: straight
  • Material: Brass



Poynting A-CAB-092 Technical Specifications

Electrical Specifications

  • Capacitance: 24.3pF/m
  • Conductor: Bare Copper Wire
  • Shield Coverage: 88%
  • Minimum Bend Radius: 12.7mm
  • Input Impedance 50 Ohm (nominal)
  • Cable loss:
    - 0.25dB/m @ 450 MHz
    - 0.35dB/m @900 MHz
    - 0.53dB/m @ 2000 MHz
    - 0.6dB/m @2500 MHz

Mechanical Specifications

  • Product Dimensions (L x W x D): 5m (±5%) x 4.95mm
  • Packaged Dimensions: 300mm x 160mm
  • Weight: 0.175 kg
  • Packaged Weight: 0.185 kg
  • Conductor diameter: 0.95mm
  • Dielectric diameter: 2.84mm
  • Inner conductor diameter: 2.96mm
  • Outer conductor diameter: 3.54mm
  • Jacket diameter: 4.95mm

Environmental Specifications

  • Temperature Range (Operating): - 20° to + 70° Environmental
  • Conditions: Outdoor/Indoor
  • Operating Relative Humidity: Up to 98%
  • Storage Humidity: 5% to 95% - non condensing
  • Storage Temperature: - 20° to + 70°

Product Contents

  • Cable Length: 5m ±5%
  • Cable Type: HDF195
  • Connector: SMA (f) and SMA(m)

Ordering Information

  • Commercial name: CAB-092
  • Order Product Code: A-CAB-092

Certification Approvals and Standards

  • Flammability rating: UL:1581
  • Impact resistance: IK 05
  • Product Safety: Complies with UL, CE, EN, CSA and IEC standards
SKU POY.CAB-92
Model # CAB-92
Brand Poynting
Shipping Weight 0.0300kg
Shipping Width 0.100m
Shipping Height 0.040m
Shipping Length 0.100m
Shipping Cubic 0.000400000m3
