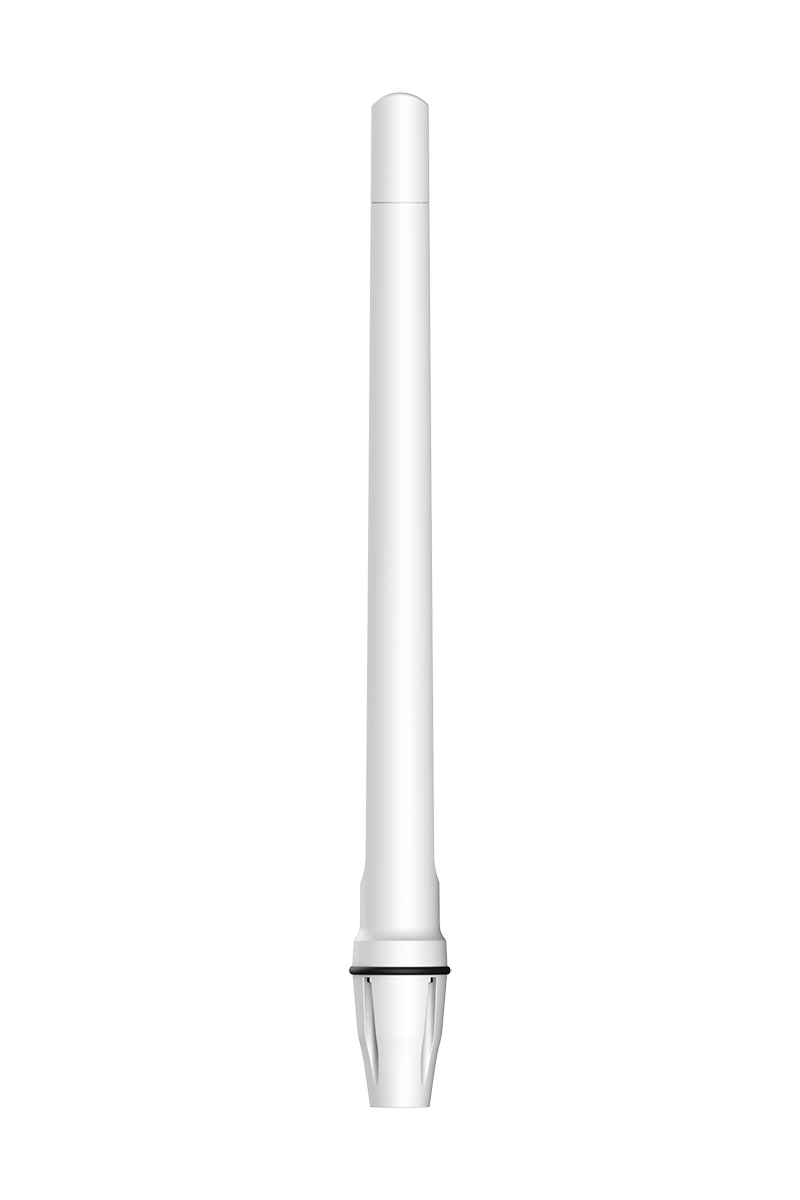

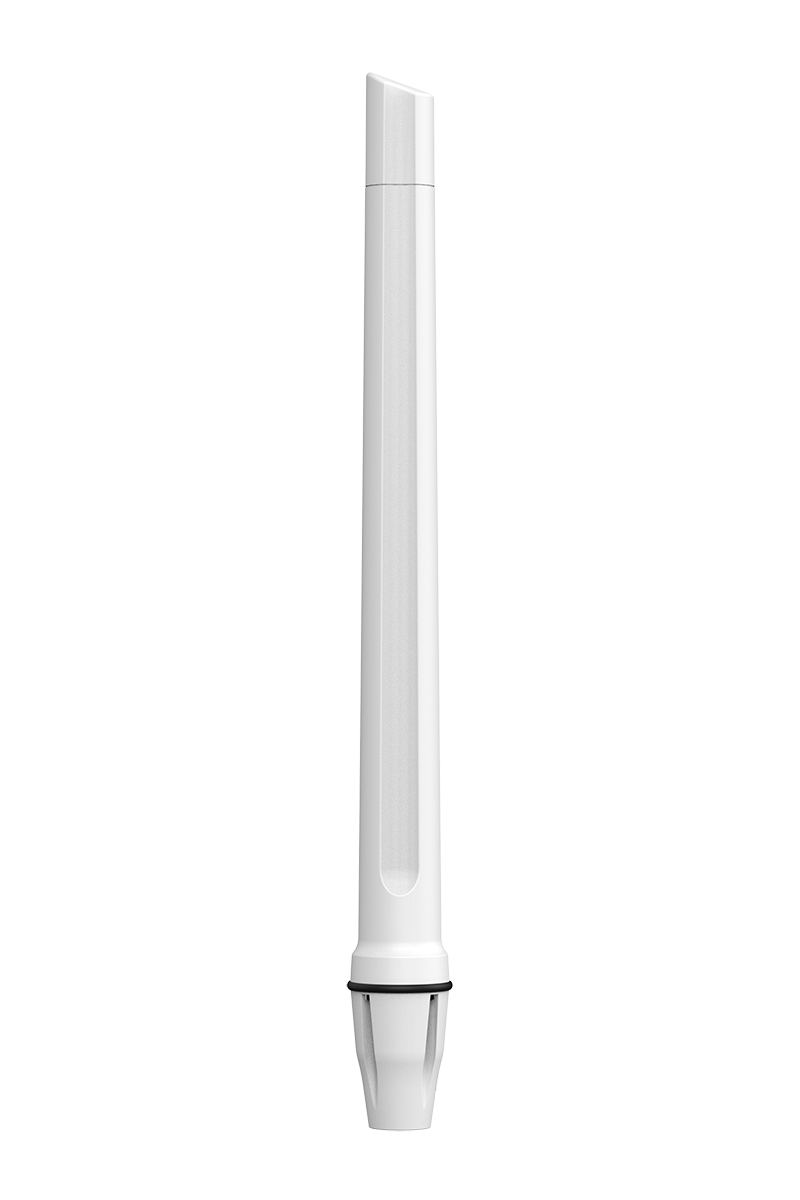

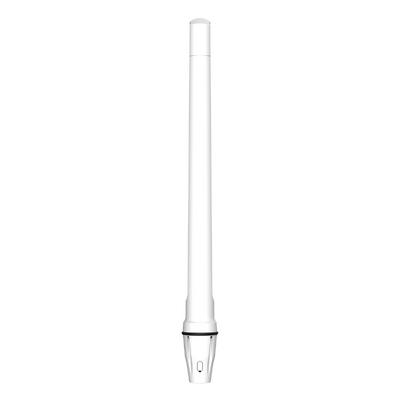

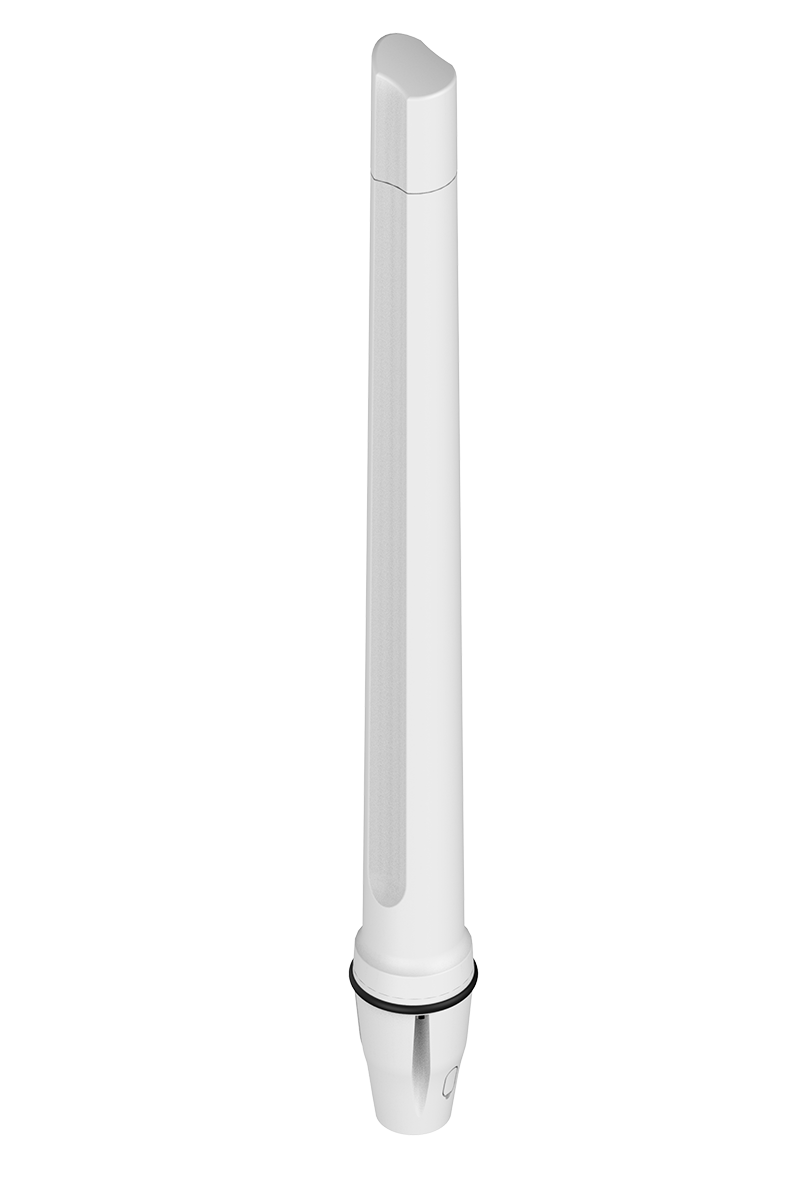

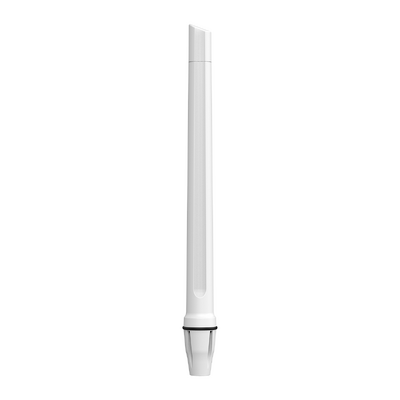

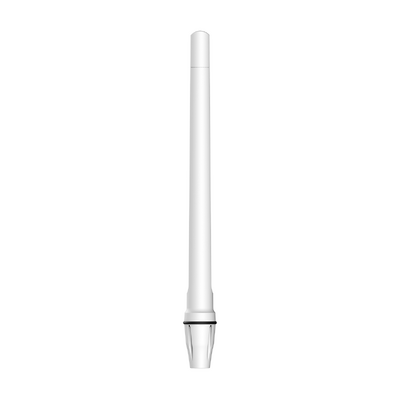

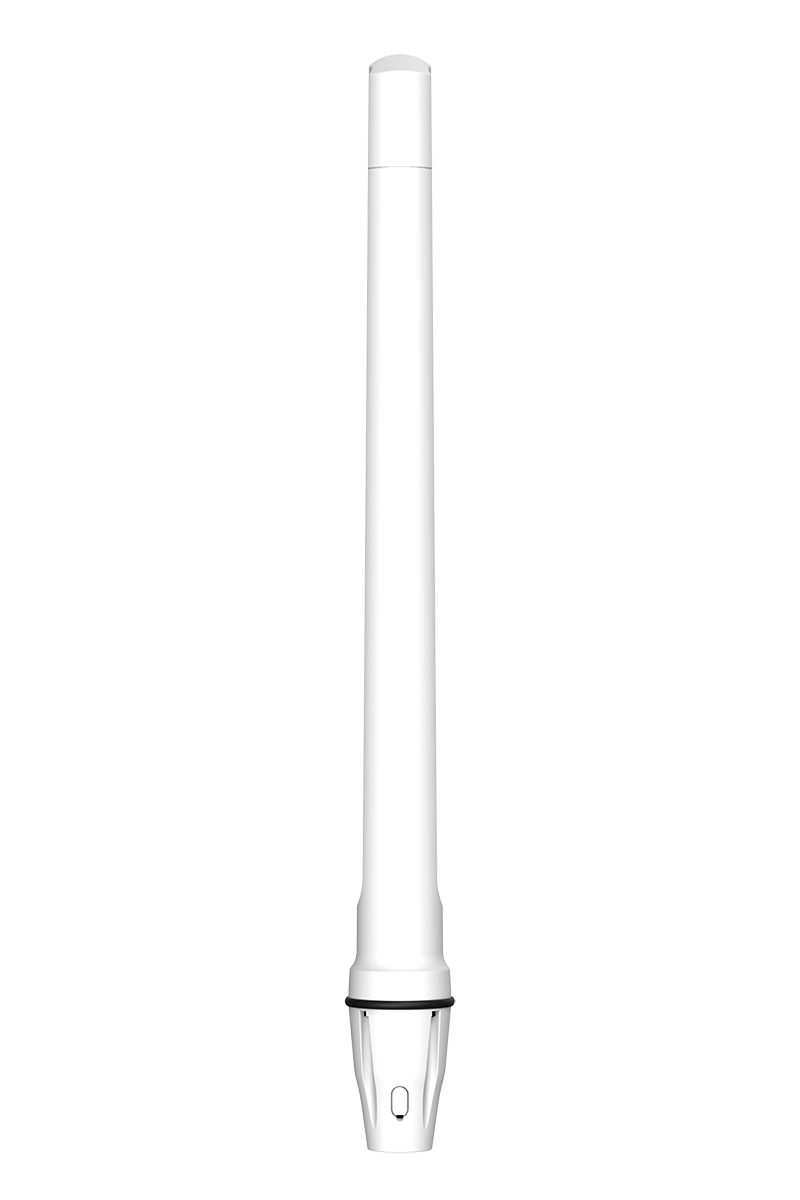

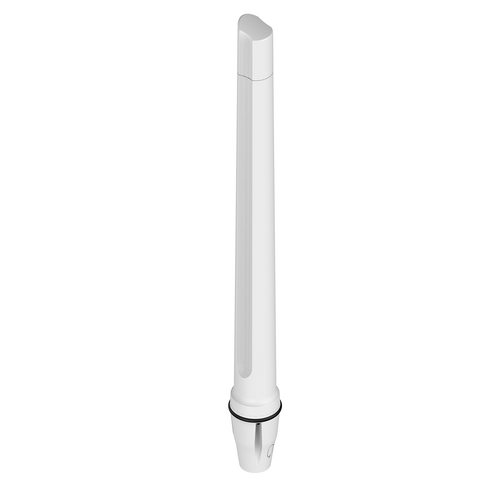

Poynting Omni-402 2 x2 MIMO LTE Marine Antenna, 3G/4G/5G, 410-3800MHz, 6.5/2.5dBi with 2m SMA/M Cable
The Poynting OMNI-402 MIMO LTE Marine Antenna is 5G Ready as it covers the 3300 – 3800MHz capable for coastal and inland use.
SKU: POY.OMNI-402 | MPN: OMNI-402
SAVE $64.92 (10%)
Special OrderSpecial Order from Supplier
Non Returnable/Non Refundable
The Poynting OMNI-402 MIMO LTE Marine Antenna is an ultra-wideband antenna, which covers all contemporary LTE operating frequencies with excellently balanced gain across all frequencies.
The antenna also offers 2X2 MIMO capability from its vertically separated radiating elements, all in the same radome and comes with Twin 2m HDF-195 coax cables SMA(m) and U-bolt mount with L-bracket (for a Ø30-50mm Pole)
The antenna design allows the antenna to have superior pattern control over the entire frequency range making the OMNI-402 a true high-performance omnidirectional MIMO antenna. The OMNI-402 antenna boasts an IP68 protection rating against water ingress, making it ideal for marine & coastal environments. The antenna is also fully saltwater protected so that it can be used in highly corrosive environments, including chemical and toxic environments thanks to the UV stable ASA radome material.
Usable in all parts of the world, the OMNI-402 guarantees signal reception almost everywhere. Poynting Antennas achieves this through a new antenna configuration using multiple dipoles and a unique (patented) feed network. The antenna is future proof as it covers the 450 MHz LTE frequency band, which is becoming more popular in various regions and countries. This antenna is also 3300 – 3800 MHz capable for coastal and inland use.
POYNTING OMNI-402 MIMO Features:
- High performance wideband Omni-directional marine antenna
- 2X2 MIMO capability for improved performance
- Easy mounting with feed through 1-inch marine standard adapter bracket included
- Robust and all-weather proof for harsh conditions at sea (IP68)
- Various 316 stainless steel mounting brackets are available optionally
- UV and saltwater protected against tempestuous weather conditions
Vigorous Vibration Testing of Poynting OMNI-402 Marine Antenna
Antenna Overview OMNI-402 | |
Ports | 2 |
SISO / MIMO | 2x2 MIMO |
Frequency Bands | 410 – 3800 MHz |
Polarisation | Linear Vertical |
Peak Gain | 6.2 dBi |
Coax Cable Type | Twin HDF 195 |
Coax Cable Length | 2m |
Connector Type | SMA (M) |
Electrical Specifications | |
Frequency bands: | 410 – 470 MHz 698 – 2700 MHz 3400 – 3800 MHz |
Gain (max): |
1 dBi @ 410-470 MHz |
VSWR: | <2.5:1 across 90% of the bands |
Feed power handling: | 10 W |
Input impedance: | 50 Ohm (nominal) |
DC short: | Yes |
Product Box Contents | |
Antenna: | A-OMNI-0402 |
Mounting bracket: | 1” (14 TPI) Marine Adapter (BRKT-40) & L-bracket (Ø30-50mm Pole) |
Coax Cable - Length: | Twin HDF 195 -2 Metres |
Mechanical Specifications | |
Product dimensions | 750 mm x Ø75 mm (Incl. BRKT-40) |
Weight: | 0.86 kg |
Packaged weight: | 1.7 kg |
Radome material: | UV Stable Marine ASA |
Radome colour: | Brilliant White Pantone P 179-1 C |
Mounting Type: | Standard 1'' -14 TPI marine mount & Wall/pole mount |
Environmental Specifications, Certification & Approvals | |
Wind Survival: | <160 km/h |
Temperature Range (Operating): | -40°C to +80°C |
Environmental Conditions: | Outdoor/Indoor |
Water ingress protection ratio/standard: | IP 68 |
Salt Spray: | MIL-STD 810F/ASTM B117 |
Operating Relative Humidity: | Up to 98% |
Enclosure Flammability Rating: | UL 94-HB |
Impact resistance: | IK 08 |
Product Safety & Environmental: | Complies with CE and RoHS standards |
SKU | POY.OMNI-402 |
Model # | OMNI-402 |
UPC/EAN | 6009710923702 |
Brand | Poynting |
Shipping Weight | 1.7600kg |
Shipping Width | 0.710m |
Shipping Height | 0.100m |
Shipping Length | 0.150m |
Shipping Cubic | 0.010650000m3 |
Unit Of Measure | ea |
