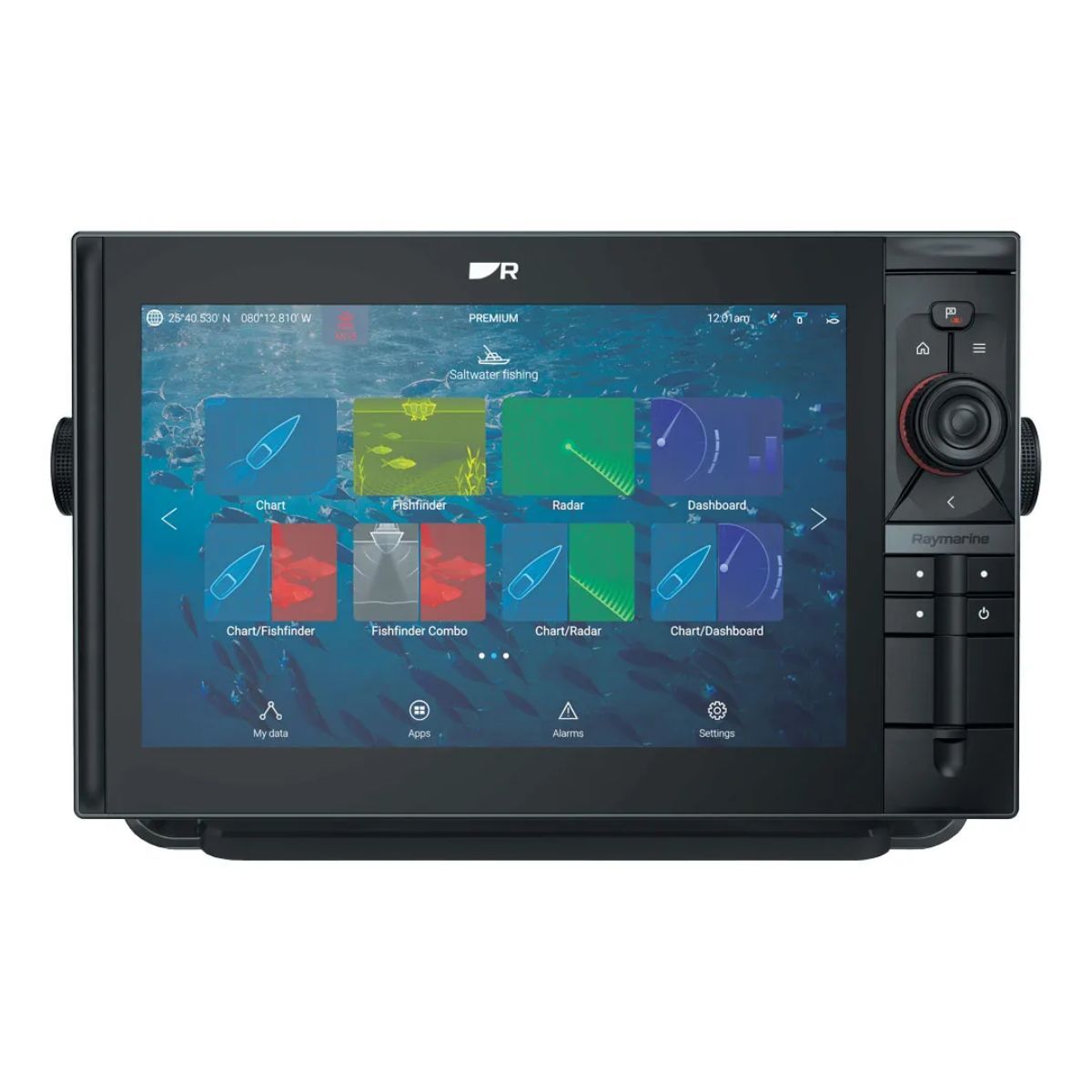

AXIOM 2 PRO RVM: Your Offshore Adventure Guide

The Axiom 2 Pro RVM is a groundbreaking chartplotter and fish finder system designed to enhance your fishing and boating experience. Combining advanced navigation features with high-definition sonar technology, the Axiom 2 Pro RVM offers unparalleled performance for serious anglers and mariners. Available in 9, 12, and 16-inch HybridTouch displays, this system integrates seamlessly into any boating setup.

Key Features:

  • HybridTouch Control

    Offers both touchscreen and keypad navigation, ensuring ease of use in any condition.
  • RealVision MAX CHIRP Sonar

    Delivers increased range, resolution, and clarity for identifying fish and underwater structures.
  • Powerful 6-core Processor

    Ensures swift and efficient operation of GPS, radar, fish finder, and video functionalities.
  • HydroTough Nano-coating

    Repels water for reliable touchscreen use, enhanced colour, and visibility in sunlight.
  • Smart Backlighting

    Automatically adjusts for optimal viewing at any time of day.
  • Expandable System

    Customize with interchangeable keypads, LightHouse Charts, Quantum 2 radar, FLIR thermal imaging, and more for a tailored navigation experience.
  • Comprehensive Connectivity

    Features built-in Wi-Fi, HDMI output, and compatibility with a wide range of marine audio systems and engines.

Advanced Capabilities:

  • Versatile Fish Finding

    Integrated CHIRP DownVision, SideVision, RealVision 3D, and traditional CHIRP sonar, along with a 1kW dual-channel CHIRP for deep-water exploration.
  • Enhanced Navigation

    Upgrade with LightHouse Charts for detailed mapping, and add radar for safer navigation and target tracking.
  • Night Vision and Augmented Reality

    FLIR thermal cameras and ClearCruise AR technology provide superior awareness and safety.
  • Engine Integration and Entertainment

    Connects with NMEA2000-compatible engines, streams entertainment apps, and supports marine audio system control.

Expand Your System:

  • Networking

    Utilize two RayNet Ethernet ports and NMEA2000 for integrating multiple Axiom displays, radar, autopilot, cameras, and more.
  • Stay Connected

    With the YachtSense Link router and Raymarine mobile App, your system remains accessible on and off the boat.

The Axiom 2 Pro RVM is not just a chartplotter; it's a comprehensive marine technology platform that brings smart boating into the 21st century. Whether you're navigating unfamiliar waters or searching for the next big catch, the Axiom 2 Pro RVM provides the tools you need for a successful voyage

Connections

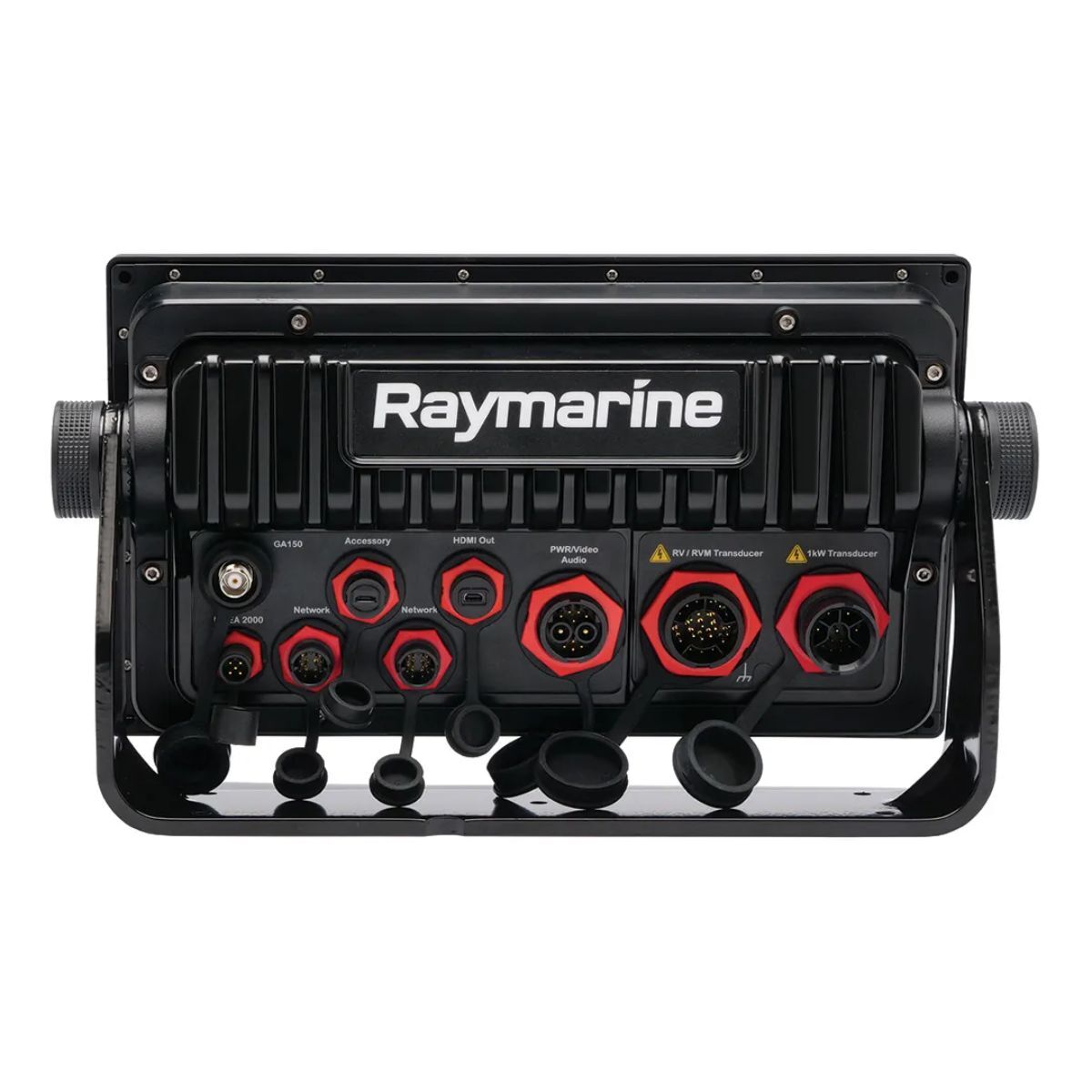

Ethernet connection 2 RayNet (10/100/1,000 Mbits/s) ports
NMEA 2000 connection DeviceNet connector
Wi-Fi Multiband - 2.4GHz, and 5Ghz 802.11b/g/n
Bluetooth v4.0
Accessory connection USB Micro B
Internal storage 64GB Solid State
External storage 2 front mounted MicroSDXC card slots
Digital Video and Audio HDMI Out Micro connector type D
Analog video connections BNC Analog video input (on power cable)
Analog audio connections RCA connectors via power cable
External GPS antenna TNC connector
Physical
Dimensions (Trunnion mounted)

Axiom 2 Pro 9: Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in)
Axiom 2 Pro 12: Height: 246.13 mm (9.69 in), Width: 388.5 mm (15.3 in), Depth (including cables): 233.4 mm (9.18 in)
Axiom 2 Pro 16: Height: 281.20 mm (11.10 in), Width 482.50 mm (19.00 in), Depth (including cables): 233.4 mm (9.18 in)

Dimensions (Surface/Flush mounted) Axiom 2 Pro 9: Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in)
Axiom 2 Pro 12: Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in)
Axiom 2 Pro 16: Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in)
Power
Power consumption @ 12 V dc Axiom Pro 9: 33.12 W
Axiom Pro 12: 29.88 W
Axiom Pro 16: 42.36 W
Power consumption @ 24 V dc Axiom Pro 9: 30.96 W
Axiom Pro 12: 28.8 W
Axiom Pro 16: 40.8 W
Operating voltage range 8 V dc to 32 V dc
Nominal supply voltage 12 V dc / 24 V dc
Off current @ 12 V dc 11 mA (0.13 W)
Off current @ 24 V dc 18 mA (0.43 W)
LEN (NMEA 2000 Load Equivalency Number) 1
Current 5 A
Fuse rating 15 A
Environmental
Operating temperature -25°C to +55°C (-13°F to 131°F)
Storage temperature -30°C to +70°C (-22°F to 158°F)
Relative humidity Up to 93% @ 40°C (104°F)
Waterproof rating IPx6, IPx7
LCD
Size (diagonal) Axiom 2 Pro 9: 9.0"
Axiom 2 Pro 12: 12.1"
Axiom 2 Pro 16: 15.6"
Ratio Axiom 2 Pro 9: 16:9
Axiom 2 Pro 12: 16:9
Axiom 2 Pro 16: 16:10
Resolution Axiom 2 Pro 9: 1280 x 720 HD
Axiom 2 Pro 12: 1280 x 800 WXGA
Axiom 2 Pro 16: 1920 x 1080 FHD
Viewing angle Top 88° / Bottom 88° / Left 88° / Right 88°
Type IPS (In-Plane Switching)
Color depth 24-bit
Illumination Axiom 2 Pro 9 1300 nits / 1300 cd/m2
Axiom 2 Pro 12 1200 nits / 1200 cd/m2
Axiom 2 Pro 16 1200 nits / 1200 cd/m2
Number of simultaneous touches 1 to 16
GPS (GNSS)
Position Accuracy Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum WGS-84 (alternatives can be selected on the MFD)
Satellite Differential Type (SBAS) WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
Channels Track up to 28 satellites simultaneously
Antenna Internal - Ceramic chip mounted near top of unit
GNSS compatibility GPS, Galileo, GLONASS, Beidou
Almanac Update Automatic
Signal Acquisition Automatic
Receiver IC Sensitivity 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
Operating frequency 1574 MHz to 1605 MHz
Refresh rate 10 Hz (10 times per second)
Time to first fix from cold start < 2 minutes
Sonar
Power output RealVision MAX high CHIRP sonar channel: 600 Watts RMS Traditional dual channel CHIRP channel: 1kW RMS
Sonar channels RealVision MAX Port: High CHIRP (200kHz), DownVision (350kHz), SideVision (350kHz) and RealVision 3D (350kHz) 1kW CHIRP Port: 42 - 250kHz (Transducer dependent)
RealVision MAX Depth range 25-pin RealVision type connector: High CHIRP conical sonar: 366 m (1200 ft), DownVision: 183 m (600 ft), SideVision: 91 m (300 ft), RealVision 3D: 91 m (300 ft)
1 kW Depth range 11 pin 1kW connector: 0.9 m (3 ft) to 914.4 m (3,000 ft) (In optimum conditions using a 1kW transducer)
Connections 1x 25-pin RealVision Max 3D / RealVision 3D transducer connector, and 1 x 11-pin 1kW transducer connector
SKU RAY.E70656-00-ANZ
Model # E70656-00-ANZ
Brand Raymarine
Shipping Weight 6.9200kg
Shipping Width 0.246m
Shipping Height 0.233m
Shipping Length 0.388m
Shipping Cubic 0.022239000m3
Unit Of Measure ea
