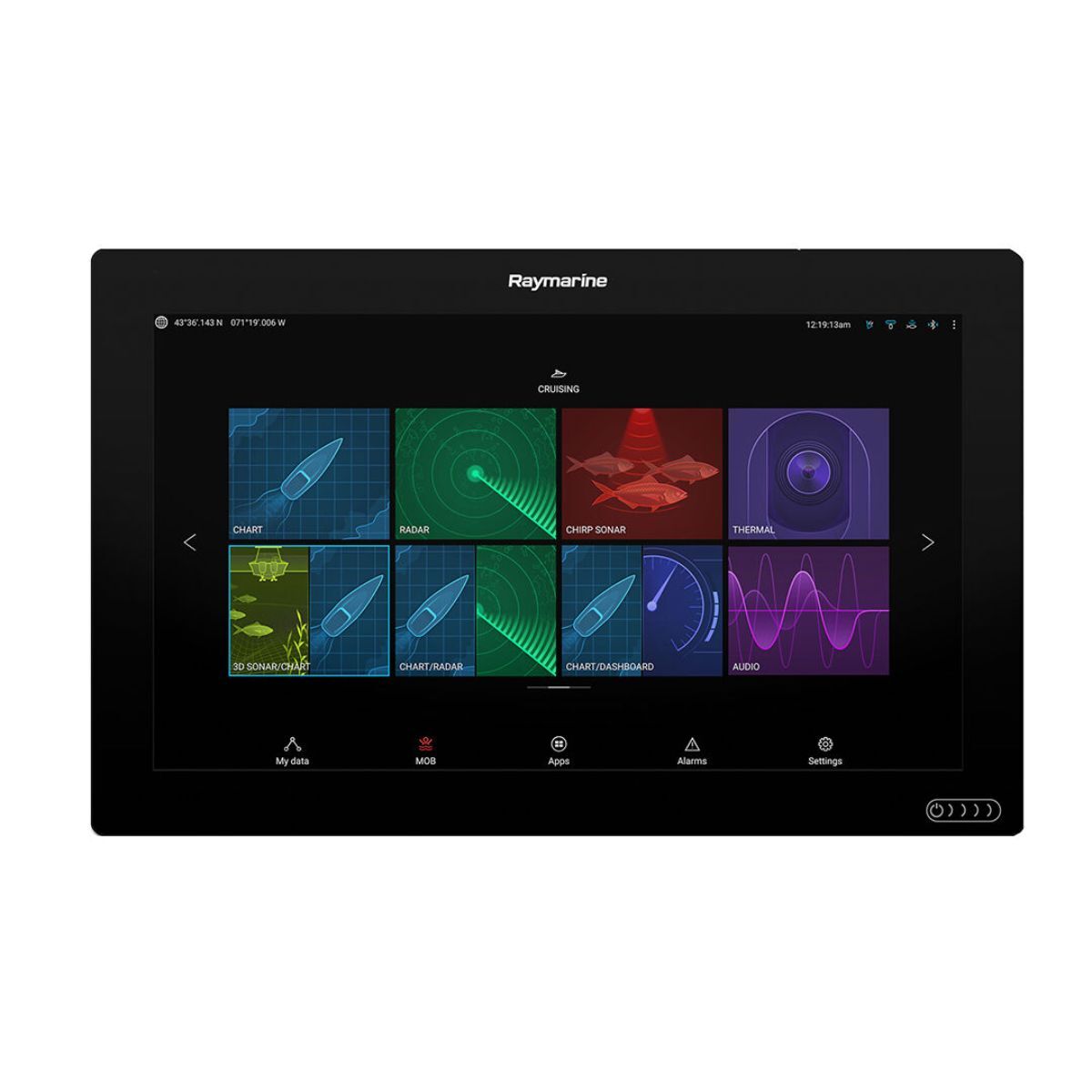

AXIOM 2 XL: Premium Glass Bridge Chartplotters

The AXIOM 2 XL chartplotter series represents the pinnacle of Raymarine's chartplotter technology. Available in 16, 19, 22, and 24-inch sizes, these premium glass bridge chartplotters offer advanced networking and video integration capabilities, making them the ideal choice for captains seeking top-tier navigation solutions.

A Commanding View:

  • Large-Format Navigation: Experience stylish and powerful chartplotting with the LightHouse operating system.
  • All-Weather Design: Suited for both open cockpits and enclosed glass bridge stations.
  • HydroTough Displays: Ultra-bright and water-repellent for excellent visibility and touch control in any condition.

Power and Performance:

  • 6-Core Processor: Offers fast and efficient performance.
  • 64 GB Storage: Ample space for waypoints, apps, and LightHouse Charts.
  • Enhanced Chart Rendering: 30% faster chart rendering for a smoother navigation experience.

Advanced Features:

  • Smart Backlighting: Automatic brightness adjustment for optimal viewing.
  • Remote Control: Effortless navigation with touchscreen or optional RMK-10 remote keypad.
  • Versatile Add-Ons: Integrate with Quantum 2 radome or Cyclone open array radar for enhanced awareness.
  • Thermal Imaging: FLIR technology for safe navigation at night.
  • Sonar Modules: Options for deep water and RealVision MAX SideVision, DownVision, and 3D fish finder.
  • Sailing Tools: Features layline overlays, preloaded polars, and more for optimal sailing performance.
  • Engine Integration: Connect with NMEA2000-compatible engines for comprehensive data integration.

Connectivity and Entertainment:

  • Wi-Fi and Mobile App: Control your AXIOM 2 XL from your smartphone or tablet.
  • LightHouse Apps: Access third-party apps for expanded capabilities.
  • Entertainment Options: Stream services like Netflix and Spotify, and control marine audio systems.

Unleash the Power:

  • Extensive Connectivity: Three RayNet Ethernet POE ports, NMEA2000, HDMI, USB, and more for a fully integrated navigation system.

The AXIOM 2 XL is more than a chartplotter; it's a comprehensive command center for your vessel, combining advanced navigation, entertainment, and system integration in a sleek, large-format display

Environmental
Operating temperature -25°C to +55°C (-13°F to 131°F)
Storage temperature -30°C to +70°C (-22°F to 158°F)
Relative humidity up to 93% @ 40°C (104°F)
Waterproof rating IPx6, IPx7
Physical
Dimensions Axiom XL 16: Height: 248.22 mm (9.77 in), Width: 394.9 mm (15.55 in), Depth (including cables): 174.95 mm (6.89 in)
Axiom XL 19: Height: 289.44 mm (11.40 in), Width: 461.78 mm (18.18 in), Depth (including cables): 174.95 mm (6.89 in)
Axiom XL 22: Height: 326.33 mm (12.85 in), Width: 533.56 mm (21.00 in), Depth (including cables): 180.75 mm (7.12 in)
AxiomXL 24: Height: 386.84 mm (15.23 in), Width: 578.40 mm (22.77 in), Depth (including cables): 177.39 mm (6.98 in)
Weight Axiom XL 16: 5.9 kg (13 lbs)
Axiom XL 19: 7.6 kg (16.76 lbs)
Axiom XL 22: 9.9 kg (21.83 lbs)
Axiom XL 24: 11.3 kg (24.9 lbs)
USB connection USB-A: Touch input, USB-B: Touch output
Accessory connection USB Micro B
GPS antenna connection TNC type connector
External storage Remote card reader required
NMEA 0183 connection Port 1: Input and output 4,800 or 38,400 baud rate, Port 2: Input only 4,800 or 38,400 baud rate
Ethernet connection PoE RayNet (10/100/1,000 Mbits/s) x 3
HDMI connections HDMI in, HDMI out
NMEA 2000 connection DeviceNet connector
Analog video connections Composite BNC connectors x 2 (Alarm/Video 1 connector, Power/Data/Video cable Video 2)
Wireless connections Bluetooth: V4.0, Wi-Fi: Dual band (2.4 GHz and 5 GHz) 802.11/b/g/n
External alarm connection Bare-ended wires x 2
Internal storage 64 GB Solid State
LCD
Size (diagonal) Axiom XL 16: 15.6"
Axiom XL 19: 18.5"
Axiom XL 22: 21.5"
Axiom XL 24: 24"
Resolution Axiom XL 16: 1920 x 1080 pixels
Axiom XL 19: 1920 x 1080 pixels
Axiom XL 22: 1920 x 1080 pixels
Axiom XL 24: 1920 x 1200 WUXGA
Illumination Axiom XL 16: 1300 nits / 1300 cd/m2
Axiom XL 19: 1200 nits / 1200 cd/m2
Axiom XL 22: 1500 nits / 1500 cd/m2
Axiom XL 24: 1300 nits / 1300 cd/m2
Viewing angle Axiom XL 16: Top 88° / Bottom 88° / Left 88° / Right 88°
Axiom XL 19: Top 88° / Bottom 88° / Left 88° / Right 88°
Axiom XL 22: Top 89° / Bottom 89° / Left 89° / Right 89°
Axiom XL 24: Top 89° / Bottom 89° / Left 89° / Right 89°
Ratio Axiom XL 16: 16:9
Axiom XL 19: 16:9
Axiom XL 22: 16:9
Axiom XL 24: 16:10
Type IPS (In-Plane Switching)
Color depth 24-bit
Number of simultaneous touches 2
Power
Power consumption @ 12 V dc Axiom XL 16: 77.88 W
Axiom XL 19: 87.48 W
Axiom XL 22: 97.32 W
Axiom XL 24: 93.6 W
Power consumption @ 24 V dc Axiom XL 16: 70.80 W
Axiom XL 19: 76.08 W
Axiom XL 22: 81.84 W
Axiom XL 24: 80.88 W
Off current @ 12 V dc PoE: 2,250 mA (27 W), No PoE: 360 mA (4.32 W)
Off current @ 24 V dc PoE: 1,150 mA (27.6 W), No PoE: 240 mA (5.76 W)
PoE operating voltage range 9.5 V dc to 32 V dc
Current 9.5 A
Operating voltage range 8 V dc to 32 V dc
Fuse rating 15 A
Nominal supply voltage 12 V dc / 24 V dc
LEN (NMEA 2000 Load Equivalency Number) 1
SKU RAY.E70662
Model # E70662
Brand Raymarine
Shipping Weight 10.1000kg
Shipping Width 0.289m
Shipping Height 0.175m
Shipping Length 0.461m
Shipping Cubic 0.023315000m3
Unit Of Measure ea
