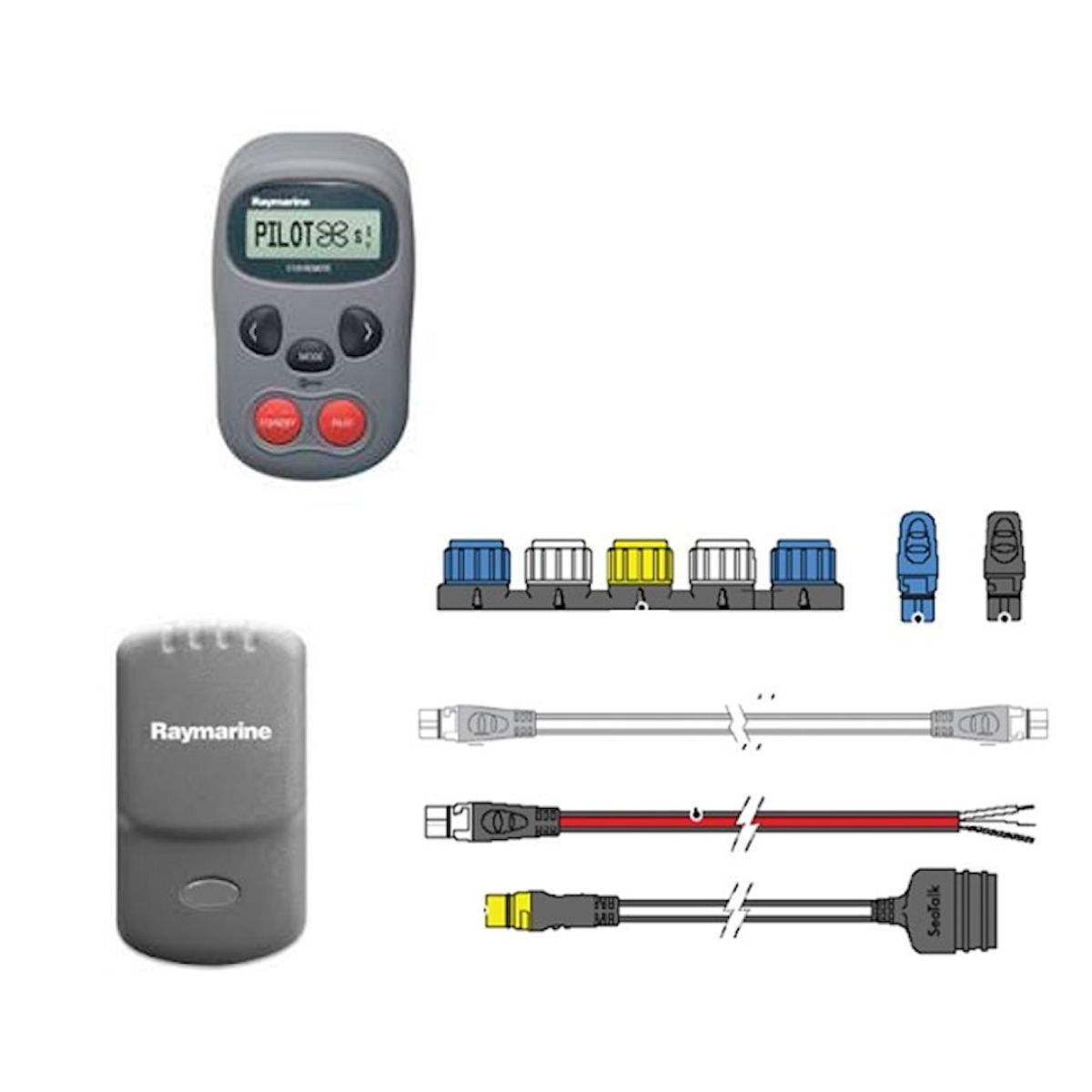

The compact Raymarine S100 remote control gives you basic, onboard wireless control of any Raymarine SeaTalk autopilot, even if you're below deck and out of sight of your autopilot.

Easy operation and intuitive menu structure for easy access to all features. The Raymarine S100 wireless control is powered by two AAA alkaline batteries.


• Range up to 10 m (32') from the base station
• The remote beeps when it is out of range and the autopilot switches to standby mode
• Pre-registration: Each remote control is registered to the base station during the manufacturing process
• Add additional base stations for even more coverage
• Add handsets for additional users, for example
• 2 lines of text
• 24x127 dot matrix screen with very good contrast
• Signal strength indicator
• Graphical display of the selected autopilot mode
• Raised profile on the standby button for easy usage at night

• Operating voltage (VDC) 12V systems
• Voltage range (VDC) 10–16 V
• Dimensions (W x H x D) 101 x 61 x 35 mm
• Mount, wrist strap
• Control 5 keys
• Screen size and type 9 x 35mm dot matrix LCD
• Max. character size 8 mm
• Screen backlight on/off
• SeaTalk radio
• Radio transmitter and receiver
• EMC,FCC, and IC certification
• CE marking
• Operating temperature -10 °C...+50 °C
• Storage temperature -20 °C...+70 °C
• Humidity up to 95 %
• Waterproofing IPX6
• GPS steering
• Steering based on navigation information waypoint or route

SKU RAY.T70332
Model # T70332
UPC/EAN 723193817643
Brand Raymarine
Shipping Weight 0.0600kg
Shipping Width 0.060m
Shipping Height 0.035m
Shipping Length 0.100m
Shipping Cubic 0.000210000m3
Unit Of Measure ea
