Reliable off grid power conversion for sensitive appliances anywhere anytime

Designed for dependable off-grid and mobile power systems, this inverter converts 12V DC battery power into clean AC electricity suitable for sensitive electronics, tools, and household appliances. Its pure sine wave output ensures stable performance, while high efficiency and built-in protections support safe, continuous operation in vehicles, caravans, and remote installations.

Key Features

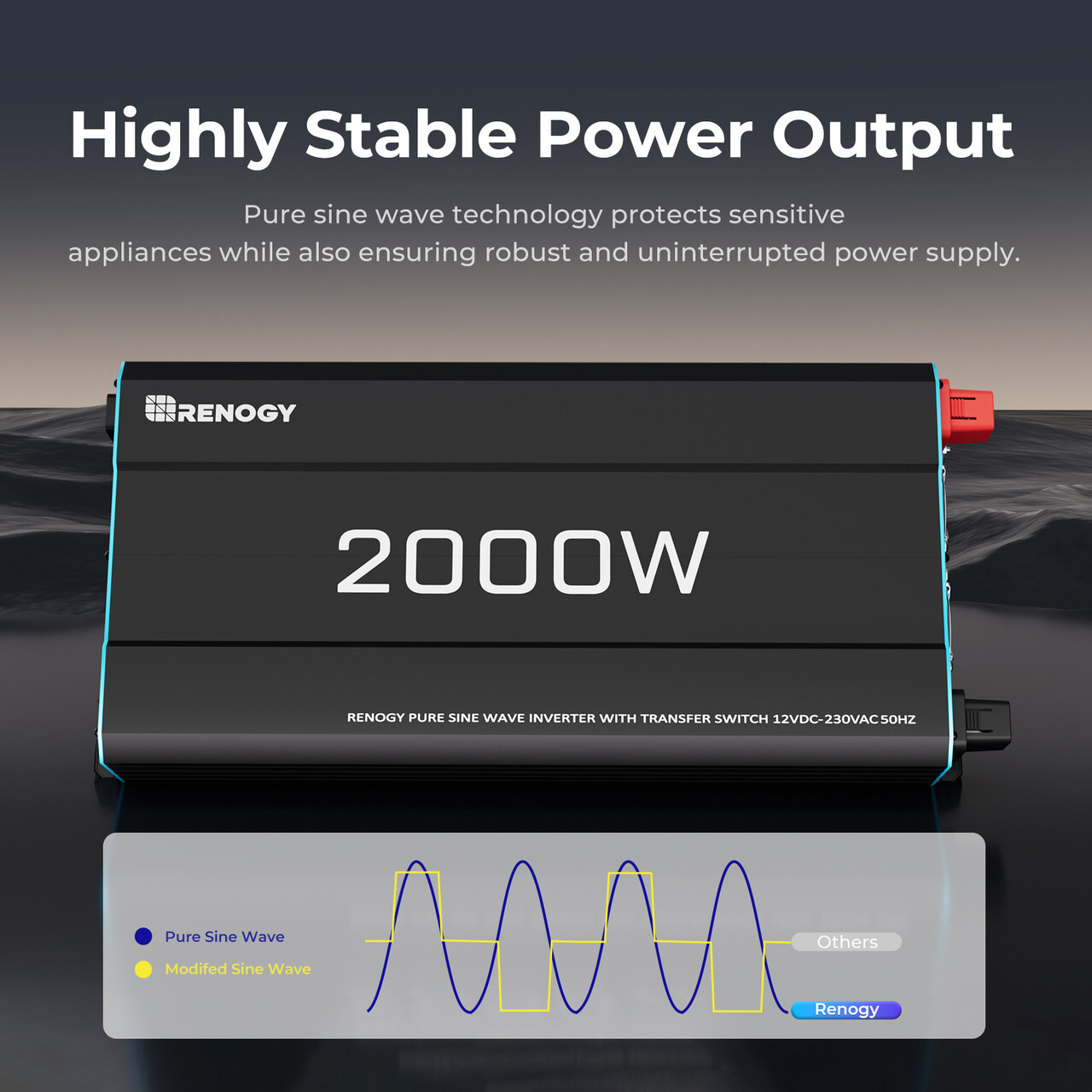

  • Pure Sine Wave Output: Produces clean and stable AC power to safely run sensitive electronics, appliances, and inductive loads without interference or noise.
  • High Continuous and Surge Capacity: Delivers strong continuous output with high peak surge capability to support motor start-up and high inrush devices.
  • Wide Input Voltage Range: Operates across a broad 12V DC input range to maintain performance during battery voltage fluctuations.
  • High Conversion Efficiency: Achieves up to 90% efficiency to reduce energy loss and maximise usable battery capacity.

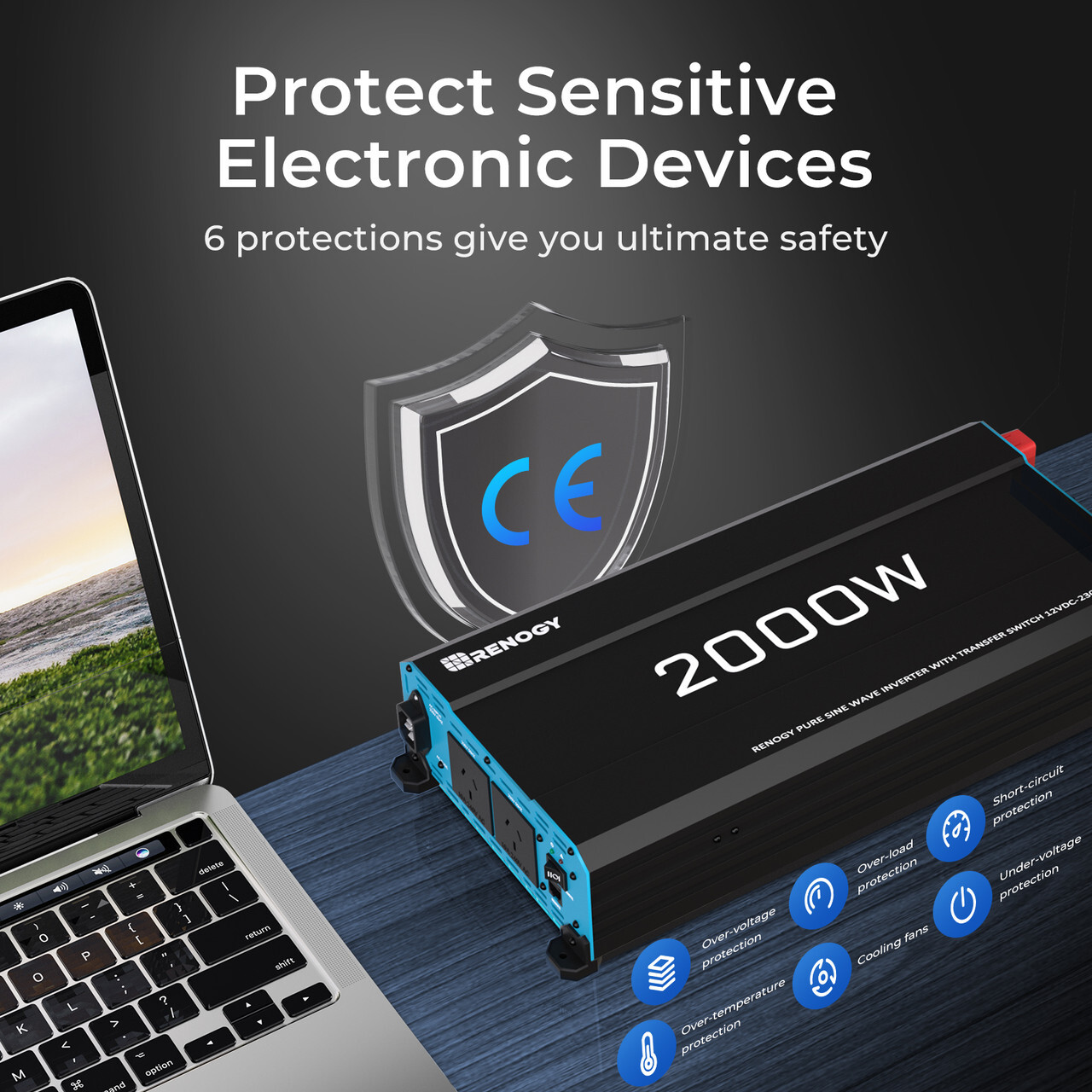

  • Integrated Electrical Protection: Includes low and high voltage shutdown to protect batteries, connected equipment, and the inverter itself.
  • Stable Output Frequency: Maintains consistent AC frequency for reliable operation of frequency-sensitive equipment.
  • Compact and Robust Design: Built for mobile and fixed installations where space, reliability, and thermal stability are critical.

Engineered to deliver clean, efficient, and dependable AC power wherever grid access is unavailable or unreliable.

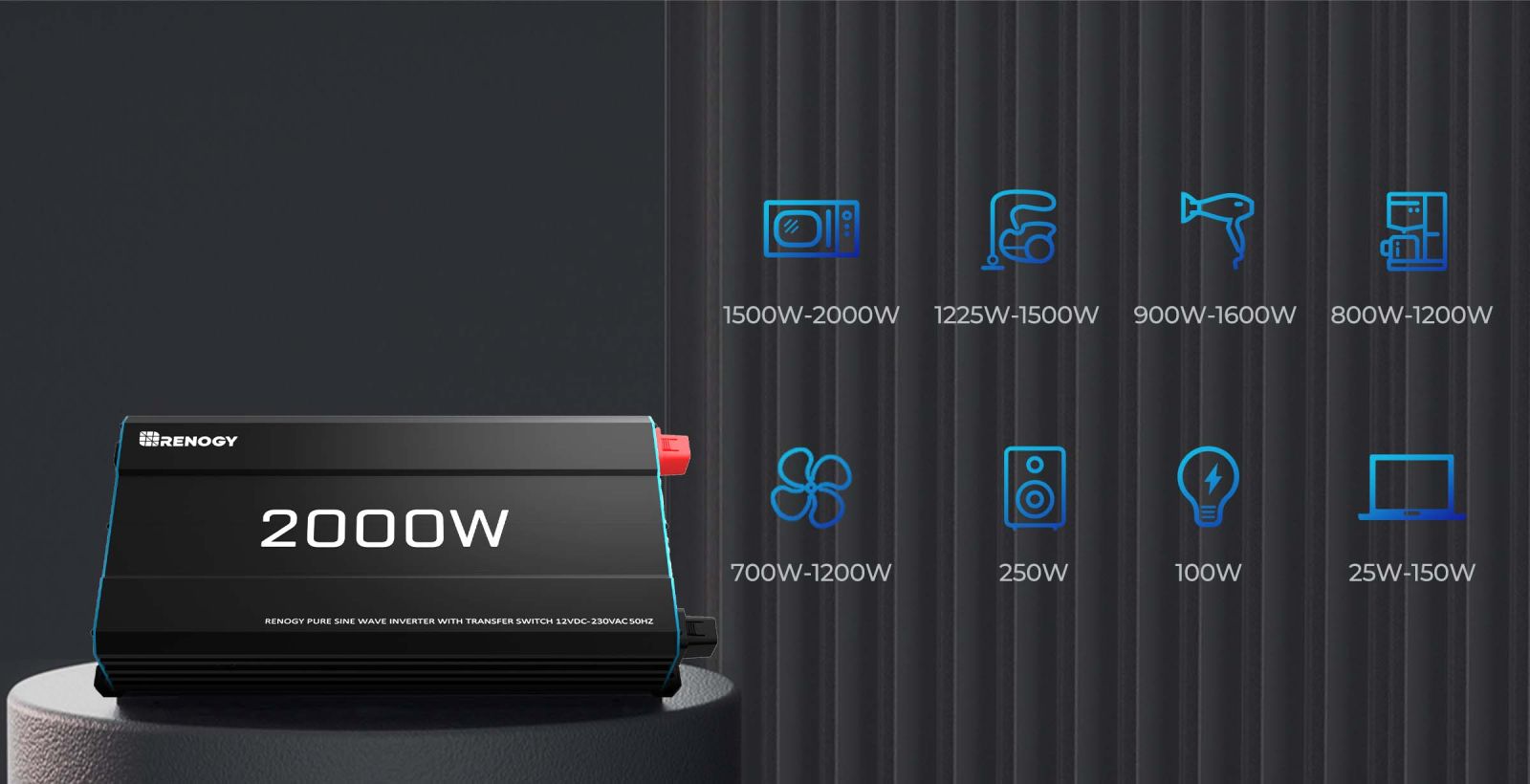

Renogy 2000W Inverter Uses

Electrical Specifications
Rated Output Power 2000W
Surge Power (Peak Power) 4000W
Input Voltage 12V DC
Input Voltage Range 11-16VDC

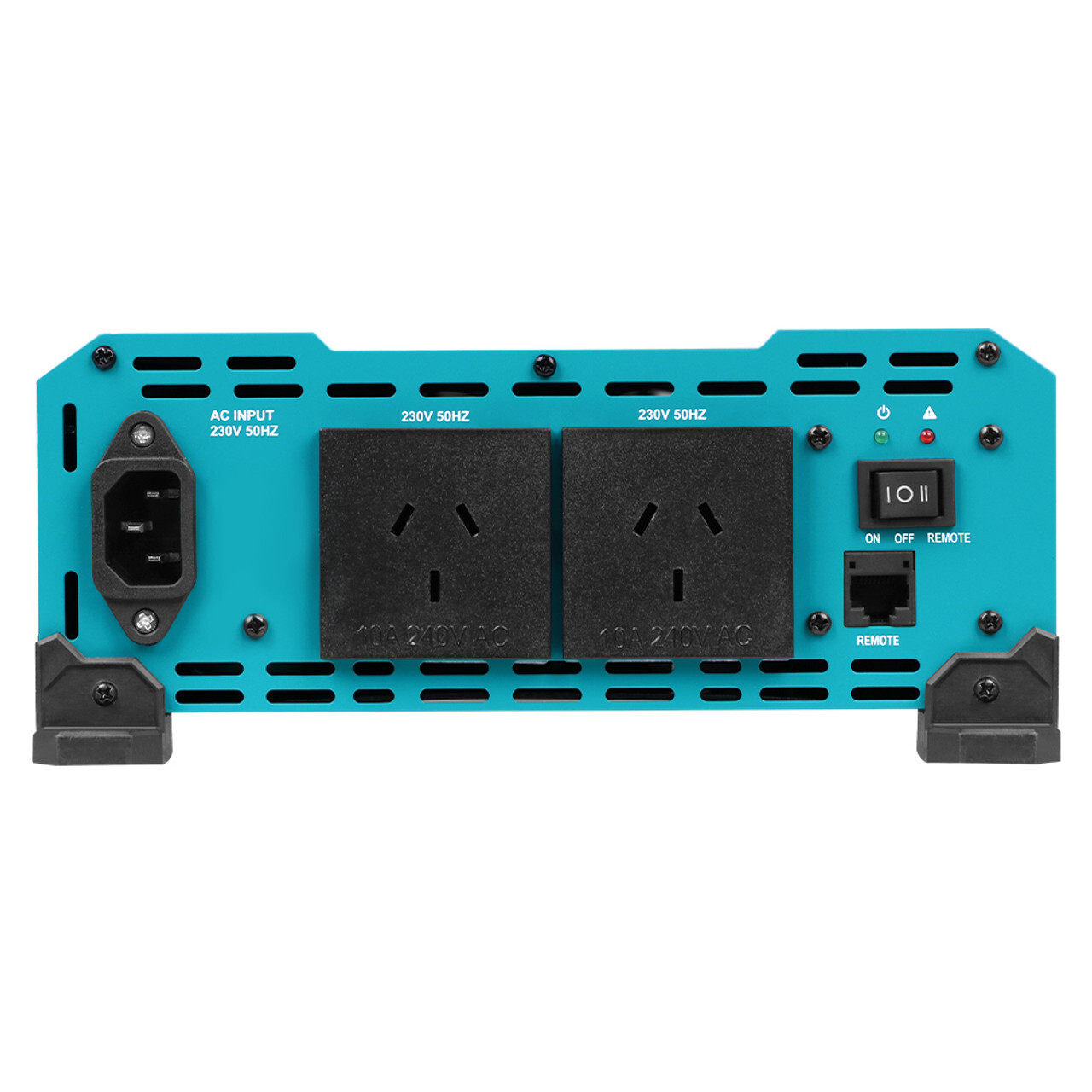

Output Voltage 220-240V AC
Output Frequency (Nominal) 50Hz
Output Wave Form Pure Sine Wave

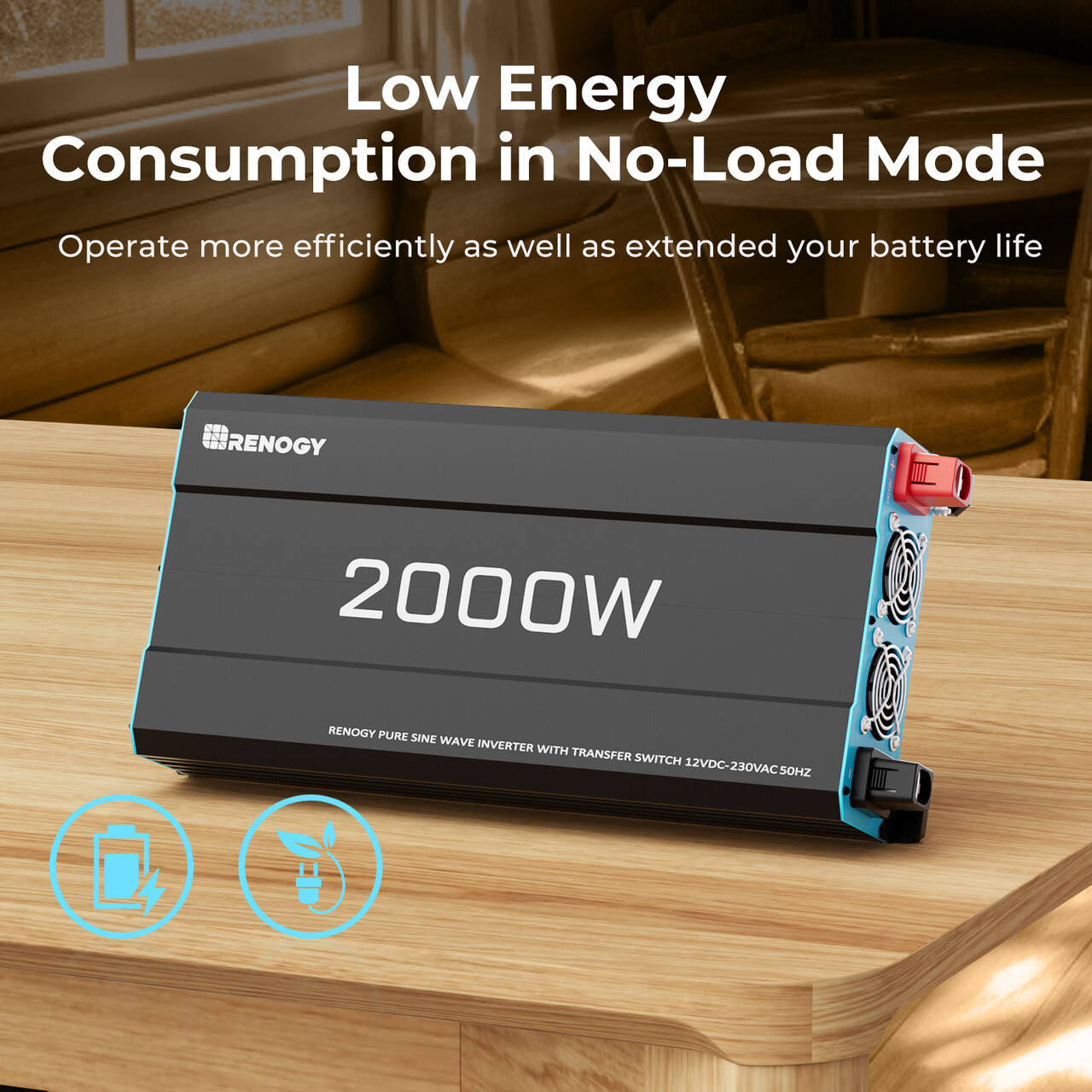

Static Current 1.3A
Low Voltage Shutdown 10VDC
Low Voltage Protection Recover from low voltage protection
High Voltage Shutdown 16.3VDC
Battery Supply & AC Main Transfer Time Within 50ms
Maximum Efficiency 90%
Working Temperature 0°C~40°C

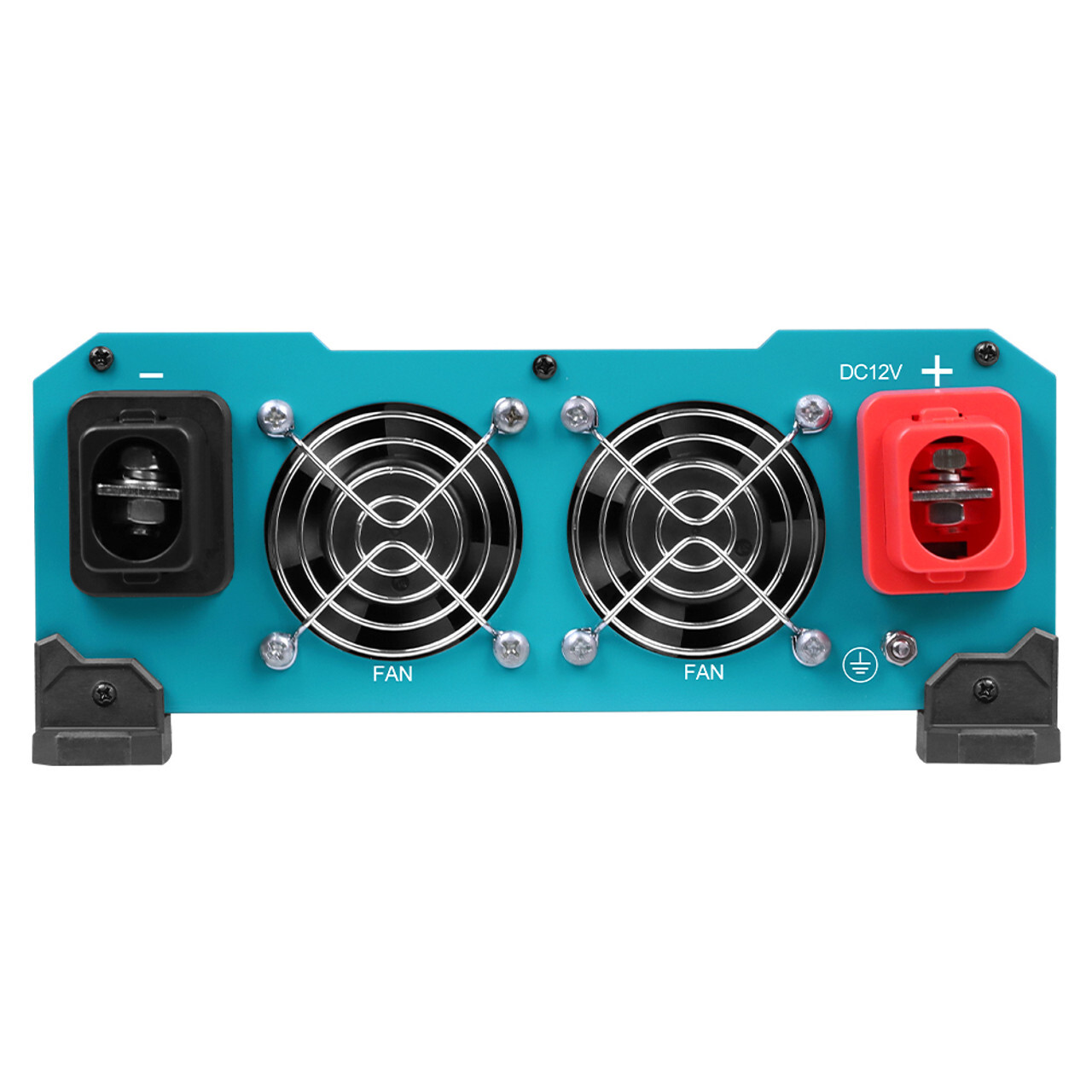

Heat Dissipation Fan
Ingress Protection IP20

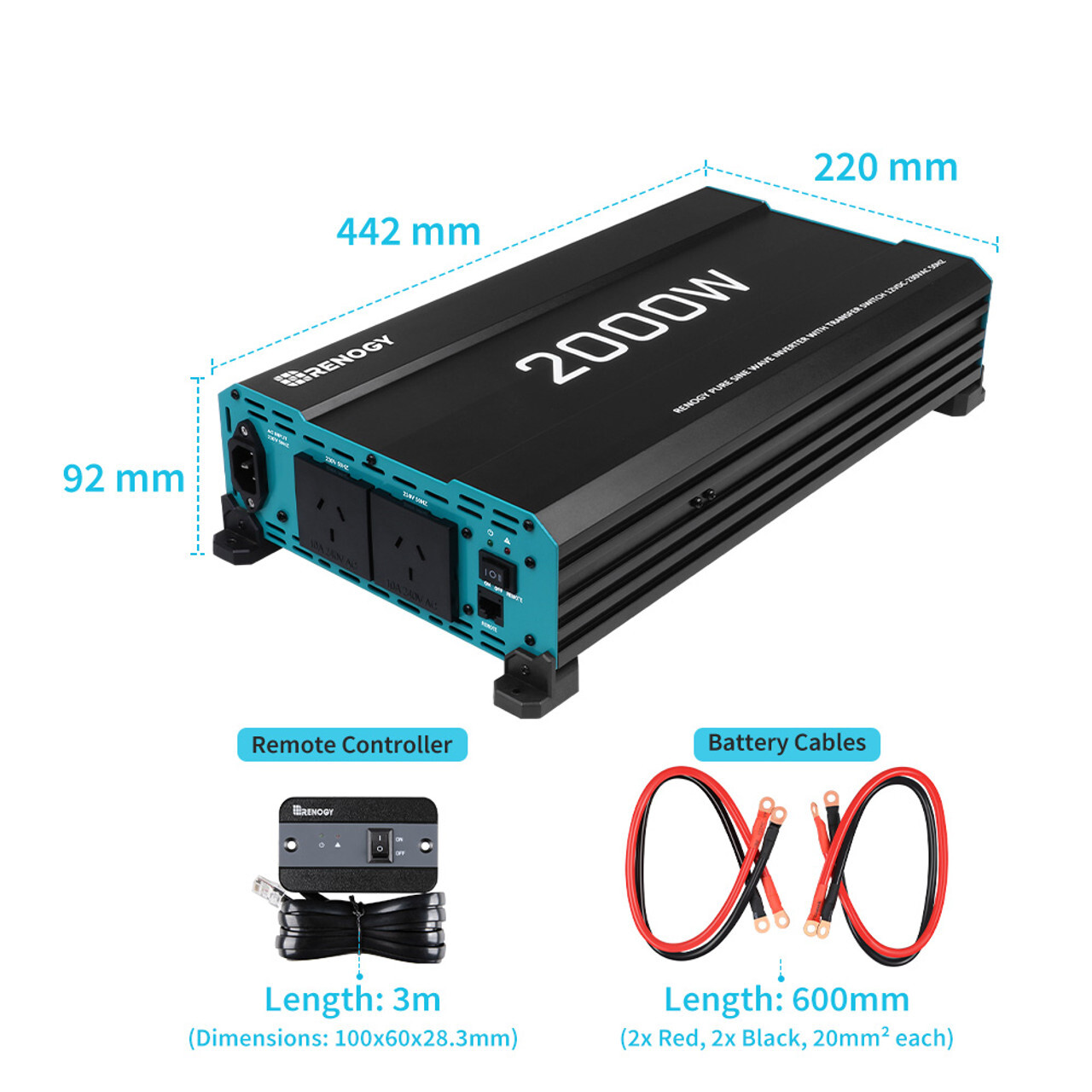

Dimensions 442 x 220 x 92 mm
Weight 4.84KG
Certifications CE
PACKAGE INCLUDES

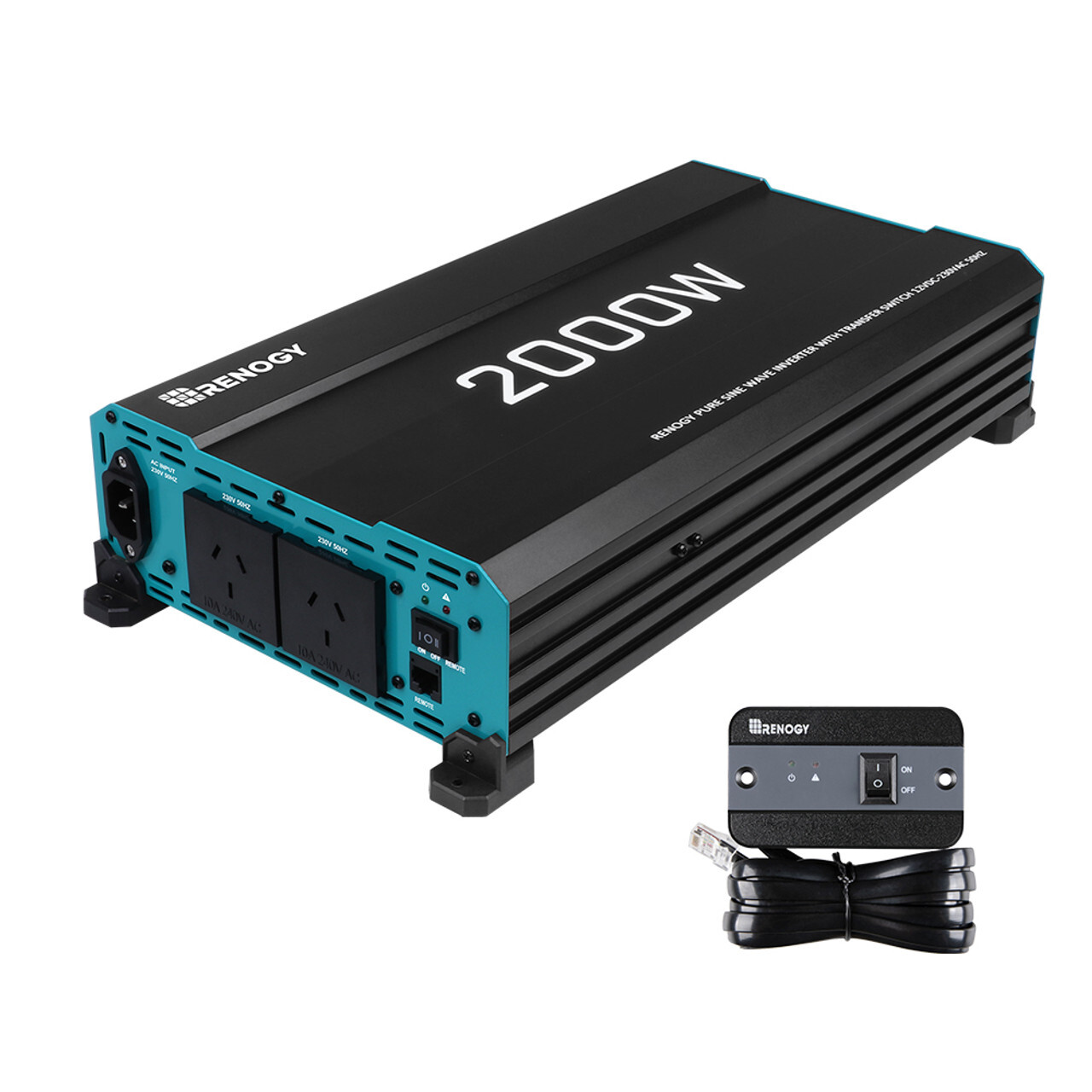

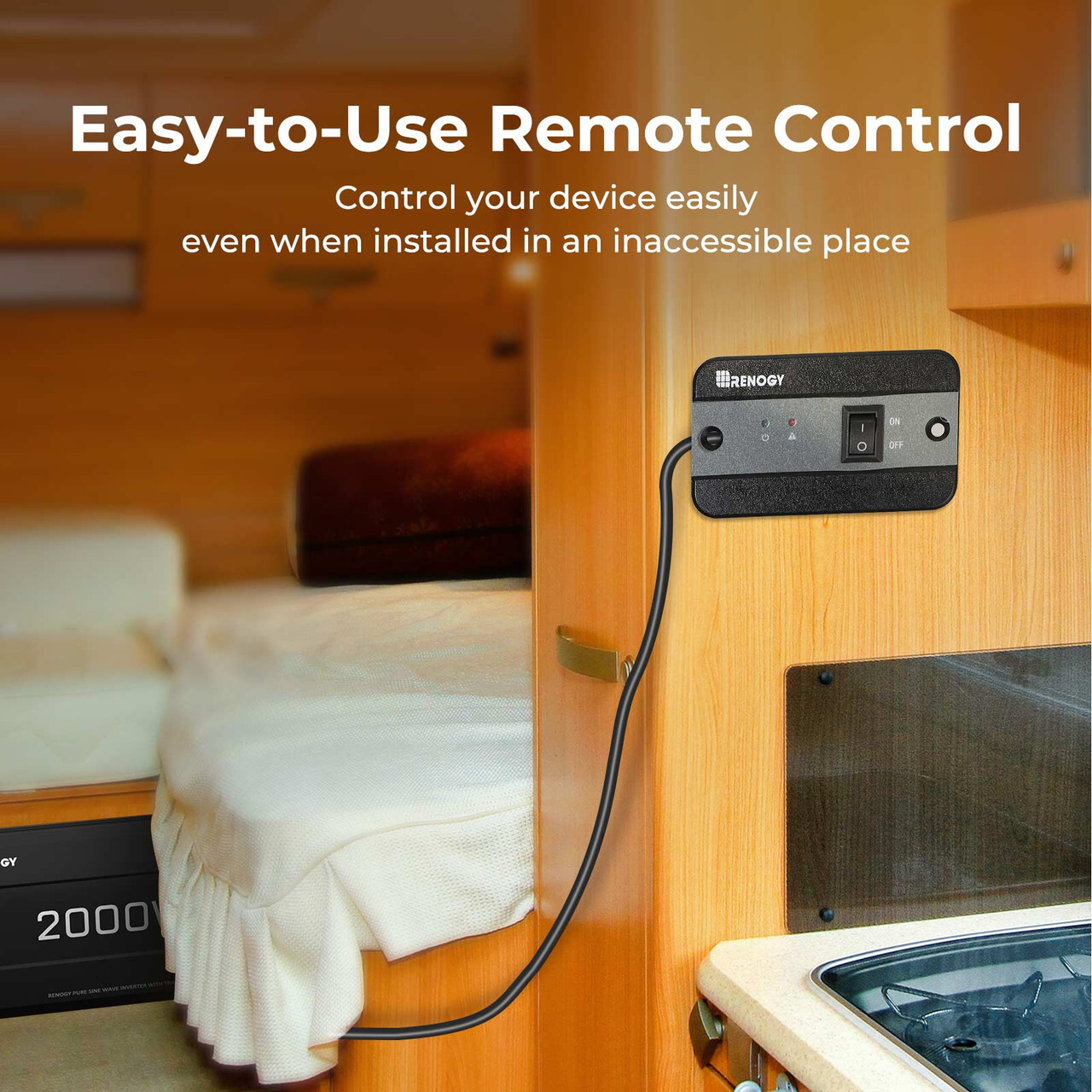

battery inverter x1, remote control and 3m cable x 1 and battery cables (20mm²) x 4
Material and Workmanship Warranty
 Warranty Period 1-year



SKU REN.R-INVT-PUH1-201235-AU
Model # R-INVT-PUH1-201235-AU
Brand Renogy
Shipping Weight 4.8000kg
Shipping Width 0.450m
Shipping Height 0.100m
Shipping Length 0.220m
Shipping Cubic 0.009900000m3
Unit Of Measure ea
