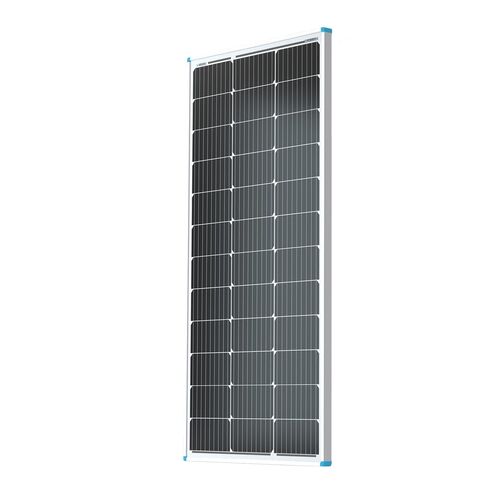

Durable High-Efficiency Solar Panel for Reliable 12V Power Systems

The Renogy CORE 12V 100W Rigid Solar Panel is built for dependable off-grid, RV, marine, and residential applications. Featuring premium monocrystalline cells, a high-transmission tempered glass surface, and a corrosion-resistant aluminium frame, it delivers outstanding performance and long-term reliability. Its optimised efficiency ensures consistent power output even in low-light conditions, making it ideal for both fixed and mobile solar installations.

Key Features

  • High Conversion Efficiency: Delivers up to 17.8% module efficiency with superior low-light performance.
  • Premium Monocrystalline Cells: Engineered for maximum output and durability under diverse environmental conditions.
  • Rugged Aluminium Frame: Anodised corrosion-resistant frame designed to withstand extended outdoor exposure.
  • Weather-Resistant Design: Rated IP65 for reliable performance against dust, rain, and environmental contaminants.
  • Enhanced Electrical Protection: Built-in bypass diodes minimise power loss from shading and prevent reverse current.
  • Versatile Applications: Ideal for 12V systems in RVs, boats, cabins, and off-grid structures.
  • Easy Integration: Compatible with standard MC4-type solar connectors and mounting systems for quick setup.

Engineered for durability and consistent performance, this 100W rigid panel offers reliable power generation wherever solar energy is needed.

Technical Specifications
Maximum Power (Pmax) 100 W
Optimum Operating Voltage (Vmp) 20.4 V
Optimum Operating Current (Imp) 4.91 A
Open Circuit Voltage (Voc) 24.3 V
Short Circuit Current (Isc) 5.21 A
Module Efficiency 17.8%
Maximum System Voltage 600 V DC
Maximum Series Fuse Rating 15 A
Solar Cell Type Monocrystalline (6.5 × 3.3 in)
Number of Cells 36 (3 × 12)
Front Glass 3.2 mm Tempered Glass
Frame Material Anodised Aluminium Alloy
Junction Box Rating IP67, 30 A
Panel IP Rating IP65
Operating Temperature –40 °F to 176 °F
Nominal Operating Cell Temperature (NOCT) 47 ± 2 °C
Temperature Coefficient of Pmax –0.37 % / °C
Temperature Coefficient of Voc –0.28 % / °C
Temperature Coefficient of Isc +0.05 % / °C
Dimensions 1062 × 530 × 35 mm (41.8 × 20.9 × 1.4 in)
Weight 6.4 kg (14.1 lb)
Fire Rating Class C
SKU REN.RNG-100D-SS-G3-AU
Model # RNG-100D-SS-G3-AU
Brand Renogy
Shipping Weight 7.0000kg
Shipping Width 1.060m
Shipping Height 0.035m
Shipping Length 0.530m
Shipping Cubic 0.019663000m3
Unit Of Measure ea
