Portable High-Output Solar Kit with Waterproof Charge Controller

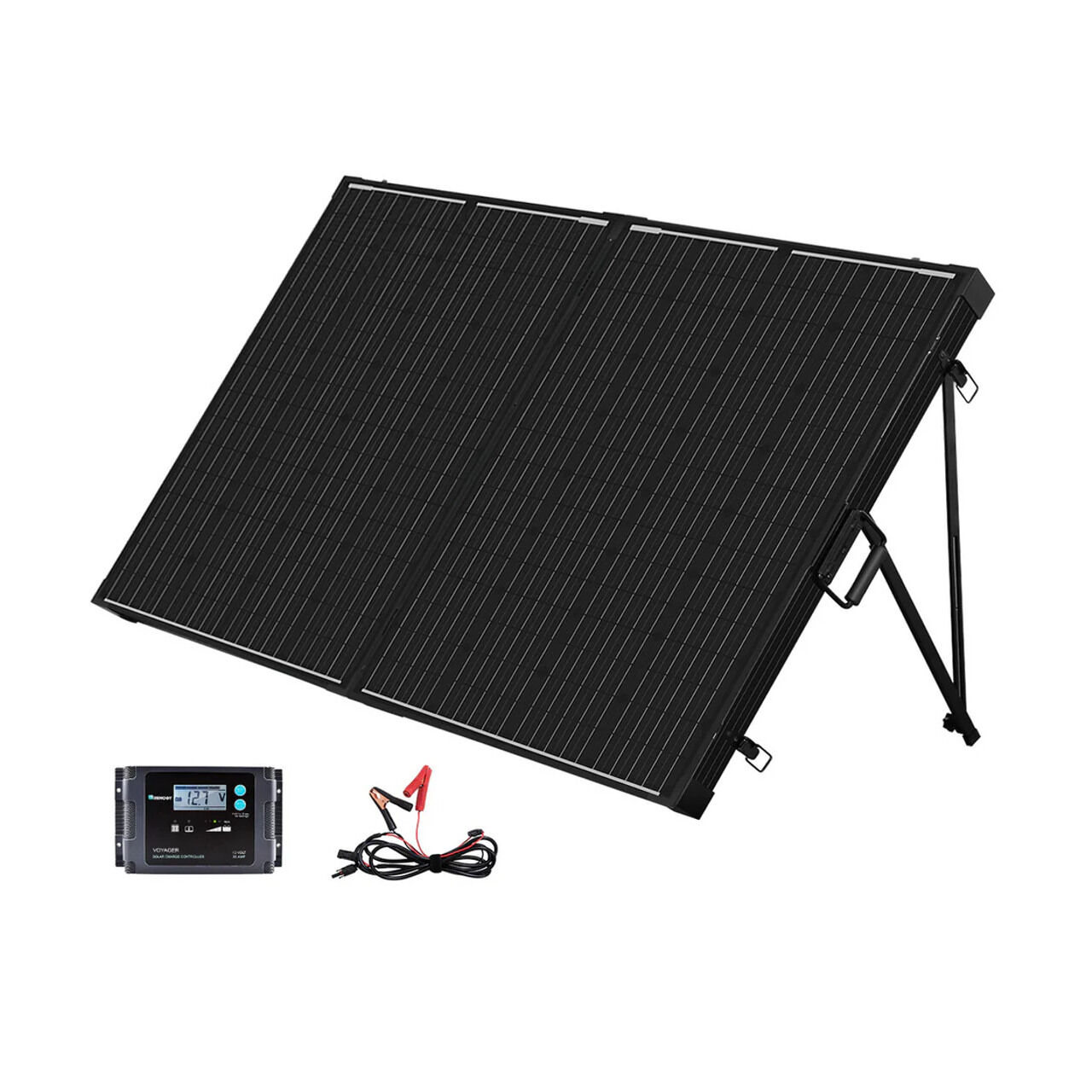

The Renogy CORE 12V 200W Monocrystalline Foldable Solar Suitcase combines high-efficiency solar performance with durable portability. Complete with a 20A waterproof Voyager charge controller, it delivers dependable off-grid power for RVs, boats, vans, and remote systems. Its rugged design, integrated stand, and quick-connect cabling make it ideal for fast setup and sustained performance in all environments.

Key Features

  • Integrated 20A Charge Controller: The Voyager controller offers four-stage charging—Bulk, Boost, Float, and Equalisation—with a clear LCD interface and intelligent protection functions.
  • Broad Battery Support: Compatible with sealed, AGM, gel, flooded, and lithium (LiFePO₄) batteries for flexible integration with existing systems.
  • Waterproof & Weather-Resistant: Features IP67-rated controller and IP65-rated panels, ensuring reliable performance under harsh outdoor conditions.
  • Quick Setup: Equipped with an adjustable stand, pre-wired MC4 connectors, and alligator clips for instant connection to any 12V battery system.
  • Real-Time System Monitoring: The LCD display provides live data on voltage, current, temperature, and charging status for easy performance tracking.
  • High Efficiency & Expandable Design: Monocrystalline panels achieve strong conversion efficiency with options for series or parallel expansion.
  • Portable & Durable: Folds into a protective suitcase with reinforced handles, ideal for mobile off-grid setups.

Delivering clean, efficient energy wherever you go, this solar suitcase kit provides a professional-grade power solution for outdoor, mobile, and emergency use.

Product Specifications
Maximum Power (Pmax) 200 W
Optimum Operating Voltage (Vmp) 20.4 V
Optimum Operating Current (Imp) 9.82 A
Open-Circuit Voltage (Voc) 24.3 V
Short-Circuit Current (Isc) 10.42 A
Cell Type Monocrystalline
Operating Temperature –40 °F to 185 °F (–40 °C to 85 °C)
Folded Dimensions 41.8 × 20.9 × 2.8 in (1062 × 530 × 71 mm)
Weight 34.4 lb (15.6 kg)
20A Voyager Charge Controller
System Voltage 12 V / 24 V Auto Recognition
Rated Charge Current 20 A
Max PV Input Voltage 12 V @ 25 V / 24 V @ 55 V
PV Power Input Limit 12 V @ 260 W / 24 V @ 520 W
Battery Types Sealed, Gel, Flooded, Lithium (LiFePO₄)
Temperature Compensation –3 mV / °C / 2 V (excluded for lithium)
Operating Temperature –31 °F to 113 °F (–35 °C to 45 °C)
Ingress Protection IP67 (Controller), IP65 (Panels)
Controller Dimensions 6.08 × 3.83 × 1.40 in (154 × 97 × 36 mm)
Controller Weight 0.55 lb (0.25 kg)
Included Cable 10 ft (3 m) MC4-to-Alligator Clip Cable, Fused
Warranty 2 Years
SKU REN.RNG-STCS200D-VOY20-G3
Model # RNG-KIT-STCS200D-VOY20-G3
Brand Renogy
Shipping Weight 20.0000kg
Shipping Width 1.340m
Shipping Height 0.035m
Shipping Length 0.826m
Shipping Cubic 0.038739400m3
Unit Of Measure ea
