Renogy REGO 200w Shadowflux Anti-Shading N-Type Solar Panel
High-efficiency 200W rigid panel with ShadowFlux anti-shading tech, compact design and outdoor durability for off-grid and mobile solar power applications
SKU: REN.RSP200DC-ASR-G1-AU | MPN: RSP200DC-ASR-G1-AU
SAVE $33.68 (9%)
Only 3 left In Stock
Ships today from our Yatala warehouse if order placed by 1pm
Compact, High-Efficiency Panel Built for Mobile Solar Systems

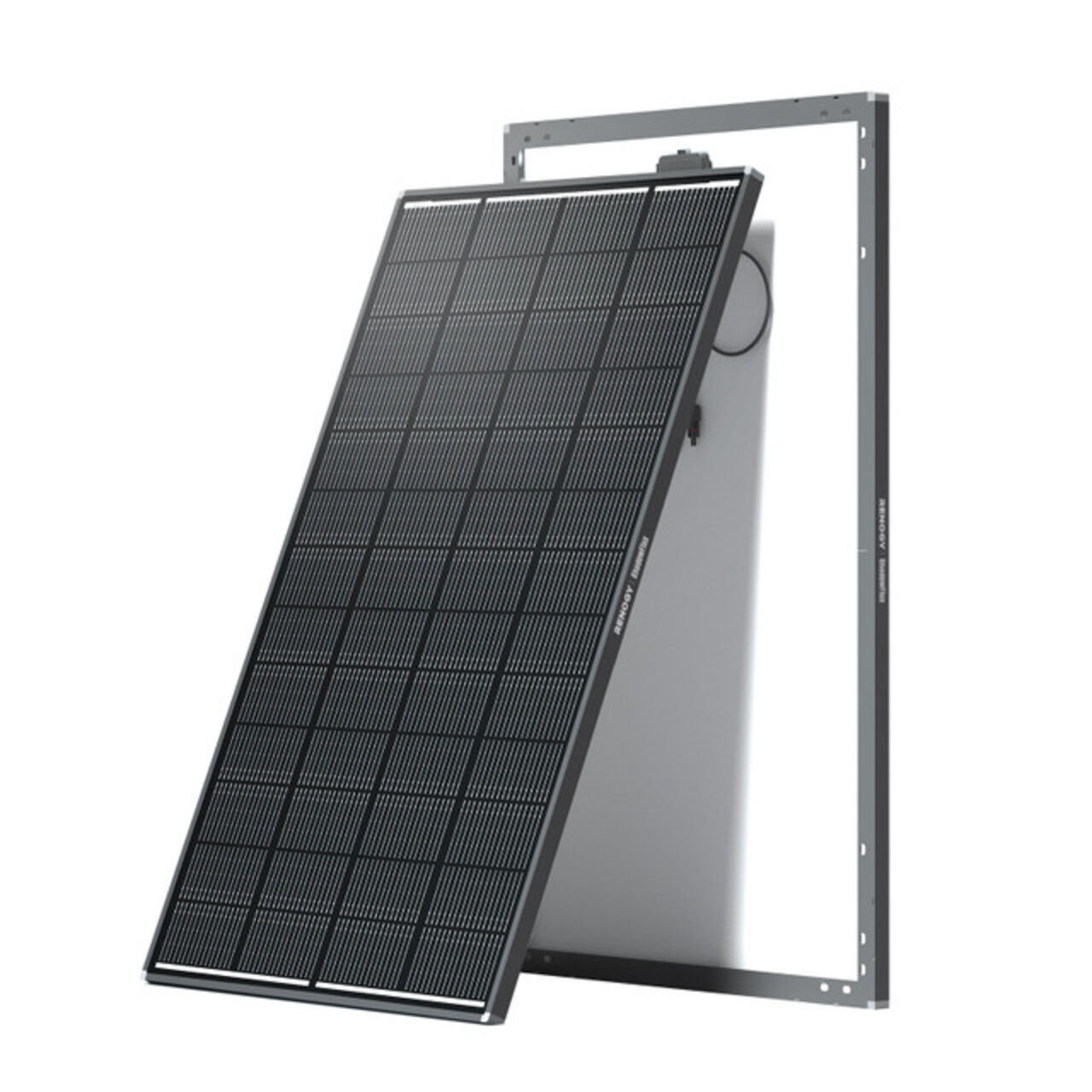

This 200-watt rigid solar panel combines Renogy’s ShadowFlux anti-shading technology with high-efficiency N-Type monocrystalline cells to deliver maximum energy output—even under partial shading. Designed for off-grid vehicles and outdoor setups, it maintains long-term power stability while remaining lightweight and compact. A durable anodised aluminium frame, IP67 protection, and advanced thermal performance ensure reliable operation in harsh environments.
Key Features

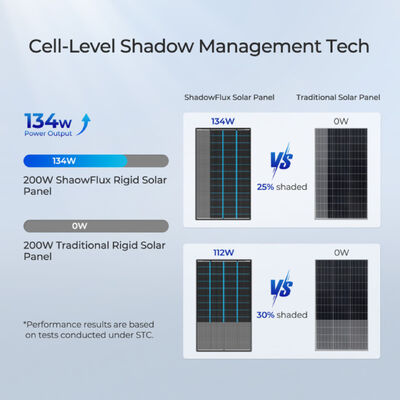

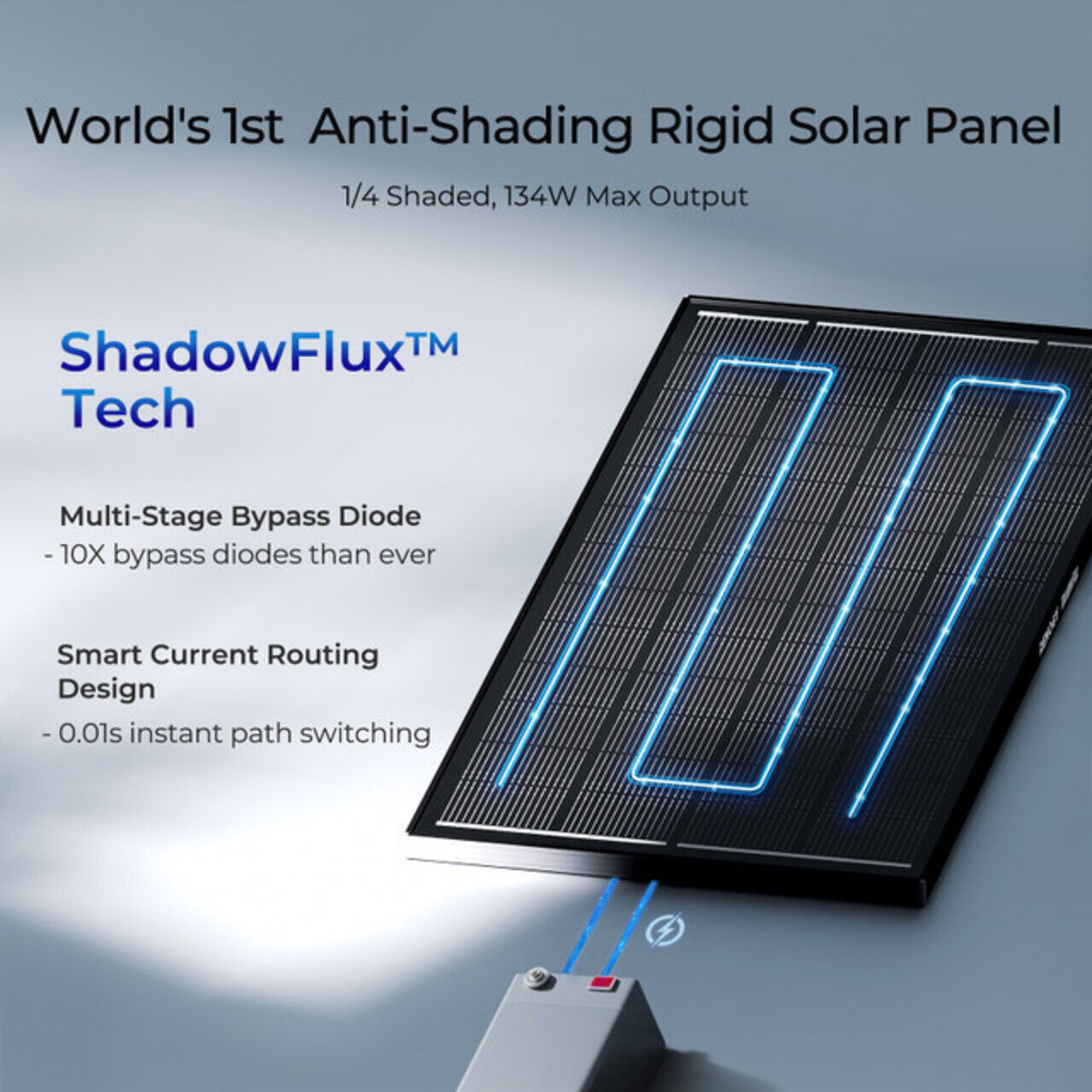

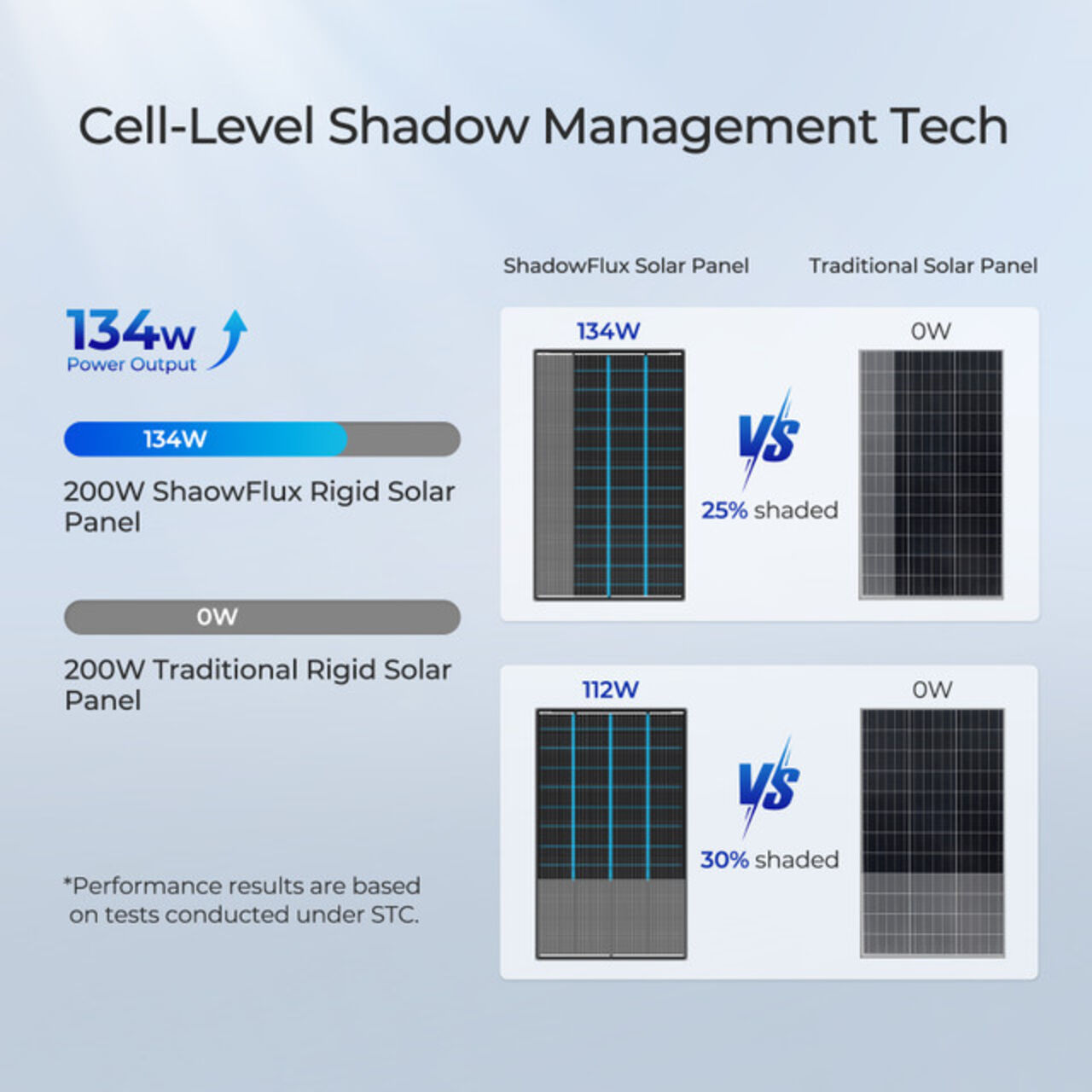

- ShadowFlux Technology: Delivers superior power output under partial shading by isolating cell groups and preventing energy loss.
- N-Type High Efficiency Cells: Achieves greater than 24.8% cell-level efficiency with reduced degradation over time.
- Compact, Lightweight Build: Measures just 1262 × 764 × 30 mm and weighs 10.81 kg, ideal for rooftops, vans, and canopy installations.
- Enhanced Thermal Stability: Lower temperature coefficient ensures consistent performance in hot conditions.
- Water and Dust Protection: IP67-rated junction box and IP68-rated connectors allow for safe outdoor exposure.
- Durable Construction: 3.2 mm tempered glass with anodised aluminium alloy frame withstands vibrations and weather stress.
- Plug-and-Play Compatibility: Comes pre-equipped with MC4 connectors and 600 mm cables for fast integration.

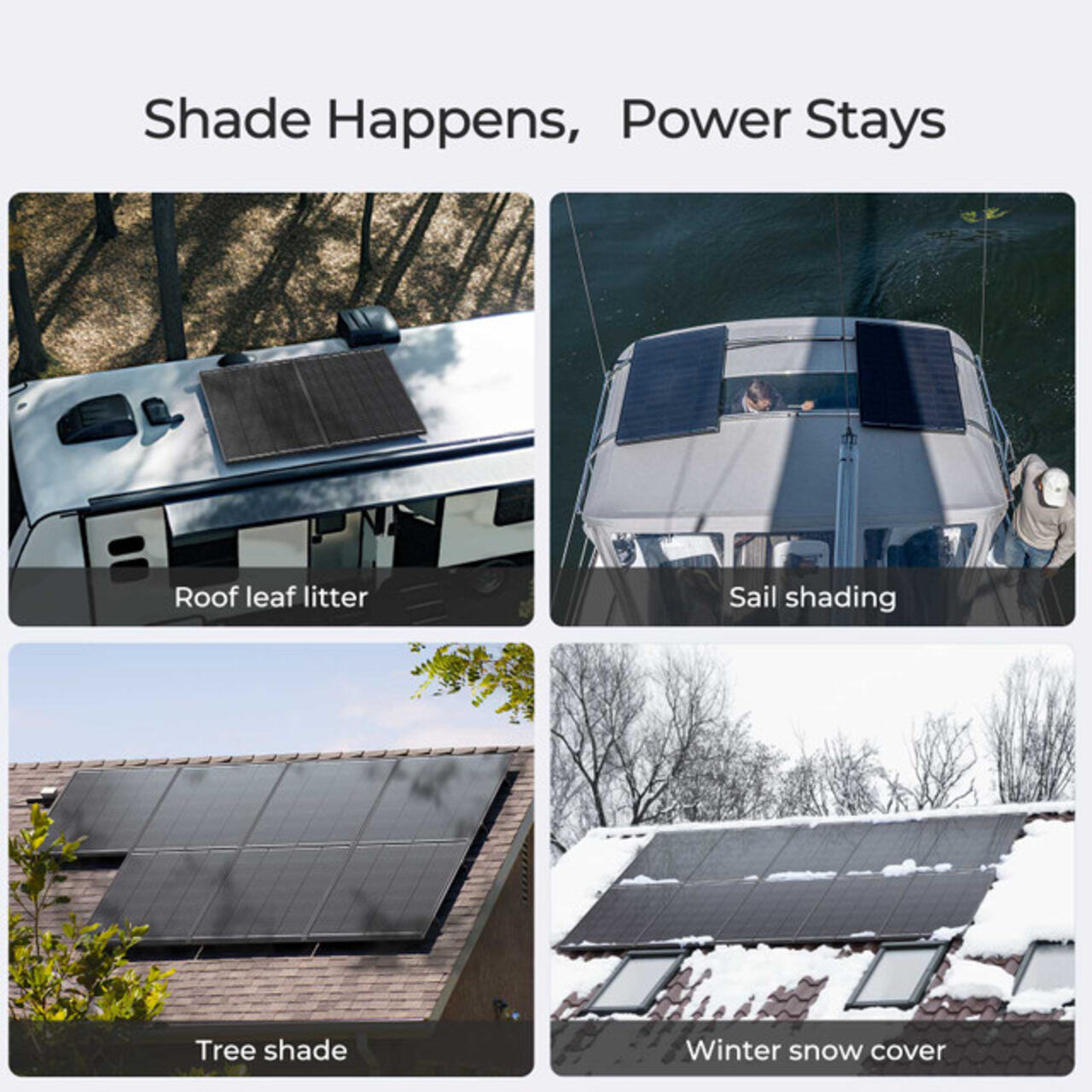

Perfect for RVs, caravans, utes or existing PV upgrades, this panel delivers long-lasting, high-efficiency power anywhere you go.
Specifications | |
---|---|
Maximum Power | 200 W |
Open Circuit Voltage (Voc) | 36.5 V |
Short Circuit Current (Isc) | 6.86 A |
Optimum Operating Voltage (Vmp) | 31.3 V |
Optimum Operating Current (Imp) | 6.38 A |
Module Efficiency | 20.7% |
Cell Type | N-Type Monocrystalline |
Cell Configuration | 52 cells (4 × 13) |
Dimensions | 1262 × 764 × 30 mm |
Weight | 10.81 kg |
Frame | Anodised Aluminium Alloy |
Front Glass | 3.2 mm Tempered Glass |
Junction Box Rating | IP67 |
Connector Type | MC4, IP68 |
Output Cable | 14 AWG, 600 mm |
Operating Temperature | –40°C to 85°C |
Maximum System Voltage | 1000 V DC |
Maximum Series Fuse Rating | 30 A |
Power Tolerance | 0–5 % |
SKU | REN.RSP200DC-ASR-G1-AU |
Model # | RSP200DC-ASR-G1-AU |
Brand | Renogy |
Shipping Weight | 6.0000kg |
Shipping Width | 0.080m |
Shipping Height | 0.800m |
Shipping Length | 1.800m |
Shipping Cubic | 0.115200000m3 |
