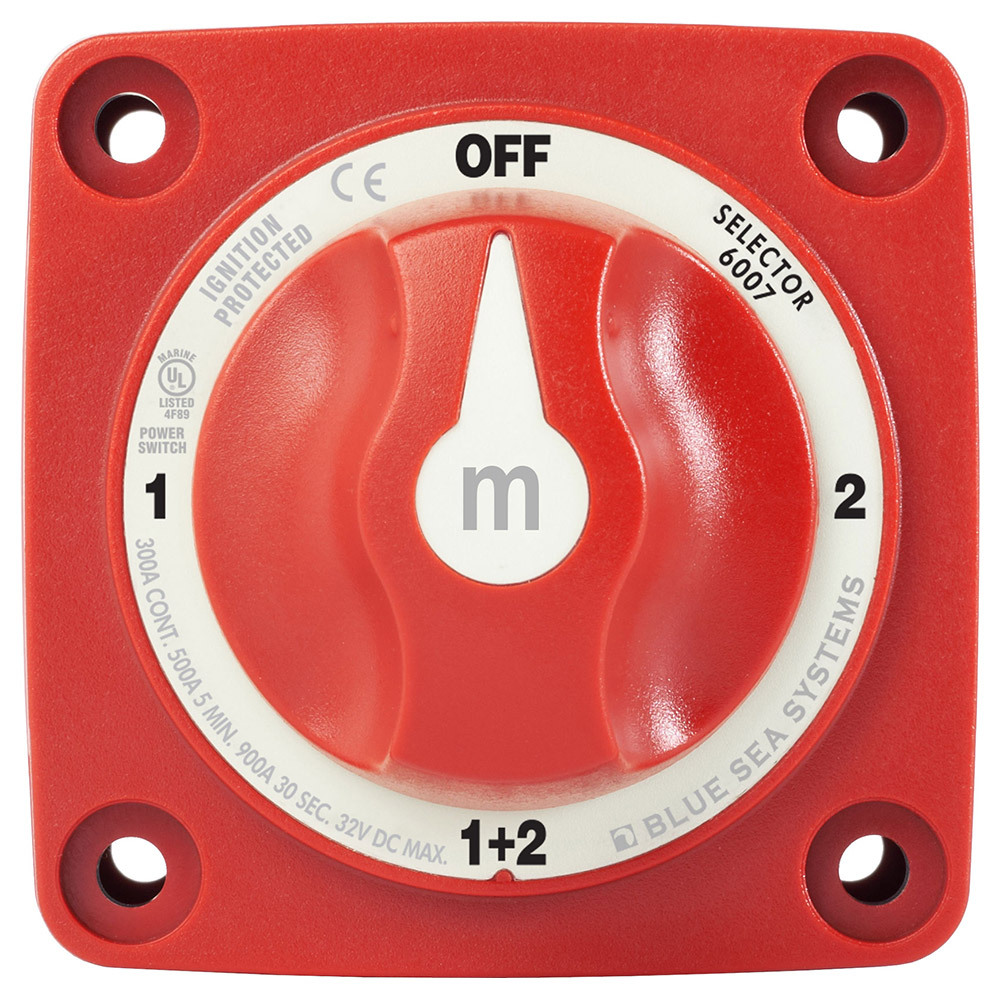

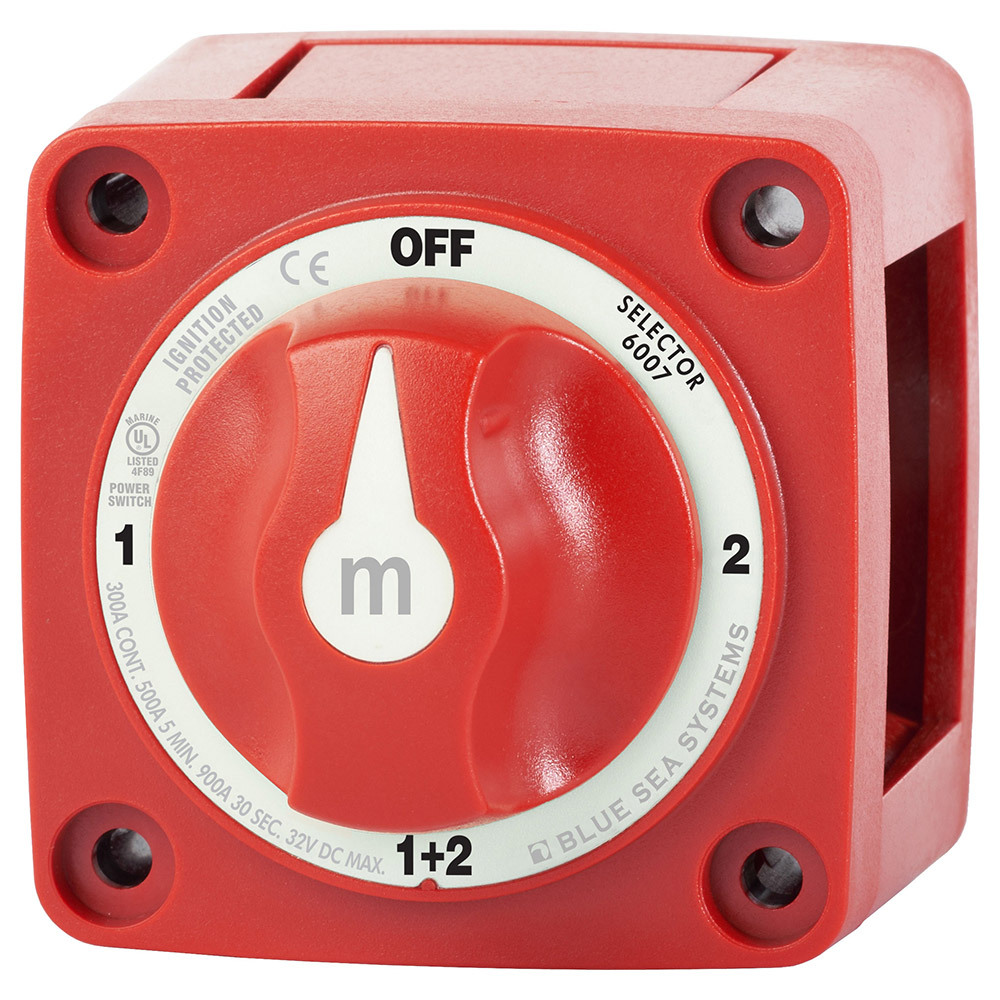

Blue Sea 6007 m-Series Mini Selector Battery Switch - 4 Position
m-Series (Mini) Battery Switches - m-Series Battery Switch Selector 4 Position
- Availability:
- SKU: BSS.6007
- Afd: No AFD
- Positions: 1-OFF-2-BOTH
- Poles: Single Pole
- Manufacturer: Blue Sea
- MPN: 6007B
- Barcode: 632085060077
- Shipping Weight: 0.35kg
Recommended Accessories
Insurance
All shipments are covered for loss or damage while in transit up to the point of delivery to the nominated shipping address. Insurance does not cover goods left on your premises under your instruction.
m-Series (Mini) Battery Switches - m-Series Battery Switch Selector 4 Position
Features
Switches isolated battery banks to all loads or combines battery banks to all loads
- Make before break contact design allows switching between battery banks without power interruption
- Ignition protected—safe for installation aboard gasoline powered boats

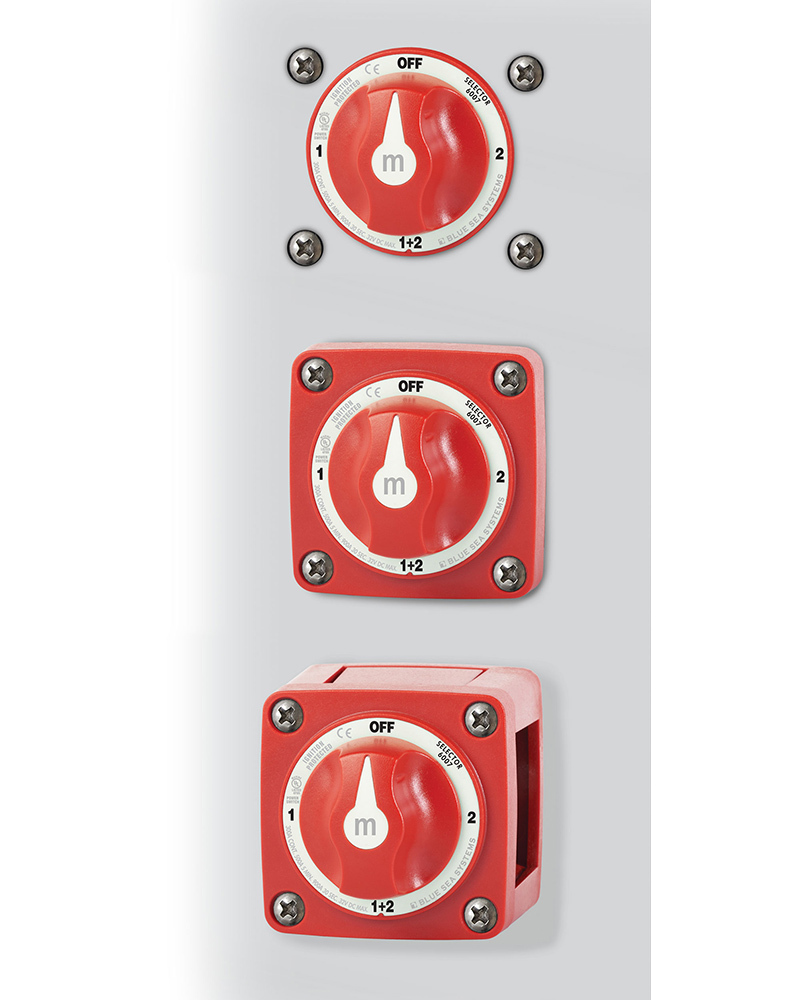

- Case design allows surface front panel or rear panel mounting

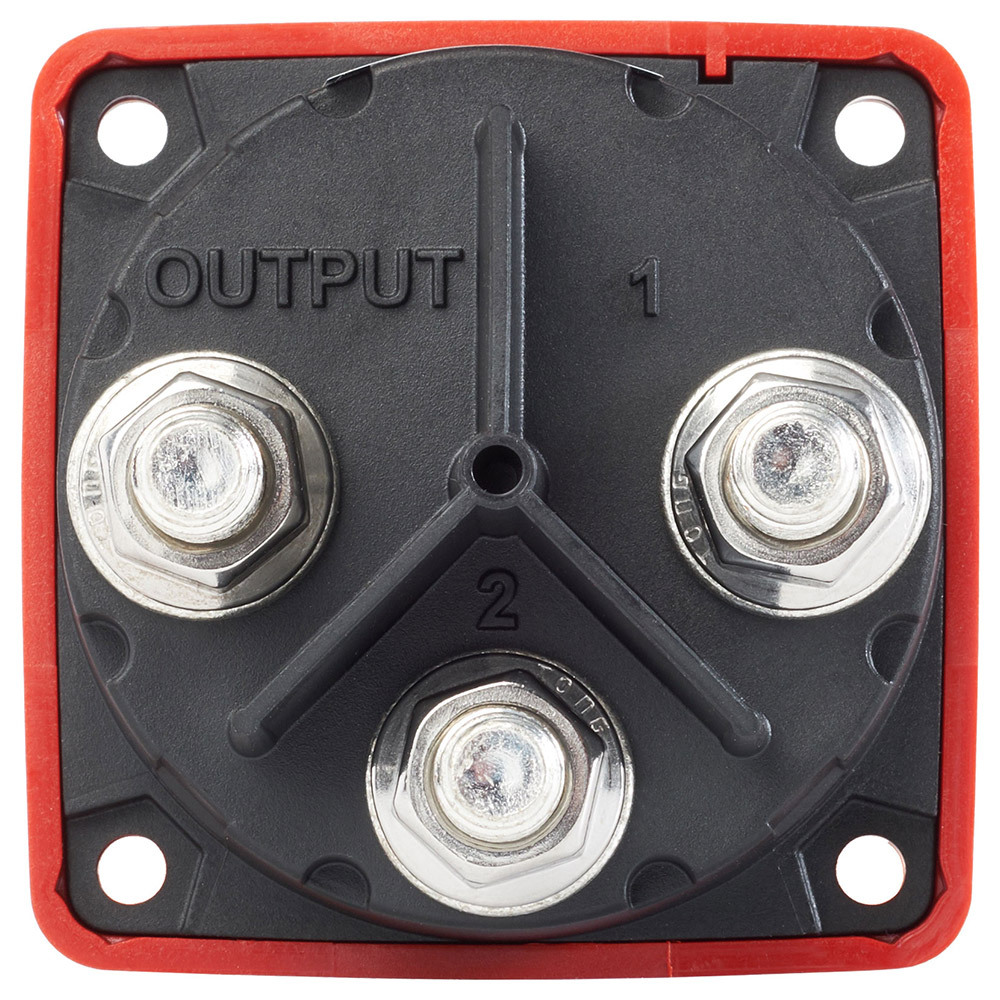

- Isolating cover with snap-on sections protects rear contacts
- 3/8""-16 tin-plated copper studs for maximum conductivity and corrosion resistance accepts 3/8"" and M10 ring terminals
- 7/8"" (22.22mm) stud length to accept multiple cable terminals
- Ideal for marine or RV applications
- All non-corrosive marine grade metals
- Molded in durable reinforced polycarbonate
- Tactile textures indicate knob position by feel only
- Removable key or knob remains positively retained
Switch set to 1 |
Switch set to 2 |
Switch set to 1 + 2 |
 |
 |
 |
(BSS.6007)
| Specifications | |
|---|---|
| Switch Type | Selector 4 Position |
| Color | Red |
| Switch Positions | 4 |
| Battery Combine | Yes |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32V DC |
| Stud Size | 3/8" |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Cranking Rating 30 sec | 900A |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept #10 Screw |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 0.77Lb (0.35 Kg) |
| Weight | 0.77lb (0.35 kg) |
