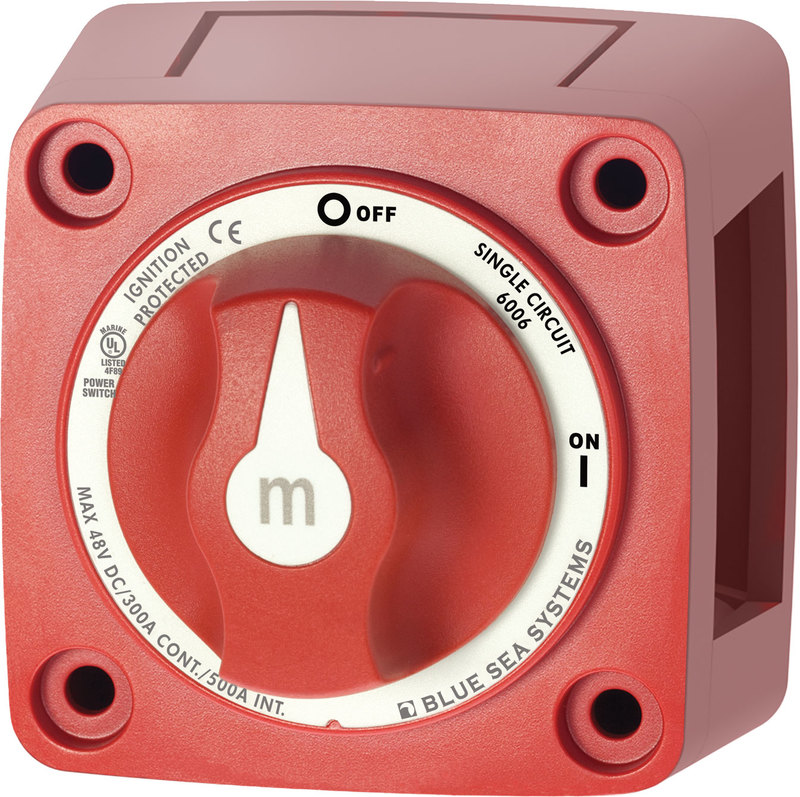

Blue Sea 6006 m-Series Mini Selector Battery Switch - ON-OFF - Red

Blue Sea m-Series Mini On-Off Battery Switch with Knob - Red. 48VDC 300A Continuous / 500A Intermittent

  • Availability:
  • SKU: BSS.6006
  • Afd: No AFD
  • Positions: ON-OFF
  • Poles: Single Pole
  • Manufacturer: Blue Sea
  • MPN: 6006
  • Shipping Weight: 0.29kg
$47.80 inc GST




Recommended Accessories



Insurance
All shipments are covered for loss or damage while in transit up to the point of delivery to the nominated shipping address. Insurance does not cover goods left on your premises under your instruction.

Blue Sea m-Series Mini On-Off Battery Switch with Knob - Red. 48VDC 300A Continuous / 500A Intermittent

Switches a single battery to a single load group

  • Ideal for marine or RV applications
  • Ignition protected - safe for installation aboard gasoline powered boats

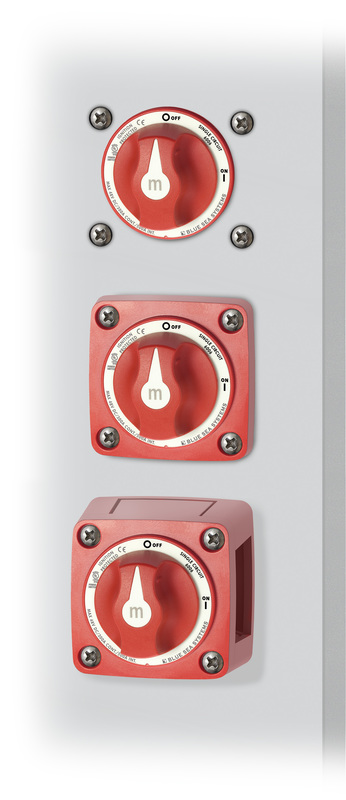

  • Case design allows surface, front panel, or rear panel mounting
  • Isolating cover with snap-on sections protects rear contacts
  • All non-corrosive marine grade metals
  • Tin-plated copper studs for maximum conductivity and corrosion resistance



6006 Specifications
Switch Type  Single Circuit ON-OFF
Color Red
Switch Positions 2
Battery Combine No
Alternator Field Disconnect  No
Maximum Voltage 48V DC
Stud Size 3/8"
Terminal Stud Torque 120 in-lb (13.56 Nm)
Continuous Rating  300A
Intermittent Rating  500A (5 min)
Cranking Rating 30 sec  900A
Battery Inputs 1
Cable Clearance For 4/0 AWG Cables 1.12in (28.45 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept #10 Screw
Stud Material Tinned Copper
Stud Torque 120 in-lb (13.56 Nm)
Terminal Stud Size 3/8" - 16 (M10)
Weight 0.65Lb (0.29 Kg)

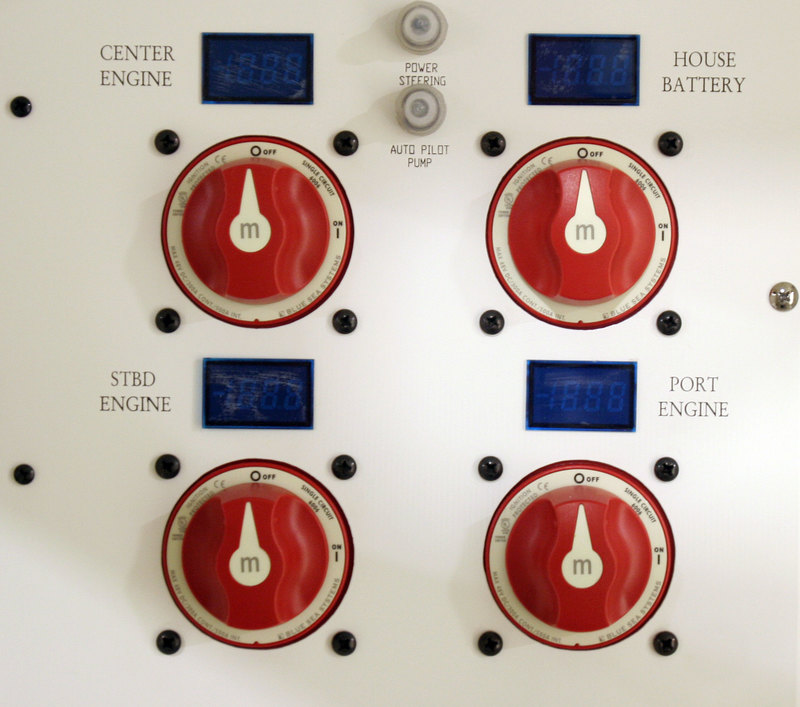

6006 Switch set to ON
9003e Switch set to ON



(BSS.6006)
