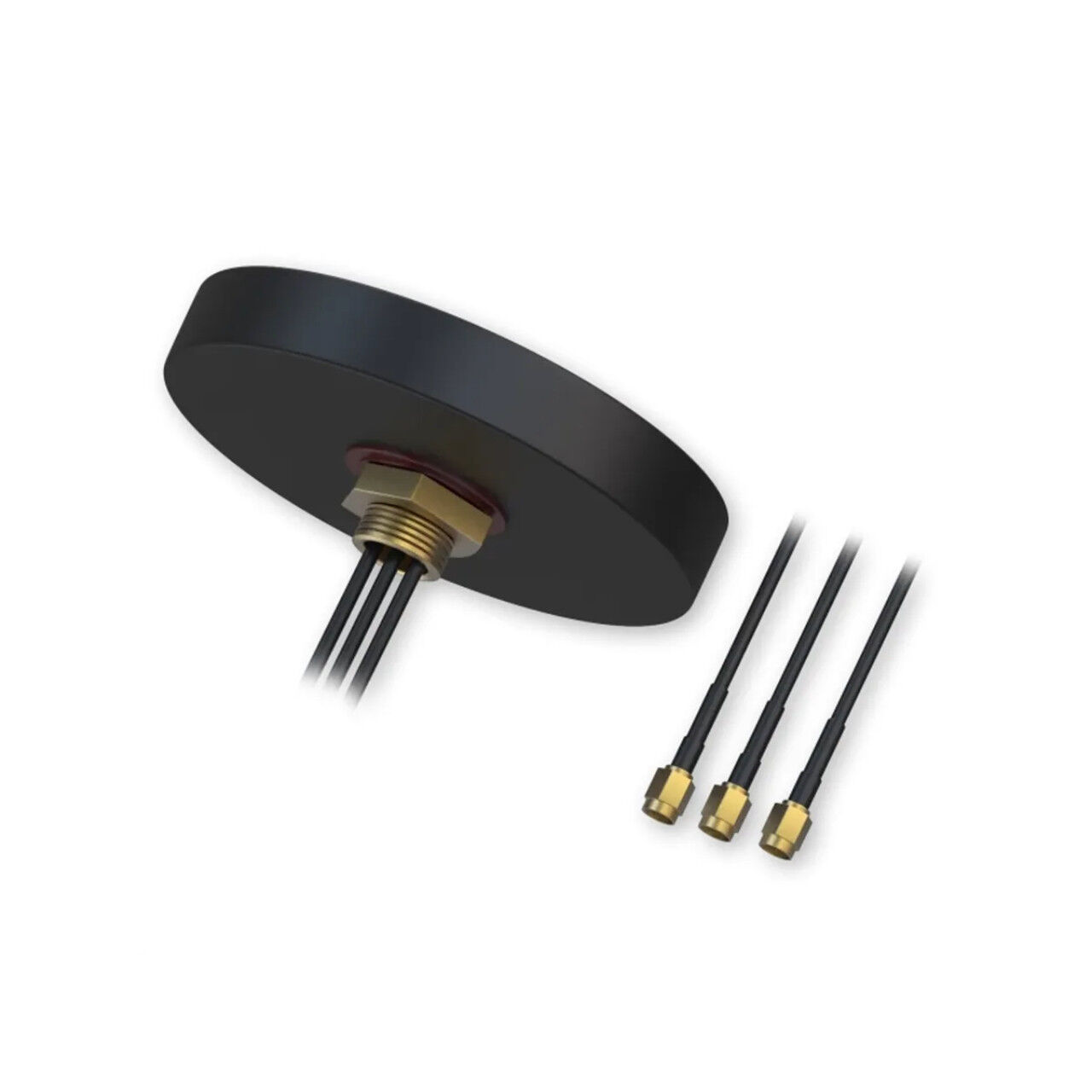

Compact Rooftop Antenna for LTE, GNSS, and Wi-Fi Sse

This low-profile combo antenna supports mobile LTE, GNSS, and Wi-Fi connectivity from a single rugged rooftop unit. Designed for vehicle or outdoor equipment integration, it includes SMA and RP-SMA connectors and a weather-resistant housing rated IP67. It delivers stable omnidirectional performance across LTE (617–2690 MHz), GNSS (1575–1610 MHz), and Wi-Fi (2350–2500 MHz) bands. The unit operates in temperatures from -40°C to +85°C, includes triple RG174 cables (3m), and is compliant with RoHS standards for long-term durability and reliability.

Key Features

• Triple-Function Antenna: Combines LTE, GNSS, and Wi-Fi in one compact housing for streamlined installations.
• Rugged Weatherproof Housing: Rated IP67 (excluding cable outlet) and constructed with ABS for outdoor or vehicular use.
• High GNSS Sensitivity: Provides 28 dBi gain with low noise figure (1.5 dB) and RHCP polarization for precision tracking.
• Omnidirectional LTE Coverage: Supports 617–960 MHz and 1710–2690 MHz LTE bands with up to 3.5 dBi gain.
• Dedicated Wi-Fi Element: Operates at 2350–2500 MHz with 2.5 dBi gain for stable wireless performance.
• Multiple SMA Connectors: Includes SMA Male for LTE and GNSS, RP-SMA Male for Wi-Fi to ensure compatibility.
• Extended Operating Range: Handles extreme temperatures from -40°C to +85°C for reliable field deployment.
• Standard Cable Length: Comes with three 3-metre RG174 cables for flexible routing and easy mounting.
• Low VSWR Across Bands: Maintains ≤1.5 VSWR for all elements to reduce signal reflection and improve efficiency.
• Compliant and Durable: Fully RoHS compliant and UV resistant, ideal for long-term exposure.

Durable, space-saving solution for high-reliability multi-band antenna connectivity in mobile environments.
