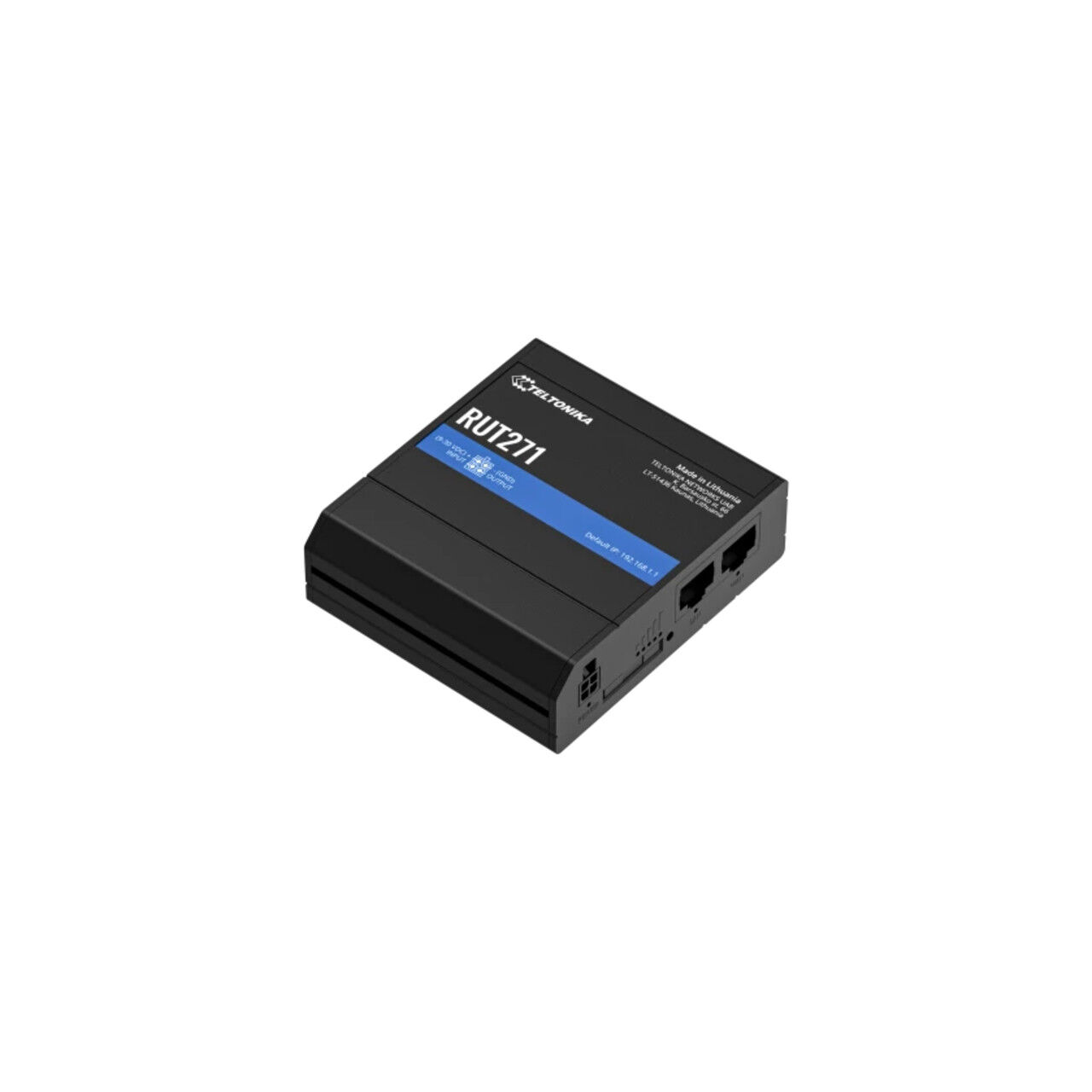

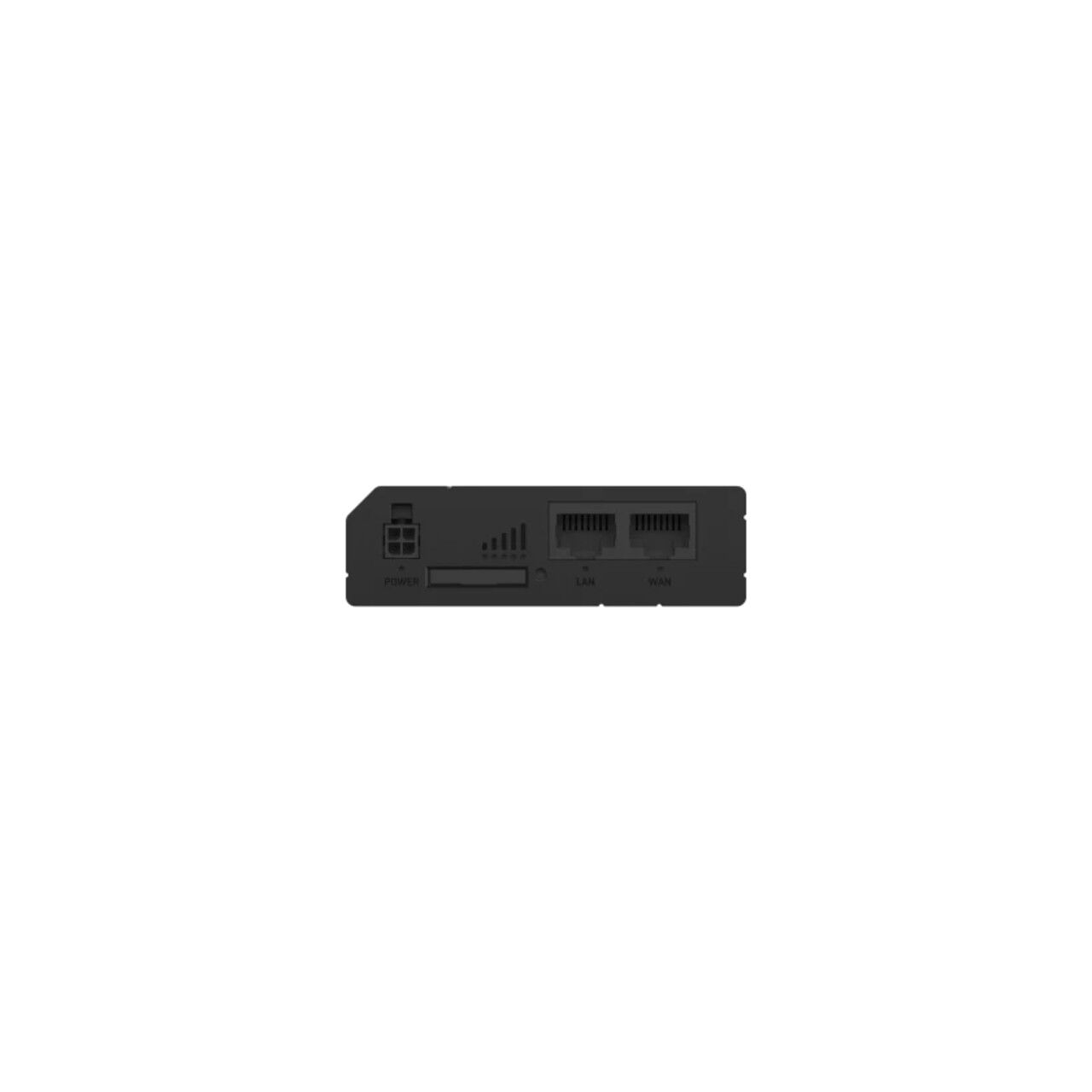

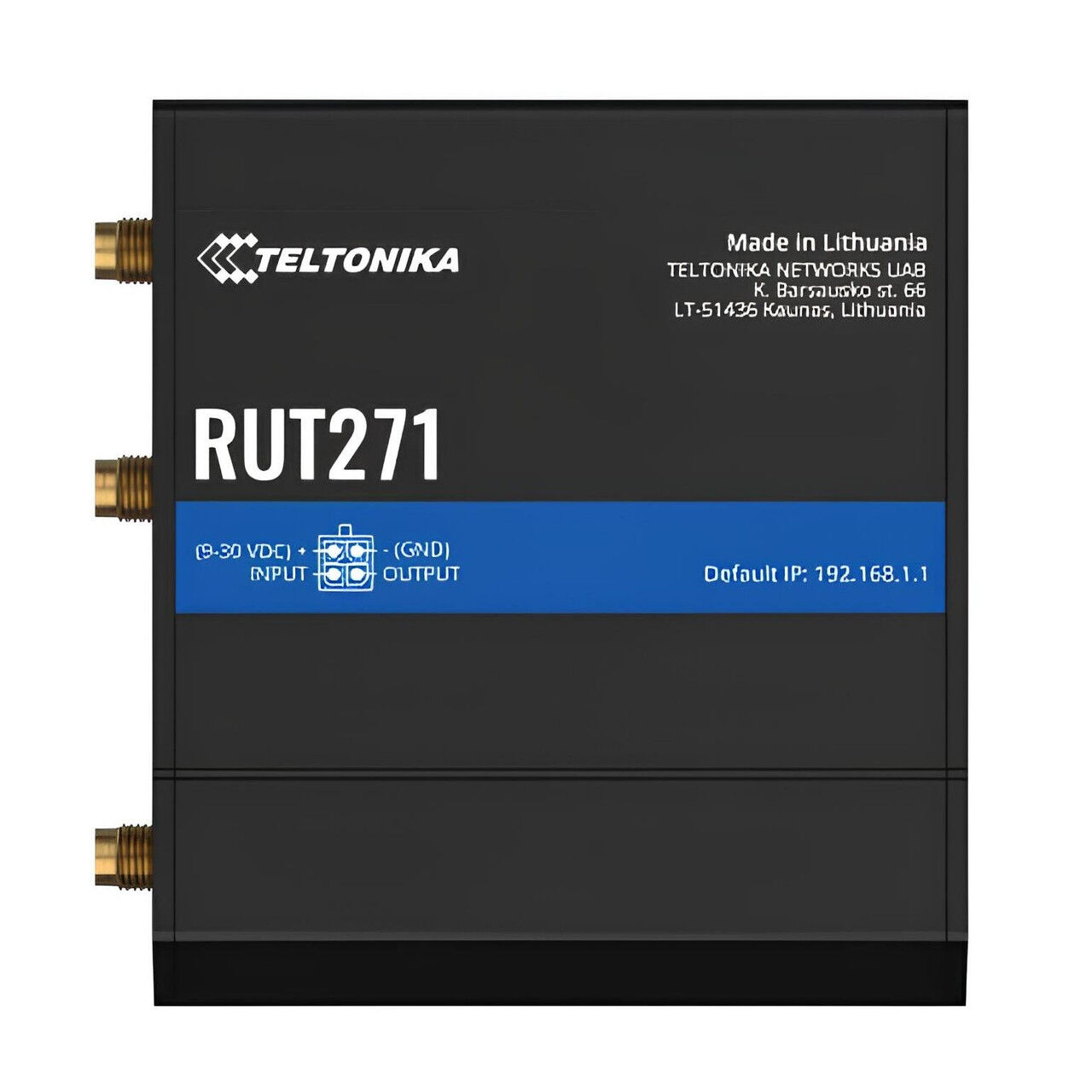

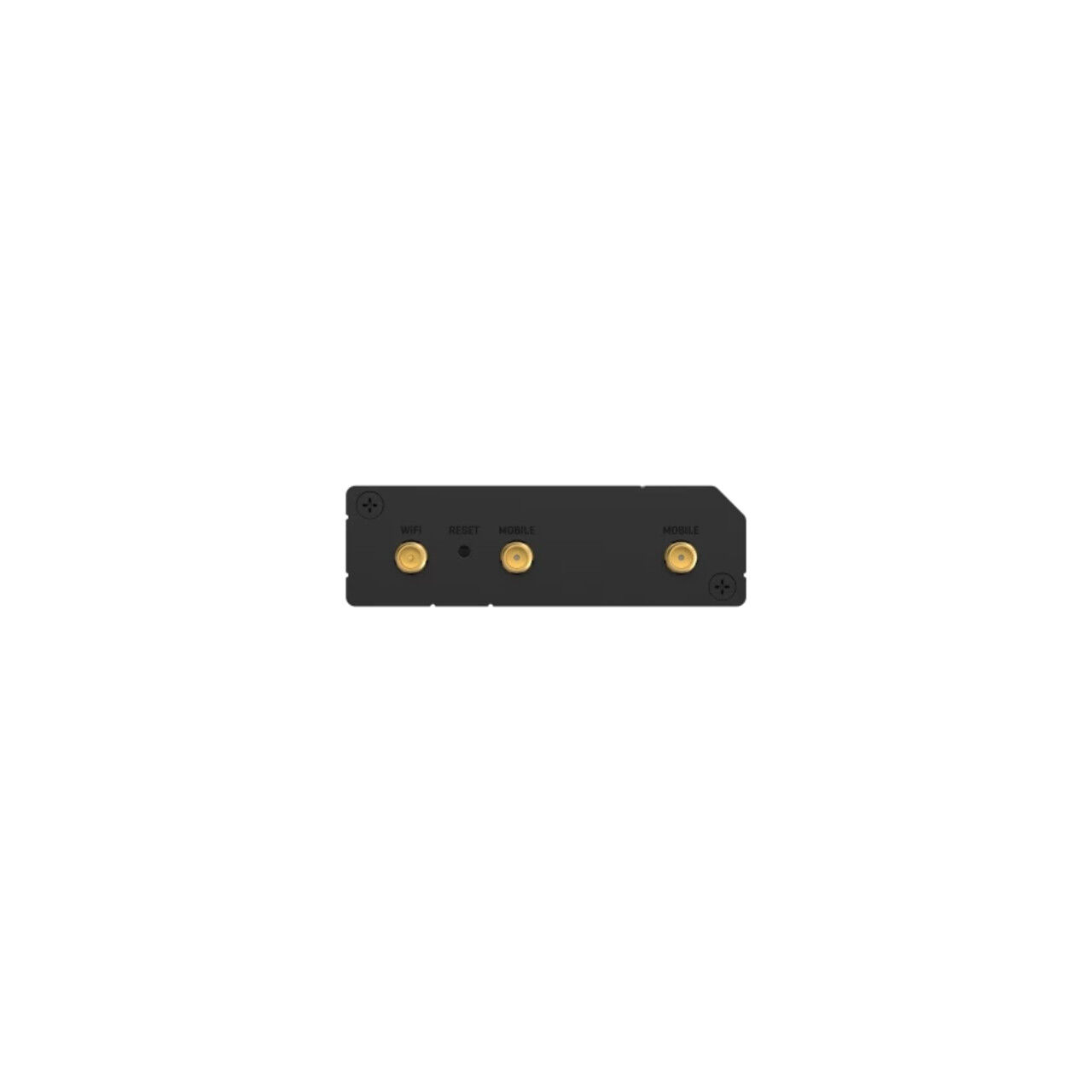

Industrial-Grade 5G RedCap Router for Reliable Connectivity

A compact and cost-effective RedCap 5G router delivers low-latency, high-capacity connectivity, bridging the gap between 4G LTE and full-capacity 5G networks. Designed for industrial and professional applications: supports seamless network failover, Wi-Fi connectivity, and dual Ethernet ports, ensuring stable and secure communications. Ideal for remote monitoring, IoT applications, and mission-critical deployments: offers reliable performance in a rugged, compact form factor.

Key Features

  • RedCap 5G Connectivity: Supports 5G Sub-6GHz SA with download speeds up to 223 Mbps and upload speeds up to 123 Mbps: ensures a high-speed, future-ready connection.
  • 4G LTE Compatibility: Backward-compatible with LTE Cat 4: maintains connectivity in areas where 5G coverage is unavailable.
  • Wi-Fi 4 (802.11b/g/n): Functions as both an Access Point (AP) and Station (STA): supports up to 50 simultaneous wireless connections.
  • Dual Ethernet Ports: Equipped with two 10/100 Mbps RJ45 ports: provides flexible wired network options for industrial setups.
  • WAN Failover: Automatically switches to a backup connection if the primary link fails: ensures continuous uptime and network reliability.
  • Secure and Remote Management: Supports advanced security features, VPN functionality, and Teltonika RMS integration: enables easy monitoring and control.

Delivering robust connectivity in a compact design a versatile solution for industrial automation, IoT, and professional networking applications.

Product Specifications
Mobile Module 5G Sub-6GHz SA 223 Mbps DL, 123 Mbps UL; 4G LTE Cat 4 – LTE 195 Mbps DL, 105 Mbps UL
3GPP Release Release 17 RedCap
Status IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White List Operator black/white list (by country or separate operators)
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band Management Band lock, Used band status display
SIM PIN Code Management Setting, changing, or disabling the SIM card's PIN
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN
Wireless Mode 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Wi-Fi Security WPA2-Enterprise, WPA3-SAE, WPA3-EAP, AES-CCMP, TKIP, client separation, EAP-TLS with PKCS#12 certificates, 802.11w Protected Management Frames (PMF)
SSID/ESSID SSID stealth mode and access control based on MAC address
Wi-Fi Users Up to 50 simultaneous connections
Wireless Connectivity Features Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC Filter Allowlist, blocklist
Wireless QR Code Generator Once scanned, a user will automatically enter the network without needing to input login information
TravelMate Forward Wi-Fi hotspot landing page to a subsequent connected device
WAN 1 x WAN port 10/100 Mbps, IEEE 802.3, IEEE 802.3u, 802.3az, auto MDI/MDIX crossover
LAN 1 x LAN port 10/100 Mbps, IEEE 802.3, IEEE 802.3u, 802.3az, auto MDI/MDIX crossover
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN
VoIP Passthrough Support H.323 and SIP-ALG protocol NAT helpers, allowing proper routing of VoIP packets
Connection Monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules
Firewall Status Page View all firewall statistics, rules, and rule counters
Ports Management View and manage device ports, enable/disable each, turn auto-configuration on/off, change transmission speed
Network Topology Visual representation of network connections
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases (MAC with wildcards)
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supports >25 service providers, with manual configuration option
DNS over HTTPS Secure DNS resolution via HTTPS proxy
Network Backup Wi-Fi WAN, Mobile, VRRP, Wired options for automatic Failover
Load Balancing Balance internet traffic over multiple WAN connections
Hotspot Captive portal, Radius authentication, SSO, internal/external landing page, user management, customisable themes
SSHFS Remote file system mounting via SSH protocol
SKU TEL.RUT271
Model # RUT271
Brand Teltonika
Shipping Weight 1.0000kg
Shipping Width 0.090m
Shipping Height 0.080m
Shipping Length 0.030m
Shipping Cubic 0.000216000m3
Unit Of Measure Each
