Application

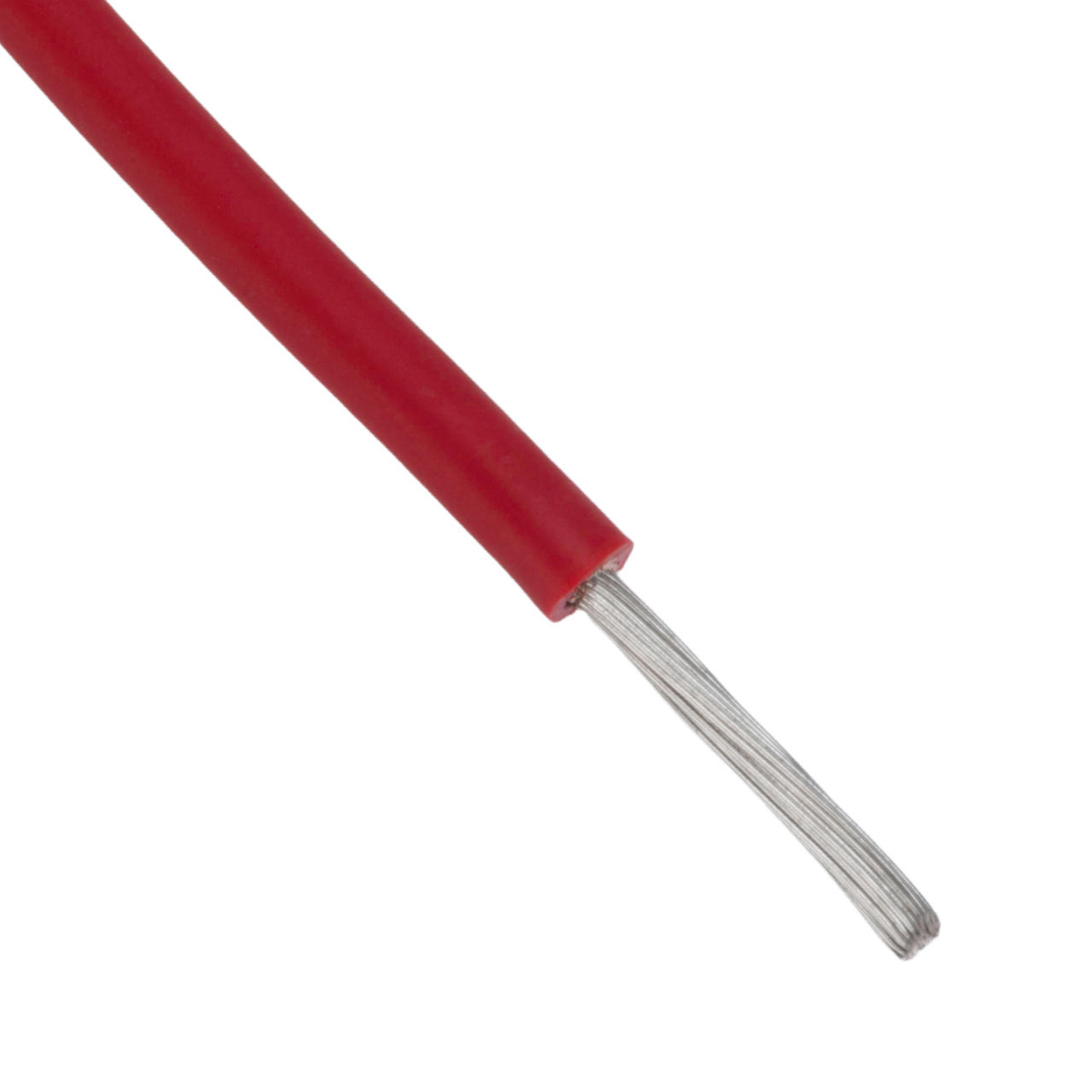

Flexible Single Insulated Tinned Power Cable suitable for Automotive, all Shipboard and Marine Applications.

Construction

Conductors: Finely stranded annealed copper to IEC 60228 & AS/NZS 1125 as standard.

Core Insulation: 'Easy Strip' LSZH/XLPO HF-90 to IEC 60092-360

Insulation: LSFLEX®R-30, Cross-linked, Polyolefinic, Thermoset, Flame Retardant, Low Smoke, Zero Halogen (HF-90 to IEC 60092-360) Splash resistant to oil, skydrol, petrol, acid, sea water. Resists ozone and UV.

Voltage Rating: 600/1000 Volts

Operating Temp: 40°C to + 110°C

Min. Bend Radius: 9.9mm

Current Rating*: 40A
*IEC 60092-352:2005 Table B.4 - Current carrying capacities in continuous service, 90°C operating temperature, 45°C ambient air temperature.

Weight: 42kg/km

Approvals

ABS, BV, DNV-GL,USCG

Standards

AS/NZS 1125, AS/NZS 1660.5.1, AS/NZS 1660.5.2, AS/NZS 1660.5.3, AS/NZS 1660.5.6, IEC 60228, TEC 60092-350, TEC 60092-353, TEC 60332-1, IEC 60332-3-22 Cat A, IEC 60754-1&2, IEC 61034-1&2, IEEE 45, TEEE 1580, IEEE 1202,

SKU TRI.UP-XXXD1C4R
Model # UP-XXXD/1C4R
Brand Tricab
Shipping Weight 0.0420kg
Unit Of Measure m
