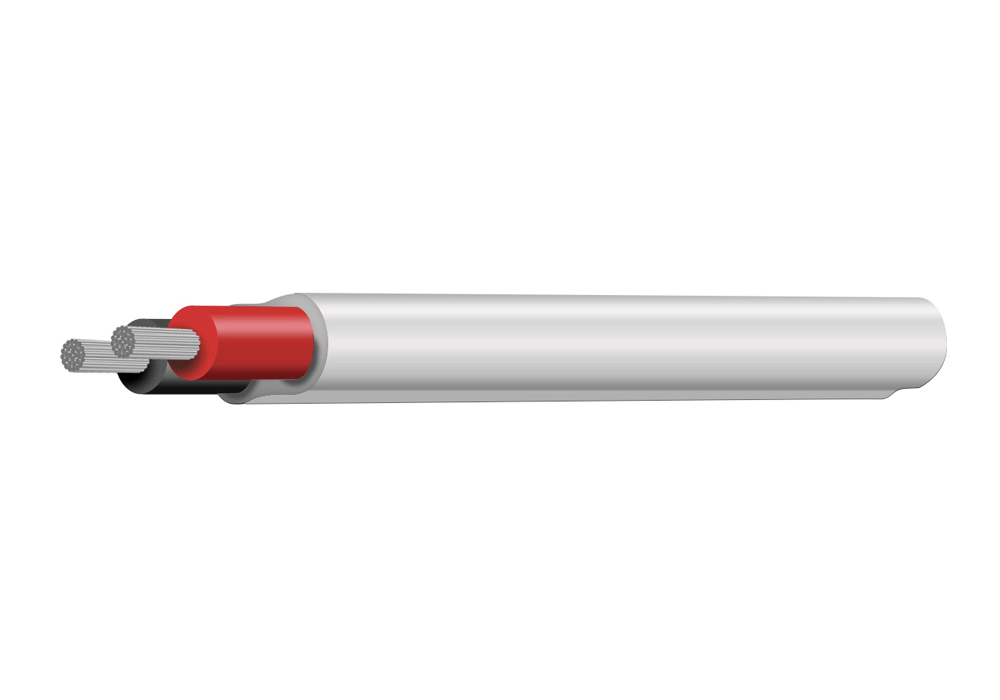

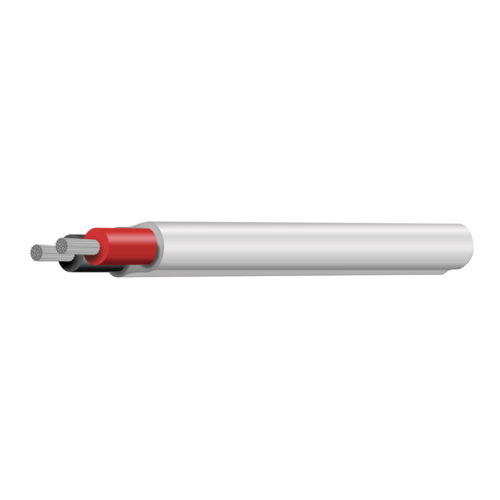

Applications: Marine Trailer Wiring, General Purpose Marine Wiring, Navigation Lights, Instrumentation

Conductor: TINNED COPPER WIRE (TCW) TO AS/NZS 1125

Insulation: RoHS Compliant V90 P.V.C. to AS/NZS 3808

Colours: Red & Black

Sheath: RoHS Compliant 5V90 P.V.C. to AS/NZS 3808

Sheath Colour: White



Code **MM
Industry
Equivalent		 Nominal
Area
(mm²)		 CONDUCTOR
NO/DIA
(mm)		 Insulation
Thickness
(mm)		 Sheath
Thickness
(mm)		 *AMP
Rating
JASO D609
at 30°C		 Electrical
Resistance
at 20°C
(ohm/km)		 Nominal
O.D.
(mm)		 Mass
(kg/100m)
MWS22603 4 1.84 23/0.32 0.4 0.6 22 10.2 3.8 x 6.3 6.1

* AMP RATING: TO JASO D609 derating factors apply

** MM – is an industry term that identifies cable size and is not CONDUCTOR CROSS SECTION AREA

SKU TYC.MWS22603-WH
Model # MWS22603-WH
Brand Tycab
Shipping Weight 0.2000kg
Unit Of Measure m
