Applications: Pleasure Craft, Marine, Vehicle, 4WD, Camper, Caravan/RV, Low Voltage DC Applications

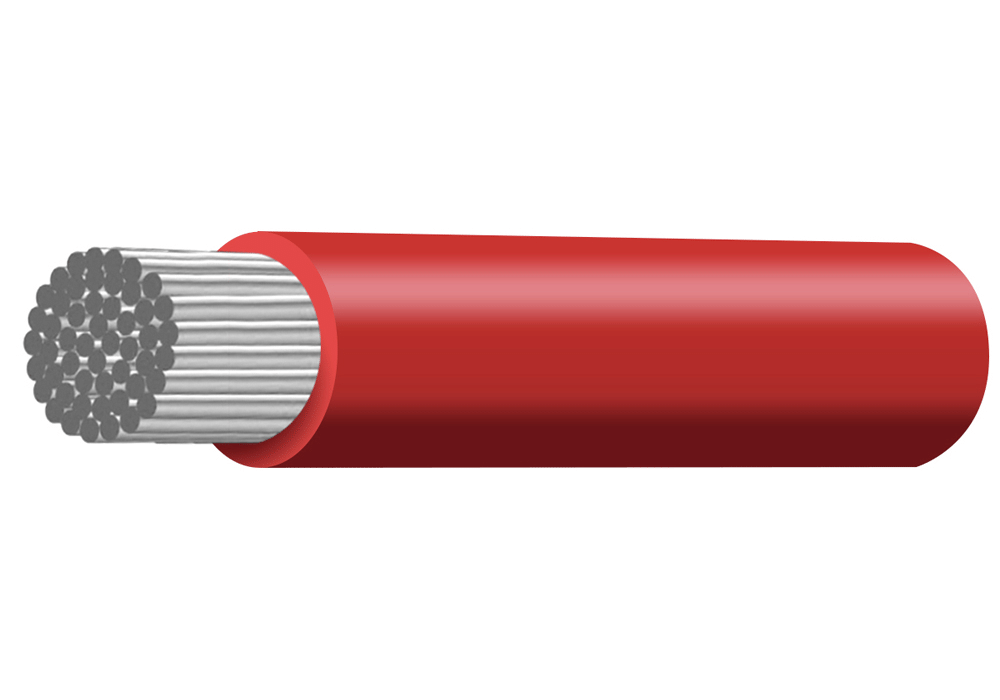

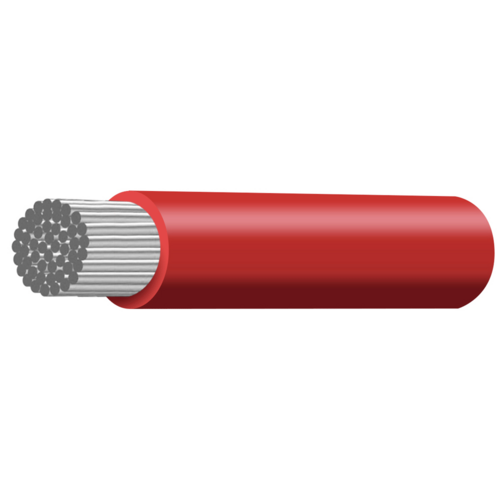

Conductor: TINNED COPPER WIRE (TCW) to AS/NZS 1125
Insulation: RoHS Compliant
Colours: Red
Max. Roll Length: 30 Metres
Code | NEAREST B&S |
CONDUCTOR NO/DIA (mm) |
Nominal Area (mm²) |
Insulation Thickness (mm) |
*AMP Rating JASO D609 at 30°C |
Electrical Resistance at 20°C (ohm/km) |
Nominal O.D. (mm) |
Mass (kg/100m) |
---|---|---|---|---|---|---|---|---|
MBS119203 | 6 | 168/0.32 | 13.5 | 1.1 | 103 | 1.42 | 7.2 | 15.6 |
* AMP RATING: TO JASO D609 derating factors apply
Derating Factors for Bundling of Single Core Cables
|
||||||||
No of Cables |
1
|
2
|
3
|
4
|
5
|
6 to 7
|
8 to 10
|
11 to 12
|
Factor |
1
|
0.8
|
0.7
|
0.6
|
0.55
|
0.5
|
0.45
|
0.4
|
Derating Factors for Ambient Temperatures °C
|
|||||
Temperature |
30
|
40
|
50
|
60
|
70
|
Factor |
1.00
|
0.90
|
0.76
|
0.60
|
0.45
|
SKU | TYC.MBS119203-RD-M |
Brand | Tycab |
Shipping Weight | 0.1600kg |
Shipping Width | 0.300m |
Shipping Height | 0.050m |
Shipping Length | 0.050m |
Shipping Cubic | 0.000750000m3 |
Unit Of Measure | m |
