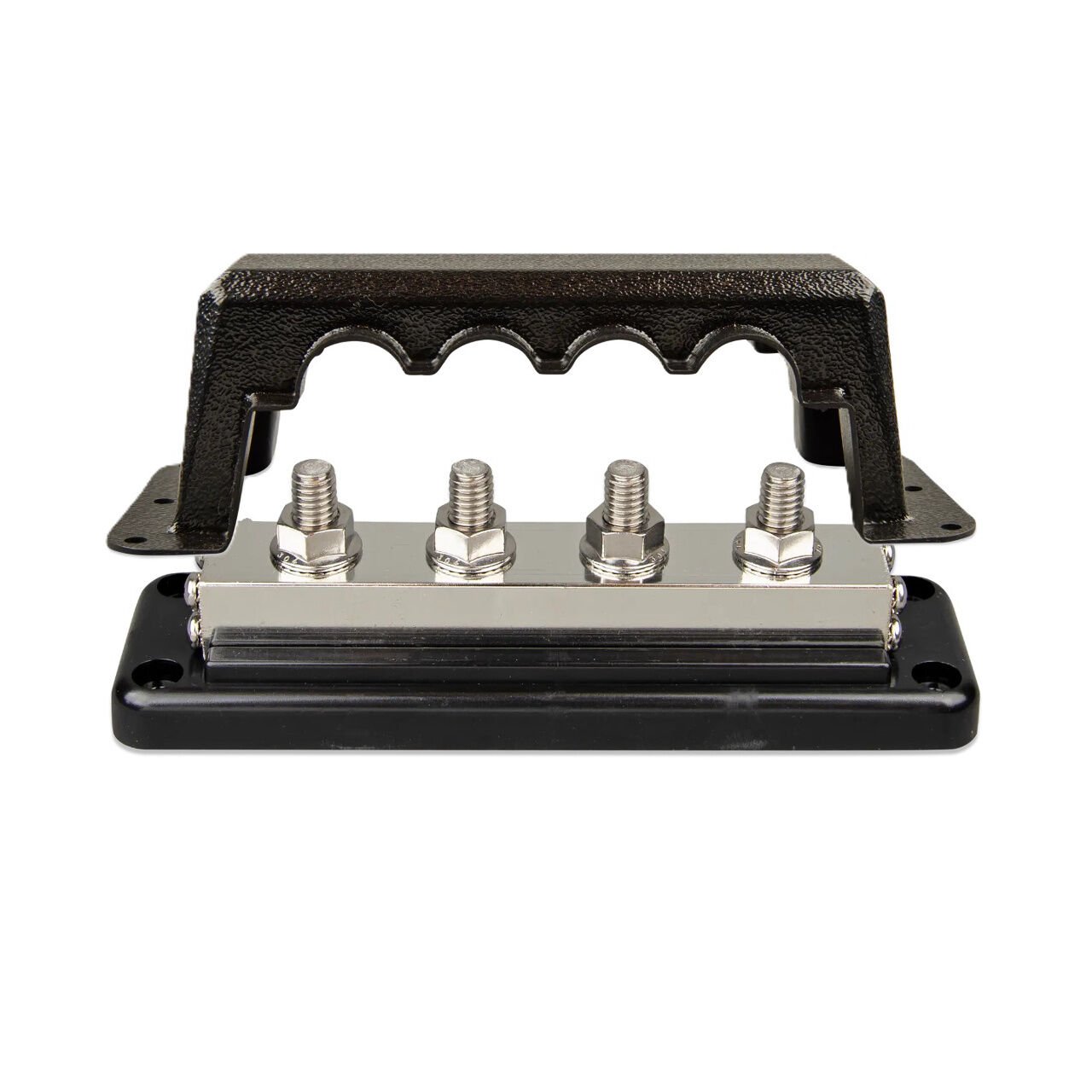

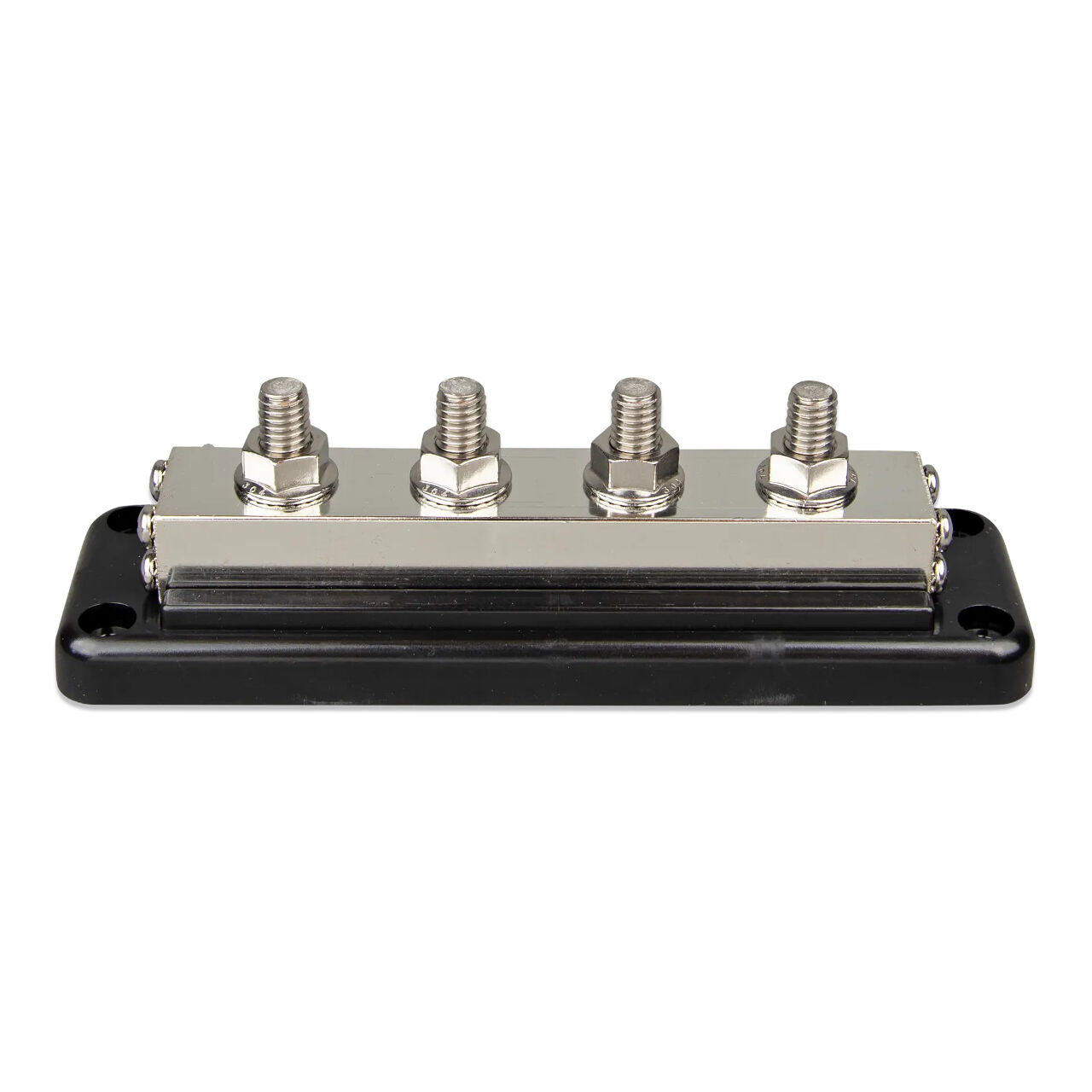

Victron Stainless Steel Busbar 600A 4 High Current / 8 Low Current Terminals with Cover

Busbar 600 A with cover
Max. current	600 A
Max. Voltage	70 VDC
Terminal diameter	3/8 inch / 9.53 mm
Terminal height	0.76 inch / 19 mm
Terminal material	Stainless steel
Flange nut material	Stainless steel
Recommended torque	180 lbf·inch / 20 N·m
Screw terminals	diameter #8 (0.164 inch) / 4.2 mm
Screw material	Stainless steel
Recommended torque	17 lbf-inch / 2 N·m
Busbar material	Tin-plated copper (19 x 24 mm)
Base material	ABS, black, UL 94 V-0
Cover material	ABS, black, UL 94 V-2
Weight, 4 terminals	1.7 lb / 0.75 kg

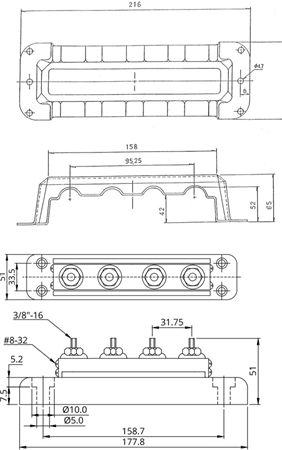

Dimensions (hxwxd)	2.6 x 8.5 x 3.4 inch
(with cover)	65 x 216 x 86 mm

SKU	VIC.VBB160040010
Model #	VBB160040010
UPC/EAN	8719076052227
Brand	Victron Energy
Shipping Weight	0.8500kg
Shipping Width	0.070m
Shipping Height	0.090m
Shipping Length	0.240m
Shipping Cubic	0.001512000m3
Unit Of Measure	ea
