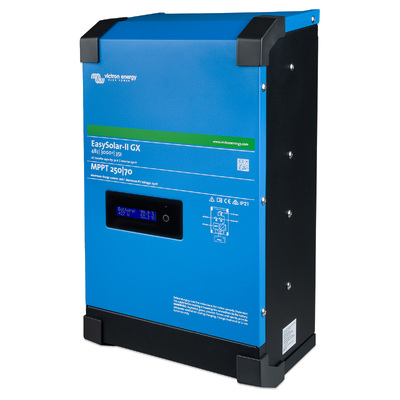

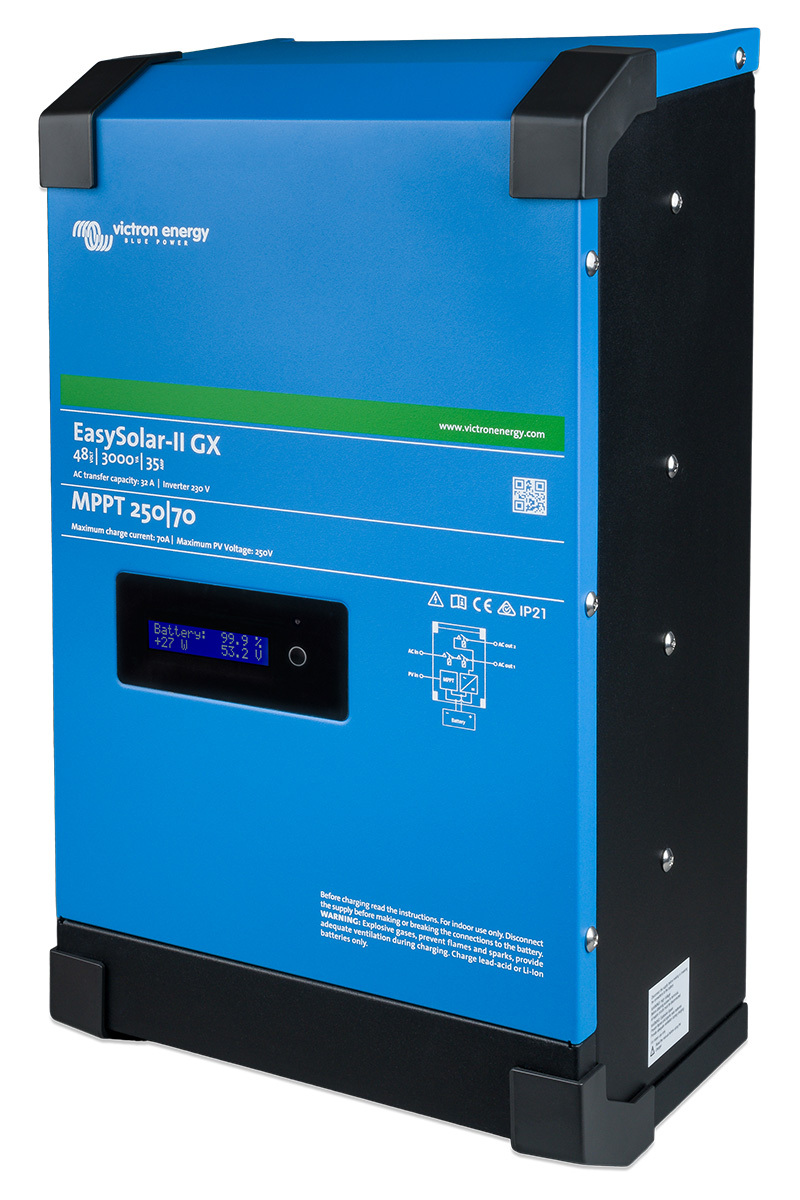

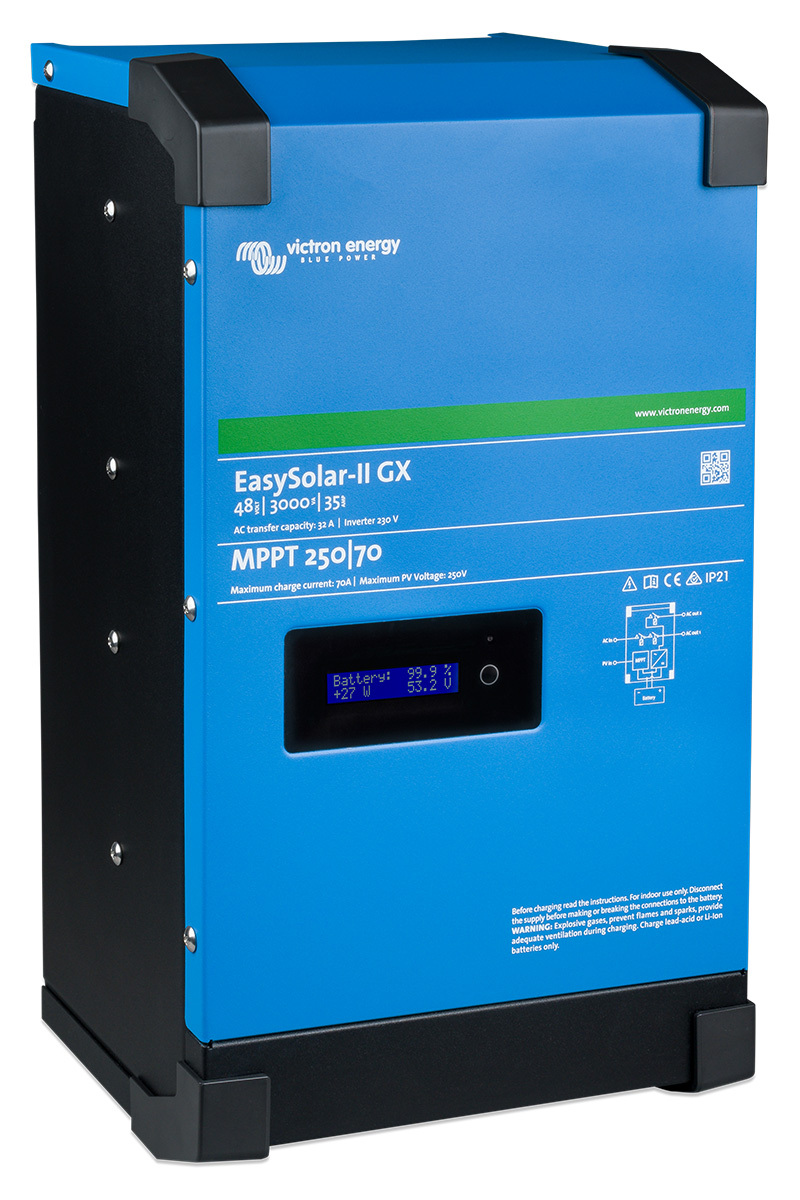

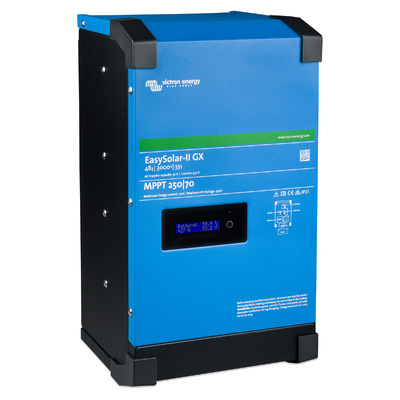

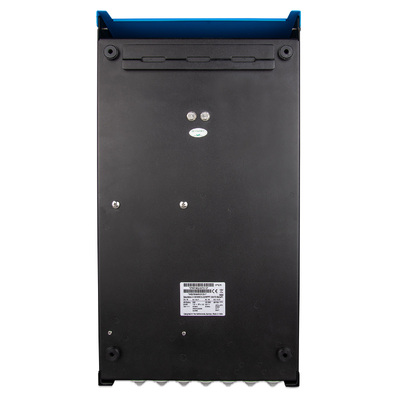

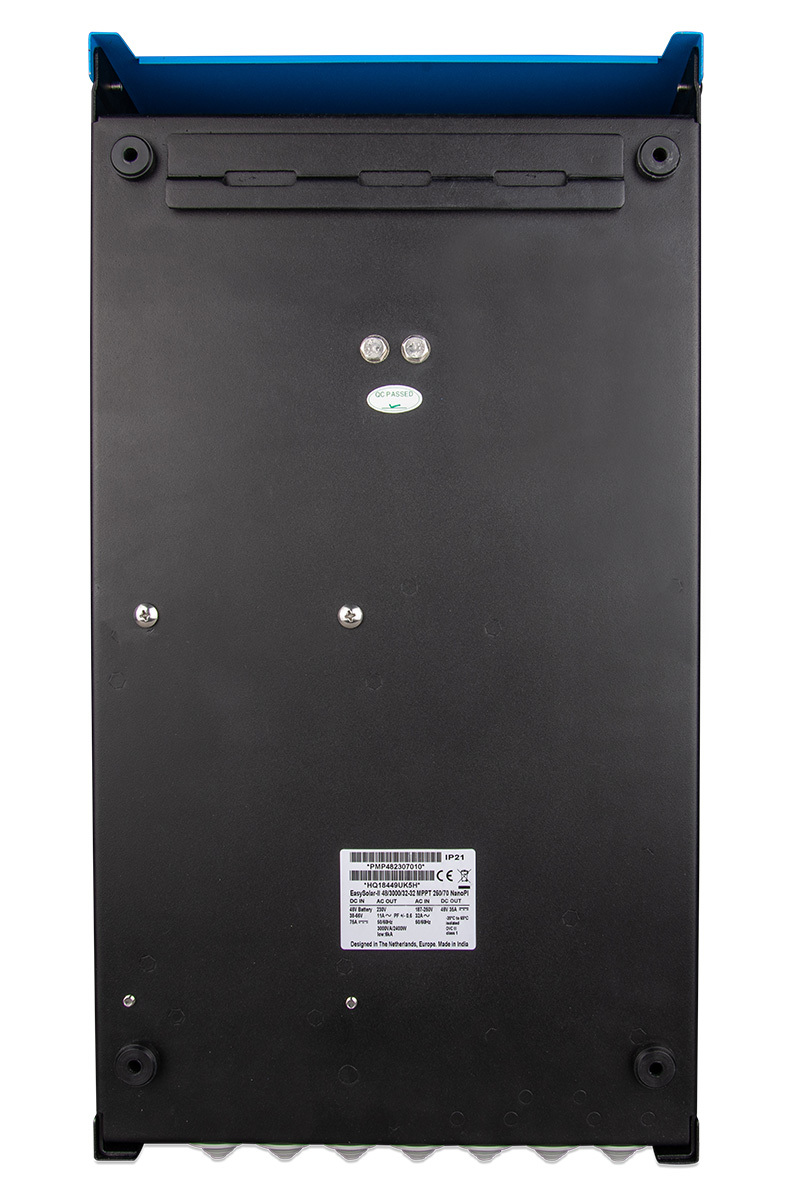

The EasySolar-II GX combines a MPPT Solar Charge Controller, an inverter/charger and control hub in one enclosure. The product is easy to install, with a minimum of wiring.

The all-in-one Solar Power Solution

The Victron EasySolar-II GX integrates the following elements:

• A MultiPlus-II 24/3000/70-32 inverter/charger
• A SmartSolar 250/70 MPPT -Tr solar charge controller
• A GX device with a 2 x 16-character display.

These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.

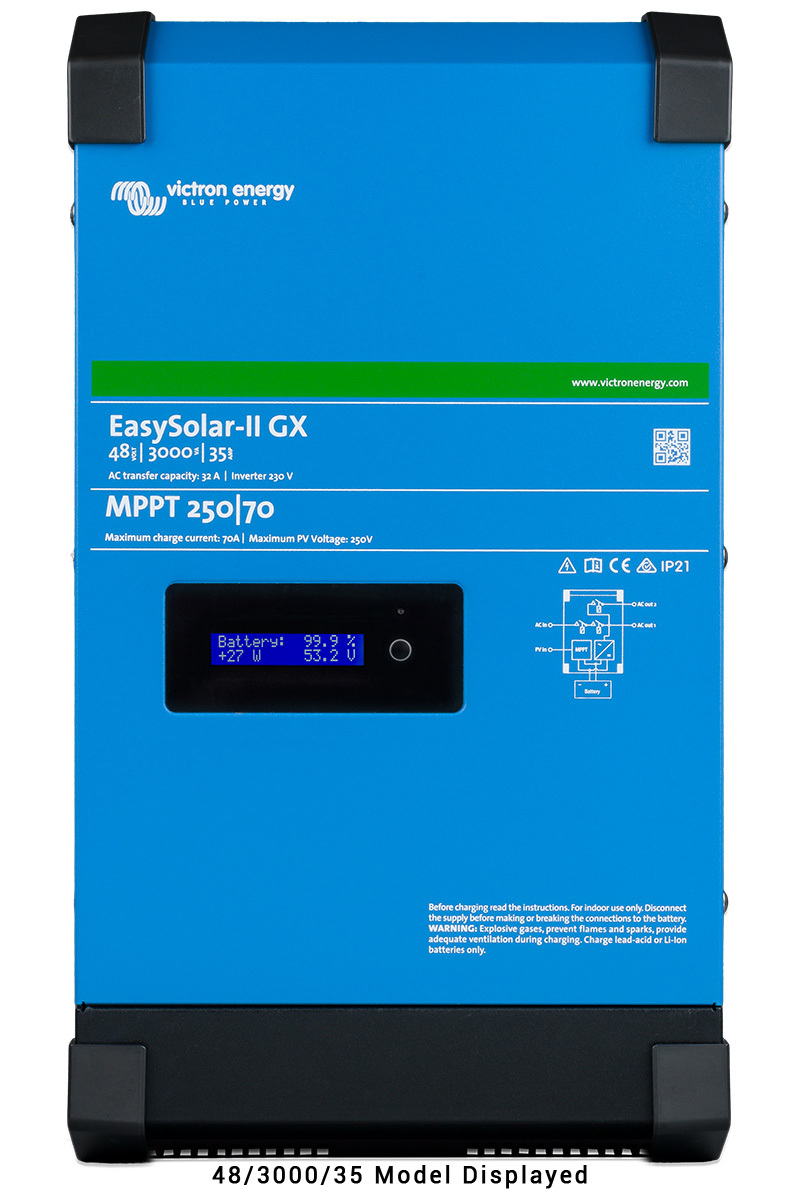

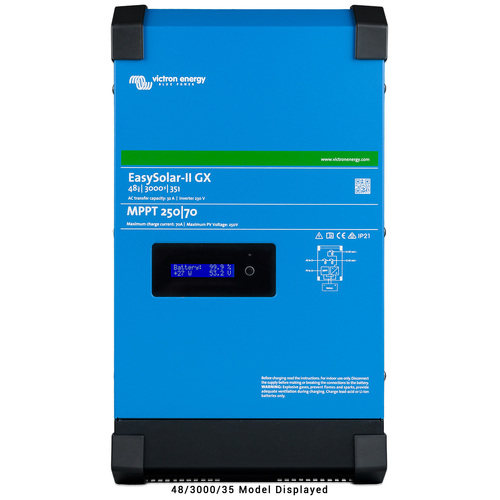

Display and Wi-Fi

The display reads battery, inverter and solar charge controller parameters.The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.
In addition, Wi-Fi can be used to set up the system and to change settings.

Solar Charge Controller

The DC output of the SmartSolar 250/100 MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger.
The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.

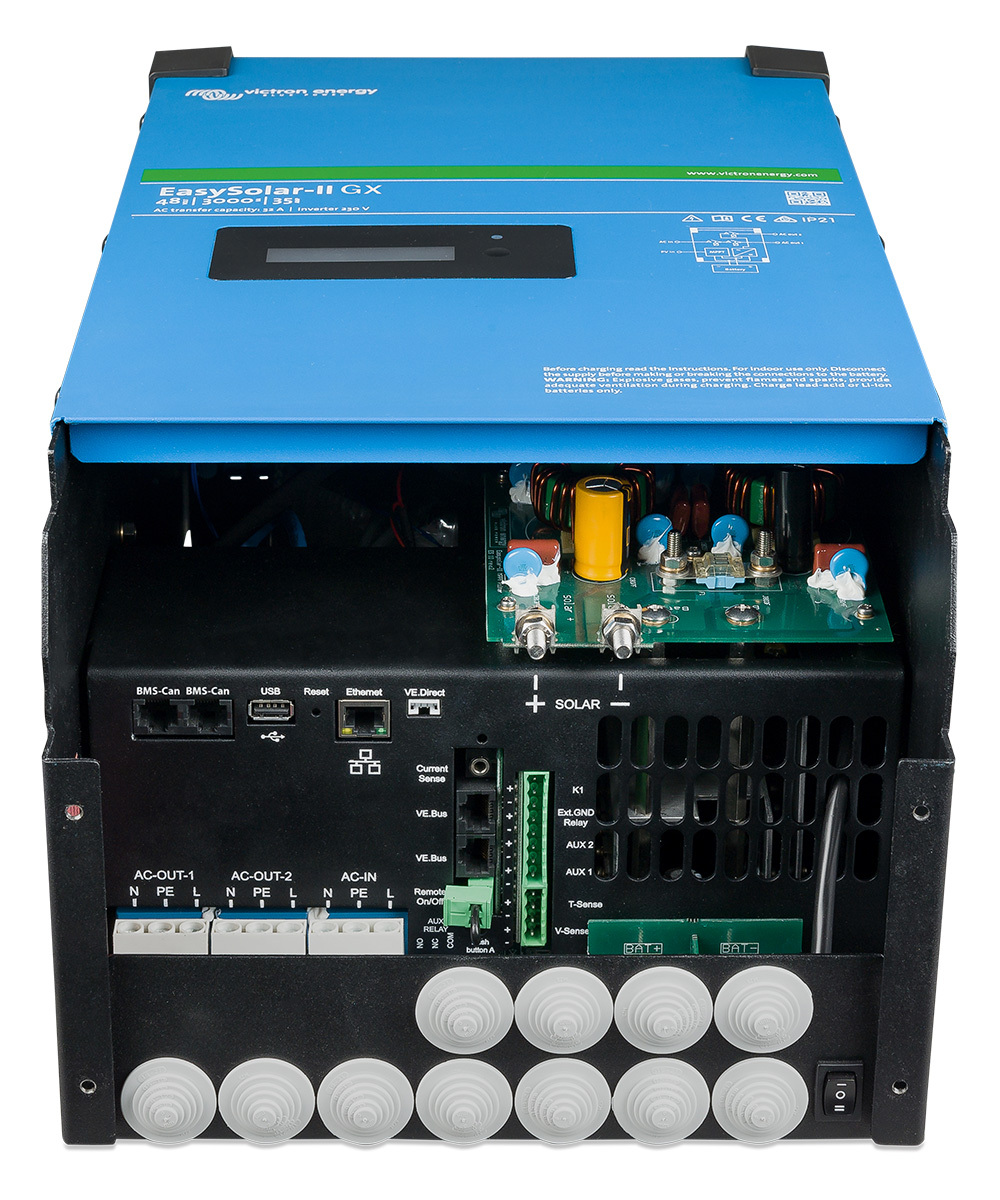

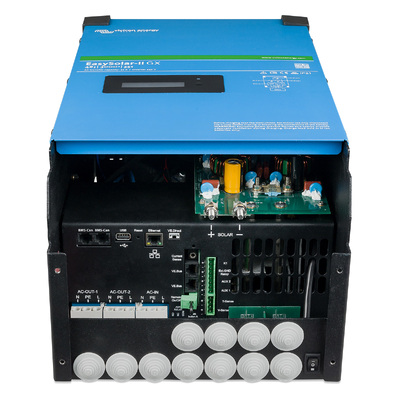

GX Device

The integrated GX device includes:

• A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port.
• A USB port
• An Ethernet port
• A VE.Direct port
• The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection.
