Ekrano GX All-in-one

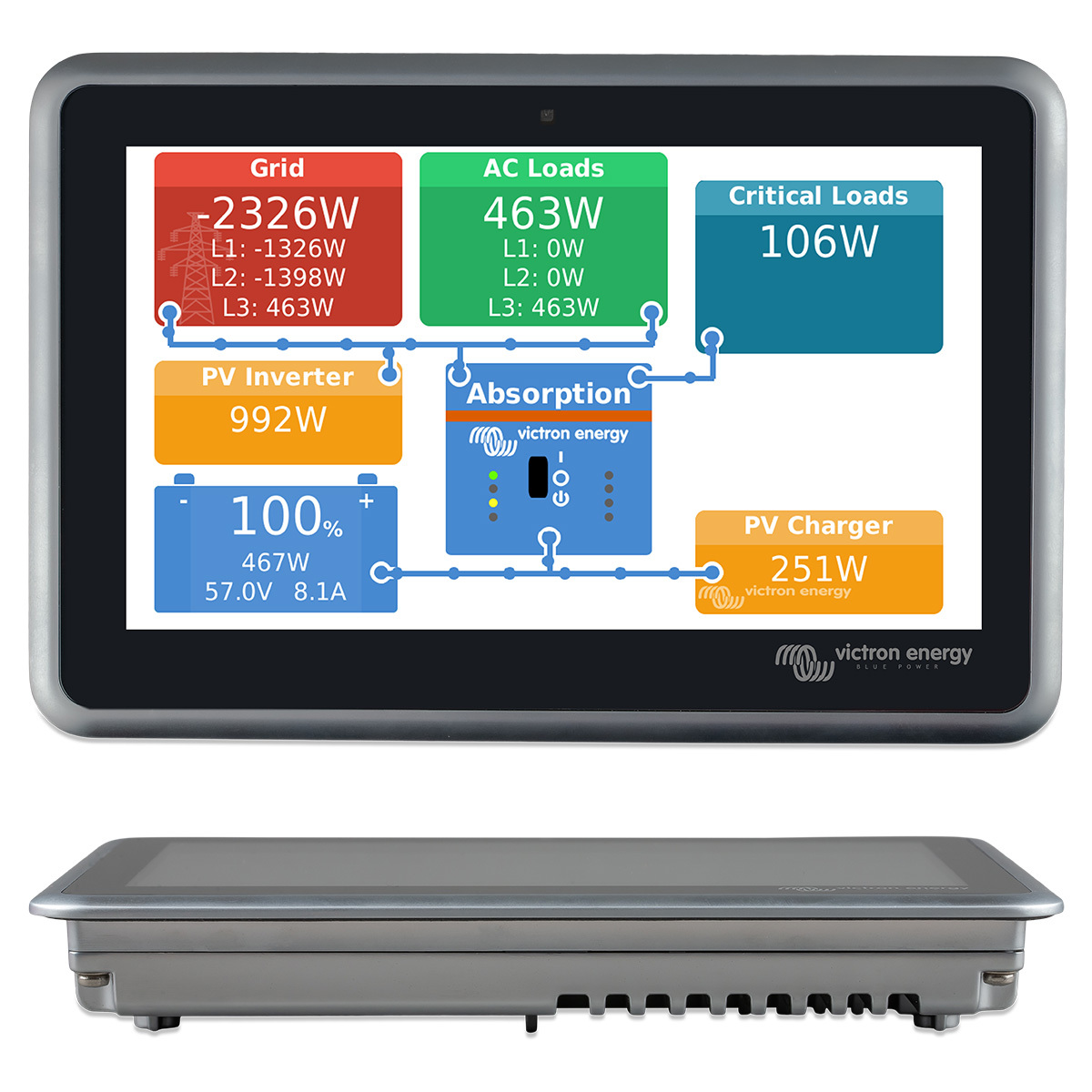

The Ekrano GX represents the next generation in the GX product family. With its complete range of connections and interfaces as well as its integrated 7-inch touchscreen display, it is the most powerful GX device to date and allows you to have perfect control over your system from wherever you are and to maximise its performance. Simply access your system via the Victron Remote Management (VRM) portal, or access it directly, using the built-in touchscreen, a Multi-Functional Display (MFD) or VictronConnect app thanks to its Bluetooth capability. The Ekrano GX is also the successor to the Color Control GX.

FEATURES:

  • Ekrano GX: communication-centre
  • Built-in 7-inch touchscreen display
  • Remote Console on VRM
  • Perfect monitoring & control
  • Simple mounting and configuration

Perfect monitoring & control

Instantly monitor the battery state of charge, power consumption, power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s) or change any setting to optimise the system. Follow up on alerts, perform diagnostic checks and resolve challenges remotely. The Ekrano GX turns any power challenge into an effortless experience.

Expand your view

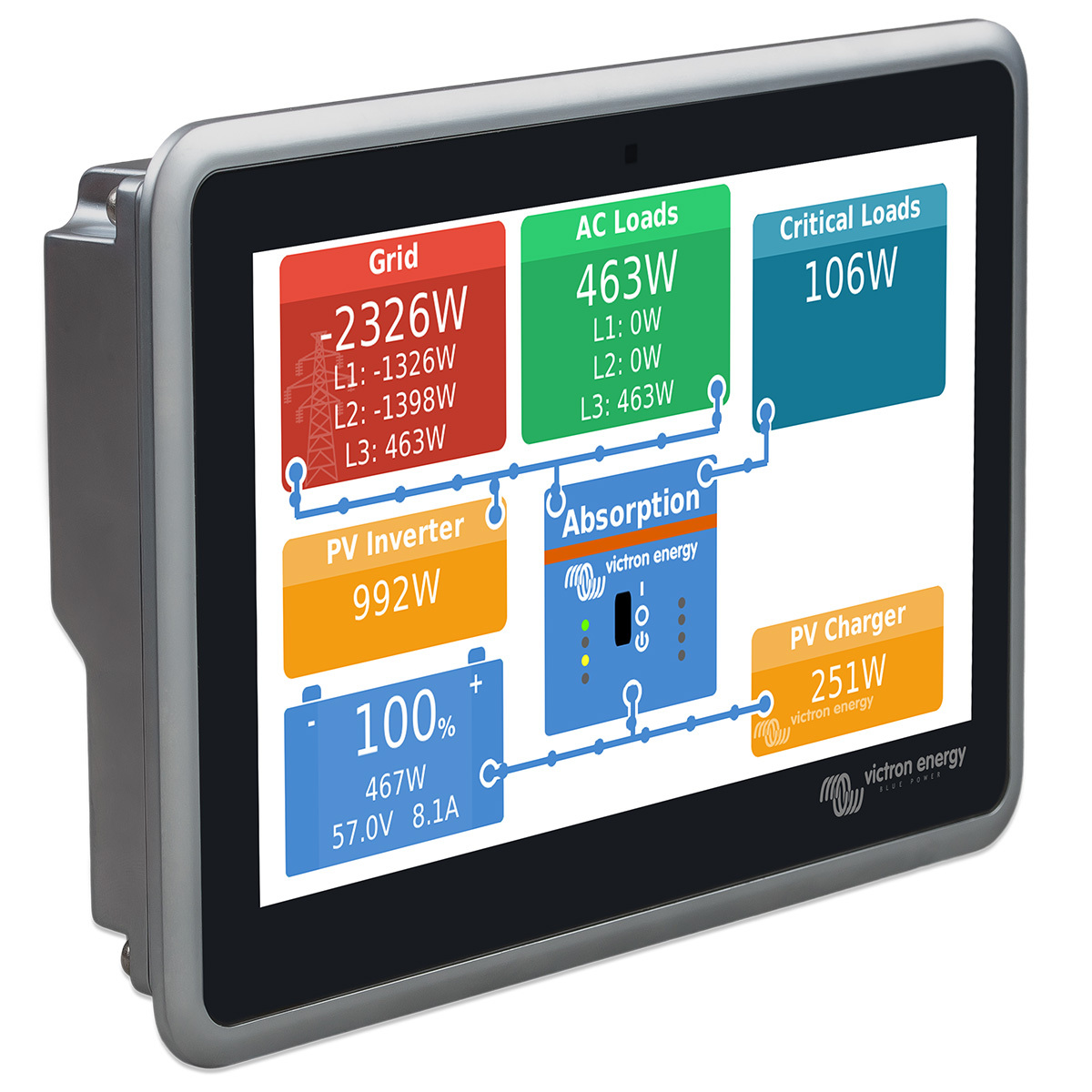

The integrated 7 inch touchscreen allows you to have an instant overview of your system and adjust settings in the blink of an eye. Its super slim waterproof design offers a lot of flexibility in designing a crisp and clean dashboard. The touch function can be disabled (or enabled) via a recessed button on the back to prevent unauthorised use.

Simple mounting and configuration

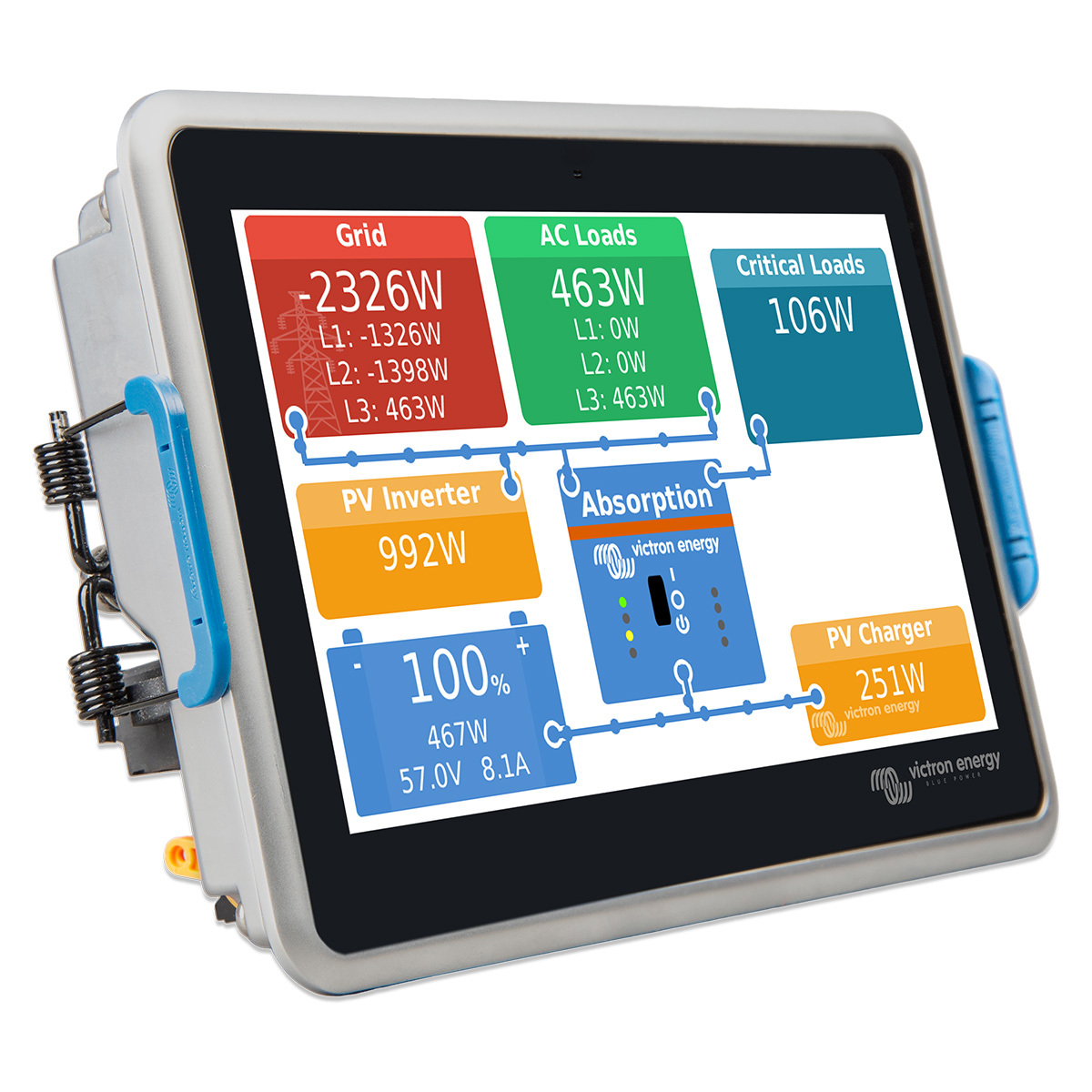

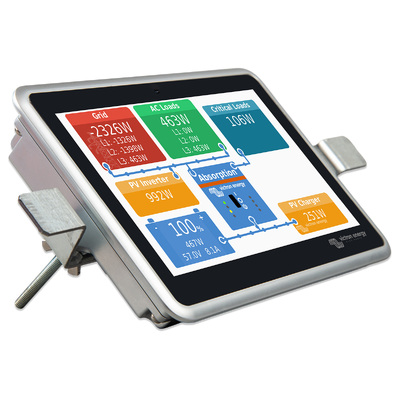

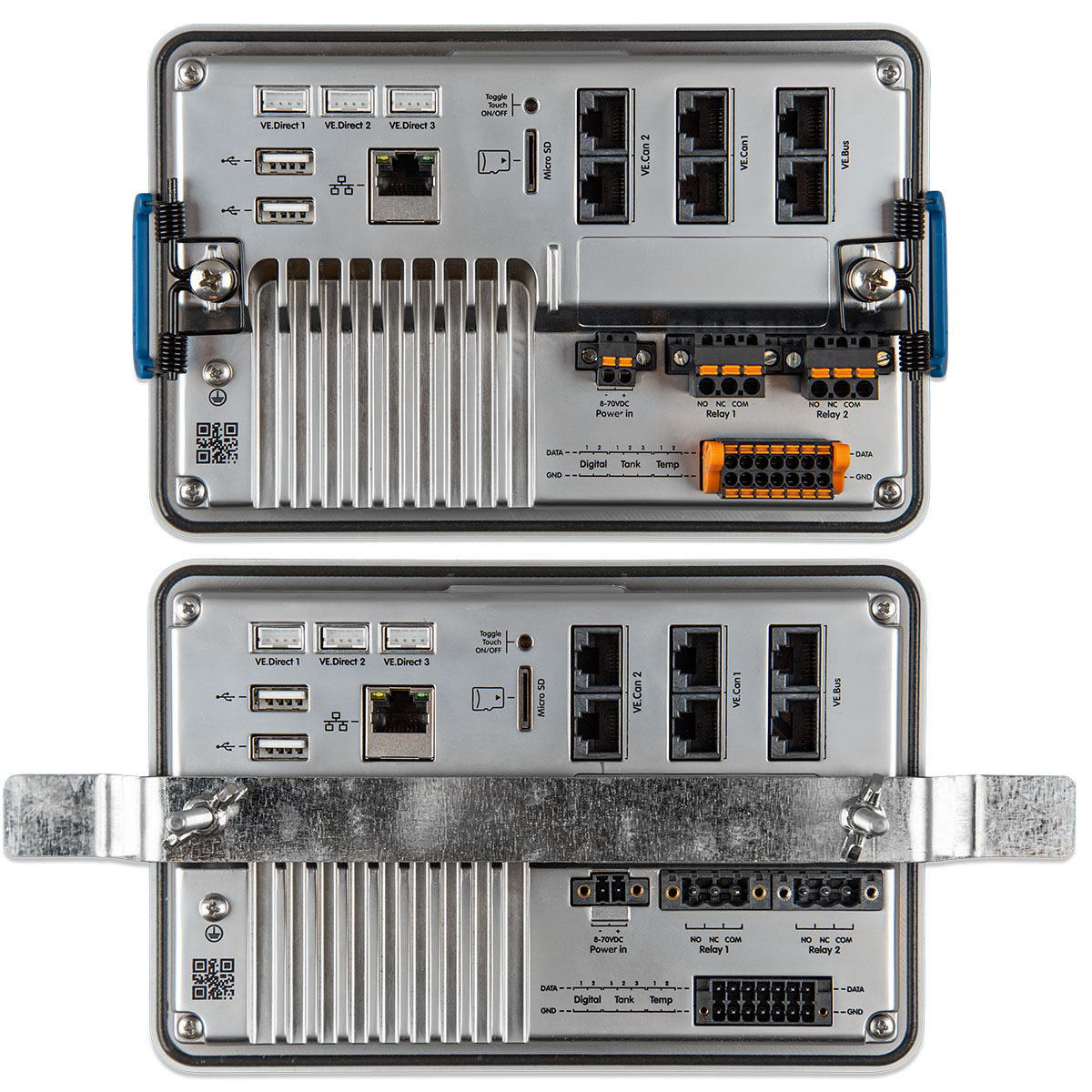

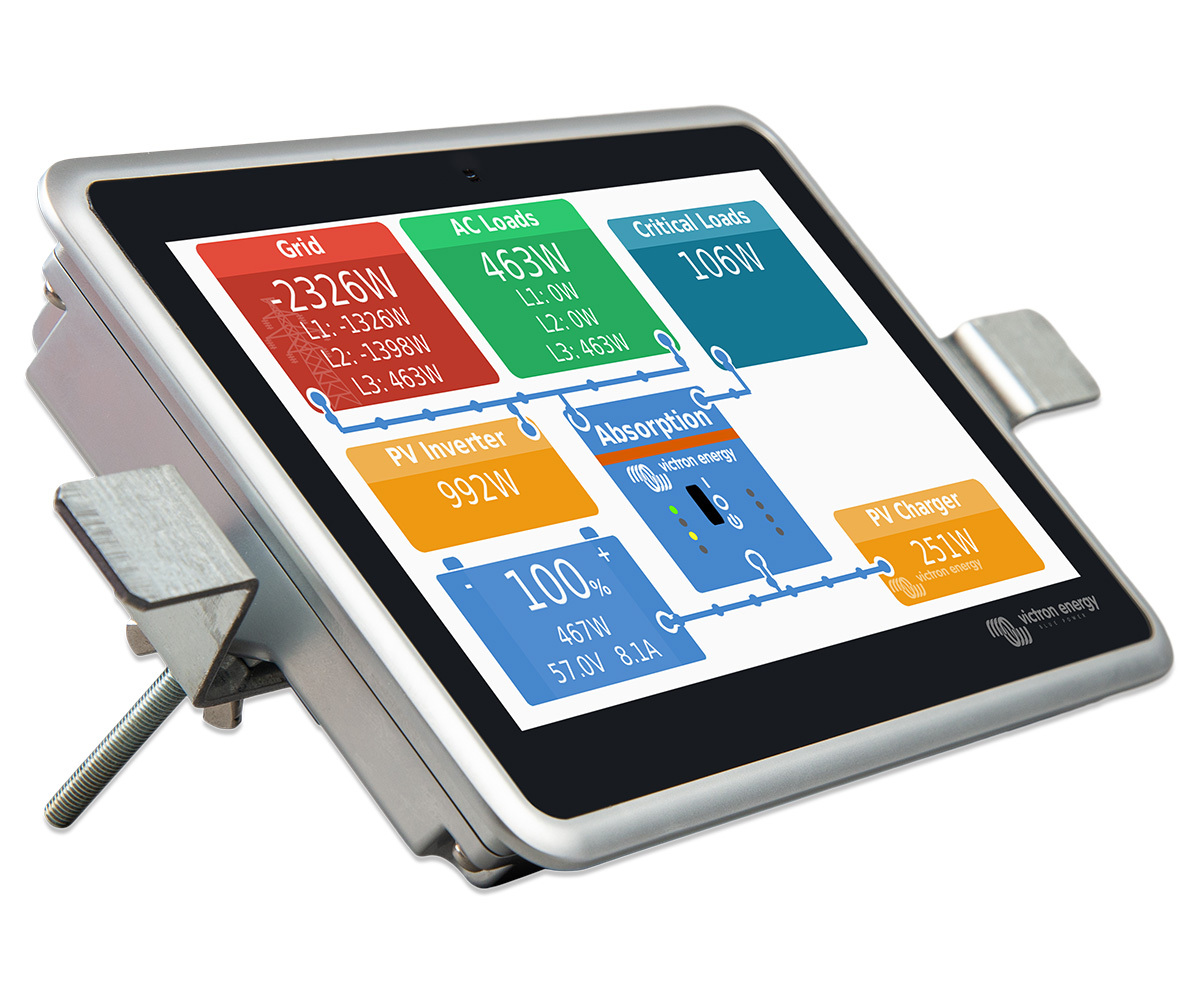

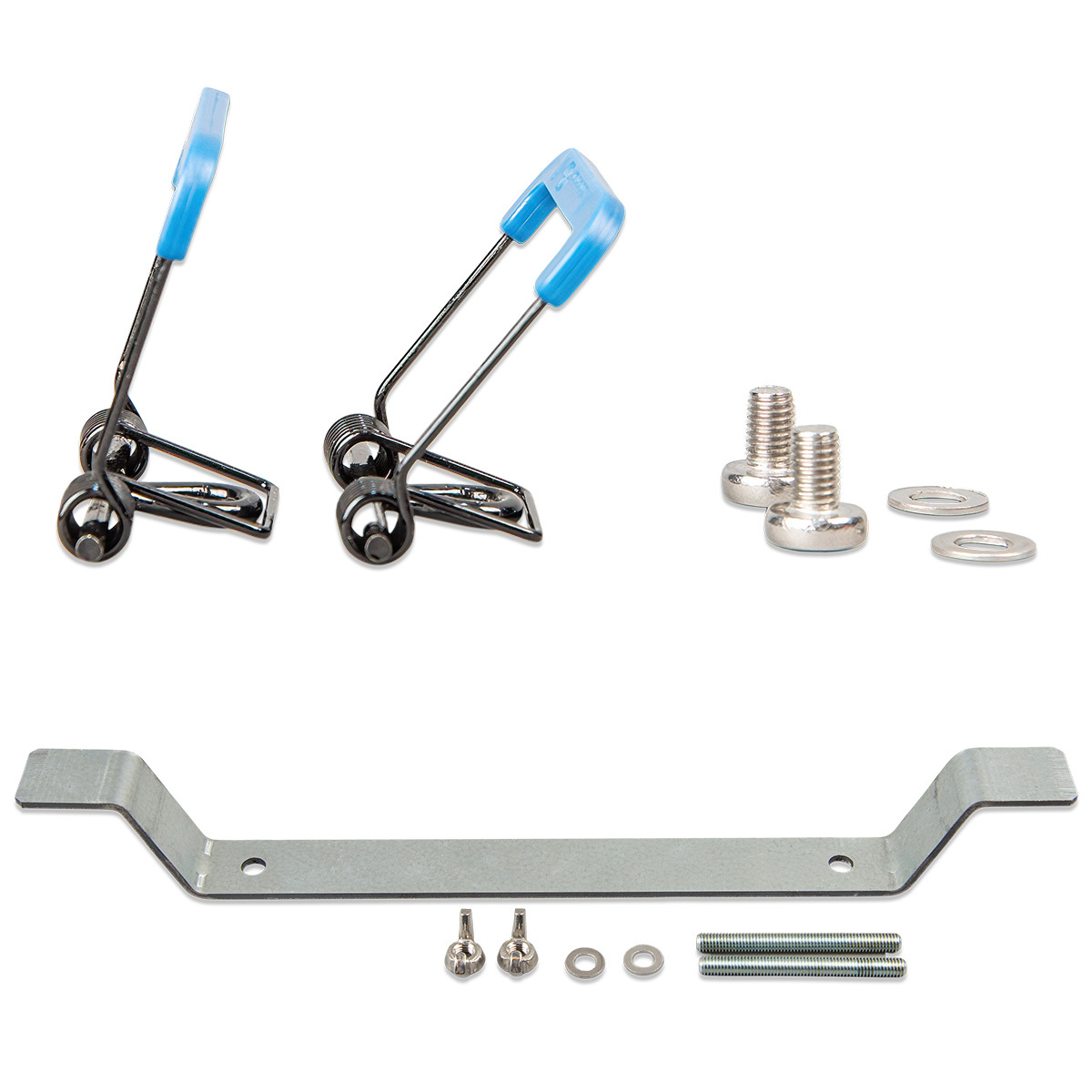

The Ekrano GX is optimised for flush panel or blind hole mounting and has all necessary mounting material supplied. Screw-on terminal blocks keep everything securely in place. The Ekrano GX installs easily via a cut-out for flush panel mounting and includes both a steel bracket and springs for blind hole mounting. All ports are easily accessible from the back. The power and relay terminal blocks can be screwed in place and the IO terminal block has a quick release clamp for easy access.

Outsmart any power challenge

The Ekrano GX serves endless purposes, extending perfect control to the most diverse applications. For solutions including generators, such as marine, or offgrid and backup. It will auto-start/stop your generator, or delays ignition until the end of ‘quiet’ periods.

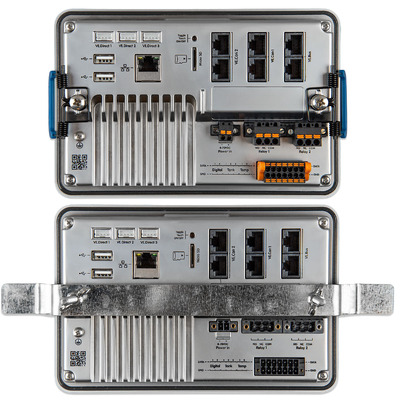

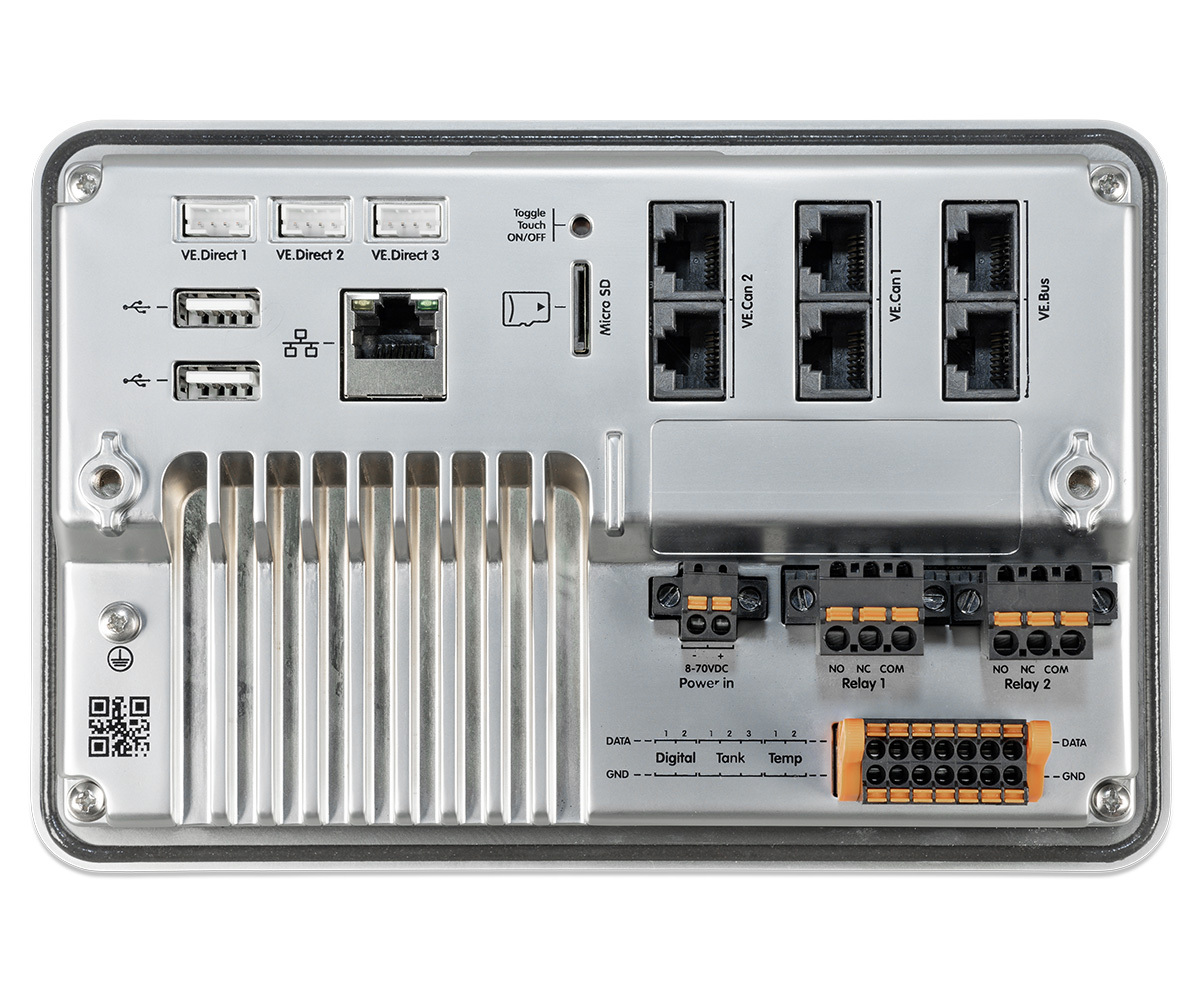

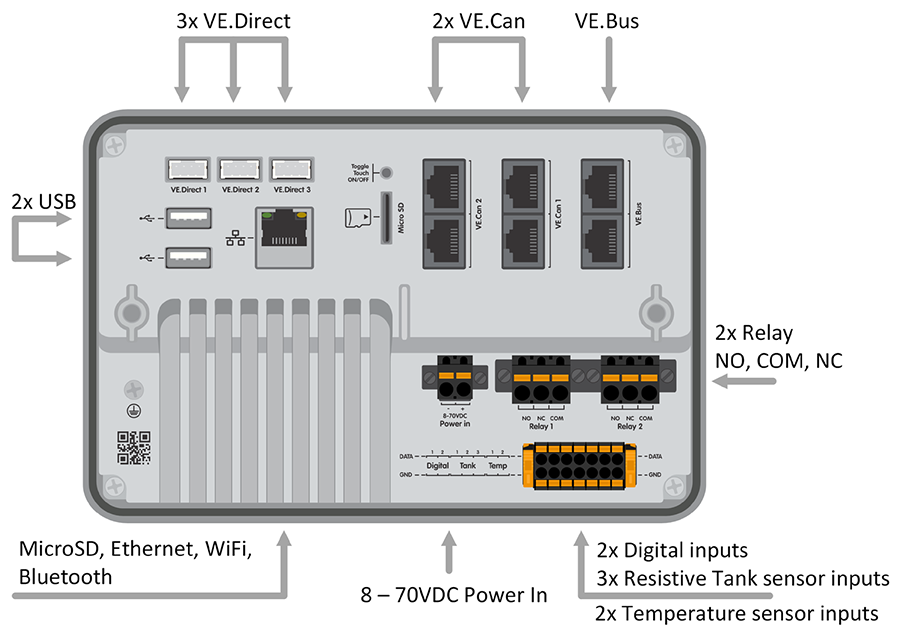

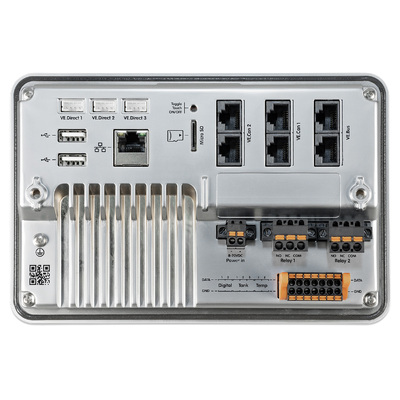

Rear Connection Ports on the Ekrano GX

Rear Connections on Victrons Ekrano GX

Ekrano GX [1]

Supply voltage 8 – 70V DC
Power draw display on (100% brightness) 6.2W @ 12V | 6.6W @ 24V | 7.4W @ 48V
Power draw display off 2.6W 12V | 3.0W @ 24V | 3.7W @ 48V
Relay 2 x NO/NC [2]
DC up to 30VDC: 3A AC: 1A, 125VAC

Communication ports

VE.Direct ports (always isolated) 3 (max. possible VE.Direct devices: 25) [7]
VE.Bus (always isolated) 1 bus with 2 paralleled RJ45 sockets
VE.Can 1 Yes - isolated
VE.Can 2 Yes – non-isolated
Ethernet Yes
WiFi Yes
Bluetooth Smart Yes [3]
USB Host ports
MicroSD Card Slot
Yes – 2 x USB-A (max. 1.5A@5V combined)
Yes – SDHC cards up to max. 32GB

IO

Resistive tank level inputs 3 [4]
Temperature sense inputs 2 [5]
Digital Inputs 2[6]

Display

Display resolution 1024 x 600 pixels
Display max. backlight brightness 1000cd/m2
Backlight dimming Yes – dynamic via built-in ambient light sensor or manually via Remote Console
With timer for auto on/off
Touch toggle on/off button Yes – recessed button on the back (prevents unauthorised use)

Dimensions

Outer dimensions (h x w x d) 124 x 187 x 29.8 mm | 4.88 x 7.36 x 1.17 in (without connectors and mounting accessories)
Operating temperature range -20 to +50°C

Other

Mounting Panel integrated flush mount or blind hole mount with included mounting accessories
Buzzer Yes
Protection category Front: IP54 (when installed with steel bracket) IP31 (when installed with springs)
Back: IP21

Standards

Safety IEC 62368-1
EMC EN 301489-1, EN 301489-17
Automotive ECE R10-6

Notes

1. For more detailed information about the Ekrano GX, please visit the Victron GX product range page.
2. Currently, Relay 1 can be used for programming as an alarm relay, generator start/stop, tank pump, temperature controlled relay or manual operation. Relay 2 is available for programming as a temperature controlled relay or manual operation in the Relay menu of the GX (requires firmware 2.80 or higher).
3. Bluetooth functionality is intended to be used to assist with initial connection and networking configuration. You cannot use Bluetooth to connect to other Victron products (e.g. SmartSolar charge controllers).
4. The tank level inputs are resistive and should be connected to a resistive tank sender. Victron does not supply tank senders. The tank level ports can each be configured to work with either European (0 - 180 Ohm); or US tank senders (240 - 30 Ohm).
5. The Ekrano GX has 2 temperature inputs. They can be used to measure & monitor all kinds of temperatures. Temperature senders are not included. The required sensor is ASS000001000 - Temperature Sensor QUA/PMP/Venus GX. (Note that this is not the same as the BMV temperature accessory.). Temperature range is -20°C to +70°C. Actually, it can measure up to 100°C, but the sensor is not made to withstand temperatures above 70°C long term. Note that this is intended as a crude temperature sensor, and not calibrated. A deviation of +/- 2°C is to be expected.
6. The digital inputs can be used for open/closed monitoring of alarms, for example doors, or fire- or bilge alarms and can also be used for pulse counting. See the product manual for electrical specifications of the digital inputs.
7. The listed maximum in above table is the total connected VE.Direct devices such as MPPT Solar Charge controllers. Total means all directly connected devices plus the devices connected over USB. The limit is mostly bound by CPU processing power. Note that there is also a limit to the other type of devices of which often multiple are connected: PV Inverters. Up to three or four three phase inverters can typically be monitored on a CCGX. Higher power CPU devices can monitor more.

SKU VIC.BPP900480100
Model # BPP900480100
UPC/EAN 8719076058038
Brand Victron Energy
Shipping Weight 0.9500kg
Shipping Width 0.300m
Shipping Height 0.110m
Shipping Length 0.260m
Shipping Cubic 0.008580000m3
Unit Of Measure ea
