Pure Sine Wave Inverter for Off-Grid, Marine and Mobile Power Systems

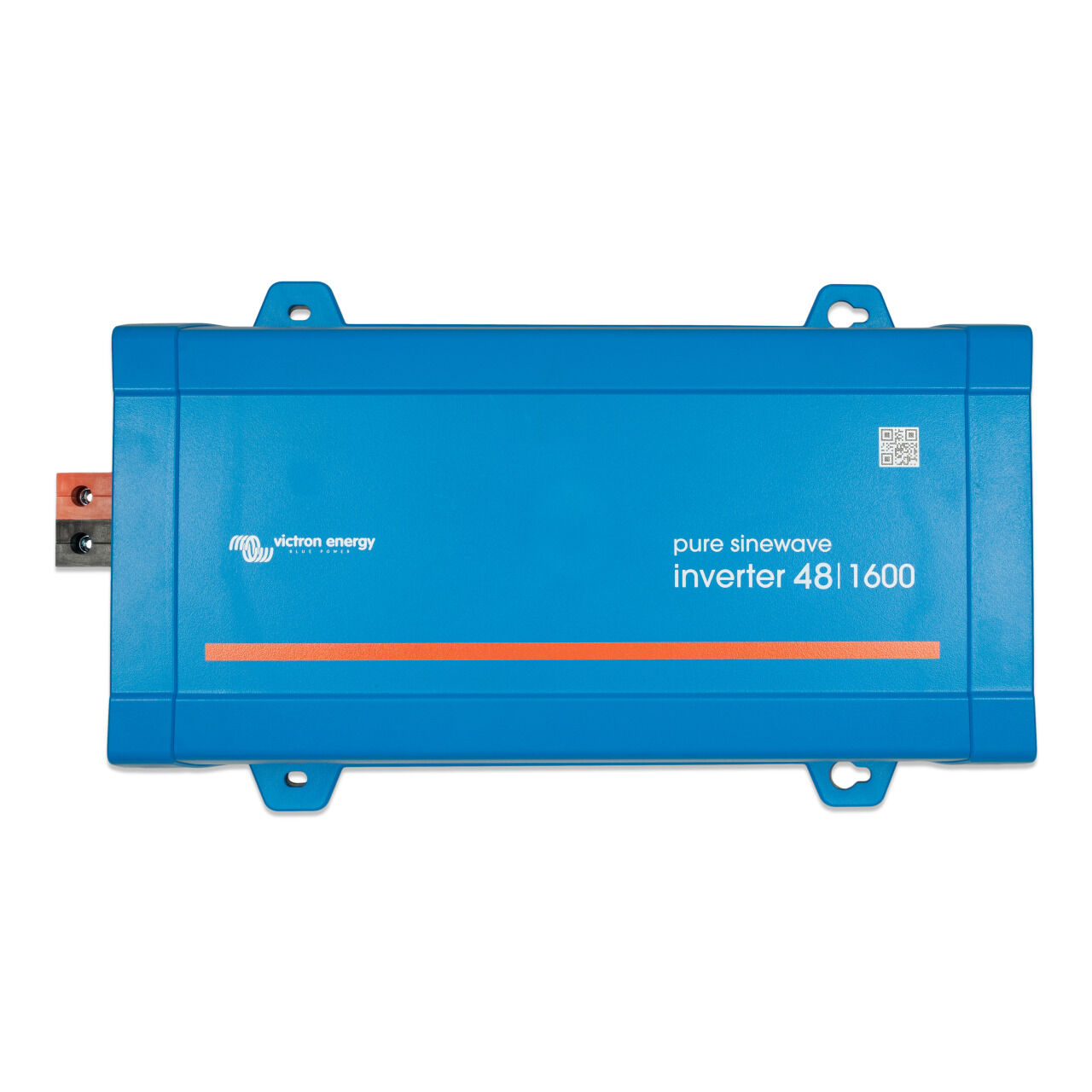

The Victron Inverter converts 48V DC battery power into 230V pure sine wave AC power, delivering 1450W continuous output at 25°C with 2100W peak power for starting demanding loads. Featuring VE.Direct connectivity, it supports system monitoring and configuration through compatible Victron interfaces. Maximum efficiency reaches 92%, while ECO mode reduces no-load consumption to 1.8W. Configurable battery protection, remote on/off functionality and an AU/NZ AC outlet support integration into marine, caravan, off-grid and backup power systems.

Key Features

• Pure Sine Wave AC Output: Converts 48V DC to 230V AC for powering compatible appliances and sensitive electronic equipment.
• Continuous Power Capacity: Delivers 1450W at 25°C and 1300W at 40°C for sustained AC loads.
• Peak Power Capability: Supplies up to 2100W for 15 seconds to accommodate temporary startup loads.
• High Conversion Efficiency: Achieves maximum efficiency of 92% to reduce energy losses from the battery supply.
• VE.Direct Connectivity: Enables configuration and monitoring through compatible Victron devices and communication accessories.
• Low-Power ECO Mode: Reduces power consumption to approximately 1.8W when connected loads fall below the configured threshold.
• Wide DC Input Range: Operates across 36.8–62V DC for integration with compatible battery systems.
• Remote On/Off Control: Supports external switching for system control and battery management integration.
• Integrated Safety Protection: Provides protection against overload, short circuit, excessive temperature and abnormal battery voltage.
• AU/NZ Power Outlet: Equipped with an AS/NZS 3112 socket for compatible Australian and New Zealand AC equipment.
