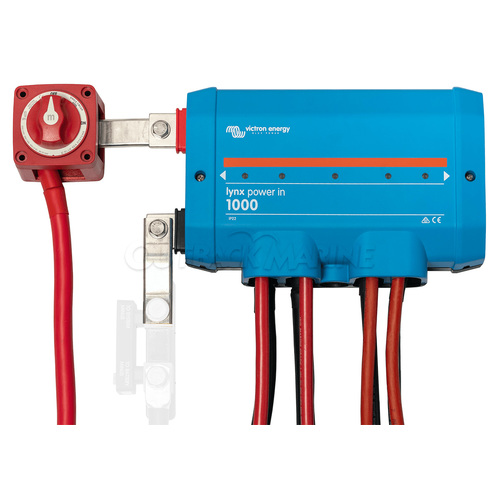

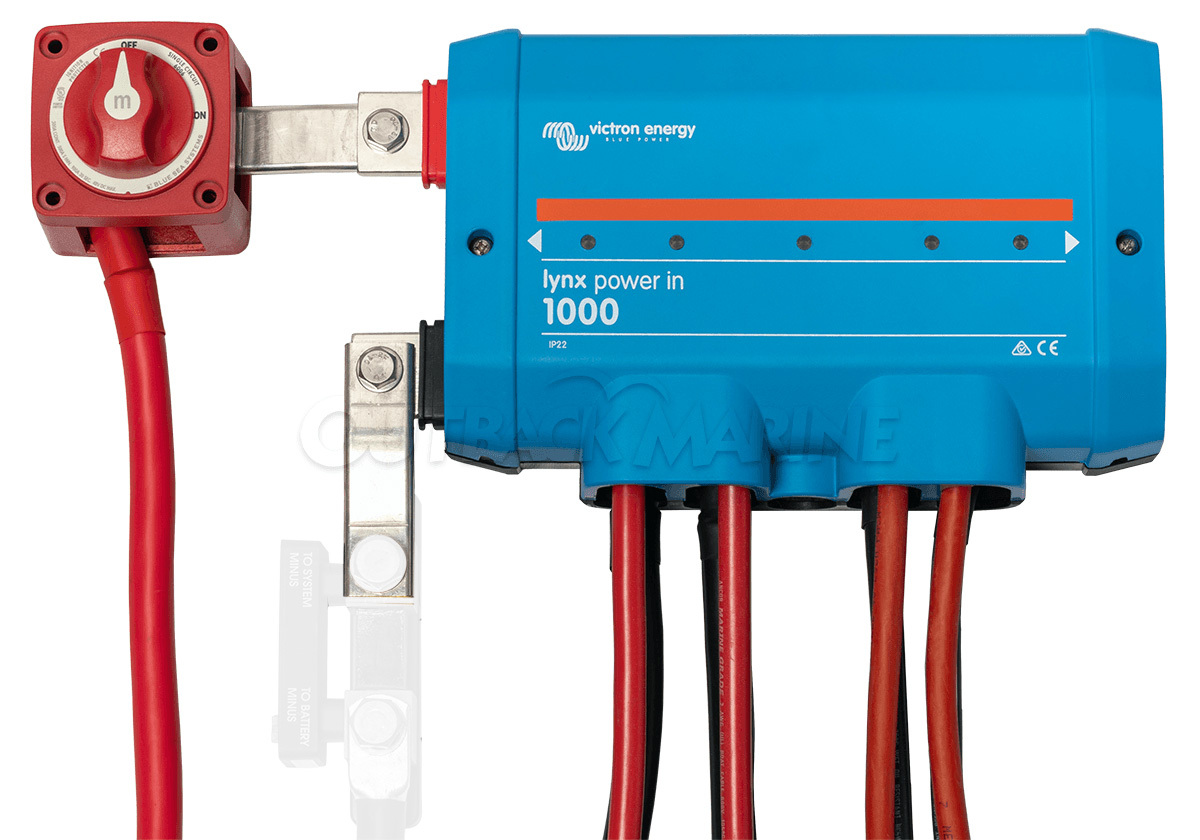

Integrated DC distribution kit with battery switch for organised power systems

This integrated DC distribution kit provides a clean and practical solution for managing high-current battery systems in marine, off-grid, and mobile energy installations. Built around a modified Lynx Power In busbar, the kit functions as a compact DC distribution board capable of supplying multiple high-current loads. It includes a heavy-duty battery selector switch connected to a robust busbar that distributes power to up to four circuits using MEGA fuses. Designed to simplify complex wiring layouts, the kit delivers organised cable management and dependable DC power distribution for professional installations.

Key Features

• Integrated DC Distribution Platform: Uses a modified busbar module to create a compact DC power distribution board suitable for high-current battery systems.
• High 300 A Continuous Current Capacity: Designed to handle demanding marine and off-grid installations requiring stable high-current distribution.
• Four MEGA Fuse Load Outputs: Heavy-duty busbar distributes power to up to four loads protected by MEGA fuses for safe system operation.
• Integrated Battery Selector Switch: Includes a Blue Sea m-Series mini selector switch rated for 300 A continuous current with high surge capability for system isolation and control.
• Heavy Duty Copper Busbars: Supplied with tinned copper busbars that ensure efficient current distribution and corrosion resistance.
• Supports External Battery Monitoring: Negative busbar can be connected to a SmartShunt or similar monitoring device for battery monitoring integration.
• Professional System Layout: Provides an organised wiring platform that simplifies installation and improves cable management.
• Ideal for Marine and Off-Grid Systems: Suitable for battery banks powering inverters, chargers, and other high-current DC equipment.

Kit Includes

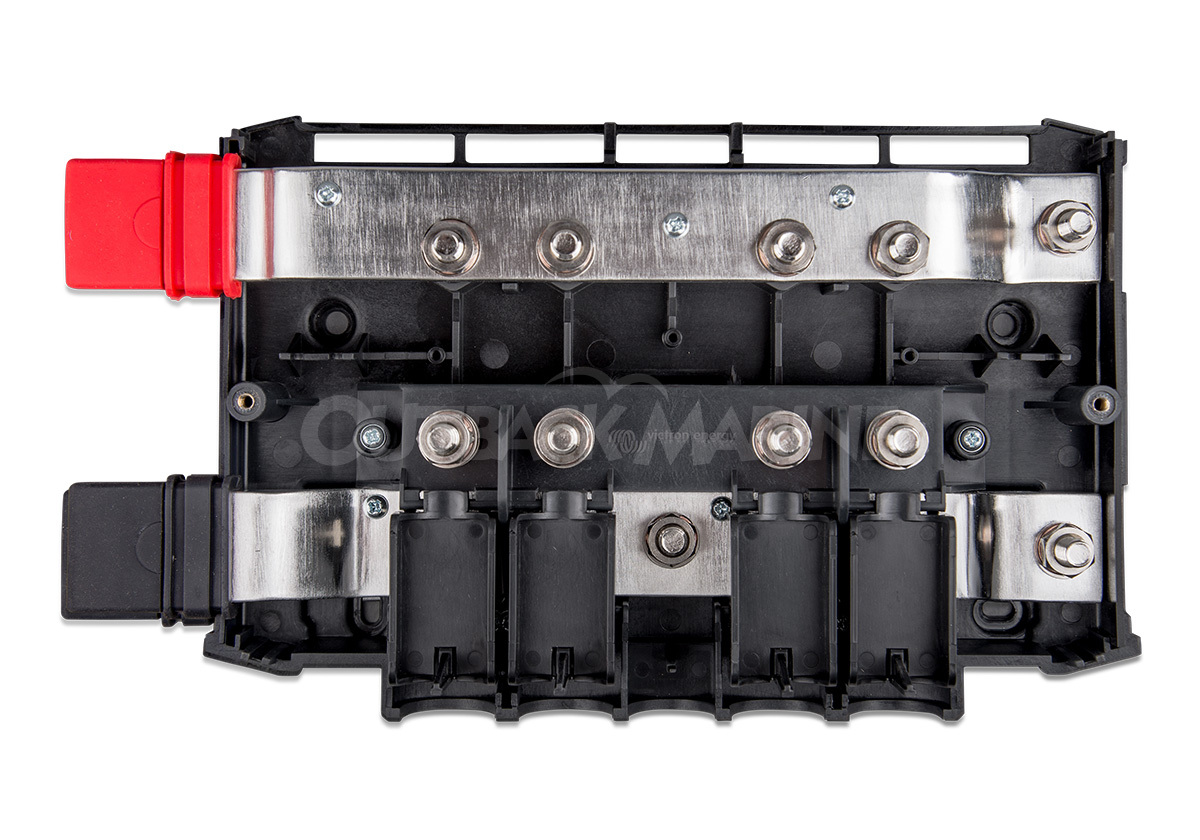

• Victron Lynx Power In modified to a fused DC Distribution Board with Stainless Steel Nuts & Bolts
• Blue Sea 6006 m-Series Switch 300A Continous / 500A (5 Min) / 900A Peak (30 sec)
• 2x 90mm Tinned Copper busbars

Designed for reliability and organised power distribution, this kit provides a professional solution for managing high-current DC electrical systems.

Note: Cabling and Fuses not included.
