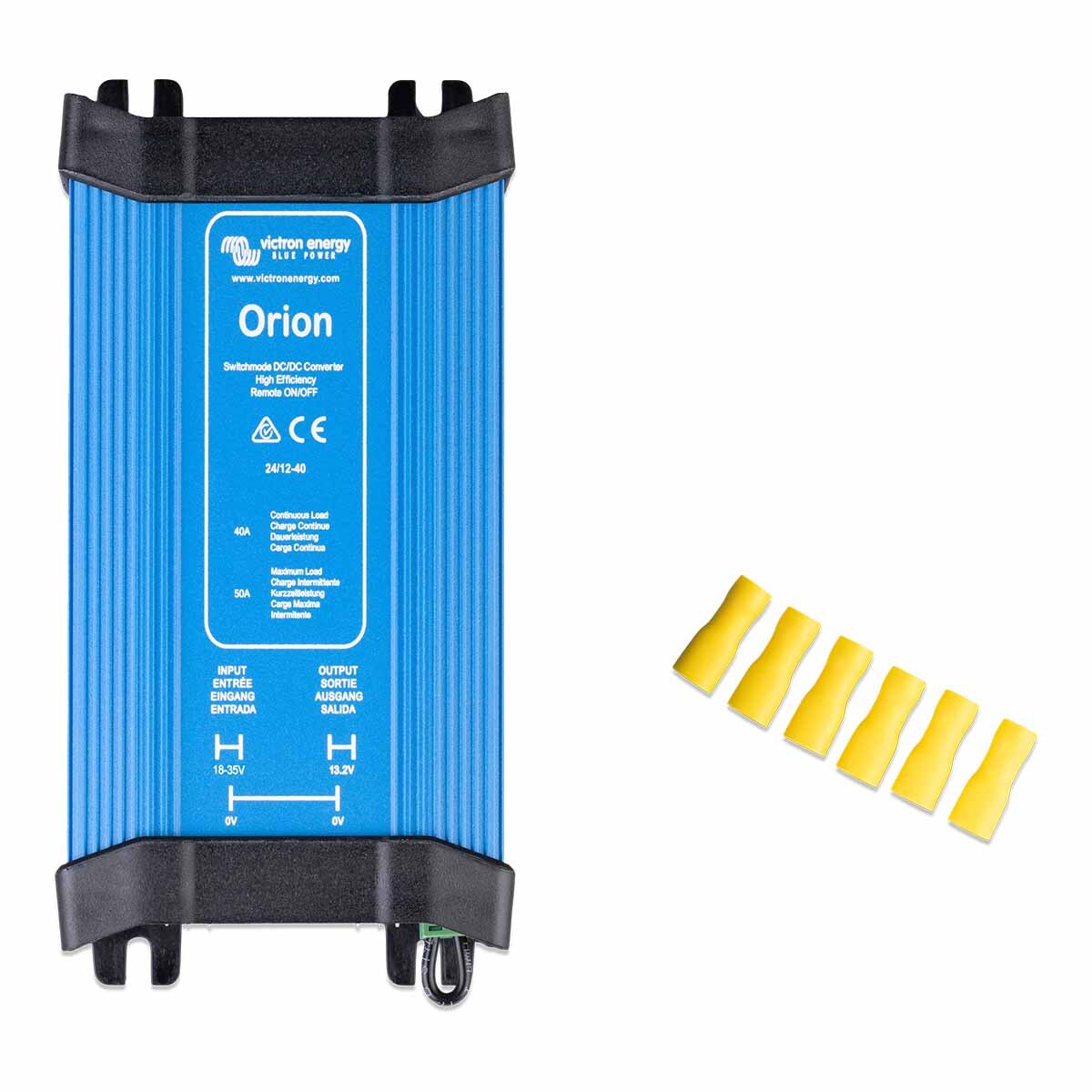

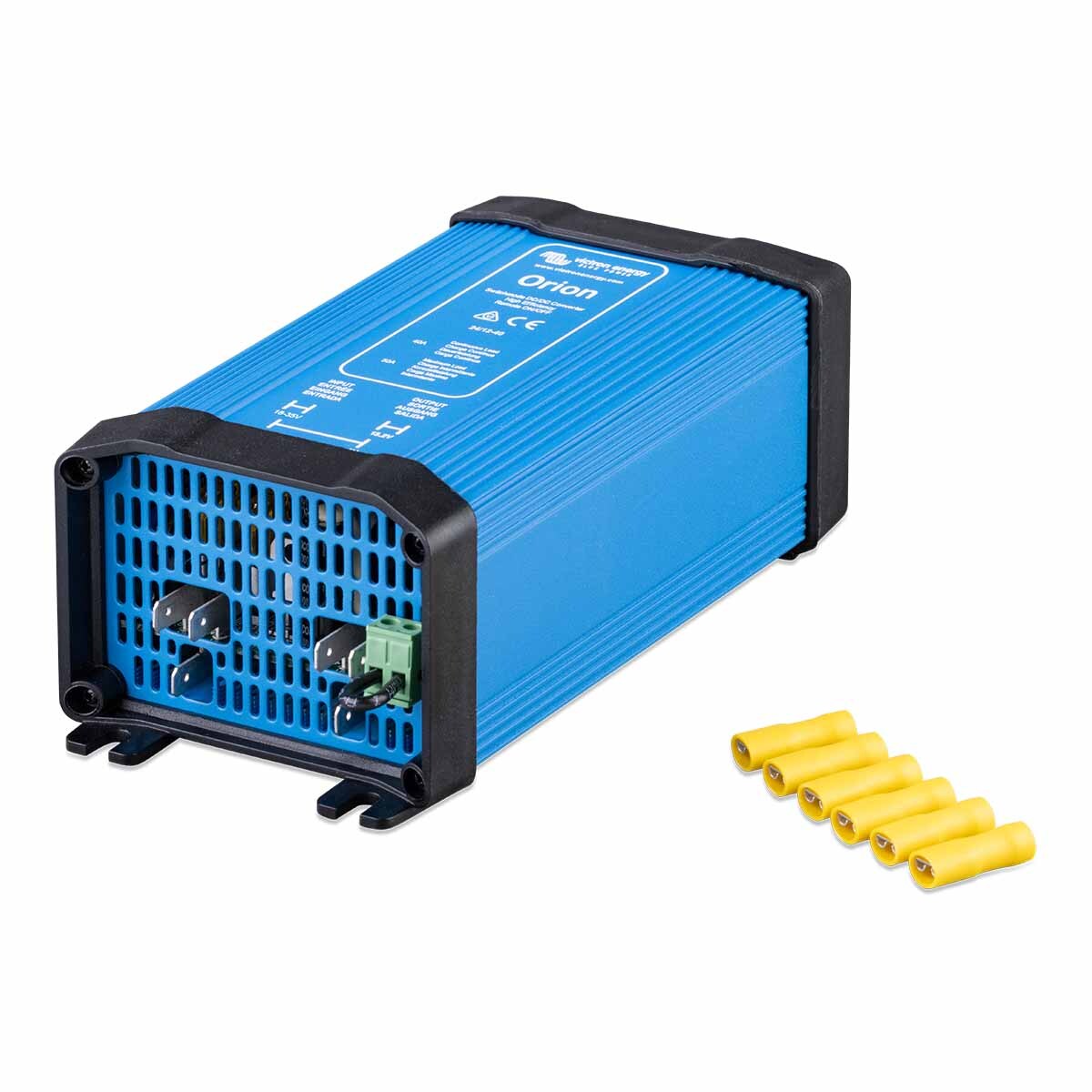

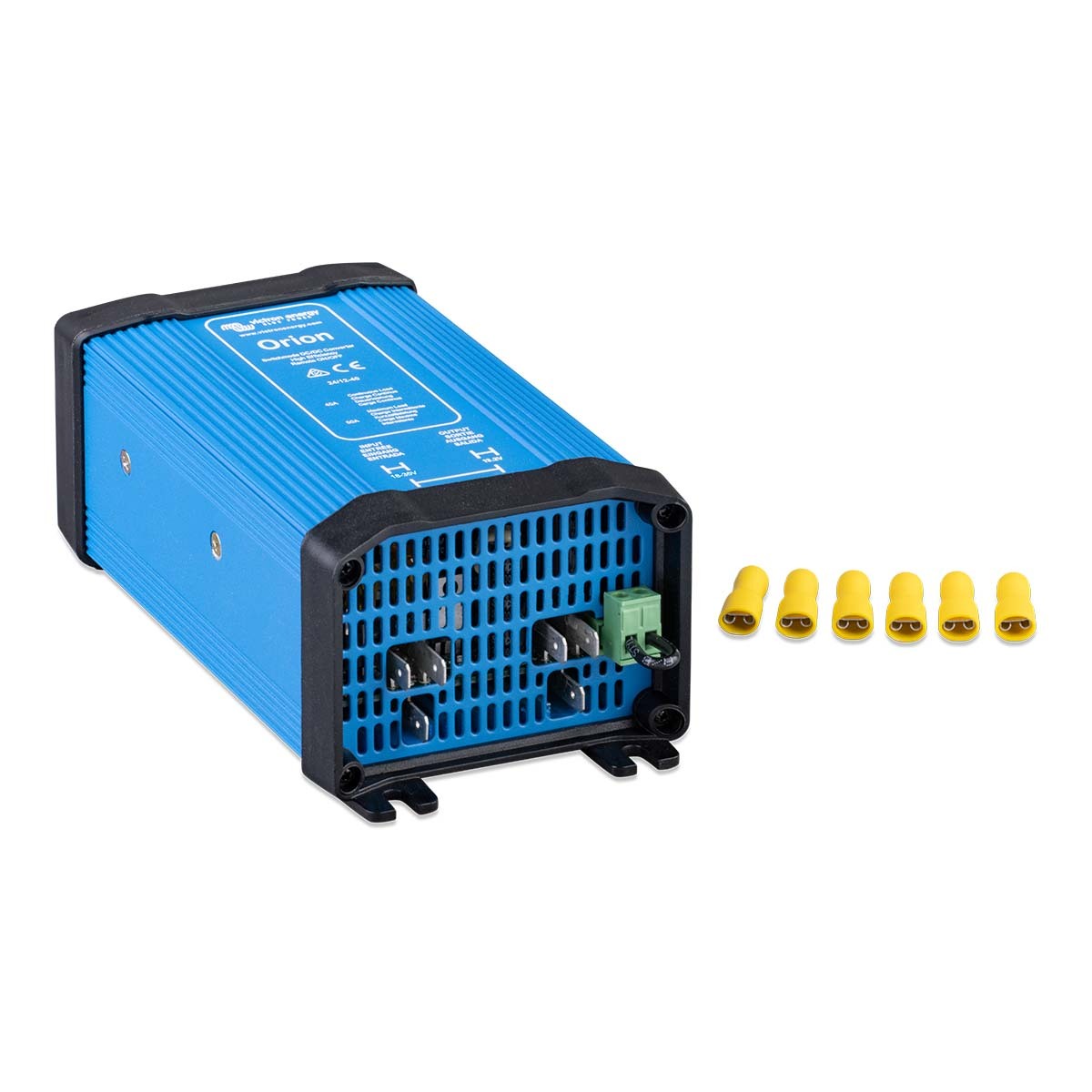

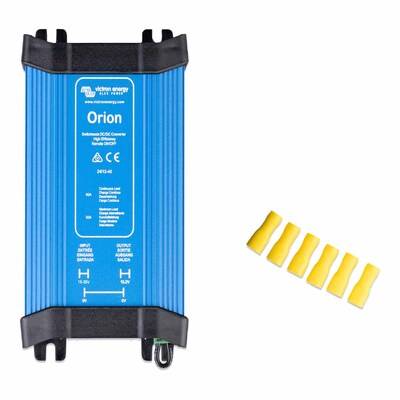

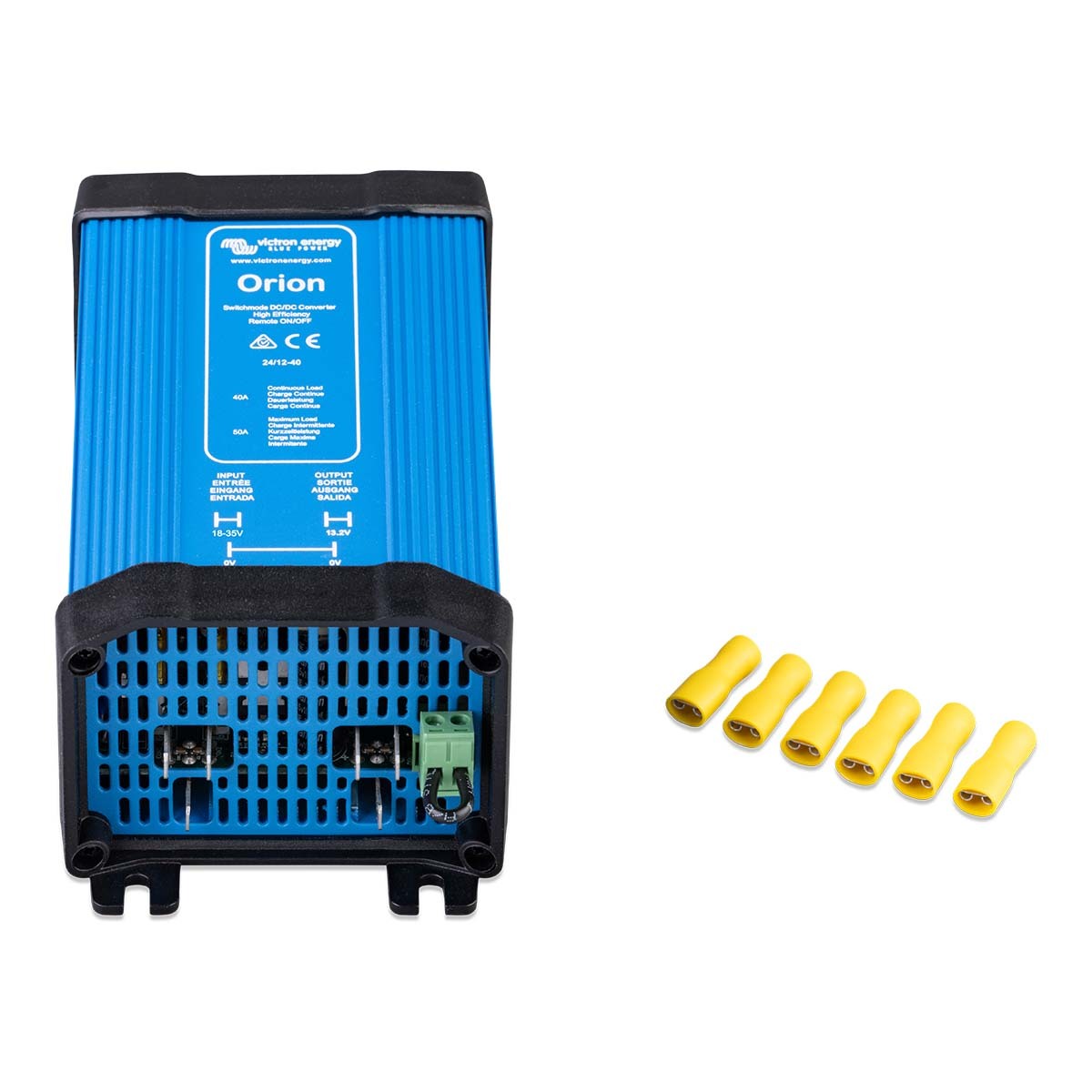

Victron Orion 24/12-40A DC-DC converter IP20 (Uout=13,2V)

The Victron Orion 24/12-40 DC-DC Converter is an essential device designed for seamless power conversion and system integration. Boasting a non-isolated, high-power design, this converter is ideal for a wide range of applications, including automotive, marine, and renewable energy systems. Its innovative features ensure efficiency, reliability, and versatility in converting 24V power sources to 12V with a 40A output.

Key Features:

  • Remote On/Off Connector: Simplifies installation by eliminating the need for high-current switches. This feature can be activated by a low-power switch or directly through the engine’s run/stop mechanism.
  • Easy Installation: Comes with four Insulated Fastons Female Crimp 6.3mm for straightforward installation, ensuring quick setup and integration into existing systems.

Technical Specifications:

Feature Specification
Input Voltage 24V DC
Output Voltage 12V DC
Output Current 40A
Efficiency High efficiency, low heat generation
Protection IP20 rating for indoor use
Connectivity Remote on/off capability
Installation Accessories 4x Insulated Double Fastons Female Crimp 6.3mm
Paralleling Capability No
  Orion 24/12-25 Orion 24/12-40 Orion 24/12-70 Orion 12/24-8 Orion 12/24-10 Orion 12/24-20
Input voltage range (V) 18-35 18-35 18-35 9-18 9-18 9-18
Under voltage shutdown (V) 14 14 14 8 8 8
Under voltage restart (V) 18 18 18 10 10 10
Output voltage adjustable with potentiometer Yes No Yes No Yes Yes
Output voltage (V) Adjustable 10–15V, F set 13.2V 13.2 Adjustable 10–15V, F set 13.2V 24 Adjustable 20-30V, F set 26.4V Adjustable 20-30V, F set 26.4V
Efficiency (%) 96 95 92 95 95 93
Suitable to buffer-charge a battery Yes No Yes No Yes Yes
Can be connected in parallel Yes No Yes No Yes Yes
Continuous output current (A) 25 40 70 8 10 20
Max. Output current (A) 35 55 85 20 20 30
Fan assisted cooling (temp. controlled) No Yes Yes No No Yes
Galvanic isolation No No No No No No
Off load current < 15mA < 20mA < 20mA < 10mA < 15mA < 30mA
Remote on-off Yes Yes Yes No No Yes
Operating temperature range (derate 3% per °C above 40°C) -20 to +55°C -20 to +55°C -20 to +55°C -20 to +55°C -20 to +55°C -20 to +55°C
DC connection Faston tabs 6.3 mm Double Faston tabs 6.3 mm M6 bolts Faston tabs 6.3 mm Faston tabs 6.3 mm M6 bolts
Weight kg 0.7 0.85 0.9 0.4 0.4 0.9
Dimensions HxWxD in mm 65x88x160 65x88x185 65x88x195 45x90x115 45x90x125 65x88x195

Standards: Saftey
Emission
Immunity
Automotive Directive

 EN 60950
EN 61000-6-3, EN 55014-1
EN 61000-6-2, EN 61000-6-1, EN 55014-2
ECE R10-4
SKU VIC.ORI241240021
Model # ORI241240021
UPC/EAN 8719076038726
Brand Victron Energy
Shipping Weight 1.0500kg
Shipping Width 0.225m
Shipping Height 0.080m
Shipping Length 0.110m
Shipping Cubic 0.001980000m3
