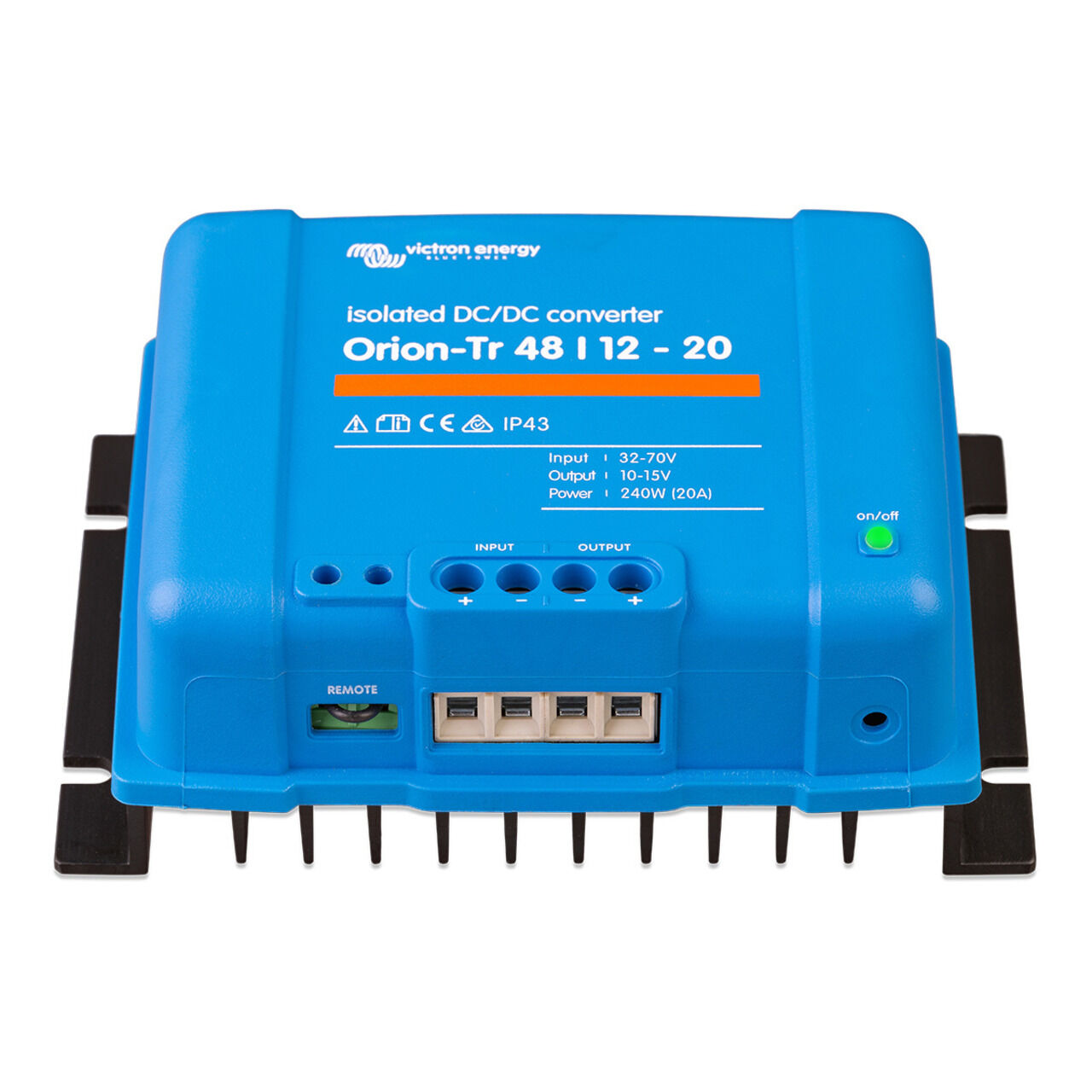

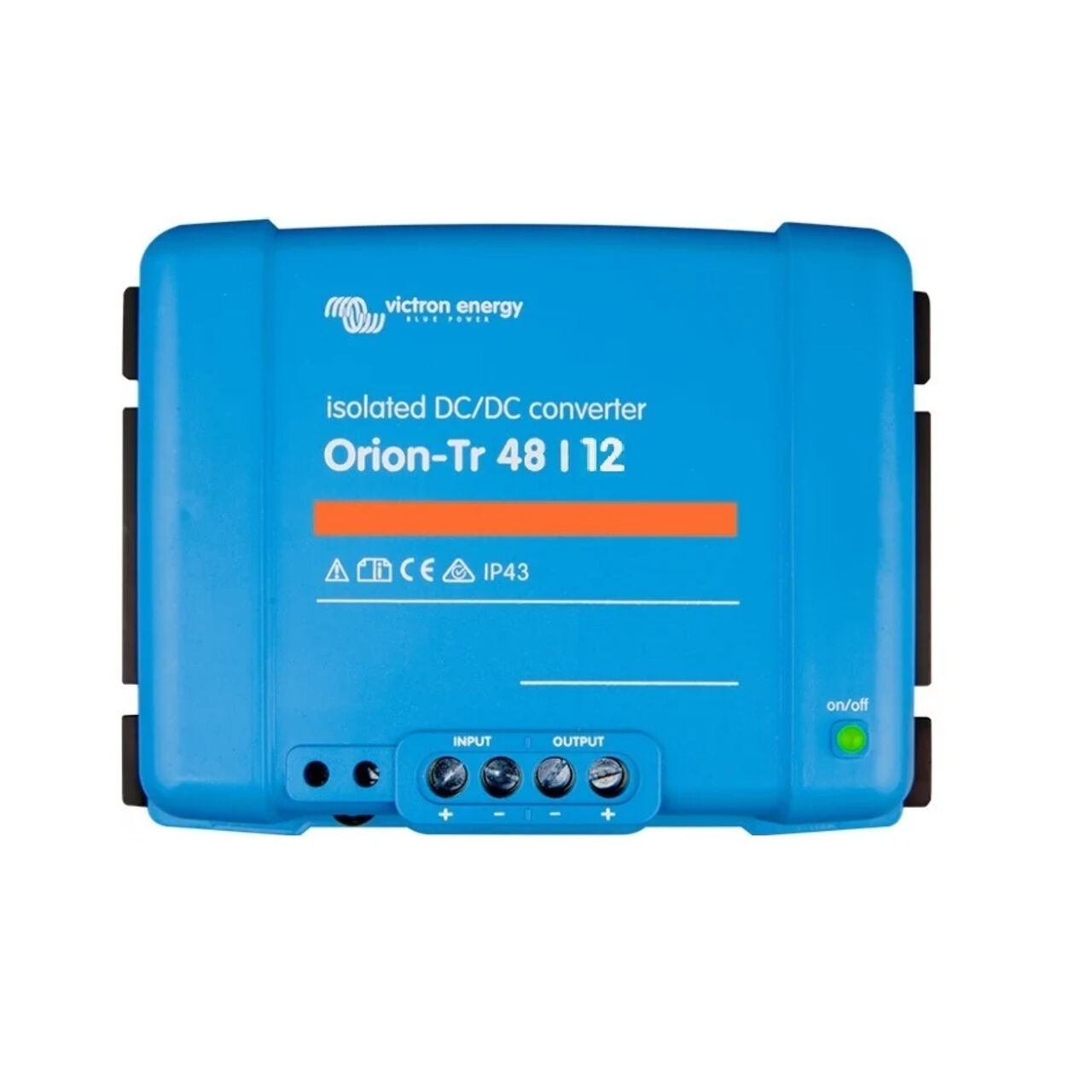

Victron Orion-Tr Smart 48/12-20A (240W) Isolated DC-DC charger
Isolated 48V to 12V charger with Bluetooth control, adaptive battery charging, and smart alternator support for vehicle, marine, and off-grid power systems.
SKU: VIC.ORI481224120
SAVE $90.02 (30%)
In Stock
Ships today from our Southport warehouse if order placed by 1pm
Reliable Power Conversion for Demanding Off-grid or Vehicle Setups
This isolated DC-DC charger converts 48V input to a stable 12V output, ideal for RVs, boats, and off-grid applications requiring precise battery management. It supports lithium and lead-acid batteries with a fully programmable 3-stage charging algorithm. Built-in Bluetooth allows wireless configuration and monitoring, while compatibility with smart alternators prevents draining starter batteries. Its IP43-rated design ensures dependable operation in harsh conditions, and it supports remote on/off control, parallel installation for higher output, and protection against high temperature and short circuit faults.
Key Features
- Isolated DC-DC functionality: Converts 48V input to a stable and adjustable 12V output.
- Bluetooth Smart connectivity: Enables wireless monitoring and configuration via the VictronConnect app.
- Adaptive 3-stage charging: Automatically adjusts charging phases to optimise battery health.
- Fully programmable output: Supports both fixed-voltage and custom charging profiles for different battery types.
- Smart alternator compatible: Engine shutdown detection prevents draining starter batteries in Euro 5/6 vehicles.
- Remote on/off capability: Supports control via switch, relay, or battery signal line.
- Parallel-ready design: Allows multiple chargers to be installed together for increased output current.
- Thermal and short-circuit protection: Automatically reduces output at high temperatures to prevent damage.
- Durable and weather-resistant: IP43-rated when installed with terminals facing downward.
Built to perform reliably in mobile and off-grid systems, this charger ensures safe, efficient, and programmable DC power conversion.
Product Specifications | |
---|---|
Input Voltage Range | 32–70 V |
Under Voltage Shut Down | 28 V |
Under Voltage Restart | 30 V |
Nominal Output Voltage | 12.2 V |
Output Voltage Adjust Range | 10–15 V |
Output Voltage Tolerance | ±0.2 V |
Output Noise | 2 mV rms |
Continuous Output Current at 40 °C | 20 A |
Maximum Output Current (10 s) | 25 A |
Short Circuit Output Current | 50 A |
Continuous Output Power at 25 °C | 280 W |
Continuous Output Power at 40 °C | 240 W |
Efficiency | 87% |
No Load Input Current | <80 mA |
Standby Current | <1 mA |
Can Be Used as Power Supply | Yes |
Galvanic Isolation | 200 VDC between input, output, and case |
Operating Temperature Range | -20 to +55 °C |
Humidity | Max 95% non-condensing |
DC Connection | Screw terminals |
Max Cable Cross-Section | 16 mm² (AWG6) |
Weight | 1.6 kg |
Dimensions (H × W × D) | 130 × 186 × 70 mm |
Protection Category | IP43 (electronics), IP22 (connection area) |
Compliance Standards | EN 60950, EN 61000-6, ECE R10-5 |
SKU | VIC.ORI481224120 |
UPC/EAN | 8719076066149 |
Brand | Victron Energy |
Shipping Weight | 1.3350kg |
Shipping Width | 0.090m |
Shipping Height | 0.130m |
Shipping Length | 0.100m |
Shipping Cubic | 0.001170000m3 |
