Victron SmartSolar MPPT 150/70-MC4 VE.Can Bluetooth Solar Controller
SKU: VIC.SCC115070511
RRP $703.90
$633.50

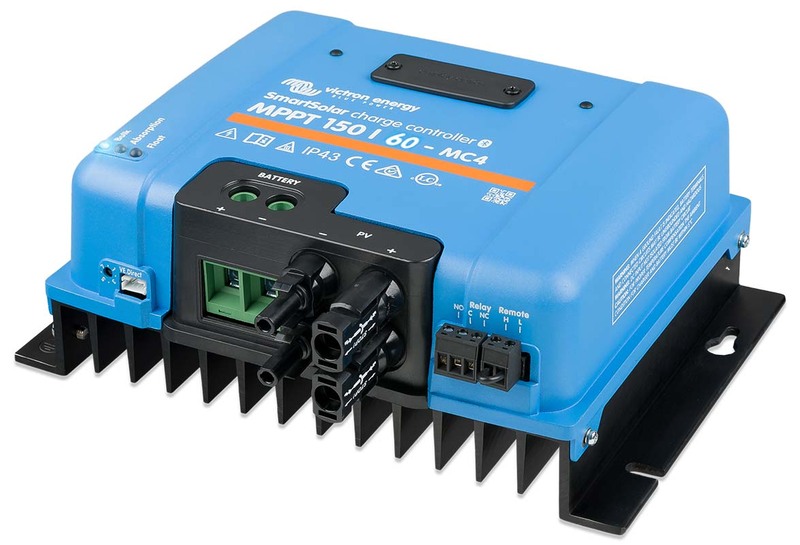

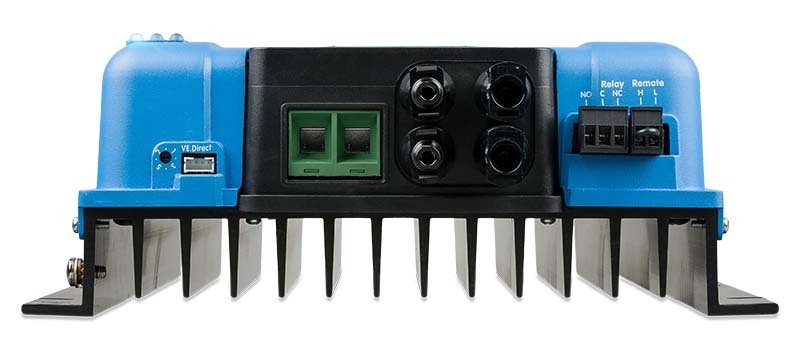

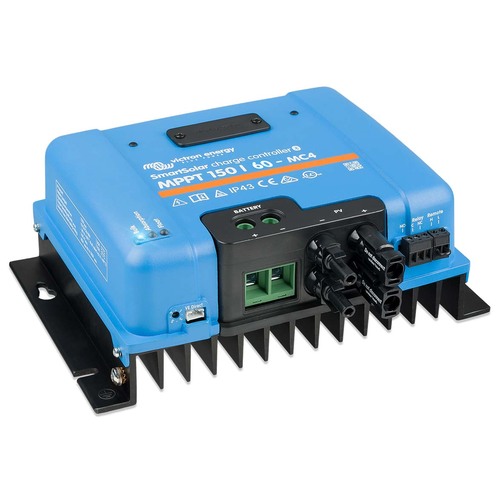

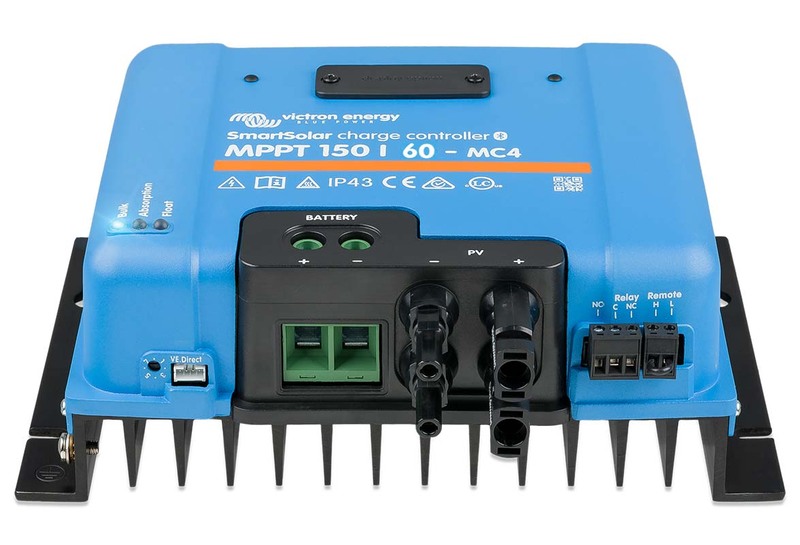

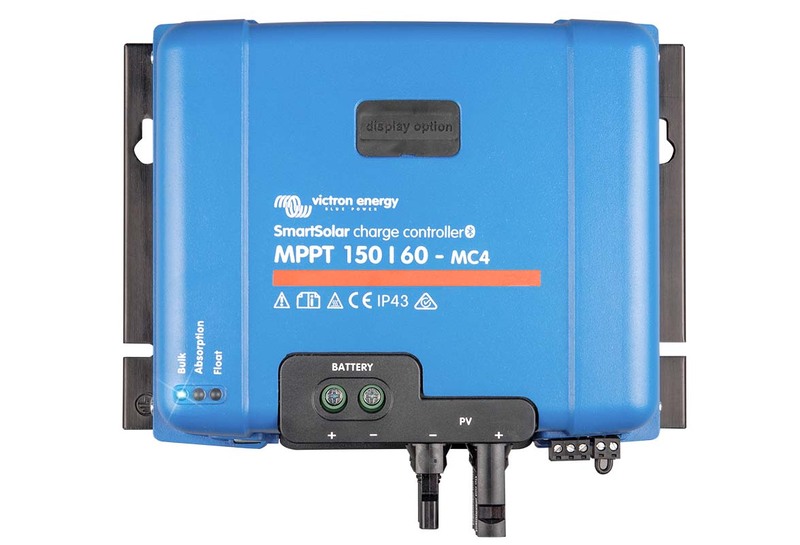

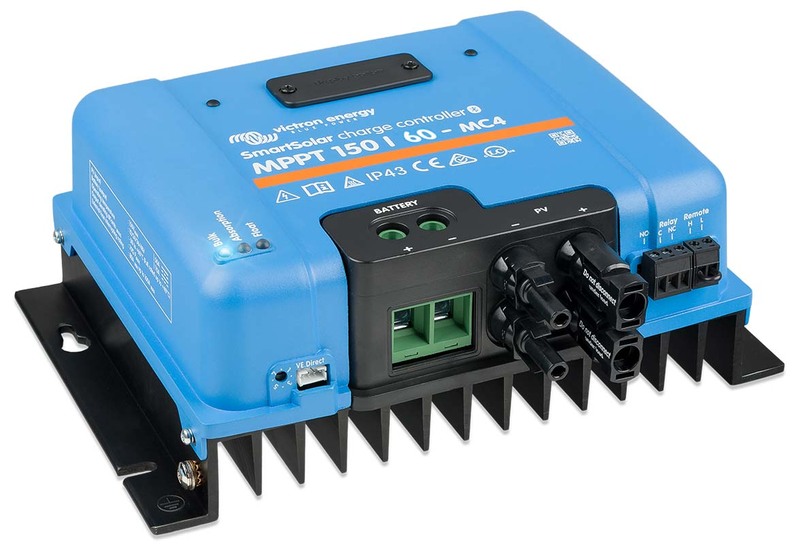

Victron SmartSolar 150 VOC, 60 Amp MPPT solar panel charge controller for 12V, 24V, 36V and 48V battery systems (including Lithium) with Bluetooth and MC4 connectors.
SKU: VIC.SCC115060311 | MPN: SCC115060311
SAVE $59.60 (10%)
Available at Victron
In Stock at Victrons Australian warehouse and typically ships within 5-6 Business Days.
MPPT 150/45 up to 150/100
MPPT controllers operate solar panels at their Maximum Power Point improving efficiency up to 30% by adjusting input voltage to harvest the maximum power from the solar panels. It then manages this power to supply the varying voltage requirement of the battery plus load.
The MPPT senses when to adjust the output that it is being sent to the battery and will shut down for a few microseconds, calculate and make relevant adjustments. The principle of MPPT is to extract the maximum possible power from a solar panel by setting the most efficient combination of voltage and current - maximum power point.
The Victron MPPT SmartSolar support Advanced Maximum Power Point Detection. Unlike the conventional MPPTs which tend to lock to a local MPP when shady conditions occur, [which may not be the optimum MPP], Advance Maximum Power Point Detection will harvest maximin energy by locking to the optimum MPP.
Internal temperature sensor provides additional electronic protection
Other features:

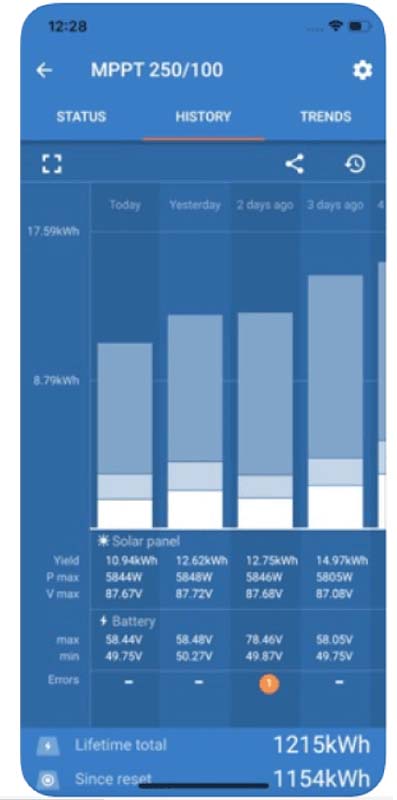

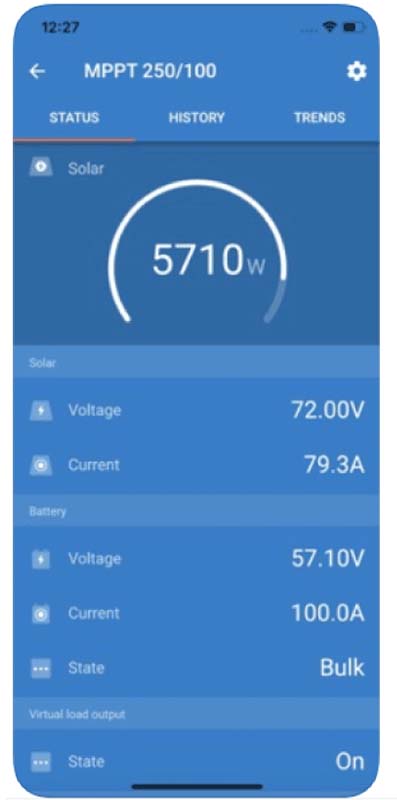

Built-in Bluetooth along with the VictronConnect App provides easy access to the extensive range of functions available on your solar charge controller such as:
|
Victron MPPT model names explained
MPPT 150/45, the first number is the maximum PV open circuit voltage. The second number, 45, is the maximum charge current. Use the Victron MPPT Excel sheet or Online MPPT Calculator for PV sizing calculations.
For more information about PWM or MPPT charge controllers, read the Victron whitepaper: which solar charge controller: PWM or MPPT?
MPPT 150/45 up to 150/100 Specifications
SKU | VIC.SCC115060311 |
Model # | SCC115060311 |
UPC/EAN | 8719076051398 |
Brand | Victron Energy |
Shipping Weight | 4.0500kg |
Shipping Width | 0.270m |
Shipping Height | 0.150m |
Shipping Length | 0.250m |
Shipping Cubic | 0.010125000m3 |
Purchase with confidence knowing your product is covered by the Victron 5-year manufacturer warranty.
