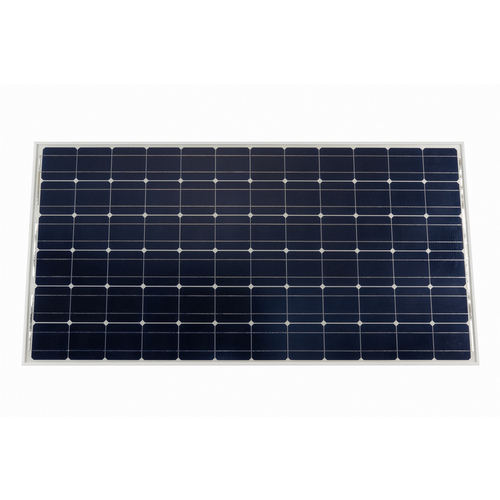

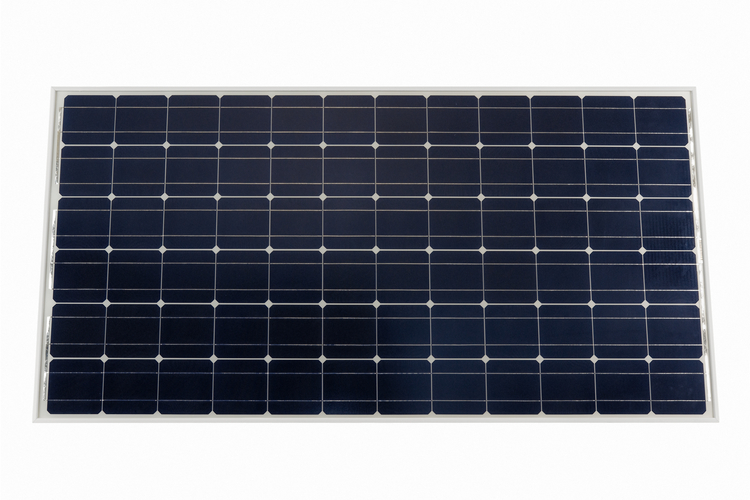

Victron Solar Panel 360W-24V Monocrystalline 1980x1002x40mm series 4b
Victron Solar panels and cables - Solar panels monocrystalline - Solar Panel 360W-24V Monocrystalline 1980x1002x40mm series 4b
SKU: VIC.SPM043602402 | MPN: SPM043602402
SAVE $112.20 (30%)
Only 1 left In Stock
Ships today from our Southport warehouse if order placed by 1pm
Features:
- Low voltage-temperature coefficient enhances high-temperature operation.
- Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
- 25 Year limited warranty on power output and performance.
- 5 Year Limited warranty on materials and workmanship.
- Sealed, waterproof, multi-functional junction box gives high level of safety.
- High performance bypass diodes minimize the power drop caused by shade.
- Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
- A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
- Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
- Pre wired quick-connect system with MC4 (PV-ST01) connectors.
Specifications:
- Nominal Power (Pmpp): 360W
- Max Power Voltage (Vmpp): 34.4V
- Max Power Current (Impp): 10.47A
- Open Circuit Voltage (Voc): 41.0V
- Short Circuit Current (Isc): 11.15A
- Cell Type: Monocrystalline
- Number of cells in series: 72
- Max. system voltage: 1000V
- Temperature Range: -40°C to +85°C
- Surface Maximum Load Capacity: 200 kg/m²
- Allowable Hail Load: 23 m/s, 7.53 g
- Frame: Aluminium
SKU | VIC.SPM043602402 |
Model # | SPM043602402 |
UPC/EAN | 8719076057789 |
Brand | Victron Energy |
Shipping Weight | 25.0000kg |
Shipping Width | 1.990m |
Shipping Height | 0.200m |
Shipping Length | 1.020m |
Shipping Cubic | 0.405960000m3 |
Unit Of Measure | ea |
