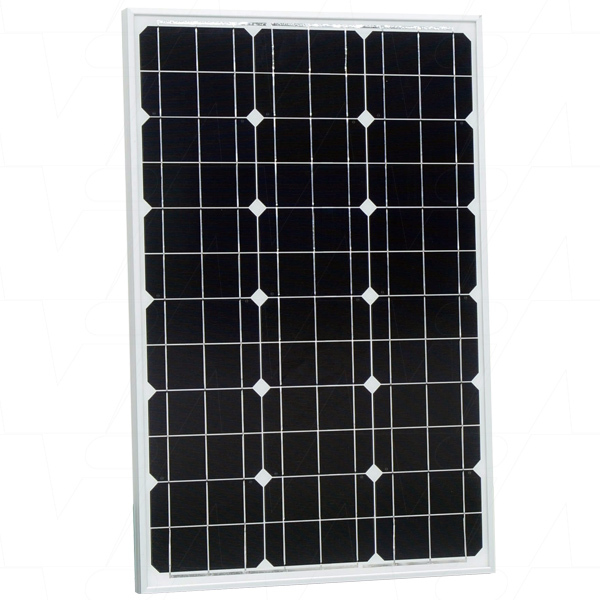

Victron Solar Panel 40W-12V Mono 425x668x25mm series 4a
Victron Solar panels and cables - Solar panels monocrystalline - Solar Panel 40W-12V Mono 425x668x25mm series 4a
SKU: VIC.SPM040401200 | MPN: SPM040401200
SAVE $29.22 (31%)
Only 1 left In Stock
Ships today from our Yatala warehouse if order placed by 1pm
Features
- Low voltage-temperature coefficient enhances high-temperature operation.
- Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
- 25 Year limited warranty on power output and performance.
- 5 Year Limited warranty on materials and workmanship.
- Sealed, waterproof, multi-functional junction box gives high level of safety.
- High performance bypass diodes minimize the power drop caused by shade.
- Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
- A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
- Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
Specifications:
- Nominal Power (Pmpp): 40W
- Max Power Voltage (Vmpp): 17.9V
- Max Power Current (Impp): 2.24A
- Open Circuit Voltage (Voc): 22.3V
- Short Circuit Current (Isc): 2.38A
- Cell Type: Monocrystalline
- Number of cells in series: 36
- Max. system voltage: 1000V
- Temperature Range: -40°C to +85°C
- Surface Maximum Load Capacity: 200 kg/m²
- Allowable Hail Load: 23 m/s, 7.53 g
- Frame: Aluminium
SKU | VIC.SPM040401200 |
Model # | SPM040401200 |
UPC/EAN | 8719076047407 |
Brand | Victron Energy |
Shipping Weight | 3.9000kg |
Shipping Width | 0.680m |
Shipping Height | 0.050m |
Shipping Length | 0.440m |
Shipping Cubic | 0.014960000m3 |
