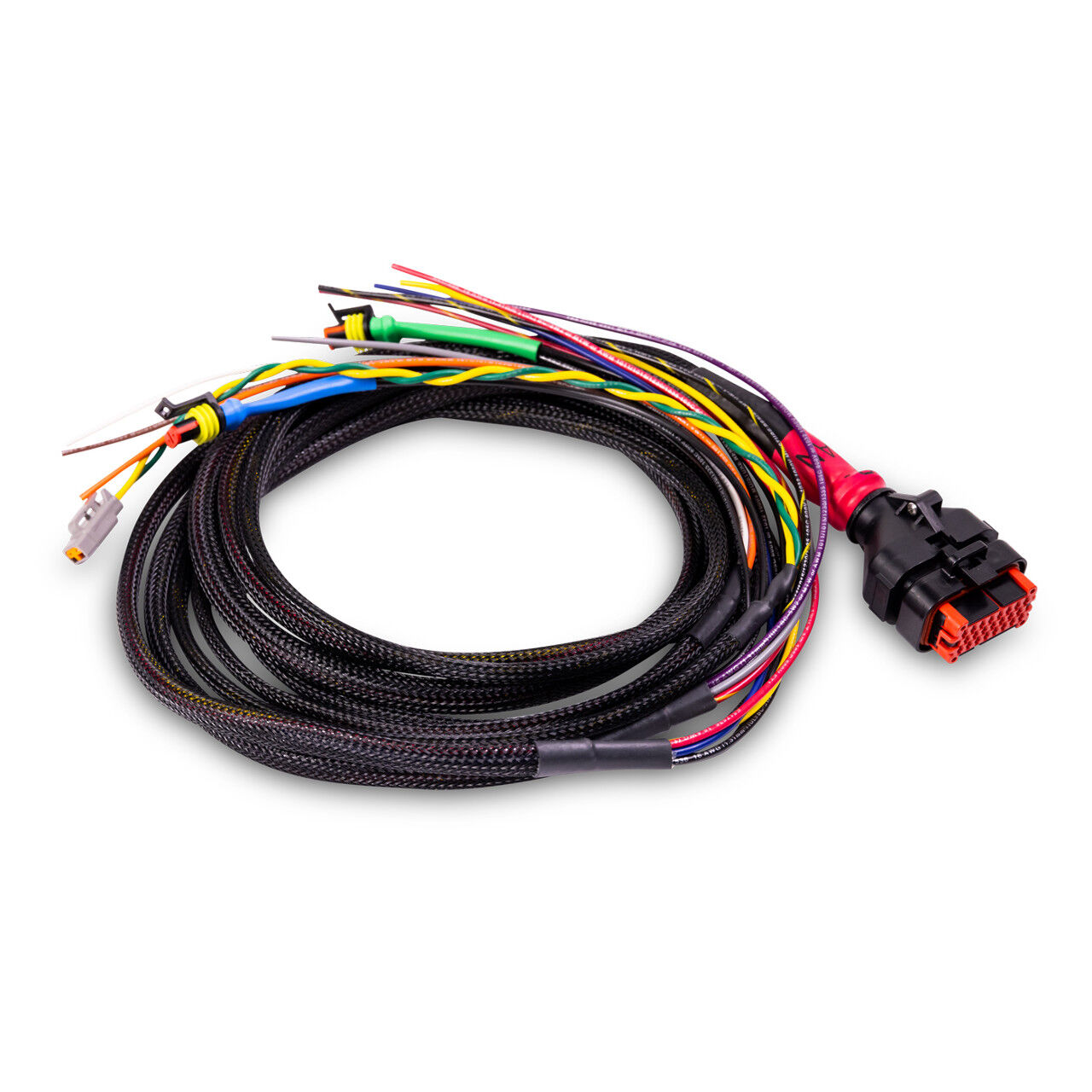

Standard positive polarity harness for regulated alternator field control applications

A dedicated positive-polarity harness designed for P-type alternator configurations, providing the required field control, voltage sensing and signalling pathways for regulated charging systems. Built with colour-coded conductors, sealed terminations and abrasion-resistant sleeving, it enables clean integration between alternator, battery points and control modules while ensuring correct polarity alignment, stable signal delivery and reliable performance in demanding engine and electrical environments.

Key Features

• Positive-field alternator compatibility: Purpose-built for P-type alternator systems, ensuring correct field drive polarity for accurate charging control.
• Pre-mapped colour-coded conductors: Clearly marked wiring simplifies installation, supports fast identification and reduces connection-mapping errors during setup.
• Sealed multi-pin termination: Ruggedised connector provides reliable electrical contact and resistance to moisture, vibration and corrosion.
• Durable braided sleeving: Protective outer jacket shields cables from abrasion, heat and movement stress within engine bays and utility compartments.
• Structured control signal routing: Supports field output, voltage sensing and key switching inputs required for intelligent alternator regulation.
• Installation-ready length: Harness layout and length support efficient routing between alternator, regulator placement and system tie-points.

Robust, predictable and system-ready, it delivers the correct control and sensing pathways required for stable alternator output under P-type polarity systems.
