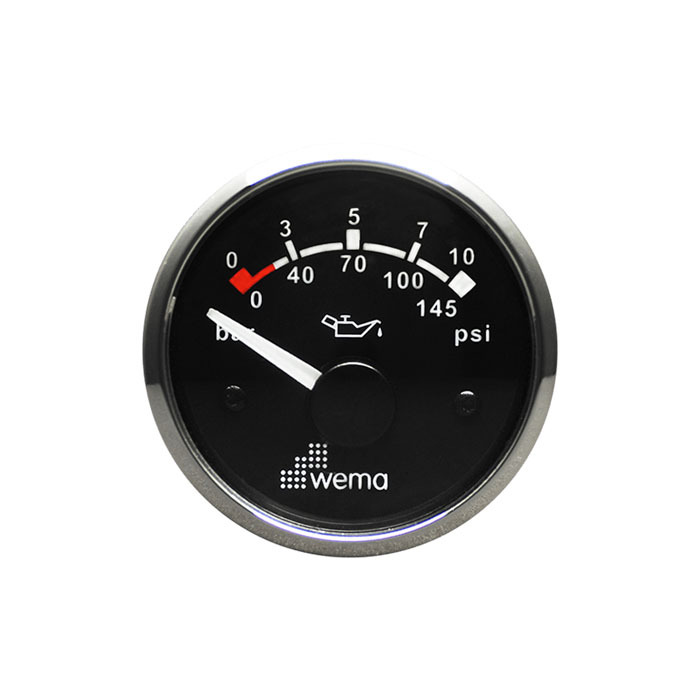

Engine oil pressure gauge for monitoring lubrication system pressure

Maintaining correct oil pressure is essential for engine protection and lubrication system performance. This engine oil pressure gauge provides a clear indication of oil pressure, allowing operators to monitor lubrication system conditions and identify potential pressure-related issues. Designed for use with 10–185 Ohm pressure senders, the gauge is available in 0–5 bar and 0–10 bar measurement ranges, making it suitable for a variety of marine, automotive, industrial, and engine applications. Featuring a stainless steel bezel, IP67-rated construction, anti-fog design, and compatibility with both 12V and selected 24V systems, it is suited to demanding operating environments.

Key Features

• Stainless Steel Bezel: Stainless steel bezel construction designed for marine, commercial, and industrial dashboard installations.
• Engine Oil Pressure Monitoring: Provides continuous indication of engine oil pressure to assist with lubrication system monitoring.
• 10–185 Ohm Sender Compatibility: Designed for operation with compatible 10–185 Ohm oil pressure senders.
• Multiple Pressure Range Options: Available in 0–5 bar (0–75 psi) and 0–10 bar (0–145 psi) configurations to suit different engine requirements.
• 12V and 24V Compatibility: Operates on 12V DC systems as standard and supports selected 24V stepping motor and LCD gauge installations.
• IP67 Protection Rating: Sealed construction provides protection against water and dust ingress and can withstand temporary immersion.
• Anti-Fog Design: Designed to reduce internal condensation and maintain gauge visibility in changing environmental conditions.
• Multi-Plug Socket Connection: Multi-plug connection system simplifies installation and maintenance.
• Selectable Backlighting: Available with red or yellow backlighting for integration into different dashboard and control panel layouts.
• 52 mm Gauge Size: Designed for installation into standard 52 mm instrument panel cut-outs.

Suitable for marine engines, generators, industrial equipment, agricultural machinery, and automotive applications requiring continuous oil pressure indication.
