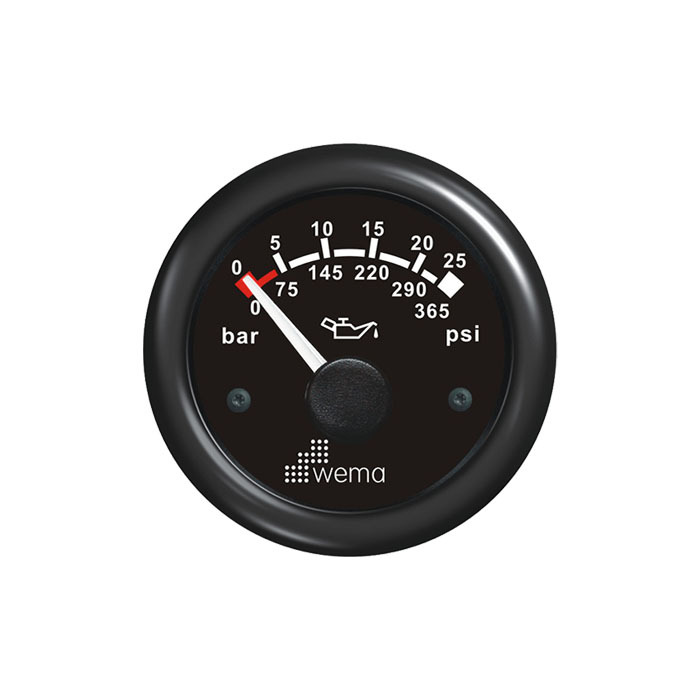

Gear oil pressure gauge for monitoring lubrication system pressure in transmissions and gearboxes

Monitoring gear oil pressure helps verify lubrication system operation and assists with identifying pressure-related issues that may affect gearbox and transmission performance. Designed for use with 10–185 Ohm pressure senders, this gear oil pressure gauge provides a clear indication of lubrication pressure across a 0–25 bar (0–365 psi) range. Featuring a black bezel, IP67-rated construction, anti-fog design, and compatibility with both 12V and selected 24V systems, it is suitable for marine transmissions, industrial gearboxes, heavy equipment, and other applications requiring continuous pressure monitoring.

Key Features

• Black Bezel Construction: Black bezel finish designed for installation in dashboards, control panels, and instrument clusters.
• Gear Oil Pressure Monitoring: Provides continuous indication of gear oil pressure to assist with lubrication system monitoring and equipment operation.
• 0–25 Bar Measurement Range: Measures pressure from 0 to 25 bar, equivalent to 0 to 365 psi.
• 10–185 Ohm Sender Compatibility: Designed for operation with compatible 10–185 Ohm pressure senders.
• 12V and 24V Compatibility: Operates on 12V DC systems as standard and supports selected 24V stepping motor and LCD gauge installations.
• IP67 Protection Rating: Sealed construction provides protection against water and dust ingress and can withstand temporary immersion.
• Anti-Fog Design: Designed to reduce internal condensation and maintain gauge visibility in varying environmental conditions.
• Multi-Plug Socket Connection: Multi-plug connection system simplifies installation and maintenance.
• Selectable Backlighting: Available with red or yellow backlighting for integration into different dashboard and control panel layouts.
• 52 mm Gauge Size: Designed for installation into standard 52 mm instrument panel cut-outs.

Suitable for marine transmissions, industrial gearboxes, hydraulic systems, heavy machinery, and other equipment requiring gear oil pressure indication.
