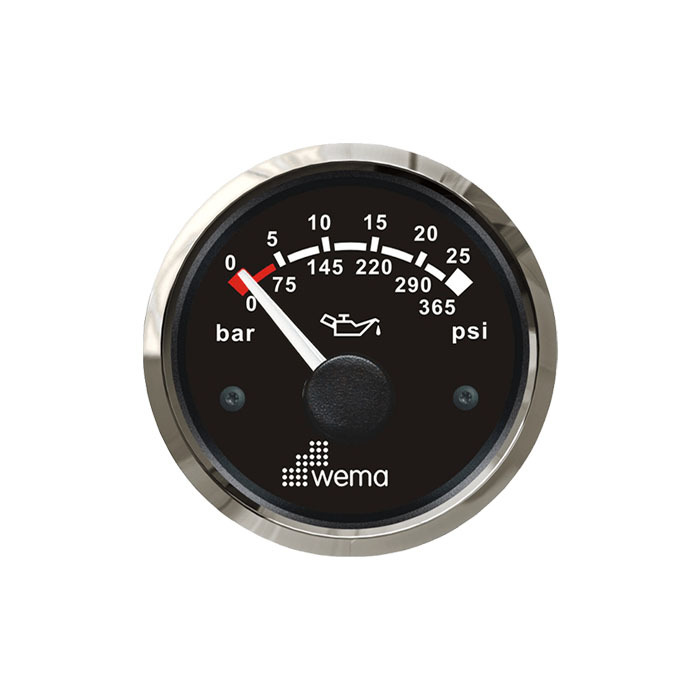

High-pressure gear oil gauge for monitoring gearbox and transmission lubrication systems

The gear oil pressure gauge is designed to provide continuous monitoring of lubrication system pressure in gearboxes, transmissions, and drive systems. Supporting a measurement range of 0–25 bar (0–365 psi), it allows operators to verify that critical components are receiving adequate lubrication during operation. Compatible with 10–185 Ohm pressure senders, the gauge is suitable for marine transmissions, industrial gearboxes, heavy machinery, and other equipment that relies on pressurised lubrication systems. Featuring a stainless steel bezel, IP67-rated construction, anti-fog design, and compatibility with both 12V and selected 24V systems, it is engineered for installation in demanding operating environments.

Key Features

• Stainless Steel Bezel: Stainless steel bezel construction designed for marine, industrial, and commercial installations.
• Gear Oil Pressure Monitoring: Provides continuous indication of gear oil pressure to assist with monitoring gearbox and transmission lubrication systems.
• 0–25 Bar Measurement Range: Measures pressure from 0 to 25 bar, equivalent to 0 to 365 psi, for monitoring high-pressure lubrication systems.
• 10–185 Ohm Sender Compatibility: Designed for operation with compatible 10–185 Ohm pressure senders.
• 12V and 24V Compatibility: Operates on 12V DC systems as standard and supports selected 24V stepping motor and LCD gauge installations.
• IP67 Protection Rating: Fully sealed construction provides protection against water and dust ingress and can withstand temporary immersion.
• Anti-Fog Design: Designed to reduce internal condensation and maintain clear gauge visibility in changing environmental conditions.
• Multi-Plug Socket Connection: Multi-plug connection system simplifies installation and servicing.
• Selectable Backlighting: Available with red or yellow backlighting to suit different dashboard and panel configurations.
• 52 mm Gauge Size: Designed for installation into standard 52 mm instrument panel cut-outs.

Engineered for marine, industrial, transport, and heavy equipment applications, the gauge provides a clear indication of gear oil pressure to support routine monitoring of gearbox and transmission lubrication systems.
