Precision oil pressure monitoring for engine lubrication systems

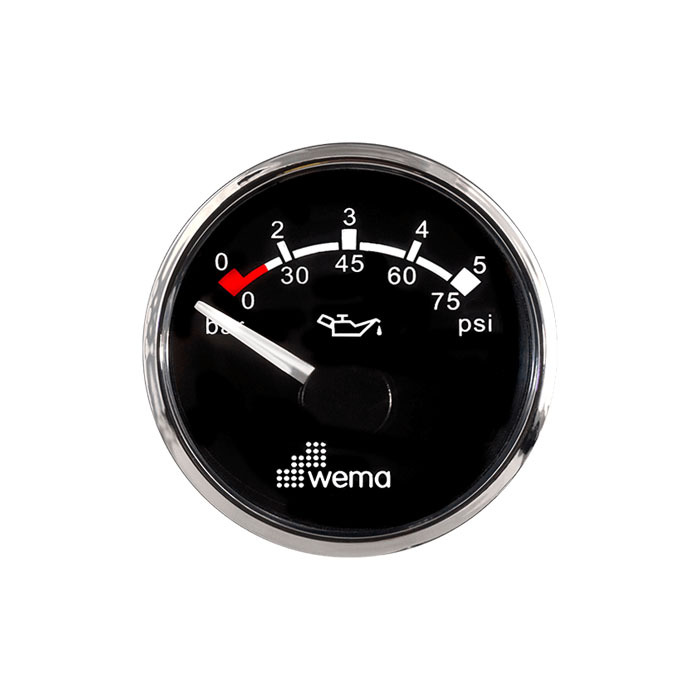

The engine oil pressure gauge is designed to provide continuous monitoring of lubrication system pressure, helping operators verify that critical engine components are receiving adequate oil flow during operation. Compatible with 10–185 Ohm pressure senders, this model measures pressure from 0–5 bar (0–75 psi), making it suitable for marine engines, generators, agricultural machinery, industrial equipment, and automotive applications. The gauge features a stainless steel bezel, IP67-rated construction, anti-fog design, and compatibility with both 12V and selected 24V systems, providing reliable operation in demanding environments.

Key Features

• Stainless Steel Bezel: Stainless steel bezel construction designed for marine, industrial, and commercial dashboard installations.
• Engine Oil Pressure Monitoring: Provides continuous oil pressure indication to assist with monitoring lubrication system performance and engine operating conditions.
• 0–5 Bar Measurement Range: Measures engine oil pressure from 0 to 5 bar, equivalent to 0 to 75 psi.
• 10–185 Ohm Sender Compatibility: Designed for operation with compatible 10–185 Ohm oil pressure senders.
• 12V and 24V Compatibility: Operates on 12V DC systems as standard and supports selected 24V stepping motor and LCD gauge installations.
• IP67 Protection Rating: Fully sealed construction provides protection against water and dust ingress and can withstand temporary immersion.
• Anti-Fog Design: Designed to reduce internal condensation and maintain clear gauge visibility in varying environmental conditions.
• Multi-Plug Socket Connection: Multi-plug connection system simplifies installation and servicing.
• Selectable Backlighting: Available with red or yellow backlighting to suit different dashboard and instrument panel configurations.
• 52 mm Gauge Size: Designed for installation into standard 52 mm instrument panel cut-outs.

Suitable for monitoring oil pressure in marine engines, diesel engines, generators, hydraulic power units, industrial machinery, and other equipment where lubrication system pressure requires continuous indication.
