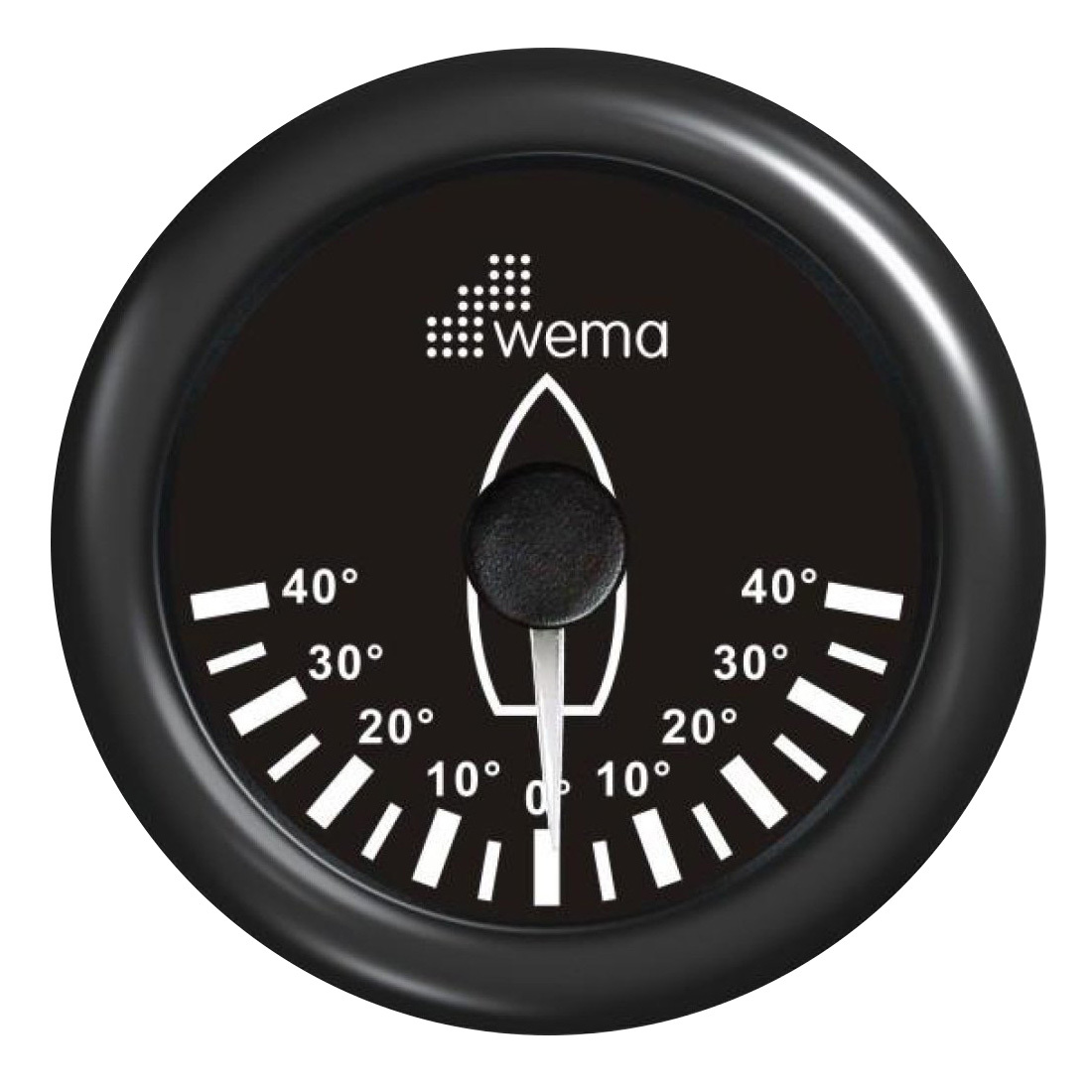

Rudder angle gauge for monitoring rudder position in marine steering systems

Accurate rudder position indication is important for maintaining vessel control and monitoring steering system response. Designed for use with 0–190 Ohm rudder angle senders, this gauge provides a clear visual indication of rudder position, allowing operators to monitor steering movement and rudder alignment during manoeuvring and navigation. Featuring a black bezel, IP67-rated construction, anti-fog design, and compatibility with both 12V and selected 24V systems, it is suitable for recreational, commercial, and industrial marine applications.

Key Features

• Black Bezel Construction: Black bezel finish suited to marine dashboards, instrument panels, and helm stations.
• Rudder Position Monitoring: Provides a clear indication of rudder angle to assist with steering control and vessel manoeuvring.
• 0–190 Ohm Compatibility: Designed to operate with compatible 0–190 Ohm rudder angle senders.
• 12V and 24V Compatibility: Operates on 12V DC systems as standard and is compatible with selected 24V stepping motor and LCD gauge installations.
• IP67 Protection Rating: Fully sealed construction provides protection against water and dust ingress and can withstand temporary immersion.
• Anti-Fog Design: Designed to minimise internal condensation and maintain gauge visibility in changing environmental conditions.
• Multi-Plug Socket Connection: Multi-plug connection design simplifies installation and servicing.
• Selectable Backlighting: Available with red or yellow backlighting to suit different helm and dashboard configurations.
• 52 mm Gauge Size: Designed for installation in standard 52 mm instrument panel cut-outs.
• Marine Application Ready: Suitable for recreational vessels, commercial boats, workboats, and other marine steering systems requiring rudder position indication.

Used in conjunction with a compatible rudder angle sender, the gauge provides continuous rudder position indication for marine steering systems.
