Rudder angle gauge for monitoring rudder position in marine steering systems

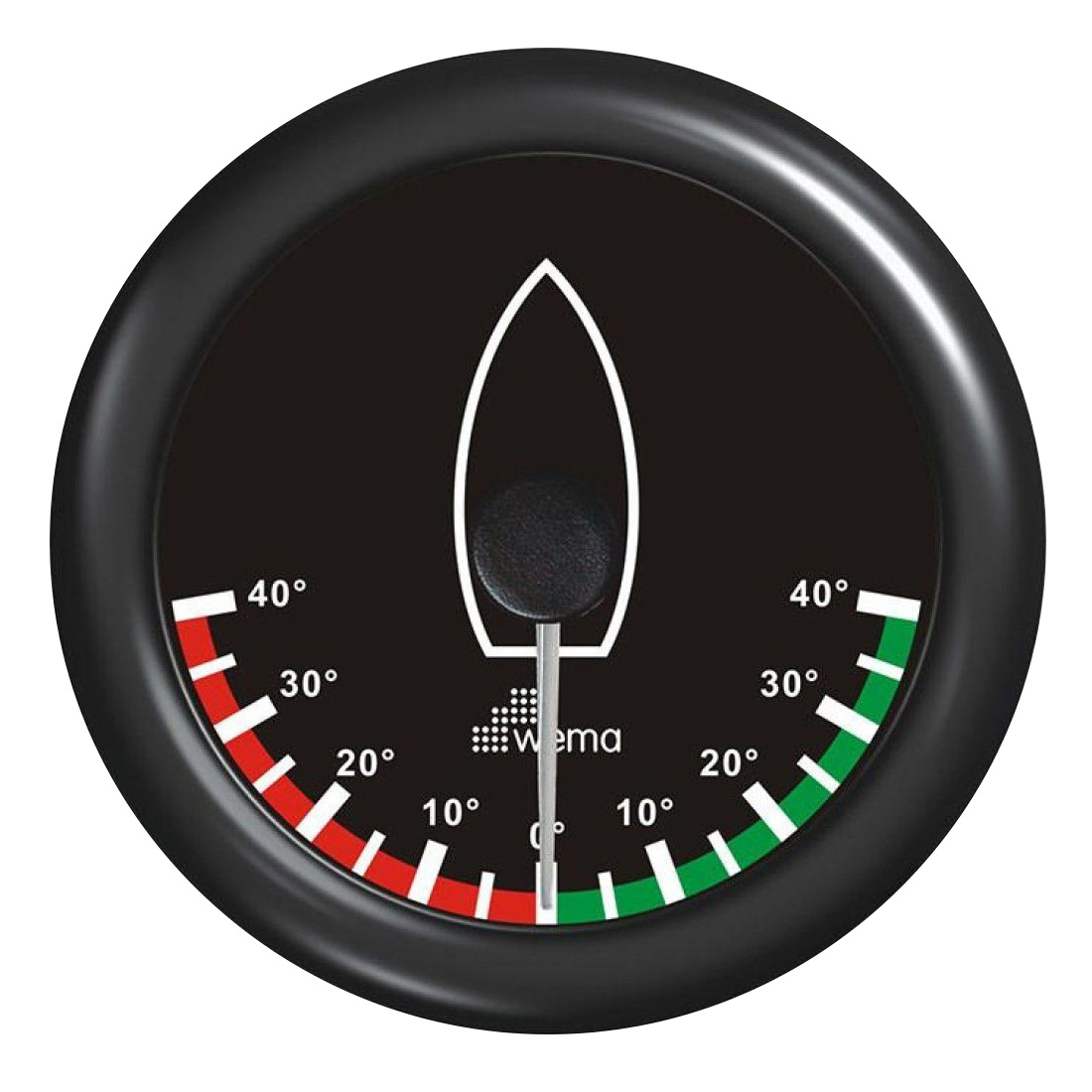

Designed for larger instrument panels and helm stations, this 85 mm rudder angle gauge provides a clear visual indication of rudder position to assist with vessel manoeuvring and steering system monitoring. Compatible with 0–190 Ohm rudder angle senders, it displays rudder movement across port and starboard positions, allowing operators to monitor steering response during navigation and docking operations. Featuring a black bezel, IP67-rated construction, anti-fog design, and compatibility with both 12V and selected 24V systems, it is suitable for recreational, commercial, and industrial marine applications.

Key Features

• 85 mm Gauge Diameter: Larger gauge face provides improved visibility from helm stations and control consoles.
• Black Bezel Construction: Black bezel finish designed for marine dashboard and instrument panel installations.
• Rudder Position Monitoring: Provides continuous indication of rudder angle to support steering control and vessel handling.
• 0–190 Ohm Compatibility: Designed for use with compatible 0–190 Ohm rudder angle senders.
• 12V and 24V Compatibility: Operates on 12V DC systems as standard and supports selected 24V stepping motor and LCD gauge installations.
• IP67 Protection Rating: Sealed construction provides protection against water and dust ingress and can withstand temporary immersion.
• Anti-Fog Design: Designed to minimise internal condensation and maintain clear visibility in varying environmental conditions.
• Multi-Plug Socket Connection: Multi-plug connection system simplifies installation and servicing.
• Selectable Backlighting: Available with red or yellow backlighting for integration into different helm and dashboard layouts.
• Marine Steering System Application: Suitable for recreational vessels, commercial boats, workboats, and other marine steering systems requiring rudder angle indication.

Used with a compatible rudder angle sender, the gauge provides continuous rudder position indication for marine steering and navigation applications.
