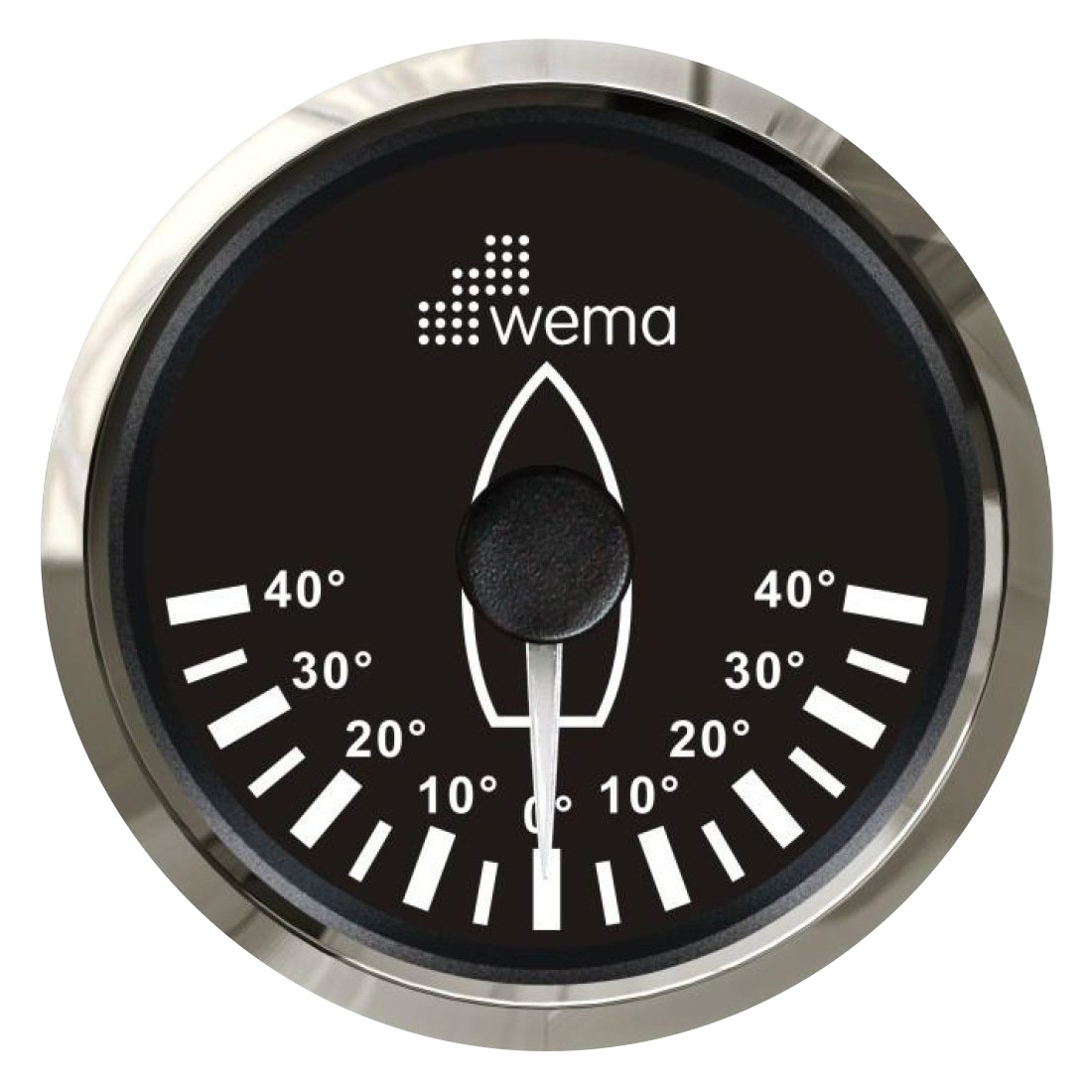

Rudder angle gauge for monitoring rudder position in marine steering systems

Accurate rudder position information assists vessel operators when manoeuvring, docking, and maintaining course. Designed for use with 0–190 Ohm rudder angle senders, this gauge provides a clear indication of rudder position to support effective steering system monitoring. Featuring a stainless steel bezel, IP67-rated construction, anti-fog design, and compatibility with both 12V and selected 24V systems, it is suitable for recreational vessels, commercial marine applications, and workboats operating in demanding environments.

Key Features

• Stainless Steel Bezel: Stainless steel bezel construction provides durability and suitability for marine installations exposed to demanding conditions.
• Rudder Position Indication: Displays rudder angle position to assist with steering control and monitoring of rudder movement.
• 0–190 Ohm Compatibility: Designed for operation with compatible 0–190 Ohm rudder angle senders.
• 12V and 24V Compatibility: Operates on 12V DC systems as standard and supports selected 24V stepping motor and LCD gauge installations.
• IP67 Protection Rating: Fully sealed construction provides protection against water and dust ingress and can withstand temporary immersion.
• Anti-Fog Performance: Designed to reduce internal condensation and maintain clear visibility in varying environmental conditions.
• Multi-Plug Socket Connection: Multi-plug connection system simplifies installation and maintenance.
• Selectable Backlighting: Available with red or yellow backlighting for integration into different helm and dashboard layouts.
• 52 mm Gauge Size: Suitable for installation in standard 52 mm marine instrument panel cut-outs.
• Marine Steering System Application: Intended for use in marine steering systems requiring continuous rudder angle indication.

Suitable for recreational, commercial, and industrial marine vessels, the gauge provides continuous rudder position indication when used with a compatible rudder angle sender.
