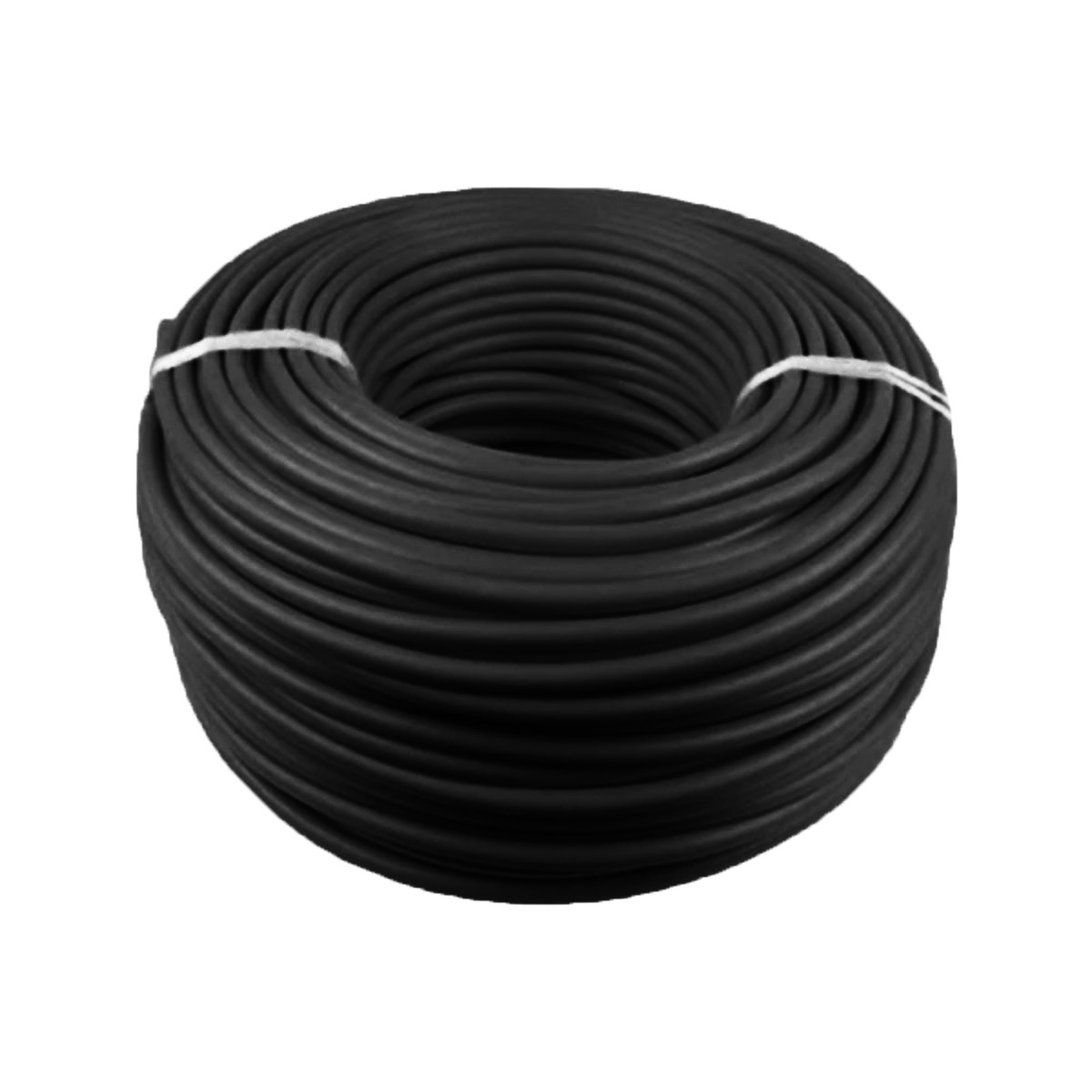

1.5 sq mm BV Series 3-core Tinned LSZH Power Cable - black sheath

Flexible 3-core Power and Control cables suitable for all shipboard and marine applications. Sold by the metre.

  • SKU: TRI.BVA-PDXD3C1.5BK
  • Manufacturer: Triangle Cable
  • Shipping Weight: 0.00kg
$4.10



Insurance
All shipments are covered for loss or damage while in transit up to the point of delivery to the nominated shipping address. Insurance does not cover goods left on your premises under your instruction.

Flexible 3-core Power and Control cables suitable for all shipboard and marine applications. Sold by the metre.

Features

  • Conductor: Finely stranded tinned annealed copper to IEC 60228 Class 5&6 & AS/NZS 1125.
  • Insulation: LSFLEX®R-30, Cross-linked, Polyolefinic, Thermoset, Flame Retardant, Low Smoke, Zero Halogen (HF-90 to IEC 60092-351) Splash resistant to oil, skydrol, petrol, acid, sea water. Resists ozone and UV.
  • Ripcord: High strength ripcord under sheath in multicores
  • Sheath: LSFLEX®S-50, Polyolefinic, Flame Retardant, Low Smoke, Zero Halogen (SHF-1 to IEC 60092-359) Splash resistant to oil, skydrol, petrol, acid, sea water. Resists ozone and UV.
  • Operating Temperature -40°C to +110°C
  • Voltage Rating 600/1000 Volts
  • Standards: AS/NZS 1125 AS/NZS 1660.5.1 AS/NZS 1660.5.2 AS/NZS 1660.5.3 AS/NZS 1660.5.6 IEC 60228 IEC 60092-350 IEC 60092-353 IEC 60332-1 IEC 60332-3(A) IEC 60754-1&2 IEC 61034-1&2 IEEE 45 IEEE 1580
  • Approvals: LR, DNV, ABS, BV, GL, USCG, TC

(TRI.BVA-PDXD3C1.5BK)
