Blackhawk LPDA 4G/5G Antenna 698-4000MHz 12/14dBi
Operating on all 3G, 4G and 5G frequencies in Australia, this high-grade antenna can be used in a range of residential, commercial, and industrial mobile broadband applications on any mobile network.
SKU: PWT.ANT-BH-YG-LOG-LPDA-10 | MPN: LLP-6940-12.N2
SAVE $46.20 (18%)
Available at Supplier
In Stock at our Suppliers Warehouse
Ships same/next business day

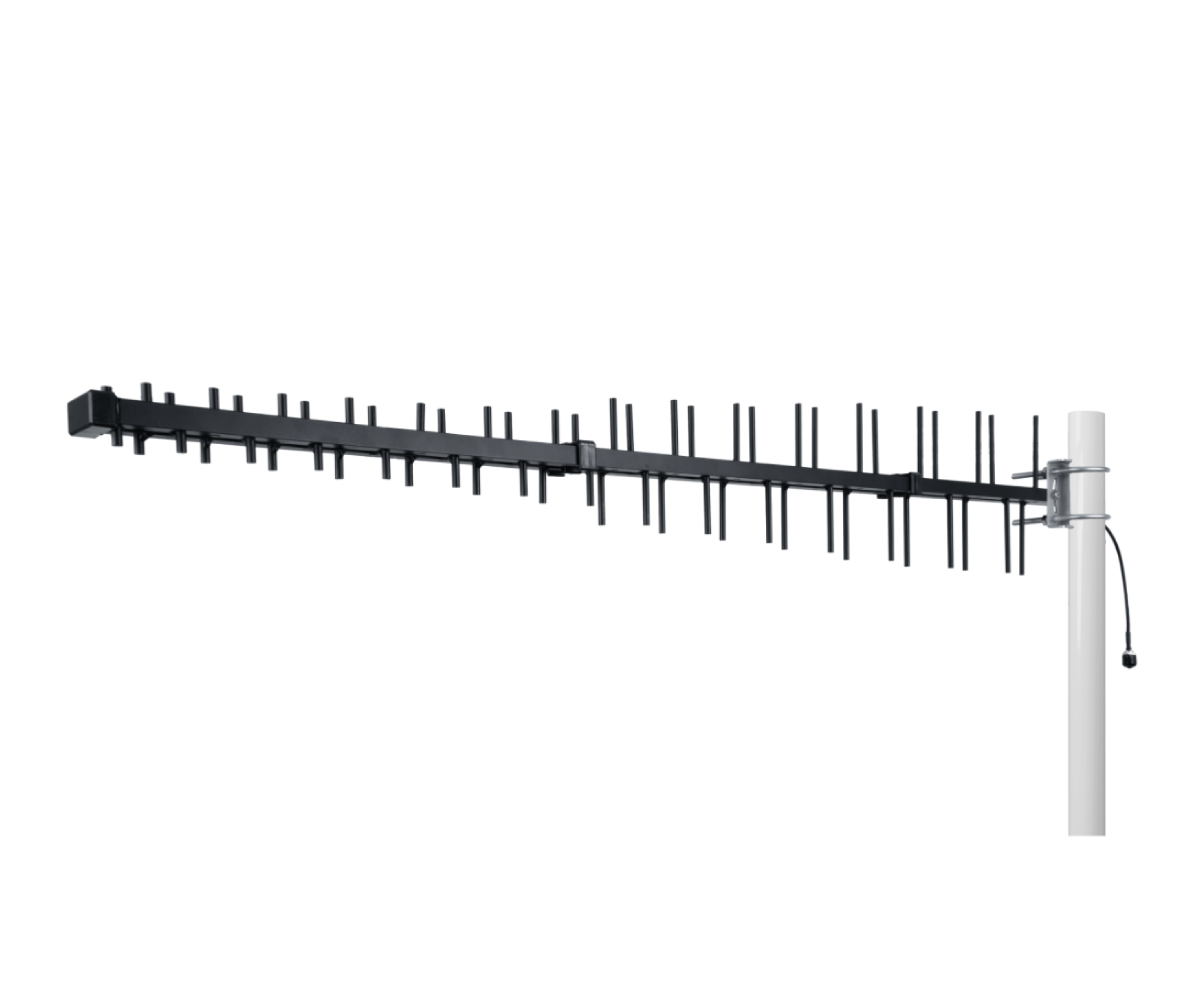

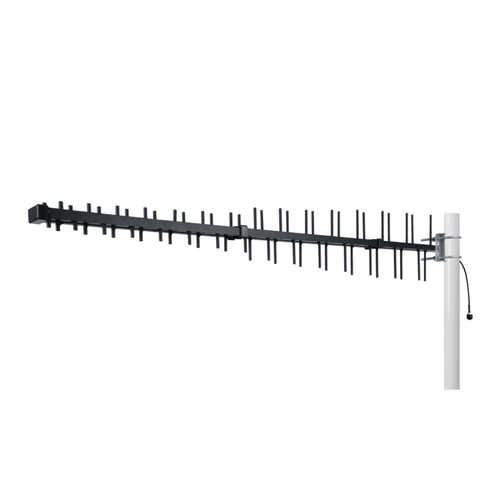

The Blackhawk LPDA Antenna is one of the most popular external antenna solutions for poor 3G / 4G voice and data service. This one antenna can be used on any mobile network, in any area without worrying about compatibility. It is the ideal roof-mounted antenna for Cel-Fi repeaters.
The LPDA antenna covers all cellular bands between the 700 and 4000 MHz range with a high peak gain which projects maximum energy in the direction of the cell tower, while maintaining a wide enough beam to capture signal reflections off nearby buildings, hills, and signal scattered by trees.
Blackhawk LPDA Antenna Features
- 11.3 dBi peak gain across lower bands 698 to 960 MHz
- 11.5 dBi peak gain across bands 1695 to 2700 MHz
- 9.5 dBi gain across upper bands 3300 to 4000 MHz
- Ruggedized construction for Australian conditions
- Fully welded, powder coat aluminium design
- Stainless steel mounting clamp included
- 30 cm tail with pre-terminated N Female connector + 10m LMR 240 cable
- Ideal for Telstra, Optus, and Vodafone 3G, 4G & 5G

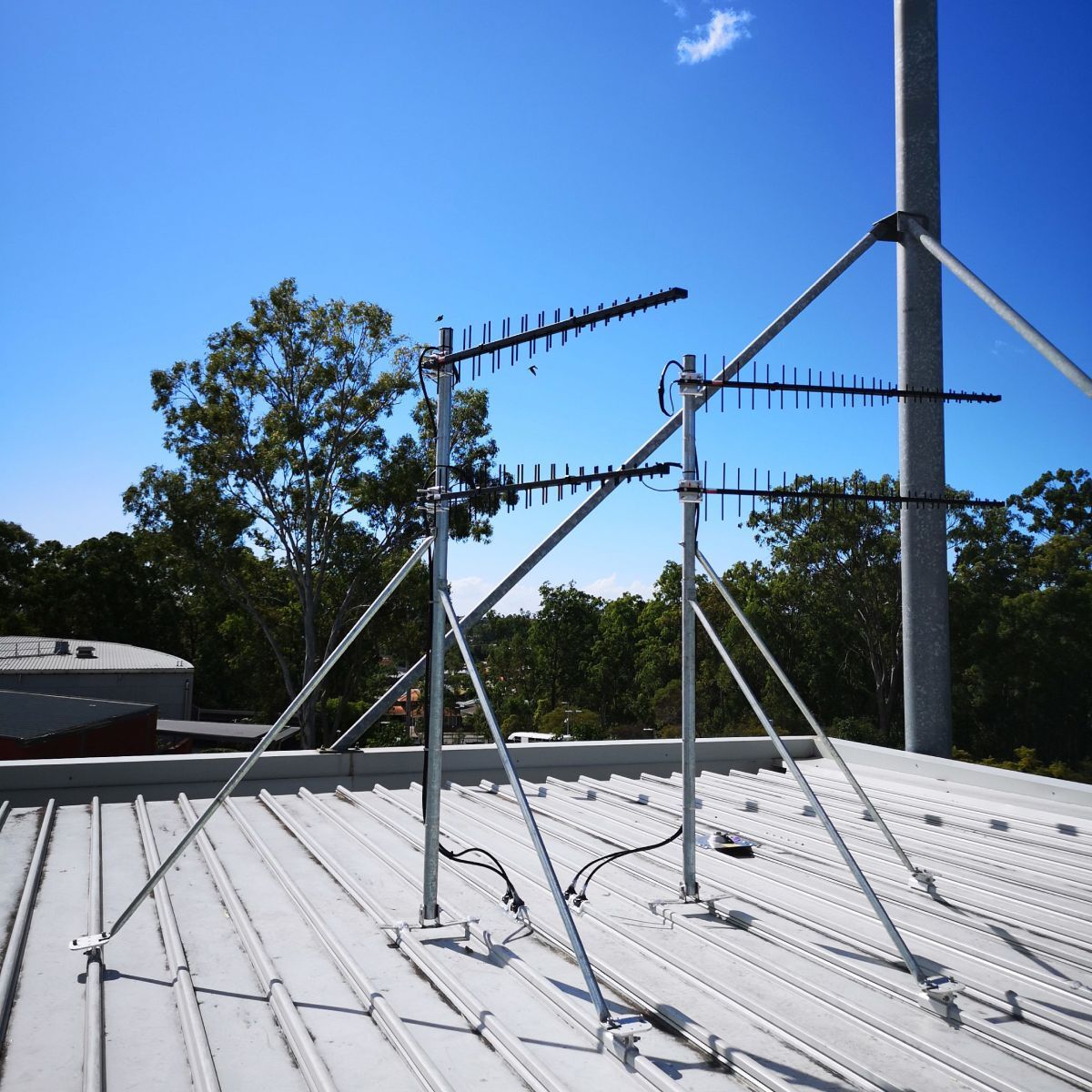

The antenna was redesigned in late 2019 to cover the new 3.5 GHz 5G band, making it now an ideal solution for LTE-A Pro and 5G high-speed connectivity when mounted in 2×2 or 4×4 MIMO configuration.
A Log Periodic Dipole Antenna, or LPDA for short, is a clever antenna design that provides exceptional wideband performance by phasing a series of elements together, much like an ordinary Yagi but with each successive element of a smaller (or larger) length. The result of this clever engineering is an antenna that holds high gain, with good tuning, across the entire cellular frequency range.
Polarisation: SISO
PHYSICAL CHARACTERISTICS
Construction Material | Aluminium |
Radome Colour | Black Powdercoat |
Dimensions | 1240 x 200 x 60 mm |
Weight | 2.2 kg |
RF Connections | 1 |
Environmental Rating | No Data |
Operating Temperature | -40 °C to 65 °C |
Mounting | Pole mount Ø 30-50 mm |
ELECTRICAL SPECIFICATIONS
Input Impedance | 50 Ω |
Polarisation | Vertical (V) |
Max. Input Power | 50 W |
PIM, 3rd Order | - |
MECHANICAL SPECIFICATIONS
Input Connector | N |
Input Connector Gender | Female |
Cable Series | RG-142 |
Cable Length | 300 mm |
RADIO SPECIFICATIONS
FREQUENCY RANGE | PEAK GAIN | VSWR | AZ. | EL. | F/B RATIO |
698 to 803 MHz | 11.1 dBi | < 1.8:1 | 60° | 46° | > 28 dB |
803 to 960 MHz | 11.3 dBi | < 1.8:1 | 60° | 47° | > 26 dB |
1695 to 2200 MHz | 11.5 dBi | < 1.8:1 | 45° | 34° | > 24 dB |
2200 to 2700 MHz | 10.7 dBi | < 1.8:1 | 50° | 40° | > 13 dB |
3300 to 4000 MHz | 9.5 dBi | < 1.6:1 | 34° | 30° | > 9 dB |
SKU | PWT.ANT-BH-YG-LOG-LPDA-10 |
Model # | LLP-6940-12.N2 |
Brand | Blackhawk Antennas |
Shipping Weight | 2.2000kg |
Shipping Width | 0.200m |
Shipping Height | 0.060m |
Shipping Length | 1.240m |
Shipping Cubic | 0.014880000m3 |
Unit Of Measure | ea |
