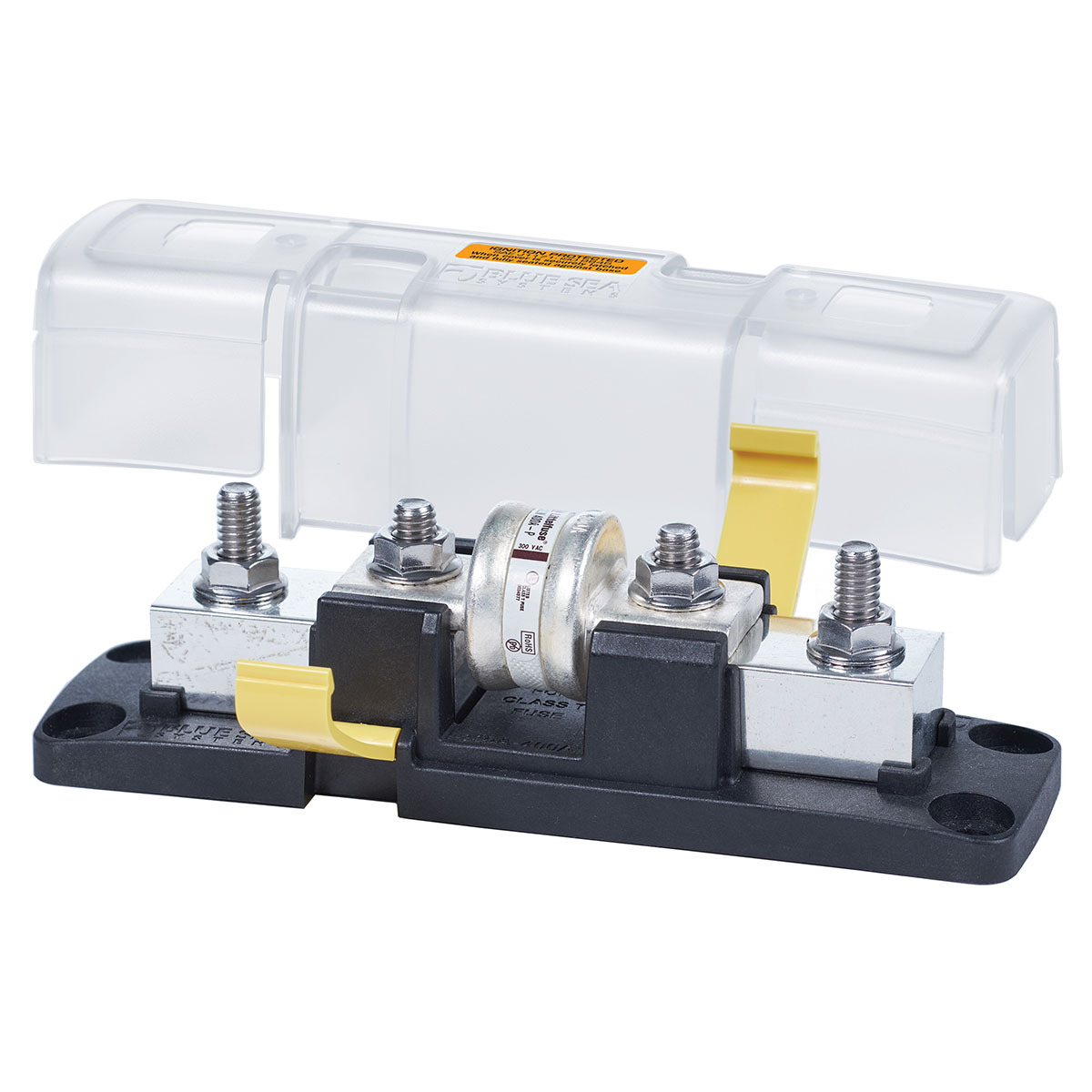

Class T Fuse Block with Insulating Cover - 225 to 400A

  • Utilizes Class T fuses for swift circuit protection in inverters and electronics.
  • Four-stud design allows easy installation of large cable lugs without fuse obstruction.
  • Insulating cover meets ABYC/USCG insulation standards.
  • Cover breakouts enable wire access in any direction.
  • Secure fuse mounting ensured, even in high-heat conditions.
  • Stainless steel studs resist corrosion and high torque.
  • One-piece stainless flange nuts for safe connections.
  • UL 94-V0 base withstands high heat.
  • Ignition Protected.
Specifications
Cable Size Up to 4/0 AWG
Ignition Protected Yes
Maximum Amperage 320A
300A if inside engine space and continuous
Maximum Voltage 160V DC
Fuse Mounting Blocks Tin-Plated Copper
Mounting Fastner Size 1/4" or M6 Hardware
Terminal Stud Size 5/16"-18 (M8)
Weight 1.10lb (0.5 kg)
SKU BSS.5502100
Model # 5502100
Brand Blue Sea Systems
Shipping Weight 0.5000kg
3 years
