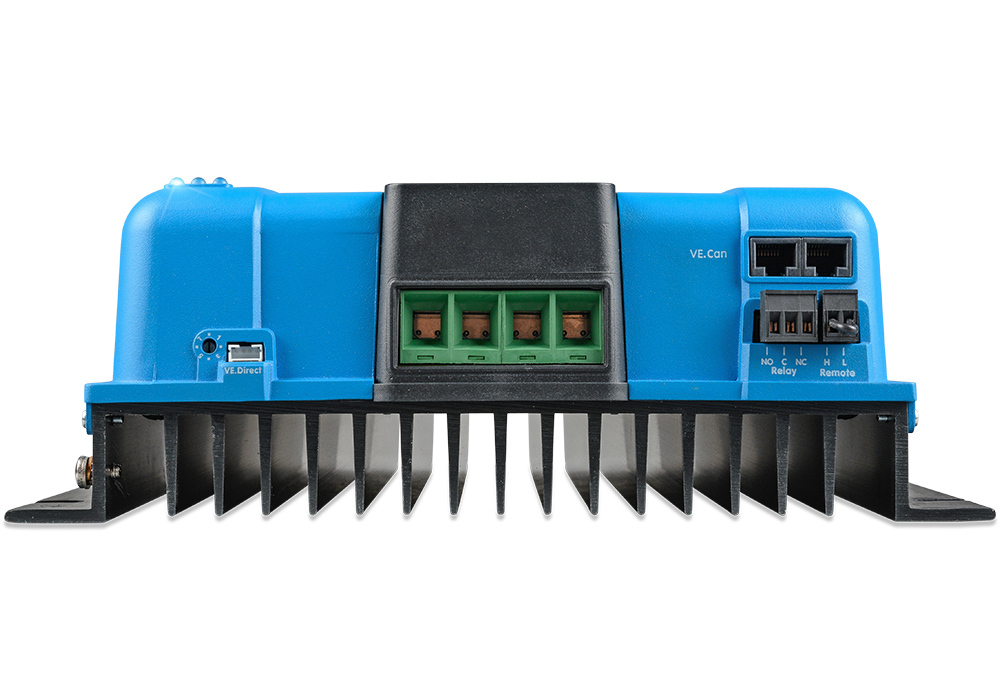

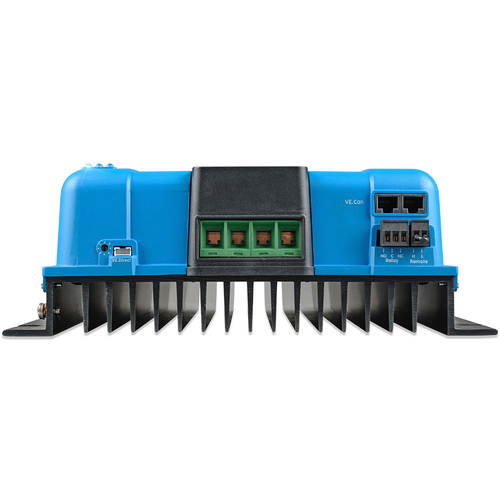

Up to 25 charge controllers can be daisy-chained and connected to a Color Control GX or other GX device. This greatly improves wiring simplicity and cost on large systems. Previously, all units required their own communications cable to be wired to a network of adapters and USB hubs to connect to the GX Device. The VE.DIrect port found on other SmartSolar controllers is retained, ensuring no functionality is lost by selecting the VE.CAN models.


The charge controllers come ready configured for the synchronization mechanism which begins to work as soon as they are connected together with the network cable. ESS (Energy Storage Systems) are supported and controlled by intelligent (CANBUS) batteries but requires a Venus GX (not compatible with the Color Control).


Victron Parallel / Daisy Chain MPPT Controller


MPPT controllers operate solar panels at their Maximum Power Point improving efficiency up to 30% by adjusting input voltage to harvest the maximum power from the solar panels. It then manages this power to supply the varying voltage requirement of the battery plus load.


The MPPT senses when to adjust the output that it is being sent to the battery and will shut down for a few microseconds, calculate and make relevant adjustments. The principle of MPPT is to extract the maximum possible power from a solar panel by setting the most efficient combination of voltage and current - maximum power point.


The Victron MPPT SmartSolar support Advanced Maximum Power Point Detection. Unlike the conventional MPPTs which tend to lock to a local MPP when shady conditions occur, [which may not be the optimum MPP], Advance Maximum Power Point Detection will harvest maximin energy by locking to the optimum MPP.


Features:

  • With no cooling fan the maximum efficiency exceeds 98% for outstanding conversion efficiency
  • Flexible charge algorithm provides functionality for fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch
  • Remote on-off [To connect for example to a BMS]
  • Programmable relay to set the device to trip on alarm or other events
  • Optional SmartSolar pluggable LCD display
  • Internal temperature sensor and optional external battery voltage and temperature sensing via Bluetooth - Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.


Extensive electronic protection:

  • Internal temperature sensor provides additional electronic protection
  • Over-temperature protection and power derating when temperature is high
  • PV short circuit and PV reverse polarity protection
  • PV reverse current protection



VictronConnect MPPT History LogBuilt-in Bluetooth along with the VictronConnect App provides easy access to the extensive range of functions available on your solar charge controller such as:

  • Solar Gauge – Realtime power output
  • Battery Voltage
  • Battery Current
  • Battery State
  • History Analysis




Optional SmartSolar pluggable LCD displaySmartSolar pluggable LCD display

An optional plug-in LCD display/control provides live-data, set-up and management, straight from the face of the device. Simply remove the rubber seal that protects the plug on the front of the controller, and plug-in the display.



SKU VIC.SCC125110412
Model # SCC125110412
UPC/EAN 8719076055662
Brand Victron Energy
Shipping Weight 5.5000kg
Shipping Width 0.330m
Shipping Height 0.160m
Shipping Length 0.290m
Shipping Cubic 0.015312000m3
Unit Of Measure ea

Purchase with confidence knowing your product is covered by the Victron 5-year manufacturer warranty.

Victron 5 Year Warranty Badge

Great controller however gets very hot and impossi

By: on 4 January 2023
This MPPT delivers the expected watts and is able to handle a decent amount of volts (250VDC) for reduced cable size over a 16m run I had and it connects easily to Cerbo and the phone app is great. You can setup one controller and save a profile and load it to multiple controllers. Cons are it gets very hot (too hot to touch for more than a couple of seconds) and I have measured temps of 65 degrees when delivering 4000 watts which is well under its rated capability). The unit is designed to bolt directly to a surface however this reduces heatsink airflow and cooling and I have had to put spacers in so that the heatsink is not in direct contact with the wall and I added 2 x computer PC cooling fans to help cool. The unit is heavy and I thought at first the heat sink was pretty decent but it isn't really big enough given the heat issues I refer to. Even with 2x 120x120mm PC cooling fans which allow air movement through and behind the heatsink and across the metal cover it still gets quite hot and the longevity of very hot components is a concern to me. Now for the massive negative - I have found that it is impossible to repair without destroying the cover as the 4 x toroidal transformers (2 small and 2 large) and the 8 x 300uf capacitors are glued into the metal housing which must have been then placed onto the unit and hence PCB whilst still wet in the factory. This is a real joke honestly as it looks like the metal cover has 4 screws and can be easily removed but do not be fooled. There is a youtube video of someone destroying the metal cover to get the unit apart and making very precise hole saw and angle grinder cuts. Victron really need to address the repair and heat issues and I cannot recommend this unit or probably any of their other MPPTs that are unrepairable. In summary great unit until something goes wrong. I will be checking very carefully before I replace my inverter with a Victron one to make sure it is repairable. Outback Marine get 5 stars for their prices and service and I can highly recommend them. This review is essentially negative based on the MPPT being unrepairable and getting crazy hot.
