Made for your helm.

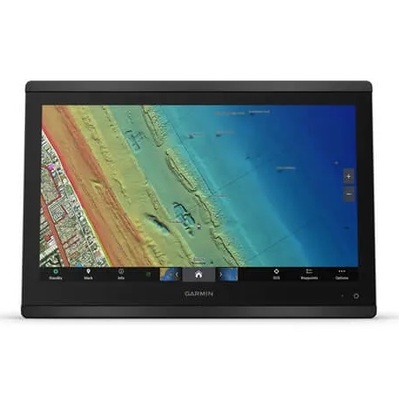

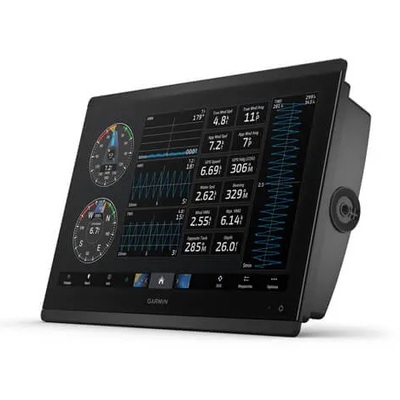

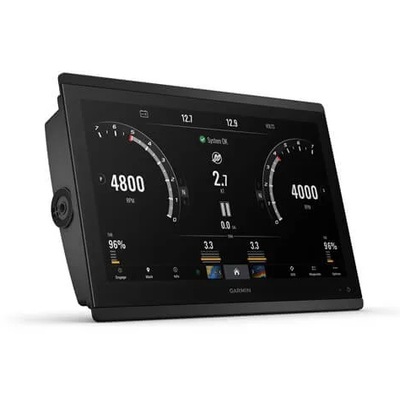

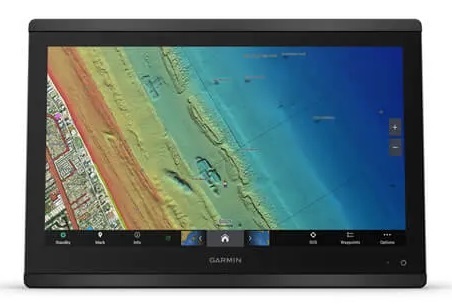

HD IPS DISPLAY WITH TOUCHSCREEN
Available in 10”, 12” or 16”, this display offers wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses.

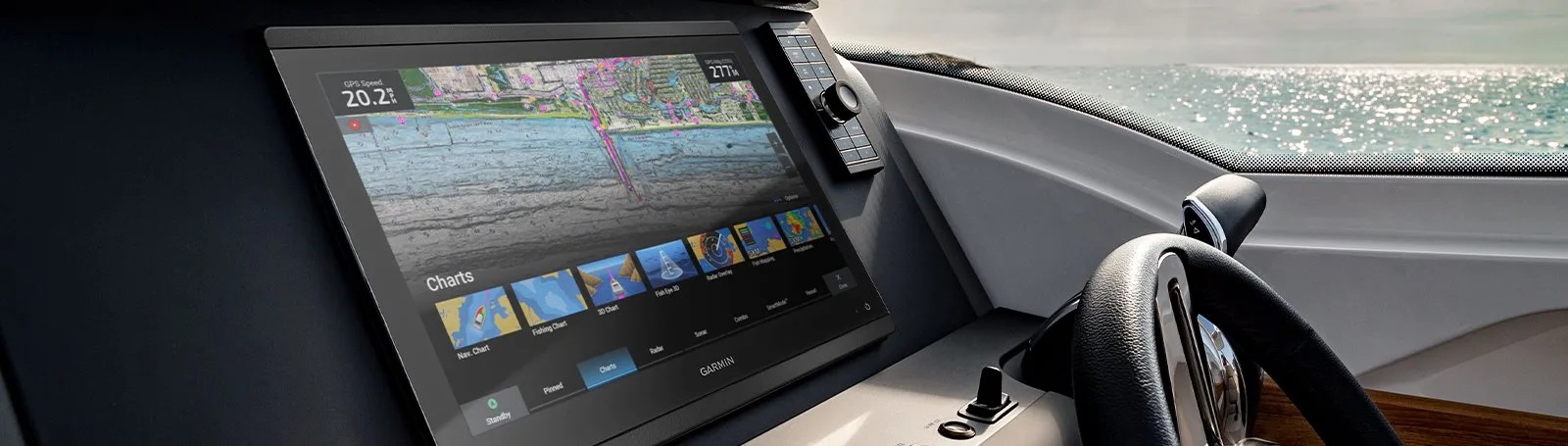

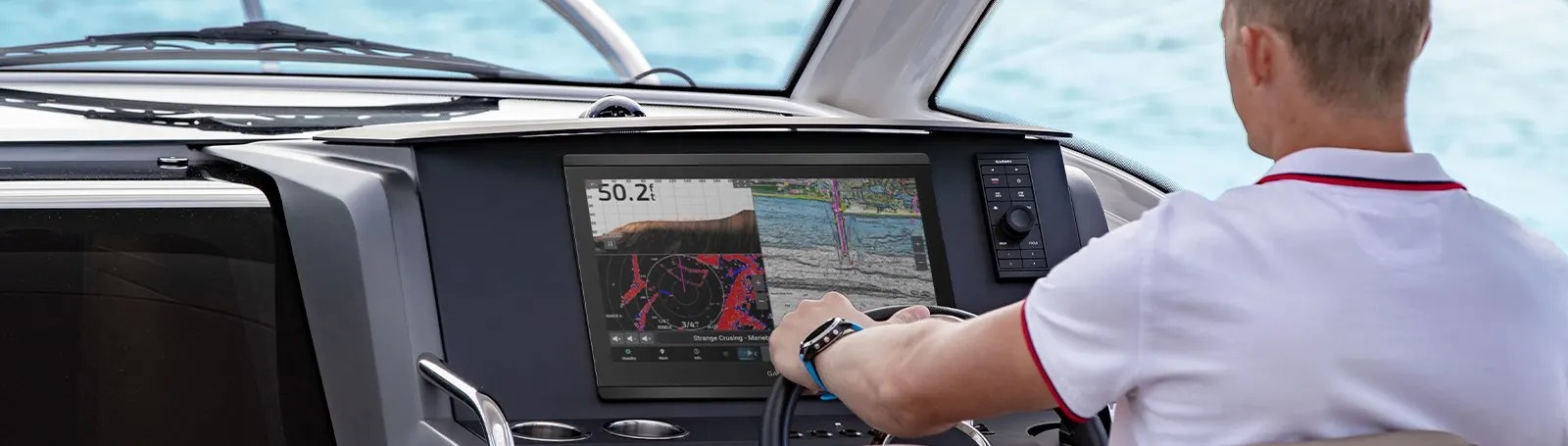

SIMPLE, ATTRACTIVE MOUNTING OPTIONS
You can install multiple displays, either flat mounted edge-to-edge for a sleek glass helm look or mounted flush — creating a stunning helm.
GRID™ 20 REMOTE CONTROL
The optional, easy-to-use GRID 20 remote input device provides intuitive remote access and control of your entire Garmin marine system.
See the world below.

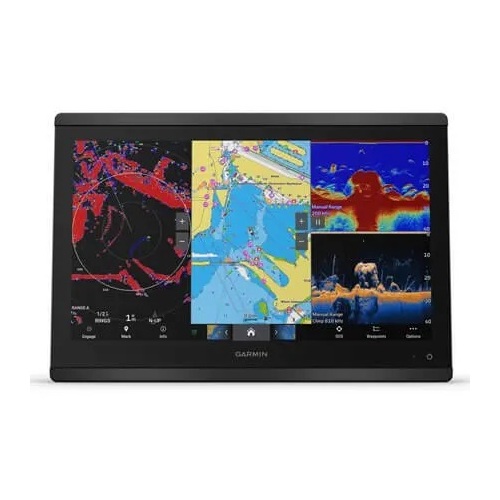

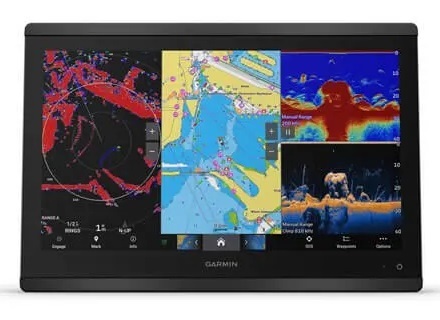

TRADITIONAL AND SCANNING SONAR SUPPORT
Get built-in support for 1-kW Dual-Channel CHIRP traditional sonar for superior target separation and ClearVü and SideVü scanning sonars to see up to 1,000’ below and around your boat at 260 kHz (requires transducer, sold separately).
PANOPTIX™ SONAR SUPPORT
Pair your chart plotter with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real-time.
Connect to everything on your boat.
GARMIN MARINE NETWORK
If you have multiple Garmin devices on your boat, you can share information — such as maps, user data, radar and IP cameras — among them.
NMEA 2000® AND NMEA 0183 NETWORKS

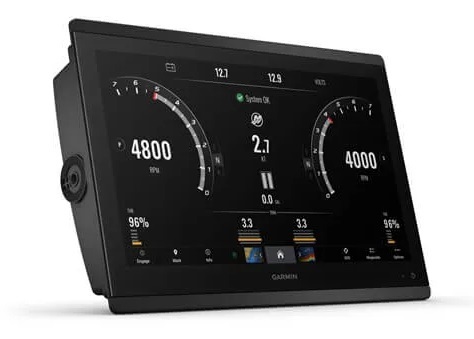

Connect to autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.

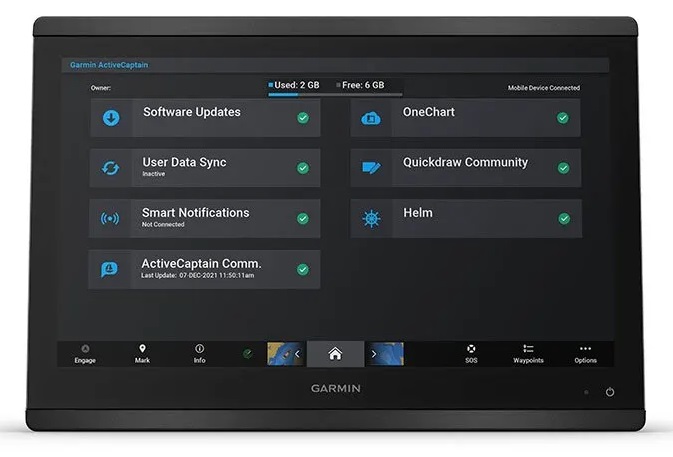

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications1, software updates, Garmin Quickdraw™ Community data and more.
INTEGRATED BLUETOOTH® AND ANT TECHNOLOGIES
This exclusive feature brings together all the operations and capabilities of third-party devices, such as EmpirBus™ digital switching, on one screen.
SMARTMODE STATION CONTROLS
Get quick, one-touch access to the information you need to ease high-stress situations such as docking. You can incorporate networked sonar, radar, cameras, media and more.
Sail and navigate with ease.

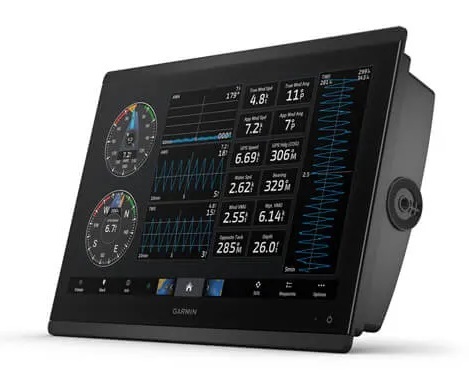

GARMIN SAILASSIST™ SAILING FEATURES
View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, polars and more.

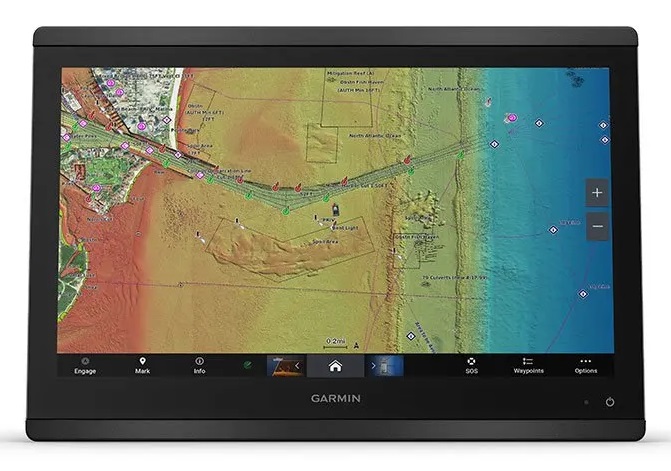

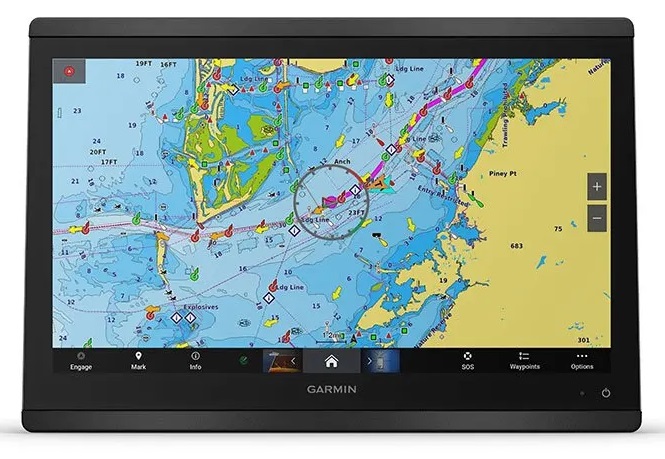

Experience unparalleled coverage and detail with preloaded BlueChart® g3 coastal charts and LakeVü g3 inland maps featuring integrated Garmin and Navionics® content and Auto Guidance technology1.
OPTIONAL CHARTS AND MAPS
Bring a fresh new look and feel to your chart plotter with optional Garmin Navionics+™ or premium Garmin Navionics Vision+™ cartography featuring integrated coastal/inland content, access to daily updates, Auto Guidance+™ technology1 and more.

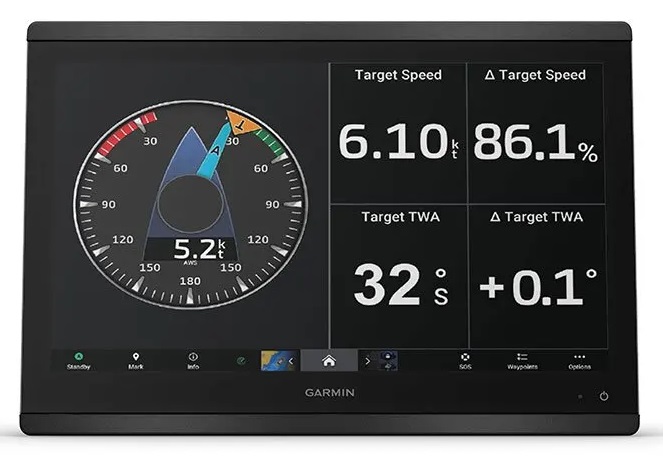

Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim.
Make confident decisions using GNX™ Wind Instruments.
Find the right setup with our online system builder.
Manage your marine experience using the free ActiveCaptain® app
1 Auto Guidance is for planning purposes only and does not replace safe navigation operations
2 When paired with a compatible smartphone
Wi-Fi is a registered trademark of the Wi-Fi Alliance. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.
Physical & Performance
13.6" x 7.7"; 15.6" diagonal
(34.5 cm x 19.5 cm; 39.7 cm diagonal)
|Display resolution||FHD; 1920 x 1080 pixels|
|Physical dimensions||15.1" x 10.3" x 3" (38.5 cm x 26.3 cm x 7.6 cm)|
9.6 lbs (4.4 kg)
|Mounting options||Flat and flush, bail with optional accessory (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)|
|Display type||touchscreen IPS display (anti-glare finish)|
Maps & Navigation
|Routes||100 (250 waypoints each)|
|GCV™ Black Box sonar support||Yes|
|NMEA 0183 input ports||
|Supports DSC (displays position data from DSC-capable VHF radio)||Yes|
|Supports AIS (tracks target ships position)||Yes|
|Video output ports||
|Garmin Marine Network™ ports||
|GSD™ Black Box sonar support||Yes|
|Garmin SmartMode compatible (customizable monitor presets)||Yes|
|Wireless remote compatible||Yes|
|Supports FUSION-Link™ compatible radios||Yes|
|GRID™ (Garmin Remote Input Device) compatible||Yes|
|Video input ports||
1 - BNC composite
1 - HDMI (HDCP compliant)
