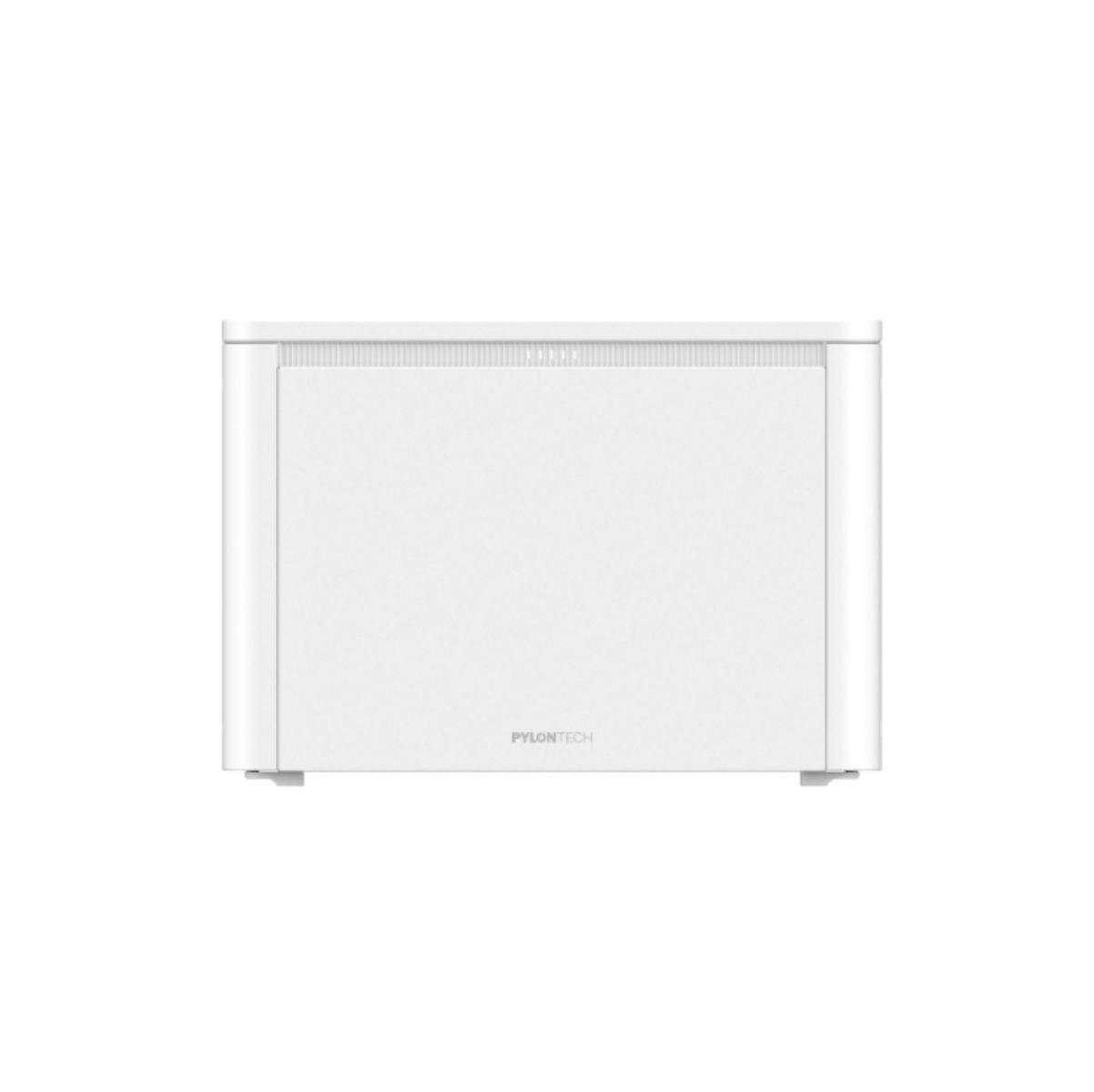

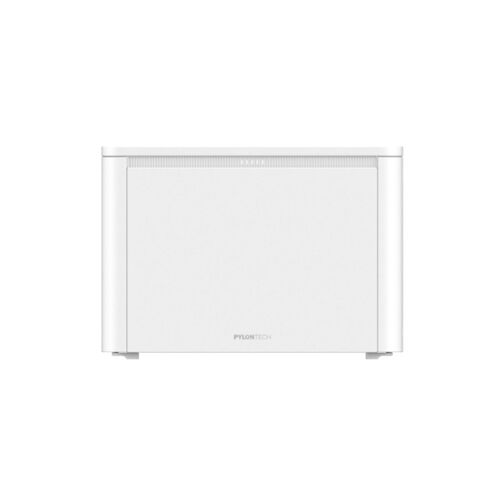

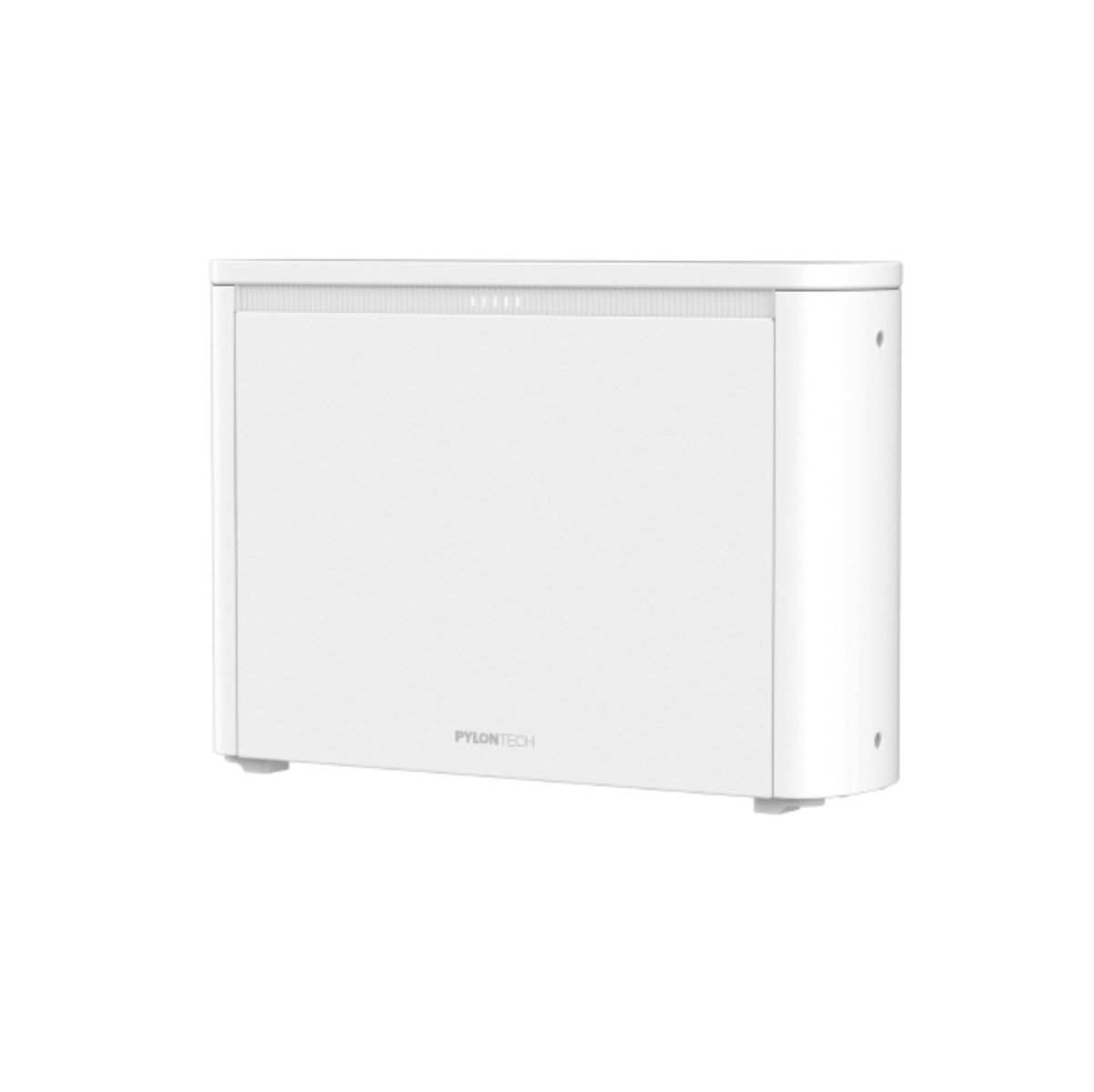

Pylontech Pelio-L-5.12 Stackable Battery Module 5120Wh IP65
Stackable 5.12 kWh battery with IP65 rating for wall or floor mounting. Expandable, modular, and compatible with dedicated install kits and optional accessories.
SKU: PYL.Pelio-L-5.12 | MPN: Pelio-L-5.12
Special OrderSpecial Order from Supplier
Non Returnable/Non Refundable
Slimline High-Capacity Battery Module for Stackable Energy Storage
This compact 5.12 kWh battery module is engineered for modern residential and small commercial storage systems. With its slim design, IP65-rated enclosure, and white steel finish, it offers flexible installation options either on the floor or mounted on the wall. Each module delivers 100 Ah capacity (95 Ah usable) and supports vertical stacking for scalable deployments.
Key Features
- Stackable IP-Rated Design: Robust IP65-rated modules designed for vertical stacking in residential or commercial environments.

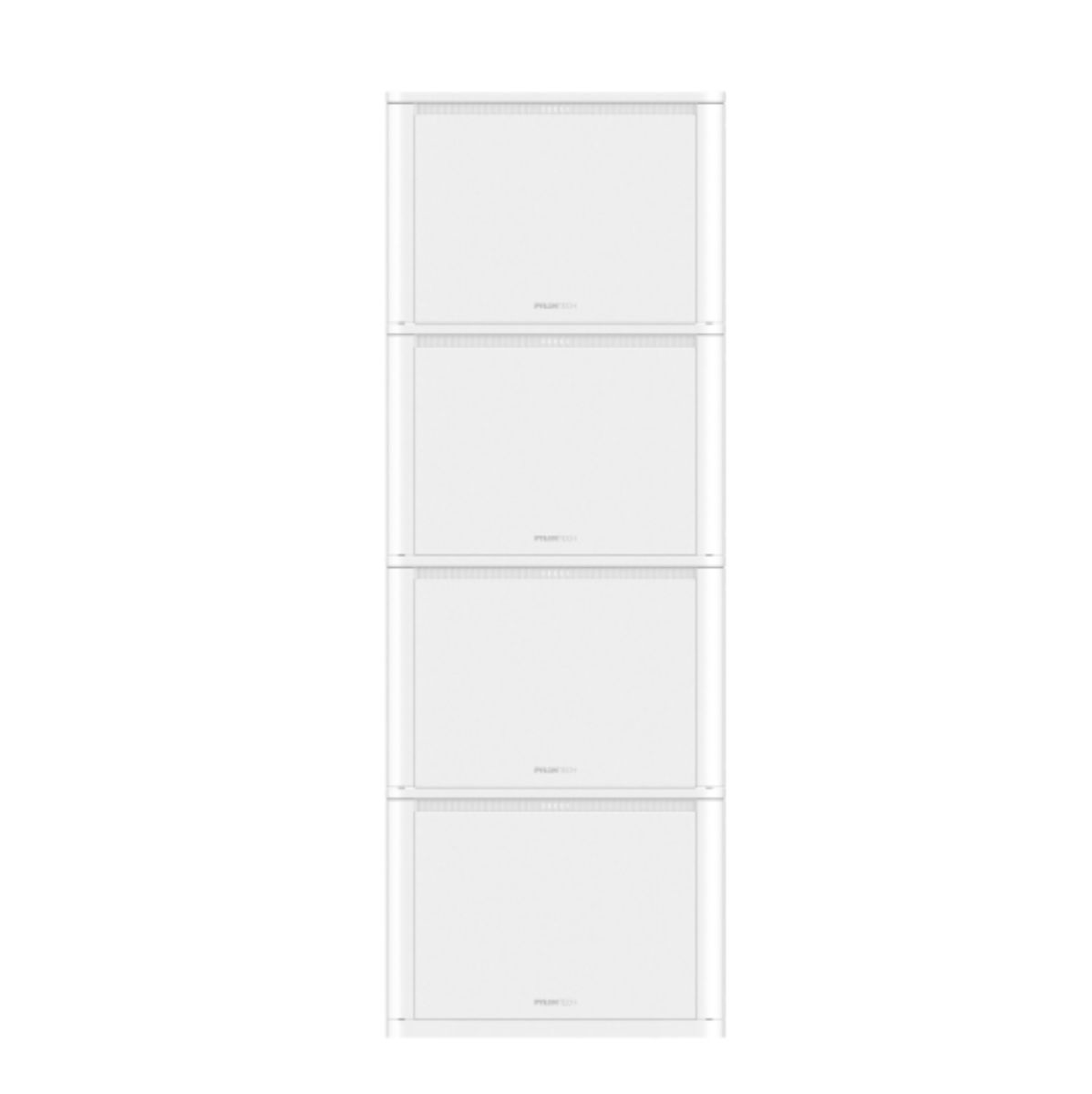

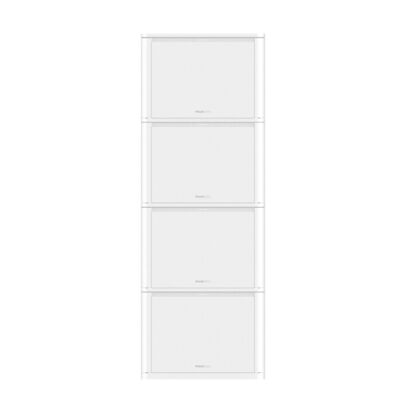

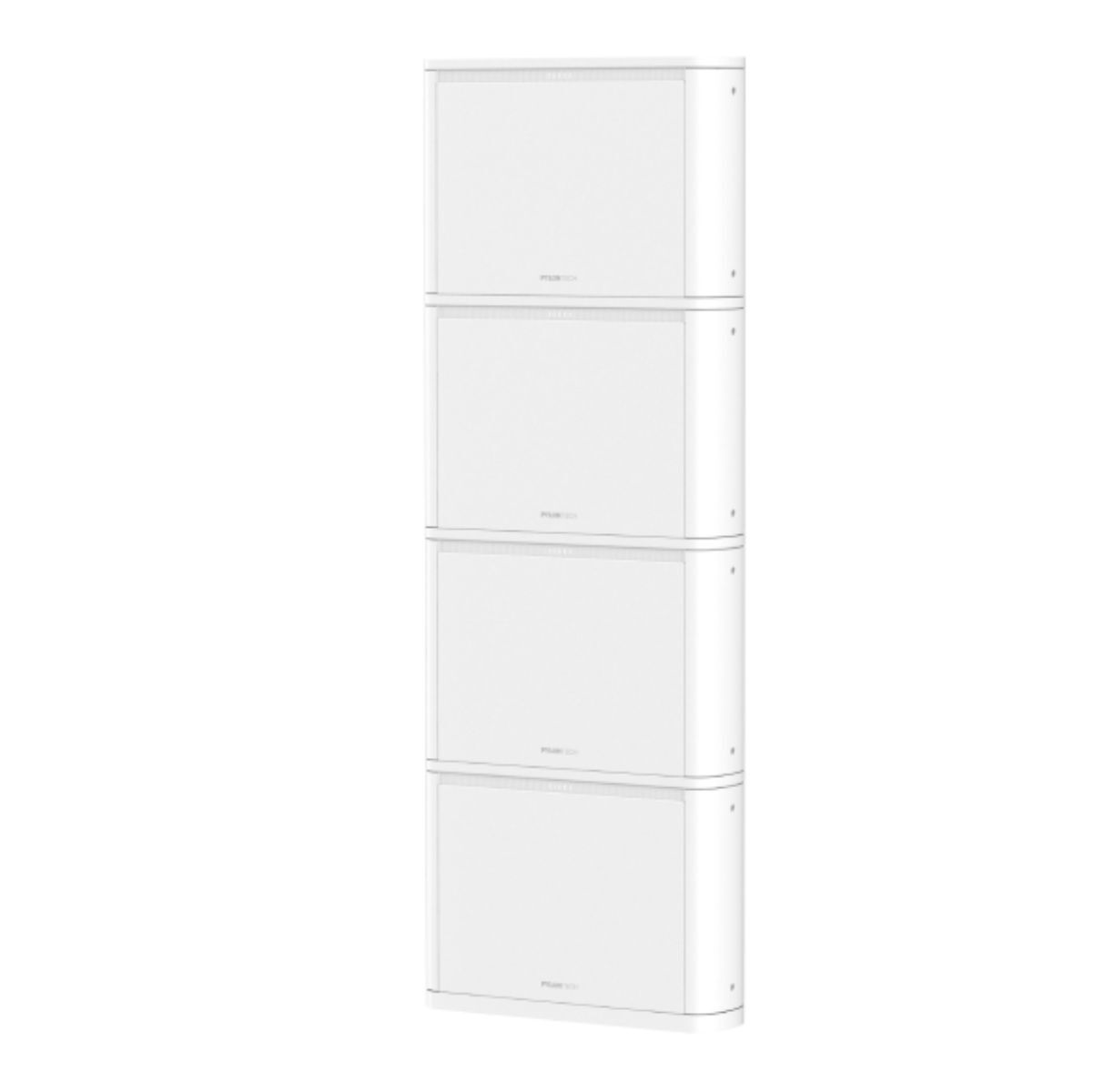

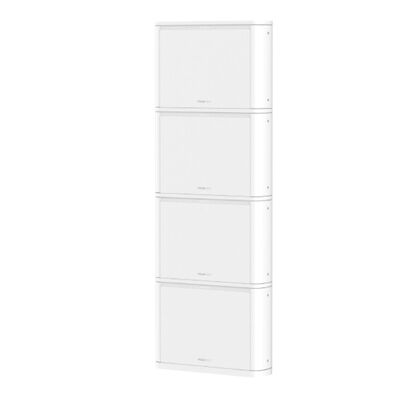

- Flexible Installation Options: Supports up to 3 modules on wall mounts and up to 4 modules on ground mounts using dedicated kits.
- High Usable Capacity: Each unit provides 5.12 kWh with a usable 95 Ah, ideal for home and light commercial energy storage.
- Expandable System Configuration: Supports up to 5 parallel stacks to increase total capacity as needed.
- Space-Saving Construction: Lightweight and slim form factor enables fast, efficient deployment and minimal footprint.
- Clean Aesthetic: White powder-coated steel finish ensures visual compatibility with modern interiors.
- Optional Accessories: KIT Cable available for power expansion; KIT WiFi for system monitoring when not using included Wi-Fi block.

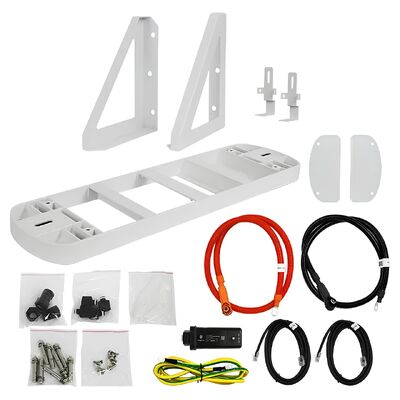

- Complete Installation Support: Requires either KIT W (wall) or KIT G (ground) to finalise setup based on site requirements.
This module is ideal for energy-conscious homeowners and scalable off-grid or hybrid installations where reliability and form factor matter.
Basic Parameters | Pelio-L-5.12 |
Nominal Voltage (V) | 51.2 |
Nominal Capacity | 5120 |
Usuable Capacity (Wh) | 4864 |
Depth of discharge (%) | 95 |
Dimension (mm) | 395*578*165 |
Weight (KG) | 45 |
Discharge Voltage (V) | 44.8 ~ 56.8 |
Charge Voltage (V) | 56.0 ~ 56.8 |
Recommend Charge/Discharge Current (A) | 80 |
Max. Charge/Discharge Current (A) | 100~120@15min |
Peak Charge/Discharge Current (A) | 120~200@15sec |
Communication | RS485, CAN |
Connection | WI-FI (2.4G), USB 2.0 |
Configuration (max. amount per system) | 20pcs |
Working Temperature | 0℃~50℃ Charge -10℃~50℃ Discharge |
Shelf Temperature | 0℃~40℃ (6 months) -20℃~45℃ (3 months) |
Short current/duration time | <2000A/1ms |
Cooling type | Natural |
Protective Class | I |
IP rating of enclosure | IP65 |
Humidity | 5% ~ 95%(RH) No Condensation |
Altitude(m) | ≤4000 |
Design life | 15+ Years (25℃/77℉) |
Cycle life | >6,000@25℃ |
Reference to standards | IEC62619, IEC63056, IEC62040, IEC62477-1, UL1973,U1642,UL9540A, VDE2510- 50, IEC61000-6-2, IEC61000-6-3, UN38.3 |
*: Derating depends on voltage, SOC and temperature **: IP rating base on product finish installation properly follow this manual.
