Secure Ground Installation Kit for Stacking up to Four Batteries

This ground mount kit provides a complete and secure installation solution for up to four Pelio-L-5.12 battery modules. Designed for stability and safety, it includes all required structural hardware, power cables, grounding and communication wires, ensuring a clean and compliant setup. Ideal for floor-mounted systems in residential and commercial energy storage installations.

Key Features

• Complete Mounting Solution: Includes base plate, anti-tip brackets, and top covers for safe floor installation of up to four modules.
• Pre-Cut Cabling: Comes with positive and negative 2.5 m power cables (4 AWG) and 2 m grounding cable (6 AWG) to simplify electrical setup.
• Communication Ready: Equipped with 2.5 m RS‑485 and CAN communication cables with RJ45 connectors for seamless BMS integration.
• Stack Link Support: Includes 1.5 m stack-to-stack communication cable to connect multiple Pelio stacks if needed.
• Enhanced Safety: Provides waterproof RJ45 ports, plastic terminal covers, and proper expansion bolts to ensure safe, long-term operation.
• System Compatibility: Specifically engineered for use with Pelio‑L‑5.12 LV batteries and supports ground mounting in all installation environments.
• Clean Installation: Top handle covers and cable brackets help manage cabling neatly while providing tamper resistance and improved aesthetics.

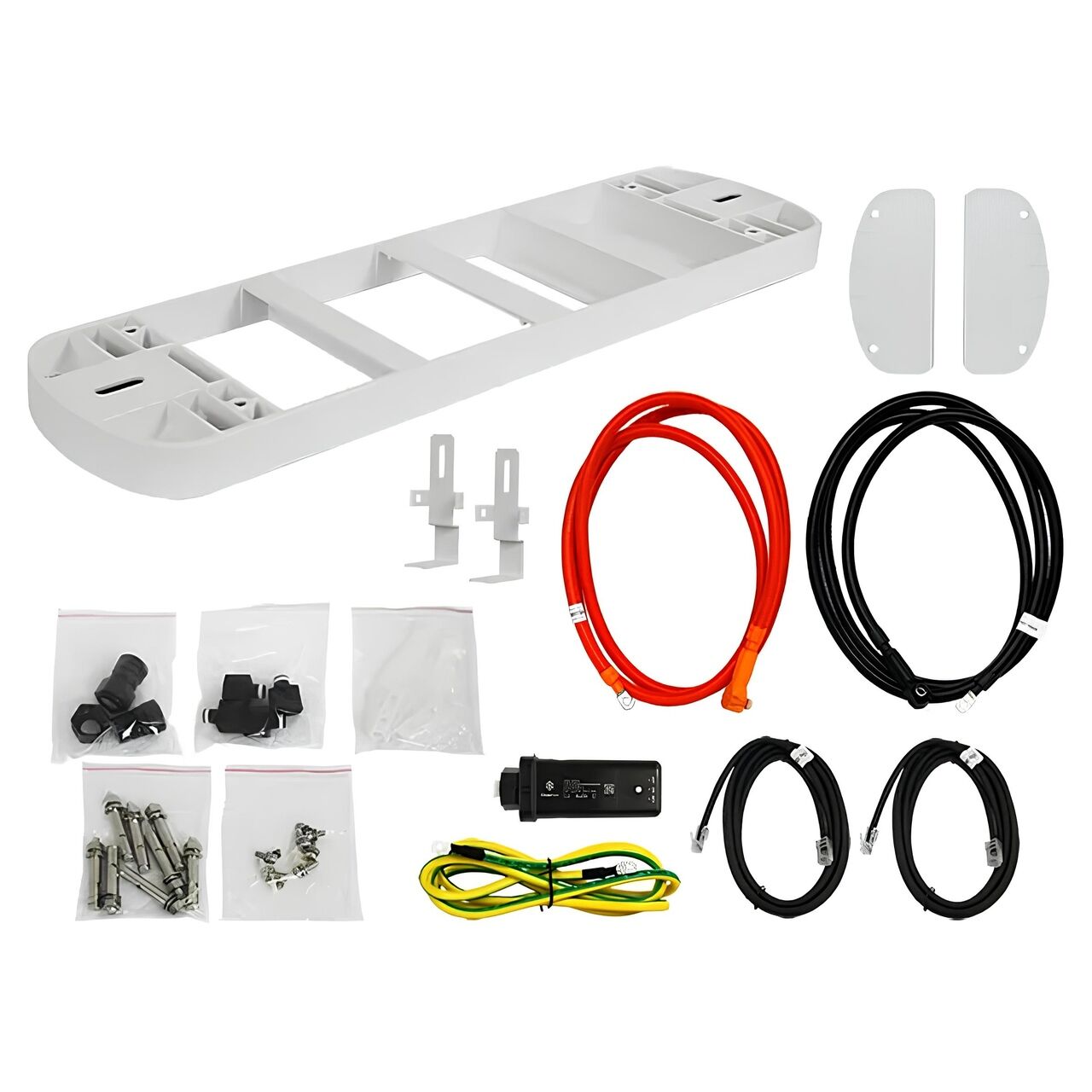

Kit Includes

• 1 × Base plate
• 2 × Anti‑tipping brackets
• 2 × Wiring/cable brackets
• 2 × Handle/top covers
• 1 × 2.5 m positive power cable (4 AWG)
• 1 × 2.5 m negative power cable (4 AWG)
• 1 × 2.0 m grounding cable (6 AWG)
• 1 × 2.5 m RS‑485 communication cable (RJ45)
• 1 × 2.5 m CAN communication cable (RJ45)
• 1 × 1.5 m stack‑link communication cable (RJ45)
• 4 × Waterproof terminal covers (TSP120‑R)
• 2 × Waterproof RJ45 communication ports
• 4 × M8×60 expansion screws
• 2 × M5×10 hexagon socket screws
• 4 × M4×6 cross screws
• 5 × Plastic cross screws (for handle covers)

This kit ensures a robust and professional mounting platform for any Pelio-L-5.12 installation requiring ground deployment.
