Wall-Mount Solution for Safely Installing up to Three Batteries

This wall mount kit provides a secure and space-efficient way to install up to three Pelio‑L‑5.12 battery modules. It includes the structural base, full cabling, waterproof covers, and mounting hardware required for a safe, compliant vertical installation in residential or commercial environments.

Key Features

• Wall Mount Configuration: Designed specifically for vertical installation of up to three Pelio‑L‑5.12 modules directly onto a wall.
• Full Cable Set Included: Comes with 1.2 m positive and negative power cables (4 AWG) and a 2.0 m grounding cable (6 AWG) for electrical connections.
• Ready for Communication: Provides 2.5 m RS‑485 and CAN cables plus 1.5 m stack-link cable, all with RJ45 connectors for BMS communication.
• Reinforced Structure: Includes base plate, anti-tip brackets, and handle covers to ensure rigid and tamper-resistant mounting.
• Certified Waterproofing: Comes with RJ45 sealing ports and waterproof TSP120-R terminal covers for long-term protection.
• Secure Mounting Hardware: Offers expansion bolts, hex, and pan-head screws for concrete wall installation and assembly.
• Neat Cable Management: Wiring brackets and handle covers ensure a clean and professional-looking setup.
• Space-Saving Design: Ideal for limited floor space and indoor battery energy storage systems.

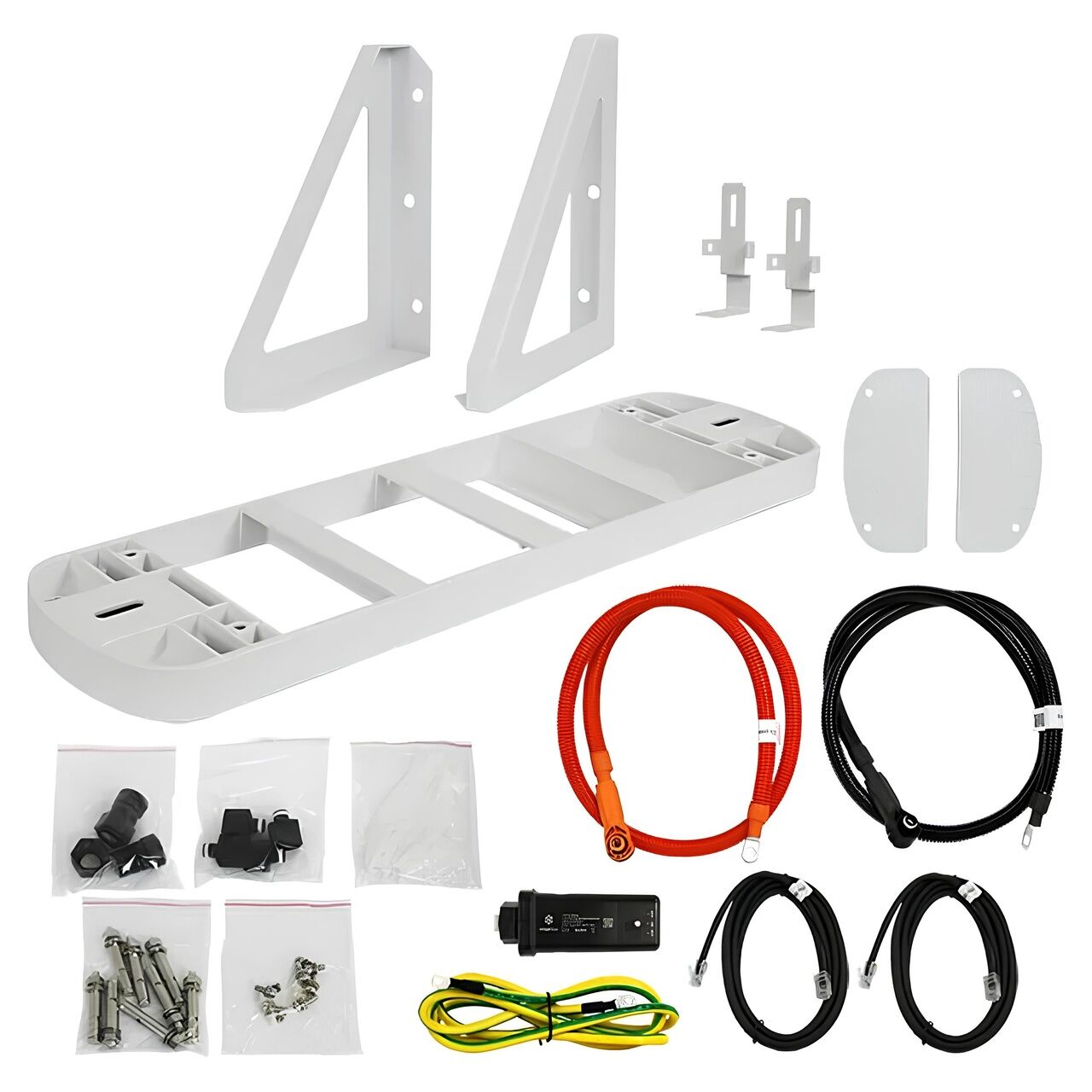

Kit Includes

• 1 × Mounting base
• 2 × Anti-tipping brackets
• 2 × Wiring/cable brackets
• 2 × Handle/top covers
• 1 × 1.2 m positive power cable (4 AWG)
• 1 × 1.2 m negative power cable (4 AWG)
• 1 × 2.0 m grounding cable (6 AWG)
• 1 × 2.5 m RS‑485 communication cable (RJ45)
• 1 × 2.5 m CAN communication cable (RJ45)
• 1 × 1.5 m stack‑link communication cable (RJ45)
• 4 × Waterproof terminal covers (TSP120‑R)
• 2 × Waterproof RJ45 communication ports
• 8 × M8×60 expansion screws
• 1 × M5×10 hexagon socket screw
• 4 × M4×6 cross screws
• 4 × M6×16 pan-head cross screws
• 5 × Plastic cross screws (for handle covers)

Wall mounting your Pelio batteries with this kit delivers strength, organisation, and certified safety in one package.
