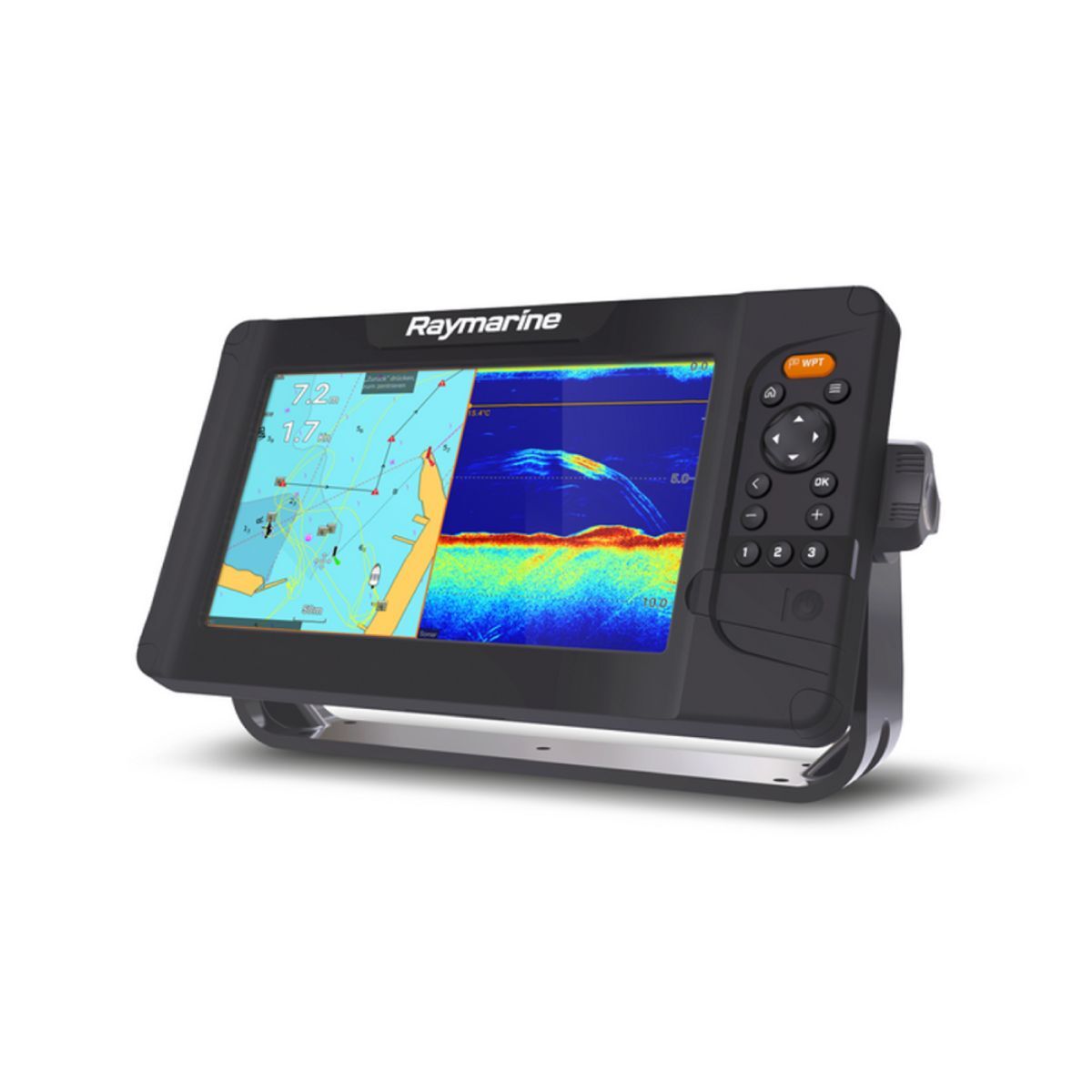

Element 7 S - 7" Chart Plotter with Wi-Fi & GPS, Australia & New Zealand LightHouse Chart & No Transducer.

The Raymarine ELEMENT S series represents a breakthrough in the realm of marine navigation, offering a suite of chartplotters that combine performance, simplicity, and affordability. Available in 7, 9, and 12-inch display sizes, these devices are designed to be the perfect cruising companion for boaters and fishing enthusiasts.

Key Features:

  • Versatile Chart Compatibility:

    Supports Raymarine LightHouse™ charts, Navionics, and C-MAP, allowing users to choose the best nautical charts for their journey.

  • High CHIRP Sonar Integration:

    Built-in sonar provides clear depth readings and detailed images of the bottom contour, essential for safe navigation and locating fish.

  • RealBathy™ Personal Sonar Mapping:

    This feature enables boaters to create their own bathymetric charts of uncharted or poorly mapped waters.

  • Connectivity and Integration:

    Seamlessly connects with NMEA2000 compatible devices including AIS, autopilot systems, sailing instruments, engines, tanks, and VHF for a unified maritime network.

  • LightHouse Sport Operating System:

    Customizable and straightforward, offering easy navigation with an oversized waypoint key, three programmable quick keys, and live menus for on-the-fly adjustments.

  • Exceptional Display Quality:

    All-weather, sunlight-viewable displays provide clear visibility in any conditions.

  • Robust Performance:

    Powered by a quad-core processor for fast chart redraws and responsive overall performance.

  • Precision GPS/GNSS:

    Features a 10Hz GPS/GNSS sensor, ensuring rapid and accurate position updates.

  • Durable and Reliable:

    Rugged build quality, backed by Raymarine’s three-year warranty upon product registration.

Optional upgrades like the Quantum™ wireless radar enhance safety in busy waterways, making the ELEMENT S a truly comprehensive solution for modern boaters.

What's in the box?

Package contents

  1. Element display
  2. Surface mount gasket
  3. Suncover
  4. Trunnion knobs (x 2)
  5. Documentation
  6. Trunnion bracket
  7. Surface mount stainless steel fixings x 4 (M4 x 40 machine screw, M4 flat washer, M4 locking nut)
  8. Power / NMEA 2000 cable (includes 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).
Physical
Dimensions (Trunnion mount)

Element 7: Height:162.59 mm (6.40 in), Width: 263.85 mm (9.43 in), Depth: 149.40 mm (5.88 in)

Element 9: Height: 171 mm (6.73 in), Width: 308.4mm (12.14in), Depth: 149.40 mm (5.88 in)

Element 12: Height: 225.19 mm (8.87 in), Width: 373.40 mm (14.70 in), Depth: 149.40 mm (5.88 in)
Dimensions (surface mount)

Element 7: Height: 135.10 mm (5.32 in), Width: 239.60 mm (9.43 in), Depth: 149.40 mm (5.88 in)

Element 9: Height: 161.00 mm (6.34 in), Width: 286.50 mm (11.28 in), Depth: 149.40 mm (5.88 in)

Element 12: Height: 215.20 mm (8.47 in), Width: 357.20 mm (14.06 in), Depth: 149.40 mm (5.88 in)
Weight (display only)

Element 7: 1.0 Kg (2.2lbs)

Element 9: 1.3 Kg (2.86lbs)

Element 12: 2.0 Kg (4.4lbs)
LCD
Size (diagonal):

Element 7: 7.0"

Element 9: 9.0"

Element 12: 12.1"
Resolution

Element 7: WVGA 800 x 480

Element 9: WVGA 800 x 480

Element 12: WXGA 1280 x 800
Ratio

Element 7: 5:3

Element 9: 5:3

Element 12: 8:5
Viewing angle (T / B / L / R):

Element 7: 50° / 60° / 70° / 70°

Element 9: 50° / 70° / 70° / 70°

Element 12: 89° / 89° / 89° / 89°
Type

Element 7: TN (Twisted Nematic)

Element 9: TN (Twisted Nematic)

Element 12: IPS (In-Plane Switching)
Color depth

24-bit
Maximum Illumination

1500 nits / 1500 cd/m2
Power
Operating voltage range

8 V dc to 16 V dc (protected up to 32 V dc)
Power consumption (Approximate @ 12 V dc)

Element 7: 15 Watts

Element 9: 20 Watts

Element 12: 25 Watts
Nominal supply voltage

12 V dc
Fuse requirements

Inline fuse = 5 A, Thermal breaker = 3 A
LEN (NMEA 2000 Load Equivalency Number)

1 (Based on 9 V dc nominal voltage)
Data connections
SeaTalkng / NMEA 2000

1 x DeviceNet female connector built into power cable
2.4 GHz Wi-Fi

1 x 802.11/b/g/n
Transducer

1 x 15-pin connector
Storage
External

1 x MicroSDXC card slot
Environmental
Operating temperature range

-25°C (-13°F) to +55°C (+131°F)
Storage temperature range

-30°C (-22°F) to +70°C (+158°F)
Humidity

up to 93% @ 40°C (+104°F)
Waterproof rating

IPx6, IPx7
GPS Receiver
Position Accuracy

Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum

WGS-84 (alternatives can be selected on the MFD)
Channels

Multiple - ability to simultaneously track up to 28 satellites
Antenna

Internal - Ceramic chip mounted near top of unit
GNSS compatibility

GPS, GLONASS, Beidou
SBAS compatibility

EGNOS, GAGAN, MSAS, QZSS, WAAS
Signal Acquisition

Automatic
Almanac Update

Automatic
Receiver IC Sensitivity

165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
Operating frequency

1574 MHz to 1605 MHz
Cold start

< 2 minutes
Conformance
Standards

EN 60945:2002, EMC Directive 2014/30/EU, Australia and New Zealand C-Tick compliance level 2, Canadian RSS 247, FCC rules part 15
SKU RAY.E70531-00-ANZ
Model # E70531-00-ANZ
Brand Raymarine
Shipping Weight 3.1000kg
Shipping Width 0.240m
Shipping Height 0.062m
Shipping Length 0.135m
Shipping Cubic 0.002009000m3
Unit Of Measure ea
