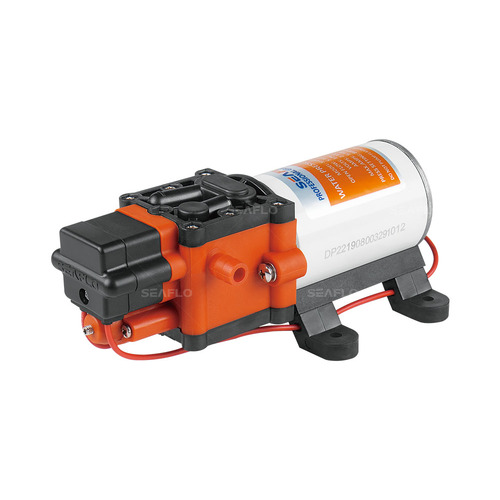

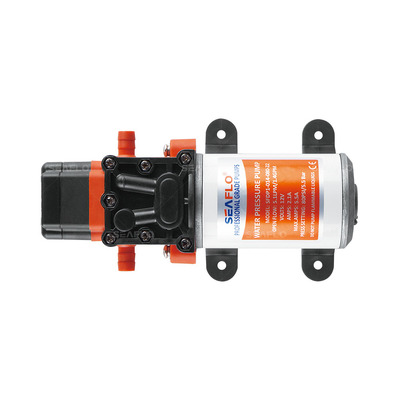

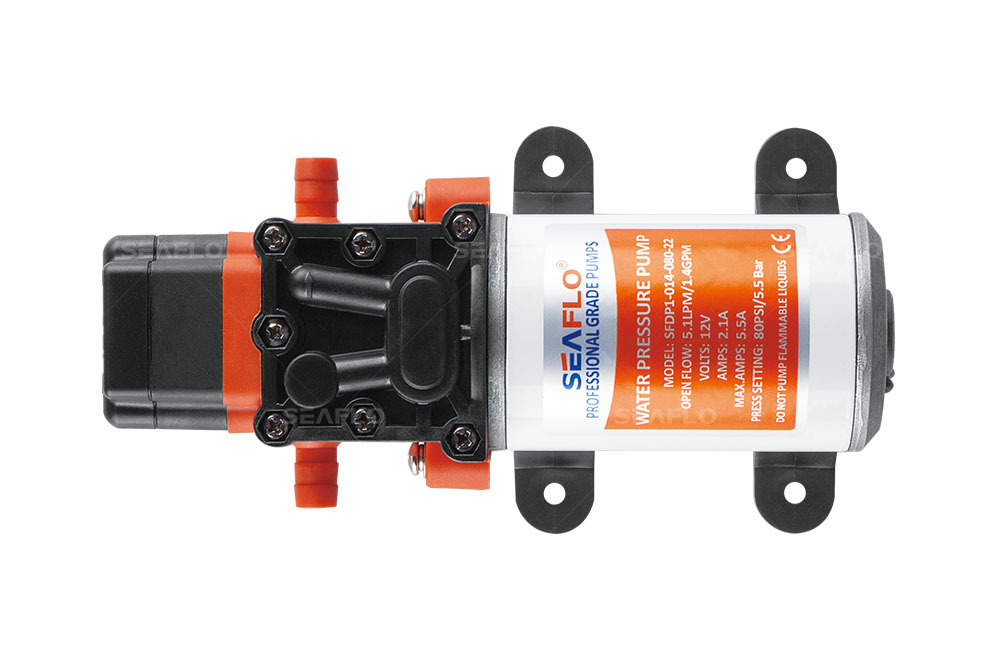

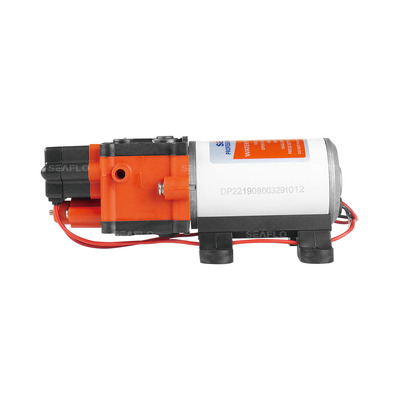

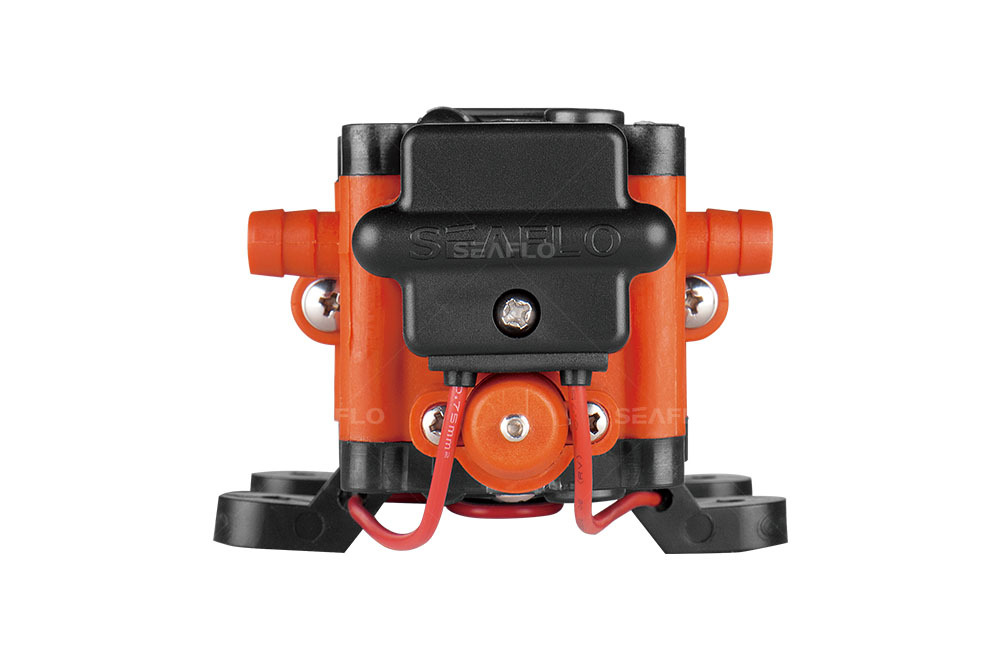

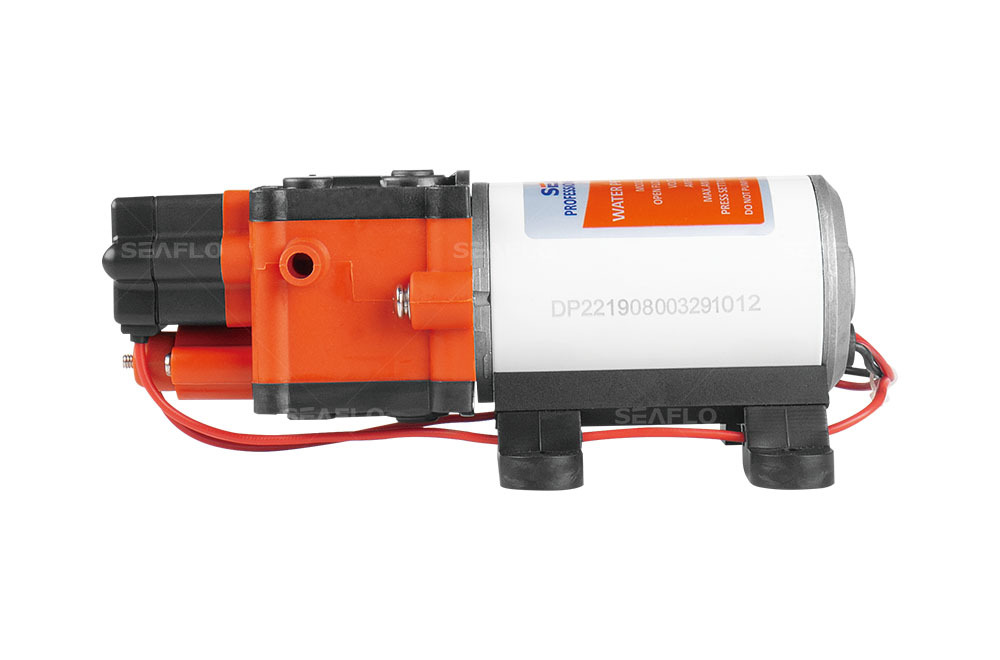

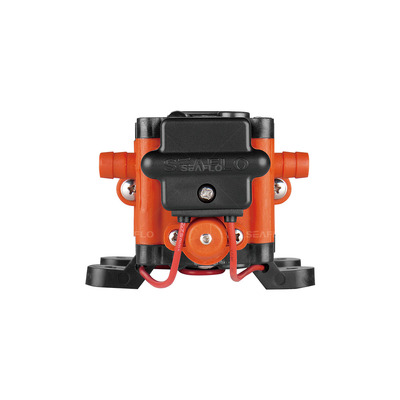

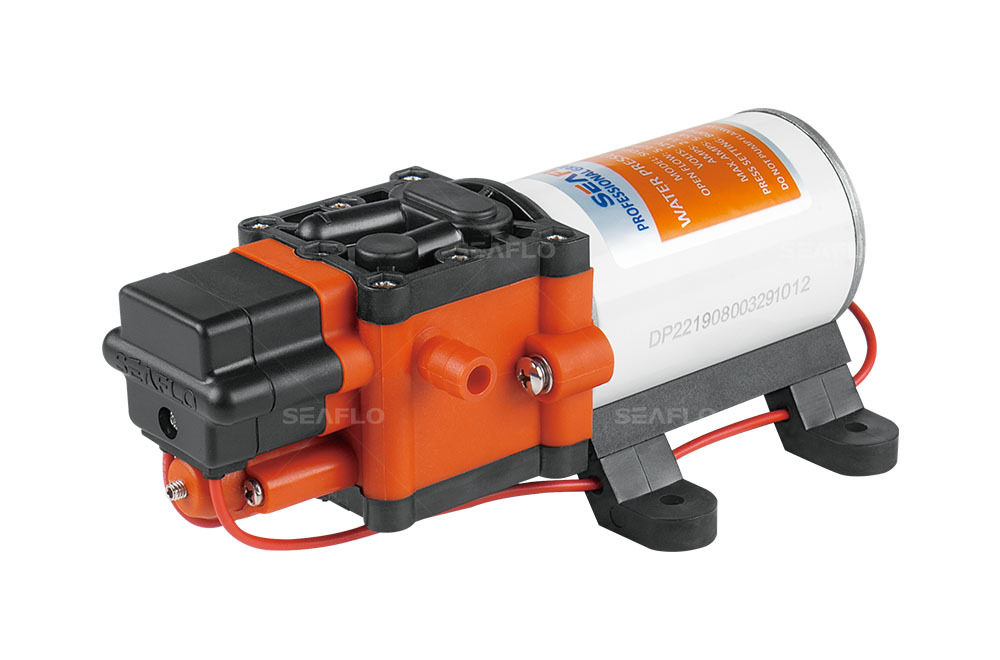

The 22-Series Pumps are compact and designed for a wide range of applications including liquid transfer, spraying, circulation, filtration, and dispensing. The 22-series of diaphragm pumps are self-priming, can be run dry without harm, and have an internal bypass feature that reduces pump cycling. It provides 5 litres per minute. Miniature multi-outlet water pressure pump serves 1 or 2 3/8” (10 mm) outlets at any one time. This compact automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when the faucet is opened and closed.

Features and Benefits

  • 2 chamber diaphragm pump
  • Capable of supplying 1-2 fixtures
  • Self-priming
  • Run dry safe
  • Adjustable pressure settings
  • 18AWG,9.5" long Leads
  • Ignition protected
  • Industry-standard mounting pattern
  • Meets or exceeds RoHS, SGS, and ISO standards
  • 3 Year Warranty

Suitable for

  • Yacht / RV / Caravan pressurised water system
  • Sprayer fixtures (vehicle-mounted sprayers, electric sprayers)
  • Cleaning machines, humidifier, water purification, medical apparatus
  • Food beverage filling & liquid transfer
  • Solar water system
  • Any other pressurisation system

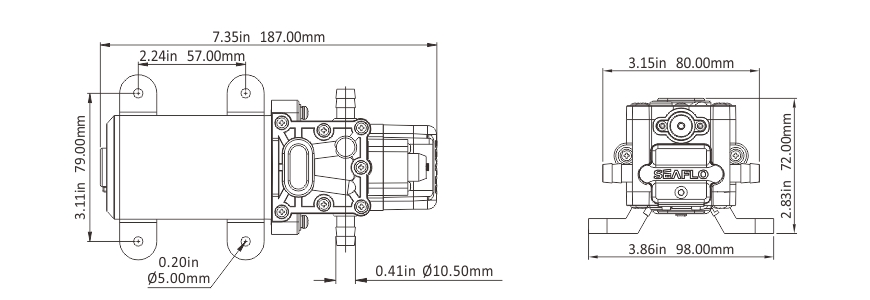

Dimensions



PUMP
Type 2 Chamber positive displacement diaphragm
pump, self priming, capable of being run dry
Control Type Pressure switch & By pass control
Max Recommended Temperature 60° C (140° F)
Priming Capabilities 6 feet (1.8 m) suction lift
Re-start Pressure Shut-off Pressure 100 PSI : 75 PSI ±5 PSI (±0.3 bar)
Inlet/Outlet Ports 3/8" (10 mm) hose barb
Weight 2.4 lbs (1.1 kg)



MOTOR
Leads 18 AWG, 10" (25 cm) long with 2-Pin connector / Leads
Duty Cycle Intermittent
Max. Draw 6.0 A
Fuse Amps 9.0 A



SKU SFL.SFDP1-013-100-22
Model # SFDP1-013-100-22
Brand SeaFlo
Shipping Weight 1.2000kg
Shipping Width 0.210m
Shipping Height 0.080m
Shipping Length 0.110m
Shipping Cubic 0.001848000m3
