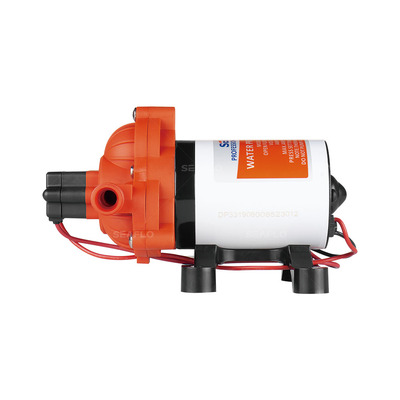

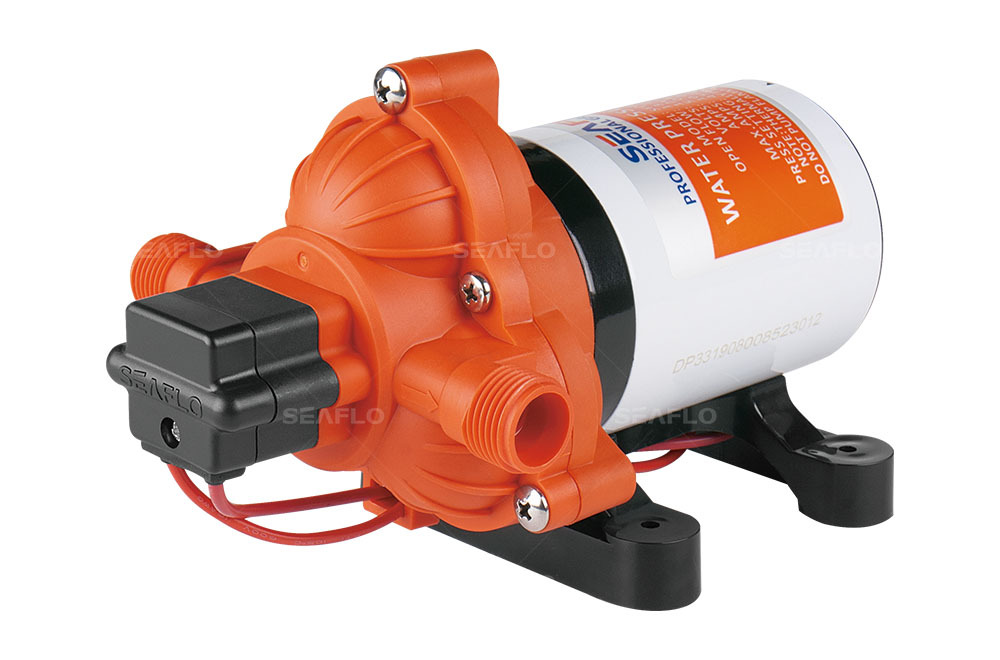

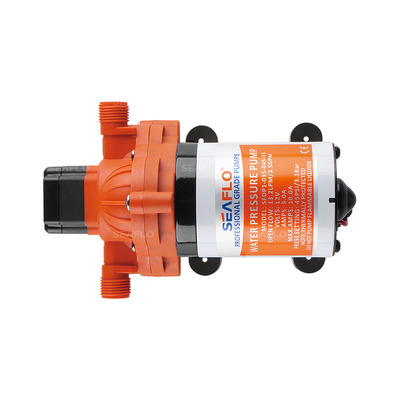

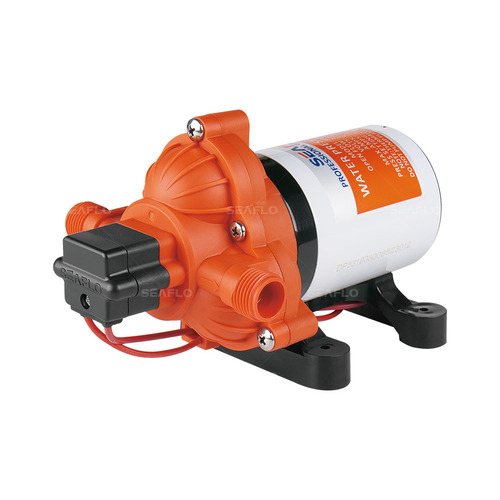

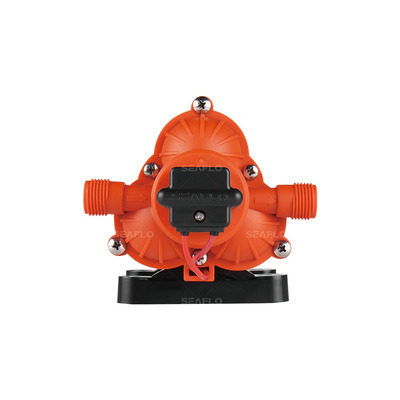

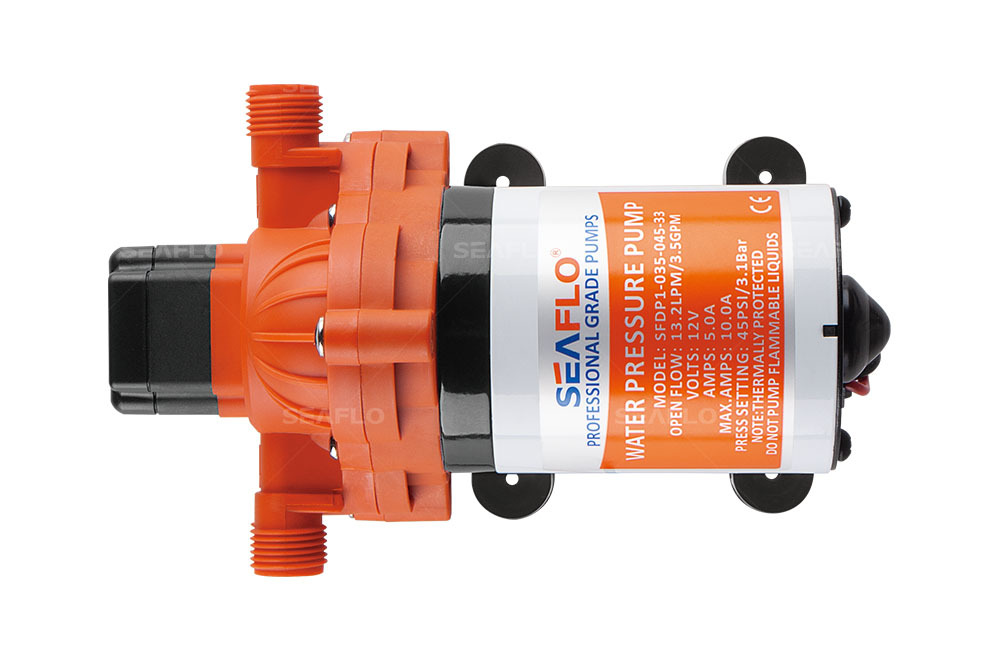

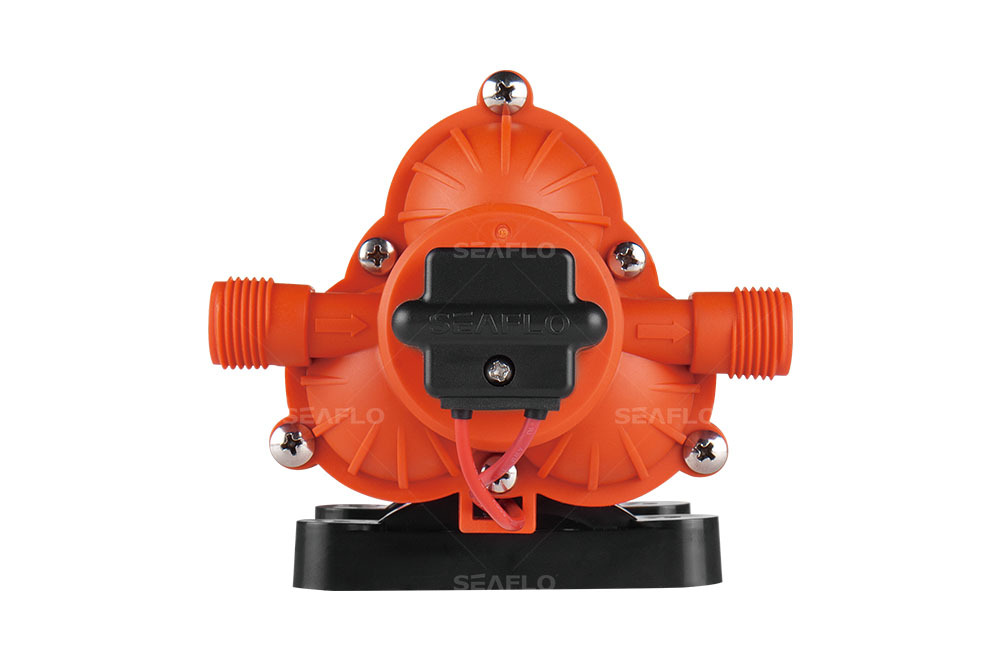

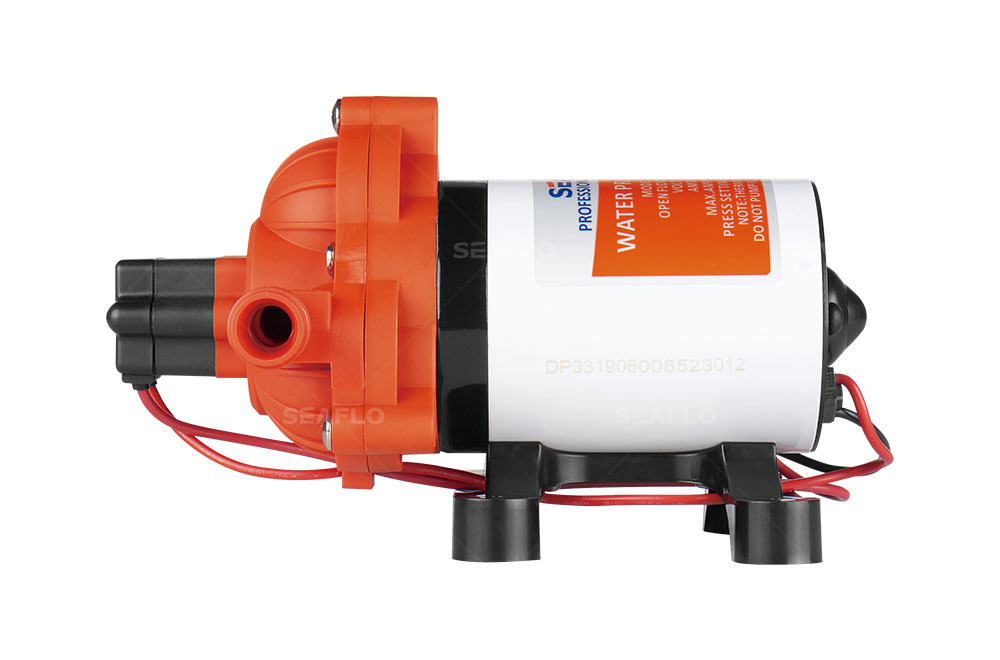

The 33-Series is Seaflos's general-duty on-demand positive displacement pump. It provides reliable performance in high water flow and moderate pressure applications. This 3-chamber diaphragm pump provides 11.3 litres per minute and is capable of self-priming up to 6vertical feet, and can run dry without damage. Serves 3 or more 1/2” (13 mm) outlets. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops when the faucet is opened and closed. They're easy to install and service.

Seaflo 33 Series Features and Benefits

  • On-demand use
  • Capable of supplying1-2 fixtures
  • Adjustable pressure switch
  • Continuous Duty and Run dry safe
  • Self-priming
  • 16AWG,4.5＂long Leads
  • Meets or exceeds RoHS, SGS, and ISO standards
  • 3 Year Warranty

Suitable for

  • Yacht / RV / Caravan pressurised water system
  • Sprayer fixtures (vehicle-mounted sprayers, electric sprayers)
  • Cleaning machines, humidifier, water purification, medical apparatus
  • Food beverage filling & liquid transfer
  • Solar water system
  • Any other pressurisation system

Dimensions



PUMP
Type 3 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
Control Type Pressure switch
Max Recommended Temperature 60° C（140° F）
Priming Capabilities 6 feet (1.8 m) suction lift
Re-start Pressure Shut-off Pressure 45 PSI : 35 PSI ±5 PSI (±0.3 bar)
Inlet/Outlet Ports 1/2"-14 MNPT
Weight 4.2 lbs (1.9 kg)



MOTOR
Leads 16 AWG, 13" (33 cm) long with 2-Pin connector / Leads
Duty Cycle Intermittent
Max.Amp Draw 8.0 A
Fuse 12.0 A



SKU SFL.SFDP1-030-045-33
Model # SFDP1-030-045-33
UPC/EAN 6971170930661
Brand SeaFlo
Shipping Weight 2.0000kg
